Toyota Pickup

1978-08 → 1983-07 · chassis RN3#,4#,LN40 · catalogue 671430 · United States

Discontinued model Data version 1984-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

8 part groups · 3 illustrations

Illustrations

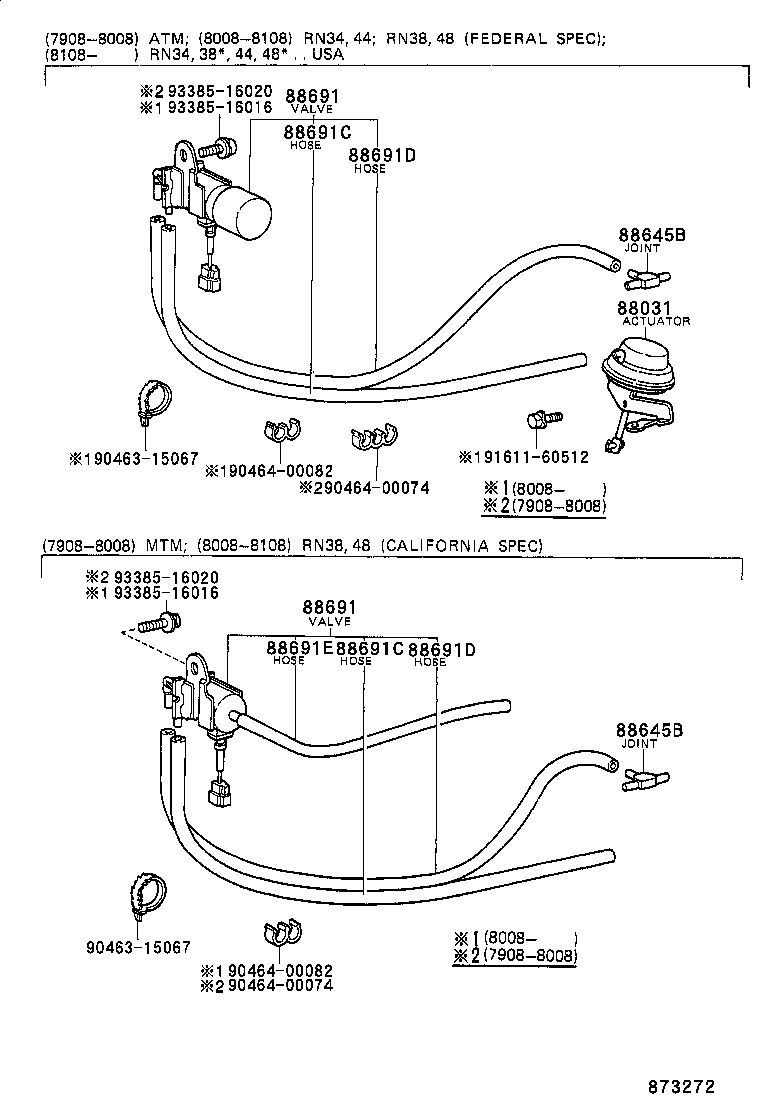

Figure ME7650B ME7650B 1978-08 → 1979-08 Figure 873272 873272 1979-08 → — Figure MEA456 MEA456 1981-01 → —

Part groups

PNCDescription
88031 Actuator Set, Idle-up
88603 Wire, Idle UP Device
88645A Union (FOR IDLE UP DEVICE)
88645B Joint, NO.1 (FOR IDLE UP DIVICE)
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
88691D Hose, Vacuum (FOR IDLE UP DIVICE), NO.2
88691E Hose, Vacuum (FOR IDLE UP DIVICE), NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
