Toyota 4-Runner Truck
1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · United States
Discontinued model
Data version 1989-05

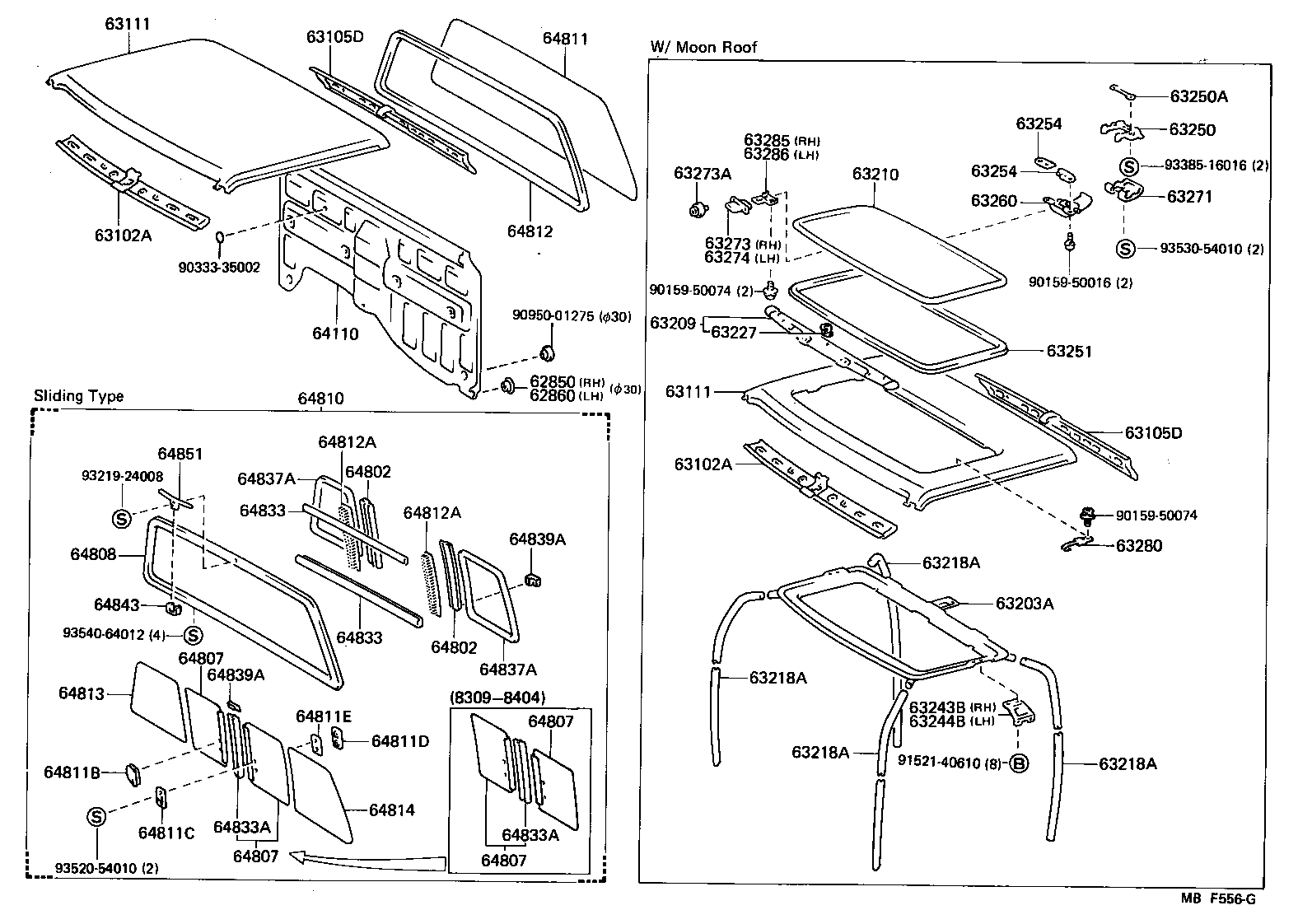

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 62850 — Valve Assy, Room Pressure Relief, RH | ||||
| 62850-89101 |
Valve Assy, Room Pressure Relief, RH
1983-08 → 1988-08
ended
|
LN5#,6#,RN5#,6#,7#,VZN6# T1 | — | |
| 62860 — Valve Assy, Room Pressure Relief, LH | ||||
| 62850-89101 |
Valve Assy, Room Pressure Relief, LH
1983-08 → 1988-08
ended
|
LN5#,6#,RN5#,6#,7#,VZN6# T1 | — | |
| 63102A — Panel Sub-assy, Windshield Header | ||||
| 63102-89102 |
Panel Sub-assy, Windshield Header
1983-08 → 1984-03
ended
|
RN60 IV;LN5#,65,RN5#,65;RN60 (DLX,STD) CBU | — | |
| 63102-89103 |
Panel Sub-assy, Windshield Header
1984-03 → 1989-03
ended
|
RN60,61,VZN61 V,WG | — | |
| 63102-89104 |
Panel Sub-assy, Windshield Header
1984-03 → 1988-08
ended
|
LN5#,6#,RN5#,6#,7#,VZN6# T1 | — | |
| 63105D — Frame Sub-assy, Back Window, Upper | ||||
| 63105-89101 |
Frame Sub-assy, Back Window, Upper
1983-08 → 1988-08
ended
|
LN5#,65,RN5#,6#,75,VZN6# RCB | — | |
| 63105-89102 |
Frame Sub-assy, Back Window, Upper
1983-09 → 1988-08
ended
|
LN56,6#,RN55,65,66,70,VZN66 XTR | — | |
| 63105-89104 |
Frame Sub-assy, Back Window, Upper
1984-03 → 1989-03
ended
|
RN60,61,VZN61 V,WG | — | |
| 63105-89105 note |
Frame Sub-assy, Back Window, Upper
1984-03 → 1989-03
ended
|
RN60,61,VZN61 (V,WG) (SR5,SRT) | — | |
| 63135-89101 note |
Frame Sub-assy, Back Window, Upper
1983-08 → 1988-08
ended
|
RN5#,6#,VZN61 RCB SR5 | — | |
| 63111 — Panel, Roof | ||||
| 63111-89109 |
Panel, Roof
1983-08 → 1988-08
ended
|
LN5#,65,RN5#,6#,75,VZN6# RCB | — | |
| 63111-89110 note |
Panel, Roof
1983-08 → 1988-08
ended
|
RN5#,6#,VZN61 RCB SR5 | — | |
| 63111-89111 |
Panel, Roof
1983-09 → 1988-08
ended
|
LN56,6#,RN55,65,66,70,VZN66 XTR | — | |
| 63111-89112 note |
Panel, Roof
1983-09 → 1988-08
ended
|
RN55,65,66,VZN66 XTR (SR5,SRT) | — | |
| 63111-89113 note |
Panel, Roof
1983-09 → 1988-08
ended
|
LN56,6#,RN55,65,66,70,VZN66 XTR (DLX,SR5,SRT) | — | |
| 63111-89114 note |
Panel, Roof
1983-09 → 1988-08
ended
|
RN55,65,66,VZN66 XTR (SR5,SRT) | — | |
| 63111-89116 |
Panel, Roof
1984-03 → 1989-03
ended
|
RN60,61,VZN61 V,WG | — | |
| 63111-89117 note |
Panel, Roof
1984-03 → 1989-03
ended
|
RN60,61,VZN61 (V,WG) (SR5,SRT) | — | |
| 63203A — Housing Sub-assy, Sliding Roof OR Removable Roof | ||||
| 63203-89102 |
Housing Sub-assy, Sliding Roof OR Removable Roof
1983-09 → 1988-08
ended
|
RN55,65,66,VZN66 XTR (SR5,SRT) | — | |
| 63203-89104 |
Housing Sub-assy, Sliding Roof OR Removable Roof
1983-08 → 1988-08
ended
|
RN5#,6#,VZN61 RCB SR5 | — | |
| 63203-89105 |
Housing Sub-assy, Sliding Roof OR Removable Roof
1984-03 → 1989-03
ended
|
RN60,61,VZN61 (V,WG) (SR5,SRT) | — | |
| 63209 — Panel Sub-assy, Roof Wind Deflector | ||||
| 63209-89102 |
Panel Sub-assy, Roof Wind Deflector
1983-08 → 1989-03
ended
|
RN5#,6#,VZN6# SR5,SRT | — | |
| 63210 — Glass Sub-assy, Sliding Roof OR Removable Roof | ||||
| 63201-89104 |
Glass Sub-assy, Sliding Roof OR Removable Roof
1983-08 → 1989-03
ended
|
RN5#,6#,VZN6# SR5,SRT | — | |
| 63218A — Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-89101 note |
Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1983-08 → 1989-03
ended
|
RN5#,6#,VZN61 SR5,SRT | — | |
| 63249-89102 note |
Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1984-03 → 1985-08
ended
|
RN60 (V,WG) SR5 | — | |
| 63249-89102 note |
Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1983-09 → 1989-03
ended
|
RN61,VZN61 (V,WG) SR5 | — | |
| 63249-89103 note |
Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1983-08 → 1988-08
ended
|
RN5#,6#,VZN61 RCB SR5 | — | |
| 63227 — Clip, Roof Wind Deflector Panel | ||||
| 63227-12011 |
Clip, Roof Wind Deflector Panel
1983-08 → 1989-03
ended
|
RN5#,6#,VZN6# SR5,SRT | — | |
| 63243B — Bracket, Removable Roof Housing Side Mounting, RH | ||||
| 63243-89102 |
Bracket, Removable Roof Housing Side Mounting, RH
1983-08 → 1988-08
ended
|
RN5#,6#,VZN6# (SR5,SRT) HLF | — | |
| 63244B — Bracket, Removable Roof Housing Side Mounting, LH | ||||
| 63243-89102 |
Bracket, Removable Roof Housing Side Mounting, LH
1983-08 → 1988-08
ended
|
RN5#,6#,VZN6# (SR5,SRT) HLF | — | |
| 63250 — Base Assy, Removable Roof Lock | ||||
| 63250-12010 |
Base Assy, Removable Roof Lock
1983-08 → 1989-03
ended
|
RN5#,6#,VZN6# SR5,SRT | — | |
| 63250A — Spacer, Removable Roof Lock Base | ||||
| 63277-89101 |
Spacer, Removable Roof Lock Base
1983-08 → 1989-03
ended
|
RN5#,6#,VZN6# SR5,SRT | — | |
| 63251 — Weatherstrip, Sliding Roof Panel OR Removable Roof | ||||
| 63252-89103 |
Weatherstrip, Sliding Roof Panel OR Removable Roof
1983-08 → 1989-03
ended
|
RN5#,6#,VZN6# SR5,SRT | — | |
| 63254 — Holder, Removable Roof Glass, Inner Rear | ||||
| 63254-89103 note |
Holder, Removable Roof Glass, Inner Rear
1983-08 → 1989-03
ended
|
RN5#,6#,VZN6# SR5,SRT | — | |
| 63254-89104 note |
Holder, Removable Roof Glass, Inner Rear
1983-08 → 1989-03
ended
|
RN5#,6#,VZN6# SR5,SRT | — | |
| 63260 — Handle Assy, Removable Roof Lock | ||||
| 63260-89103-03 note |
Handle Assy, Removable Roof Lock
1983-08 → 1983-12
ended
|
RN5#,65 SR5;RN60 SR5 IV | — | |
| 63260-89103-08 note |
Handle Assy, Removable Roof Lock
1983-08 → 1986-08
ended
|
RN5#,6# SR5,SRT | — | |
| 63260-89103-13 note |
Handle Assy, Removable Roof Lock
1983-12 → 1986-08
ended
|
RN5#,6# SR5,SRT | — | |
| 63260-89105-02 note |
Handle Assy, Removable Roof Lock
1986-08 → 1989-03
ended
|
RN55,6#,VZN6# SR5,SRT | — | |
| 63260-89105-03 note |
Handle Assy, Removable Roof Lock
1986-08 → 1989-03
ended
|
RN55,6#,VZN6# SR5,SRT | — | |
| 63260-89105-05 note |
Handle Assy, Removable Roof Lock
1986-08 → 1989-03
ended
|
RN55,6#,VZN6# SR5,SRT | — | |
| 63271 — Garnish, Removable Roof Lock | ||||
| 63271-10010-02 note |
Garnish, Removable Roof Lock
1986-08 → 1989-03
ended
|
RN55,6#,VZN6# SR5,SRT | — | |
| 63271-10010-03 note |
Garnish, Removable Roof Lock
1983-08 → 1986-08
ended
|
RN5#,6# SR5,SRT | — | |
| 63271-10010-05 note |
Garnish, Removable Roof Lock
1986-08 → 1989-03
ended
|
RN55,6#,VZN6# SR5,SRT | — | |
| 63271-10010-23 note |
Garnish, Removable Roof Lock
1986-08 → 1989-03
ended
|
RN55,6#,VZN6# SR5,SRT | — | |
| 63271-10010-28 note |
Garnish, Removable Roof Lock
1983-08 → 1986-08
ended
|
RN5#,6# SR5,SRT | — | |
| 63273 — Case, Removable Roof Hinge, RH | ||||
| 63273-12010 |
Case, Removable Roof Hinge, RH
1983-08 → 1989-03
ended
|
RN5#,6#,VZN6# SR5,SRT | — | |
| 63273A — Bolt, Removable Roof Hinge Case | ||||
| 63297-12010 |
Bolt, Removable Roof Hinge Case
1983-08 → 1989-03
ended
|
RN5#,6#,VZN6# SR5,SRT | — | |
| 63274 — Case, Removable Roof Hinge, LH | ||||
| 63274-12010 |
Case, Removable Roof Hinge, LH
1983-08 → 1989-03
ended
|
RN5#,6#,VZN6# SR5,SRT | — | |
| 63280 — Catch Assy, Removable Roof Auxiliary, LH | ||||
| 63280-89101 |
Catch Assy, Removable Roof Auxiliary, LH
1983-08 → 1989-03
ended
|
RN5#,6#,VZN6# SR5,SRT | — | |
| 63285 — Hinge, Removable Roof, RH | ||||
| 63285-89101 |
Hinge, Removable Roof, RH
1983-08 → 1988-08
ended
|
RN5#,6#,VZN6# SR5,SRT | — | |
| 63285-89102 |
Hinge, Removable Roof, RH
1988-08 → 1989-03
ended
|
RN61,VZN61 SR5 | — | |
| 63286 — Hinge, Removable Roof, LH | ||||
| 63286-89101 |
Hinge, Removable Roof, LH
1983-08 → 1988-08
ended
|
RN5#,6#,VZN6# SR5,SRT | — | |
| 63286-89102 |
Hinge, Removable Roof, LH
1988-08 → 1989-03
ended
|
RN61,VZN61 SR5 | — | |
| 64110 — Panel Assy, Front Body Back | ||||
| 64101-89120 |
Panel Assy, Front Body Back
1983-08 → 1985-08
ended
|
LN5#,65,RN5#,6# RCB | — | |
| 64101-89120 |
Panel Assy, Front Body Back
1985-08 → 1988-08
ended
|
LN56,RN5#,6#,75,VZN6# RCB (DLX,SDT,STD) | — | |
| 64101-89122 |
Panel Assy, Front Body Back
1983-09 → 1988-08
ended
|
LN56,6#,RN55,65,66,70,VZN66 XTR | — | |
| 64101-89127 |
Panel Assy, Front Body Back
1985-08 → 1988-08
ended
|
RN55,6#,VZN61 RCB SR5 | — | |
| 64802 — Frame Sub-assy, Back Window Fix | ||||
| 64881-89104 note |
Frame Sub-assy, Back Window Fix
1983-08 → 1986-08
ended
|
RN60,61 SDT,STD | — | |
| 64881-89104 note |
Frame Sub-assy, Back Window Fix
1983-08 → 1986-08
ended
|
RN55 (10T,3QT) USA | — | |
| 64881-89104 note |
Frame Sub-assy, Back Window Fix
1983-08 → 1986-08
ended
|
LN56,65,RN5#,6# RCB (DLX,SR5) HLF | — | |
| 64881-89104 note |
Frame Sub-assy, Back Window Fix
1985-08 → 1986-08
ended
|
RN55,75 HVY | — | |
| 64881-89104 note |
Frame Sub-assy, Back Window Fix
1986-08 → 1987-08
ended
|
RN61 USA CBR | — | |
| 64881-89104 note |
Frame Sub-assy, Back Window Fix
1986-08 → 1988-08
ended
|
LN56,RN5#,6#,75,VZN6# RCB (CBR,DSL,EFI) | — | |
| 64881-89105 note |
Frame Sub-assy, Back Window Fix
1983-09 → 1988-08
ended
|
LN56,6#,RN55,65,66,70,VZN66 XTR | — | |
| 64881-89105 note |
Frame Sub-assy, Back Window Fix
1986-08 → 1987-08
ended
|
RN61 USA CBR | — | |
| 64807 — Glass Sub-assy, Back Window Slide | ||||
| 64807-89105 note |
Glass Sub-assy, Back Window Slide
1983-08 → 1984-04
ended
|
RN60 STD | — | |
| 64807-89105 note |
Glass Sub-assy, Back Window Slide
1983-08 → 1984-04
ended
|
LN56,65,RN55,6# RCB DLX HLF | — | |
| 64807-89105 note |
Glass Sub-assy, Back Window Slide
1983-08 → 1984-04
ended
|
RN55 3QT USA | — | |
| 64807-89106 note |
Glass Sub-assy, Back Window Slide
1983-08 → 1984-04
ended
|
RN60 STD | — | |
| 64807-89106 note |
Glass Sub-assy, Back Window Slide
1983-08 → 1984-04
ended
|
RN55 3QT USA | — | |
| 64807-89106 note |
Glass Sub-assy, Back Window Slide
1983-08 → 1984-04
ended
|
LN56,65,RN55,6# RCB DLX HLF | — | |
| 64807-89107 note |
Glass Sub-assy, Back Window Slide
1983-08 → 1984-04
ended
|
RN60 SR5 IV;RN60 HLF +4 | — | |
| 64807-89108 note |
Glass Sub-assy, Back Window Slide
1983-08 → 1984-04
ended
|
RN60 SR5 IV;RN60 HLF +4 | — | |
| 64807-89109 note |
Glass Sub-assy, Back Window Slide
1983-09 → 1984-04
ended
|
LN56,65,RN55,65 XTR DLX | — | |
| 64807-89110 note |
Glass Sub-assy, Back Window Slide
1983-09 → 1984-04
ended
|
LN56,65,RN55,65 XTR DLX | — | |
| 64807-89111 note |
Glass Sub-assy, Back Window Slide
1983-09 → 1984-04
ended
|
LN56,65,RN55,65 XTR | — | |
| 64807-89112 note |
Glass Sub-assy, Back Window Slide
1983-09 → 1984-04
ended
|
LN56,65,RN55,65 XTR | — | |
| 64807-89113 note |
Glass Sub-assy, Back Window Slide
1983-09 → 1984-04
ended
|
RN55,65 XTR SR5 | — | |
| 64807-89114 note |
Glass Sub-assy, Back Window Slide
1983-09 → 1984-04
ended
|
RN55,65 XTR SR5 | — | |
| 64807-89115 note |
Glass Sub-assy, Back Window Slide
1985-08 → 1986-08
ended
|
RN55 DLX;LN56,RN55,75 (DLX,STD) (HLF,HVY) +1 | — | |
| 64807-89115 note |
Glass Sub-assy, Back Window Slide
1985-08 → 1986-08
ended
|
RN6# RCB (DLX,SDT,STD) | — | |
| 64807-89115 note |
Glass Sub-assy, Back Window Slide
1984-04 → 1986-08
ended
|
RN55 (10T,3QT) USA | — | |
| 64807-89115 note |
Glass Sub-assy, Back Window Slide
1986-08 → 1988-08
ended
|
LN56,RN5#,6#,75,VZN6# RCB (DLX,SDT,STD) | — | |
| 64807-89115 note |
Glass Sub-assy, Back Window Slide
1984-04 → 1985-08
ended
|
LN56,65,RN55,6# RCB DLX HLF | — | |
| 64807-89115 note |
Glass Sub-assy, Back Window Slide
1984-04 → 1985-08
ended
|
RN60 STD | — | |
| 64807-89116 note |
Glass Sub-assy, Back Window Slide
1984-04 → 1985-08
ended
|
LN56,65,RN55,6# RCB DLX HLF | — | |
| 64807-89116 note |
Glass Sub-assy, Back Window Slide
1984-04 → 1985-08
ended
|
RN60 STD | — | |
| 64807-89116 note |
Glass Sub-assy, Back Window Slide
1984-04 → 1986-08
ended
|
RN55 (10T,3QT) USA | — | |
| 64807-89116 note |
Glass Sub-assy, Back Window Slide
1985-08 → 1986-08
ended
|
RN6# RCB (DLX,SDT,STD) | — | |
| 64807-89116 note |
Glass Sub-assy, Back Window Slide
1985-08 → 1986-08
ended
|
RN55 DLX;LN56,RN55,75 (DLX,STD) (HLF,HVY) +1 | — | |
| 64807-89116 note |
Glass Sub-assy, Back Window Slide
1986-08 → 1988-08
ended
|
LN56,RN5#,6#,75,VZN6# RCB (DLX,SDT,STD) | — | |
| 64807-89117 note |
Glass Sub-assy, Back Window Slide
1985-08 → 1986-08
ended
|
RN6# RCB (DLX,SDT,STD) | — | |
| 64807-89117 note |
Glass Sub-assy, Back Window Slide
1986-08 → 1988-08
ended
|
RN6#,75,VZN66 RCB DLX CND | — | |
| 64807-89117 note |
Glass Sub-assy, Back Window Slide
1986-08 → 1988-08
ended
|
RN55 STD HLF CND +3 | — | |
| 64807-89117 note |
Glass Sub-assy, Back Window Slide
1985-08 → 1986-08
ended
|
RN55,6# RCB SR5 | — | |
| 64807-89117 note |
Glass Sub-assy, Back Window Slide
1985-08 → 1986-08
ended
|
RN55 DLX;LN56,RN55,75 (DLX,STD) (HLF,HVY) +1 | — | |
| 64807-89117 note |
Glass Sub-assy, Back Window Slide
1984-08 → 1985-08
ended
|
RN60 CBR IV;RN55 STD +1 | — | |
| 64807-89117 note |
Glass Sub-assy, Back Window Slide
1985-08 → 1986-08
ended
|
RN55 10T USA | — | |
| 64807-89118 note |
Glass Sub-assy, Back Window Slide
1986-08 → 1988-08
ended
|
RN55 STD HLF CND +3 | — | |
| 64807-89118 note |
Glass Sub-assy, Back Window Slide
1986-08 → 1988-08
ended
|
RN6#,75,VZN66 RCB DLX CND | — | |
| 64807-89118 note |
Glass Sub-assy, Back Window Slide
1985-08 → 1986-08
ended
|
RN6# RCB (DLX,SDT,STD) | — | |
| 64807-89118 note |
Glass Sub-assy, Back Window Slide
1985-08 → 1986-08
ended
|
RN55,6# RCB SR5 | — | |
| 64807-89118 note |
Glass Sub-assy, Back Window Slide
1985-08 → 1986-08
ended
|
RN55 DLX;LN56,RN55,75 (DLX,STD) (HLF,HVY) +1 | — | |
| 64807-89118 note |
Glass Sub-assy, Back Window Slide
1984-08 → 1985-08
ended
|
RN60 CBR IV;RN55 STD +1 | — | |
| 64807-89118 note |
Glass Sub-assy, Back Window Slide
1985-08 → 1986-08
ended
|
RN55 10T USA | — | |
| 64807-89119 note |
Glass Sub-assy, Back Window Slide
1984-04 → 1988-08
ended
|
LN56,6#,RN55,65,66,70,VZN66 XTR (DLX,STD) | — | |
| 64807-89120 note |
Glass Sub-assy, Back Window Slide
1984-04 → 1988-08
ended
|
LN56,6#,RN55,65,66,70,VZN66 XTR (DLX,STD) | — | |
| 64807-89121 note |
Glass Sub-assy, Back Window Slide
1984-04 → 1988-08
ended
|
LN56,6#,RN55,65,66,70,VZN66 XTR | — | |
| 64807-89122 note |
Glass Sub-assy, Back Window Slide
1984-04 → 1988-08
ended
|
LN56,6#,RN55,65,66,70,VZN66 XTR | — | |
| 64807-89123 note |
Glass Sub-assy, Back Window Slide
1984-04 → 1988-08
ended
|
RN55,65,66,VZN66 XTR (SR5,SRT) | — | |
| 64807-89124 note |
Glass Sub-assy, Back Window Slide
1984-04 → 1988-08
ended
|
RN55,65,66,VZN66 XTR (SR5,SRT) | — | |
| 64808 — Channel Sub-assy, Back Window Slide Glass | ||||
| 64808-89103 note |
Channel Sub-assy, Back Window Slide Glass
1985-08 → 1986-08
ended
|
RN55,75 HVY | — | |
| 64808-89103 note |
Channel Sub-assy, Back Window Slide Glass
1986-08 → 1988-08
ended
|
LN56,RN5#,6#,75,VZN6# RCB (CBR,DSL,EFI) | — | |
| 64808-89103 note |
Channel Sub-assy, Back Window Slide Glass
1986-08 → 1987-08
ended
|
RN61 HLF TBO | — | |
| 64808-89103 note |
Channel Sub-assy, Back Window Slide Glass
1983-08 → 1986-08
ended
|
LN56,65,RN5#,6# RCB (DLX,SR5) HLF | — | |
| 64808-89103 note |
Channel Sub-assy, Back Window Slide Glass
1983-08 → 1986-08
ended
|
RN55 (10T,3QT) USA | — | |
| 64808-89103 note |
Channel Sub-assy, Back Window Slide Glass
1983-08 → 1986-08
ended
|
RN60,61 SDT,STD | — | |
| 64808-89104 note |
Channel Sub-assy, Back Window Slide Glass
1986-08 → 1987-08
ended
|
RN61 HLF TBO | — | |
| 64808-89104 note |
Channel Sub-assy, Back Window Slide Glass
1983-09 → 1988-08
ended
|
LN56,6#,RN55,65,66,70,VZN66 XTR | — | |
| 64810 — Window Assy, Back | ||||
| 64810-89104 note |
Window Assy, Back
1983-08 → 1985-08
ended
|
RN60 (DLX,STD) HLF | — | |
| 64810-89104 note |
Window Assy, Back
1983-08 → 1985-08
ended
|
LN56,65,RN55,65 RCB DLX HLF | — | |
| 64810-89104 note |
Window Assy, Back
1983-08 → 1986-08
ended
|
RN55 (10T,3QT) USA | — | |
| 64810-89104 note |
Window Assy, Back
1985-08 → 1986-08
ended
|
RN6# RCB (DLX,SDT,STD) | — | |
| 64810-89104 note |
Window Assy, Back
1985-08 → 1986-08
ended
|
RN55 DLX;LN56,RN55,75 (DLX,STD) (HLF,HVY) +1 | — | |
| 64810-89104 note |
Window Assy, Back
1986-08 → 1988-08
ended
|
LN56,RN5#,6#,75,VZN6# RCB (DLX,SDT,STD) | — | |
| 64810-89105 note |
Window Assy, Back
1986-08 → 1988-08
ended
|
RN55 STD HLF CND +3 | — | |
| 64810-89105 note |
Window Assy, Back
1986-08 → 1988-08
ended
|
RN6#,75,VZN66 RCB DLX CND | — | |
| 64810-89105 note |
Window Assy, Back
1985-08 → 1986-08
ended
|
RN55 DLX;LN56,RN55,75 (DLX,STD) (HLF,HVY) +1 | — | |
| 64810-89105 note |
Window Assy, Back
1985-08 → 1986-08
ended
|
RN55 10T USA | — | |
| 64810-89105 note |
Window Assy, Back
1983-08 → 1986-08
ended
|
RN5#,6# RCB SR5 | — | |
| 64810-89105 note |
Window Assy, Back
1983-08 → 1985-08
ended
|
LN56,65,RN55,6# RCB DLX | — | |
| 64810-89105 note |
Window Assy, Back
1985-08 → 1986-08
ended
|
RN6# RCB (DLX,SDT,STD) | — | |
| 64810-89106 note |
Window Assy, Back
1983-09 → 1988-08
ended
|
RN55,65,66,VZN66 XTR (SR5,SRT) | — | |
| 64810-89106 note |
Window Assy, Back
1983-09 → 1988-08
ended
|
LN56,6#,RN55,65,66,70,VZN66 XTR DLX | — | |
| 64810-89107 note |
Window Assy, Back
1983-09 → 1988-08
ended
|
RN55,65,66,VZN66 XTR (SR5,SRT) | — | |
| 64810-89108 note |
Window Assy, Back
1983-09 → 1988-08
ended
|
LN56,6#,RN55,65,66,70,VZN66 XTR (DLX,STD) | — | |
| 64811 — Glass, Back Window | ||||
| 64801-89101 note |
Glass, Back Window
1983-09 → 1988-08
ended
|
LN56,6#,RN55,65,66,70 XTR DLX | — | |
| 64801-89102 note |
Glass, Back Window
1983-09 → 1988-08
ended
|
LN56,6#,RN55,65,66,70,VZN66 XTR | — | |
| 64801-89103 note |
Glass, Back Window
1983-09 → 1988-08
ended
|
RN55,65,66,VZN66 XTR (SR5,SRT) | — | |
| 64811-89119 note |
Glass, Back Window
1983-08 → 1988-08
ended
|
LN5#,65,RN5#,6#,75,VZN6# RCB (DLX,SDT,STD) | — | |
| 64811-89120 note |
Glass, Back Window
1984-08 → 1988-08
ended
|
RN5#,75,VZN61 STD USA;RN55 STD +3 | — | |
| 64811-89120 note |
Glass, Back Window
1983-08 → 1988-08
ended
|
LN56,65,RN5#,6#,75,VZN6# RCB (DLX,SR5) | — | |
| 64811-89120 note |
Glass, Back Window
1986-08 → 1987-08
ended
|
RN61 HLF TBO | — | |
| 64811-89120 note |
Glass, Back Window
1985-08 → 1987-08
ended
|
RN61 USA CBR | — | |
| 64811-89120 note |
Glass, Back Window
1984-08 → 1985-08
ended
|
RN60 CBR IV | — | |
| 64811-89120 note |
Glass, Back Window
1984-01 → 1984-08
ended
|
RN50 4FC | — | |
| 64811-89121 note |
Glass, Back Window
1983-09 → 1988-08
ended
|
LN56,6#,RN55,65,66,70,VZN66 XTR DLX | — | |
| 64811-89122 note |
Glass, Back Window
1983-09 → 1988-08
ended
|
LN56,6#,RN55,65,66,70,VZN66 XTR | — | |
| 64811-89123 note |
Glass, Back Window
1983-09 → 1988-08
ended
|
RN55,65,66,VZN66 XTR (SR5,SRT) | — | |
| 64811B — Lock Assy, Back Window | ||||
| 69370-89102 note |
Lock Assy, Back Window
1983-08 → 1986-08
ended
|
RN55 (10T,3QT) USA | — | |
| 69370-89102 note |
Lock Assy, Back Window
1983-08 → 1986-08
ended
|
LN56,6#,RN5#,6#,70 (DLX,SR5,SRT) HLF | — | |
| 69370-89102 note |
Lock Assy, Back Window
1985-08 → 1986-08
ended
|
RN55,75 HVY | — | |
| 69370-89102 note |
Lock Assy, Back Window
1986-08 → 1988-08
ended
|
LN56,66,RN5#,6#,7#,VZN6# T1 | — | |
| 69370-89102 note |
Lock Assy, Back Window
1983-08 → 1986-08
ended
|
RN60,61 SDT,STD | — | |
| 64811C — Catch, Back Window Lock | ||||
| 69374-89102 note |
Catch, Back Window Lock
1986-08 → 1988-08
ended
|
LN56,66,RN5#,6#,7#,VZN6# T1 | — | |
| 69374-89102 note |
Catch, Back Window Lock
1985-08 → 1986-08
ended
|
RN55,75 HVY | — | |
| 69374-89102 note |
Catch, Back Window Lock
1983-08 → 1986-08
ended
|
LN56,6#,RN5#,6#,70 (DLX,SR5,SRT) HLF | — | |
| 69374-89102 note |
Catch, Back Window Lock
1983-08 → 1986-08
ended
|
RN55 (10T,3QT) USA | — | |
| 69374-89102 note |
Catch, Back Window Lock
1983-08 → 1986-08
ended
|
RN60,61 SDT,STD | — | |
| 64811D — Retainer, Back Window | ||||
| 69375-89102 note |
Retainer, Back Window
1983-08 → 1986-08
ended
|
RN60,61 SDT,STD | — | |
| 69375-89102 note |
Retainer, Back Window
1983-08 → 1986-08
ended
|
RN55 (10T,3QT) USA | — | |
| 69375-89102 note |
Retainer, Back Window
1983-08 → 1986-08
ended
|
LN56,6#,RN5#,6#,70 (DLX,SR5,SRT) HLF | — | |
| 69375-89102 note |
Retainer, Back Window
1985-08 → 1986-08
ended
|
RN55,75 HVY | — | |
| 69375-89102 note |
Retainer, Back Window
1986-08 → 1988-08
ended
|
LN56,66,RN5#,6#,7#,VZN6# T1 | — | |
| 64811E — Packing, Back Window Lock | ||||
| 69376-89102 note |
Packing, Back Window Lock
1983-08 → 1986-08
ended
|
RN60,61 SDT,STD | — | |
| 69376-89102 note |
Packing, Back Window Lock
1986-08 → 1988-08
ended
|
LN56,66,RN5#,6#,7#,VZN6# T1 | — | |
| 69376-89102 note |
Packing, Back Window Lock
1985-08 → 1986-08
ended
|
RN55,75 HVY | — | |
| 69376-89102 note |
Packing, Back Window Lock
1983-08 → 1986-08
ended
|
RN55 (10T,3QT) USA | — | |
| 69376-89102 note |
Packing, Back Window Lock
1983-08 → 1986-08
ended
|
LN56,6#,RN5#,6#,70 (DLX,SR5,SRT) HLF | — | |
| 64812 — Weatherstrip, Back Window Glass, NO.1 | ||||
| 64812-89106 |
Weatherstrip, Back Window Glass, NO.1
1983-08 → 1988-08
ended
|
LN5#,65,RN5#,6#,75,VZN6# RCB | — | |
| 64812-89107 |
Weatherstrip, Back Window Glass, NO.1
1983-09 → 1988-08
ended
|
LN56,6#,RN55,65,66,70,VZN66 XTR | — | |
| 64812A — Weatherstrip, Back Window Glass, NO.2 | ||||
| 64834-89101 note |
Weatherstrip, Back Window Glass, NO.2
1988-05 → 1988-08
ended
|
RN5#,6#,75,VZN6# RCB | — | |
| 64837-89102 note |
Weatherstrip, Back Window Glass, NO.2
1983-08 → 1986-08
ended
|
RN60,61 SDT,STD | — | |
| 64837-89102 note |
Weatherstrip, Back Window Glass, NO.2
1983-08 → 1986-08
ended
|
RN55 (10T,3QT) USA | — | |
| 64837-89102 note |
Weatherstrip, Back Window Glass, NO.2
1983-08 → 1986-08
ended
|
LN56,65,RN5#,6# RCB (DLX,SR5) HLF | — | |
| 64837-89102 note |
Weatherstrip, Back Window Glass, NO.2
1985-08 → 1986-08
ended
|
RN55,75 HVY | — | |
| 64837-89102 note |
Weatherstrip, Back Window Glass, NO.2
1986-08 → 1987-08
ended
|
RN61 HLF TBO | — | |
| 64837-89102 note |
Weatherstrip, Back Window Glass, NO.2
1986-08 → 1988-05
ended
|
LN56,RN5#,6#,75,VZN6# RCB (CBR,DSL,EFI) | — | |
| 64837-89104 note |
Weatherstrip, Back Window Glass, NO.2
1986-08 → 1987-08
ended
|
RN61 HLF TBO | — | |
| 64837-89104 note |
Weatherstrip, Back Window Glass, NO.2
1983-09 → 1988-08
ended
|
LN56,6#,RN55,65,66,70,VZN66 XTR | — | |
| 64813 — Glass, Back Window Corner, RH | ||||
| 64813-89101 note |
Glass, Back Window Corner, RH
1986-08 → 1988-08
ended
|
LN56,RN5#,6#,75,VZN6# RCB (DLX,SDT,STD) | — | |
| 64813-89101 note |
Glass, Back Window Corner, RH
1985-08 → 1986-08
ended
|
RN55 DLX;LN56,RN55,75 (DLX,STD) (HLF,HVY) +1 | — | |
| 64813-89101 note |
Glass, Back Window Corner, RH
1985-08 → 1986-08
ended
|
RN6# RCB (DLX,SDT,STD) | — | |
| 64813-89101 note |
Glass, Back Window Corner, RH
1983-08 → 1986-08
ended
|
RN55 (10T,3QT) USA | — | |
| 64813-89101 note |
Glass, Back Window Corner, RH
1983-08 → 1985-08
ended
|
LN56,65,RN55,6# RCB DLX HLF | — | |
| 64813-89101 note |
Glass, Back Window Corner, RH
1983-08 → 1985-08
ended
|
RN60 STD | — | |
| 64813-89102 note |
Glass, Back Window Corner, RH
1983-08 → 1985-08
ended
|
LN56,65,RN5#,6# RCB (DLX,SR5) HLF | — | |
| 64813-89102 note |
Glass, Back Window Corner, RH
1985-08 → 1986-08
ended
|
RN55 10T | — | |
| 64813-89102 note |
Glass, Back Window Corner, RH
1985-08 → 1986-08
ended
|
RN6# RCB (DLX,SDT,STD) | — | |
| 64813-89102 note |
Glass, Back Window Corner, RH
1985-08 → 1986-08
ended
|
RN55 DLX;LN56,RN55,75 (DLX,STD) (HLF,HVY) +1 | — | |
| 64813-89102 note |
Glass, Back Window Corner, RH
1985-08 → 1986-08
ended
|
RN55,6# RCB SR5 | — | |
| 64813-89102 note |
Glass, Back Window Corner, RH
1984-08 → 1985-08
ended
|
RN60 CBR IV;RN55 STD +1 | — | |
| 64813-89102 note |
Glass, Back Window Corner, RH
1986-08 → 1988-08
ended
|
RN55 STD HLF CND +3 | — | |
| 64813-89102 note |
Glass, Back Window Corner, RH
1986-08 → 1988-08
ended
|
RN6#,75,VZN66 RCB DLX CND | — | |
| 64813-89103 note |
Glass, Back Window Corner, RH
1983-09 → 1988-08
ended
|
LN56,6#,RN55,65,66,70,VZN66 XTR (DLX,STD) | — | |
| 64813-89104 note |
Glass, Back Window Corner, RH
1983-09 → 1988-08
ended
|
LN56,6#,RN55,65,66,70,VZN66 XTR | — | |
| 64813-89105 note |
Glass, Back Window Corner, RH
1983-09 → 1988-08
ended
|
RN55,65,66,VZN66 XTR (SR5,SRT) | — | |
| 64814 — Glass, Back Window Corner, LH | ||||
| 64814-89101 note |
Glass, Back Window Corner, LH
1986-08 → 1988-08
ended
|
LN56,RN5#,6#,75,VZN6# RCB (DLX,SDT,STD) | — | |
| 64814-89101 note |
Glass, Back Window Corner, LH
1983-08 → 1985-08
ended
|
LN56,65,RN55,6# RCB DLX HLF | — | |
| 64814-89101 note |
Glass, Back Window Corner, LH
1985-08 → 1986-08
ended
|
RN55 DLX;LN56,RN55,75 (DLX,STD) (HLF,HVY) +1 | — | |
| 64814-89101 note |
Glass, Back Window Corner, LH
1985-08 → 1986-08
ended
|
RN6# RCB (DLX,SDT,STD) | — | |
| 64814-89101 note |
Glass, Back Window Corner, LH
1983-08 → 1985-08
ended
|
RN60 STD | — | |
| 64814-89101 note |
Glass, Back Window Corner, LH
1983-08 → 1986-08
ended
|
RN55 (10T,3QT) USA | — | |
| 64814-89102 note |
Glass, Back Window Corner, LH
1984-08 → 1985-08
ended
|
RN60 CBR IV;RN55 STD +1 | — | |
| 64814-89102 note |
Glass, Back Window Corner, LH
1983-08 → 1985-08
ended
|
LN56,65,RN5#,6# RCB (DLX,SR5) HLF | — | |
| 64814-89102 note |
Glass, Back Window Corner, LH
1985-08 → 1986-08
ended
|
RN55 10T | — | |
| 64814-89102 note |
Glass, Back Window Corner, LH
1985-08 → 1986-08
ended
|
RN6# RCB (DLX,SDT,STD) | — | |
| 64814-89102 note |
Glass, Back Window Corner, LH
1985-08 → 1986-08
ended
|
RN55 DLX;LN56,RN55,75 (DLX,STD) (HLF,HVY) +1 | — | |
| 64814-89102 note |
Glass, Back Window Corner, LH
1985-08 → 1986-08
ended
|
RN55,6# RCB SR5 | — | |
| 64814-89102 note |
Glass, Back Window Corner, LH
1986-08 → 1988-08
ended
|
RN6#,75,VZN66 RCB DLX CND | — | |
| 64814-89102 note |
Glass, Back Window Corner, LH
1986-08 → 1988-08
ended
|
RN55 STD HLF CND +3 | — | |
| 64814-89103 note |
Glass, Back Window Corner, LH
1983-09 → 1988-08
ended
|
LN56,6#,RN55,65,66,70,VZN66 XTR (DLX,STD) | — | |
| 64814-89104 note |
Glass, Back Window Corner, LH
1983-09 → 1988-08
ended
|
LN56,6#,RN55,65,66,70,VZN66 XTR | — | |
| 64814-89105 note |
Glass, Back Window Corner, LH
1983-09 → 1988-08
ended
|
RN55,65,66,VZN66 XTR (SR5,SRT) | — | |
| 64833 — Weatherstrip, Back Window Channel | ||||
| 64833-89104 note |
Weatherstrip, Back Window Channel
1983-08 → 1986-08
ended
|
LN56,6#,RN5#,6#,70 (DLX,SR5,SRT) HLF | — | |
| 64833-89104 note |
Weatherstrip, Back Window Channel
1986-08 → 1988-08
ended
|
LN56,66,RN5#,6#,7#,VZN6# T1 | — | |
| 64833-89104 note |
Weatherstrip, Back Window Channel
1985-08 → 1986-08
ended
|
RN55,75 HVY | — | |
| 64833-89104 note |
Weatherstrip, Back Window Channel
1983-08 → 1986-08
ended
|
RN55 (10T,3QT) USA | — | |
| 64833-89104 note |
Weatherstrip, Back Window Channel
1983-08 → 1986-08
ended
|
RN60,61 SDT,STD | — | |
| 64833-89105 note |
Weatherstrip, Back Window Channel
1983-08 → 1986-08
ended
|
RN60,61 SDT,STD | — | |
| 64833-89105 note |
Weatherstrip, Back Window Channel
1983-08 → 1986-08
ended
|
RN55 (10T,3QT) USA | — | |
| 64833-89105 note |
Weatherstrip, Back Window Channel
1983-08 → 1986-08
ended
|
LN56,6#,RN5#,6#,70 T1 (DLX,SR5,SRT) | — | |
| 64833-89105 note |
Weatherstrip, Back Window Channel
1985-08 → 1986-08
ended
|
RN55,75 HVY | — | |
| 64833-89105 note |
Weatherstrip, Back Window Channel
1986-08 → 1988-08
ended
|
LN56,66,RN5#,6#,7#,VZN6# T1 | — | |
| 64833A — Weatherstrip, Back Window Center Channel | ||||
| 64833-89106 note |
Weatherstrip, Back Window Center Channel
1983-08 → 1984-04
ended
|
RN60 STD | — | |
| 64833-89106 note |
Weatherstrip, Back Window Center Channel
1983-08 → 1984-04
ended
|
RN55 3QT USA | — | |
| 64833-89106 note |
Weatherstrip, Back Window Center Channel
1983-08 → 1984-04
ended
|
RN60 SR5 IV;RN60 HLF +4 | — | |
| 64833-89107 note |
Weatherstrip, Back Window Center Channel
1983-09 → 1984-04
ended
|
LN56,65,RN55,65 XTR | — | |
| 64833-89110 note |
Weatherstrip, Back Window Center Channel
1986-08 → 1988-08
ended
|
LN56,RN5#,6#,75,VZN6# RCB | — | |
| 64833-89110 note |
Weatherstrip, Back Window Center Channel
1985-08 → 1986-08
ended
|
RN55,6# RCB SR5 | — | |
| 64833-89110 note |
Weatherstrip, Back Window Center Channel
1985-08 → 1986-08
ended
|
RN55 DLX;LN56,RN55,75 (DLX,STD) (HLF,HVY) +1 | — | |
| 64833-89110 note |
Weatherstrip, Back Window Center Channel
1984-04 → 1986-08
ended
|
RN55 (10T,3QT) USA | — | |
| 64833-89110 note |
Weatherstrip, Back Window Center Channel
1984-04 → 1985-08
ended
|
LN56,65,RN5#,6# RCB (DLX,SR5) HLF | — | |
| 64833-89110 note |
Weatherstrip, Back Window Center Channel
1984-04 → 1985-08
ended
|
RN60 STD | — | |
| 64833-89110 note |
Weatherstrip, Back Window Center Channel
1985-08 → 1986-08
ended
|
RN6# RCB (DLX,SDT,STD) | — | |
| 64833-89111 note |
Weatherstrip, Back Window Center Channel
1984-04 → 1988-08
ended
|
LN56,6#,RN55,65,66,70,VZN66 XTR | — | |
| 64837A — Weatherstrip, Back Window Corner | ||||
| 64837-89101 note |
Weatherstrip, Back Window Corner
1986-08 → 1988-08
ended
|
LN56,RN5#,6#,75,VZN6# RCB (CBR,DSL,EFI) | — | |
| 64837-89101 note |
Weatherstrip, Back Window Corner
1986-08 → 1987-08
ended
|
RN61 HLF TBO | — | |
| 64837-89101 note |
Weatherstrip, Back Window Corner
1985-08 → 1986-08
ended
|
RN55,75 HVY | — | |
| 64837-89101 note |
Weatherstrip, Back Window Corner
1983-08 → 1986-08
ended
|
RN55 (10T,3QT) USA | — | |
| 64837-89101 note |
Weatherstrip, Back Window Corner
1983-08 → 1986-08
ended
|
LN56,65,RN5#,6# RCB (DLX,SR5) HLF | — | |
| 64837-89101 note |
Weatherstrip, Back Window Corner
1983-08 → 1986-08
ended
|
RN60,61 SDT,STD | — | |
| 64837-89103 note |
Weatherstrip, Back Window Corner
1986-08 → 1987-08
ended
|
RN61 HLF TBO | — | |
| 64837-89103 note |
Weatherstrip, Back Window Corner
1983-09 → 1988-08
ended
|
LN56,6#,RN55,65,66,70,VZN66 XTR | — | |
| 64839A — Packing, Back Window | ||||
| 64839-89102 note |
Packing, Back Window
1986-08 → 1988-08
ended
|
LN56,66,RN5#,6#,7#,VZN6# T1 | — | |
| 64839-89102 note |
Packing, Back Window
1985-08 → 1986-08
ended
|
RN55,75 HVY | — | |
| 64839-89102 note |
Packing, Back Window
1983-08 → 1986-08
ended
|
LN56,6#,RN5#,6#,70 (DLX,SR5,SRT) HLF | — | |
| 64839-89102 note |
Packing, Back Window
1983-08 → 1986-08
ended
|
RN55 (10T,3QT) USA | — | |
| 64839-89102 note |
Packing, Back Window
1983-08 → 1986-08
ended
|
RN60,61 SDT,STD | — | |
| 64839-89103 note |
Packing, Back Window
1983-08 → 1986-08
ended
|
RN60,61 SDT,STD | — | |
| 64839-89103 note |
Packing, Back Window
1983-08 → 1986-08
ended
|
RN55 (10T,3QT) USA | — | |
| 64839-89103 note |
Packing, Back Window
1983-08 → 1986-08
ended
|
LN56,6#,RN5#,6#,70 (DLX,SR5,SRT) HLF | — | |
| 64839-89103 note |
Packing, Back Window
1986-08 → 1988-08
ended
|
LN56,66,RN5#,6#,7#,VZN6# T1 | — | |
| 64839-89103 note |
Packing, Back Window
1985-08 → 1986-08
ended
|
RN55,75 HVY | — | |
| 64839-89104 note |
Packing, Back Window
1986-08 → 1988-08
ended
|
LN56,66,RN5#,6#,7#,VZN6# T1 | — | |
| 64839-89104 note |
Packing, Back Window
1983-08 → 1986-08
ended
|
RN60,61 SDT,STD | — | |
| 64839-89104 note |
Packing, Back Window
1985-08 → 1986-08
ended
|
RN55,75 HVY | — | |
| 64839-89104 note |
Packing, Back Window
1983-08 → 1986-08
ended
|
LN56,6#,RN5#,6#,70 (DLX,SR5,SRT) HLF | — | |
| 64839-89104 note |
Packing, Back Window
1983-08 → 1986-08
ended
|
RN55 (10T,3QT) USA | — | |
| 64843 — Weatherstrip, Back Window Channel | ||||
| 64833-89109 note |
Weatherstrip, Back Window Channel
1983-08 → 1986-08
ended
|
RN60,61 SDT,STD | — | |
| 64833-89109 note |
Weatherstrip, Back Window Channel
1983-08 → 1986-08
ended
|
RN55 (10T,3QT) USA | — | |
| 64833-89109 note |
Weatherstrip, Back Window Channel
1983-08 → 1986-08
ended
|
LN56,6#,RN5#,6#,70 (DLX,SR5,SRT) HLF | — | |
| 64833-89109 note |
Weatherstrip, Back Window Channel
1985-08 → 1986-08
ended
|
RN55,75 HVY | — | |
| 64833-89109 note |
Weatherstrip, Back Window Channel
1986-08 → 1988-08
ended
|
LN56,66,RN5#,6#,7#,VZN6# T1 | — | |
| 64851 — Stop, Back Window Slide Glass | ||||
| 64851-89102 note |
Stop, Back Window Slide Glass
1983-08 → 1986-08
ended
|
RN60,61 SDT,STD | — | |
| 64851-89102 note |
Stop, Back Window Slide Glass
1983-08 → 1986-08
ended
|
RN55 (10T,3QT) USA | — | |
| 64851-89102 note |
Stop, Back Window Slide Glass
1983-08 → 1986-08
ended
|
LN56,6#,RN5#,6#,70 (DLX,SR5,SRT) HLF | — | |
| 64851-89102 note |
Stop, Back Window Slide Glass
1985-08 → 1986-08
ended
|
RN55,75 HVY | — | |
| 64851-89102 note |
Stop, Back Window Slide Glass
1986-08 → 1988-08
ended
|
LN56,66,RN5#,6#,7#,VZN6# T1 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
