Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · United States

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

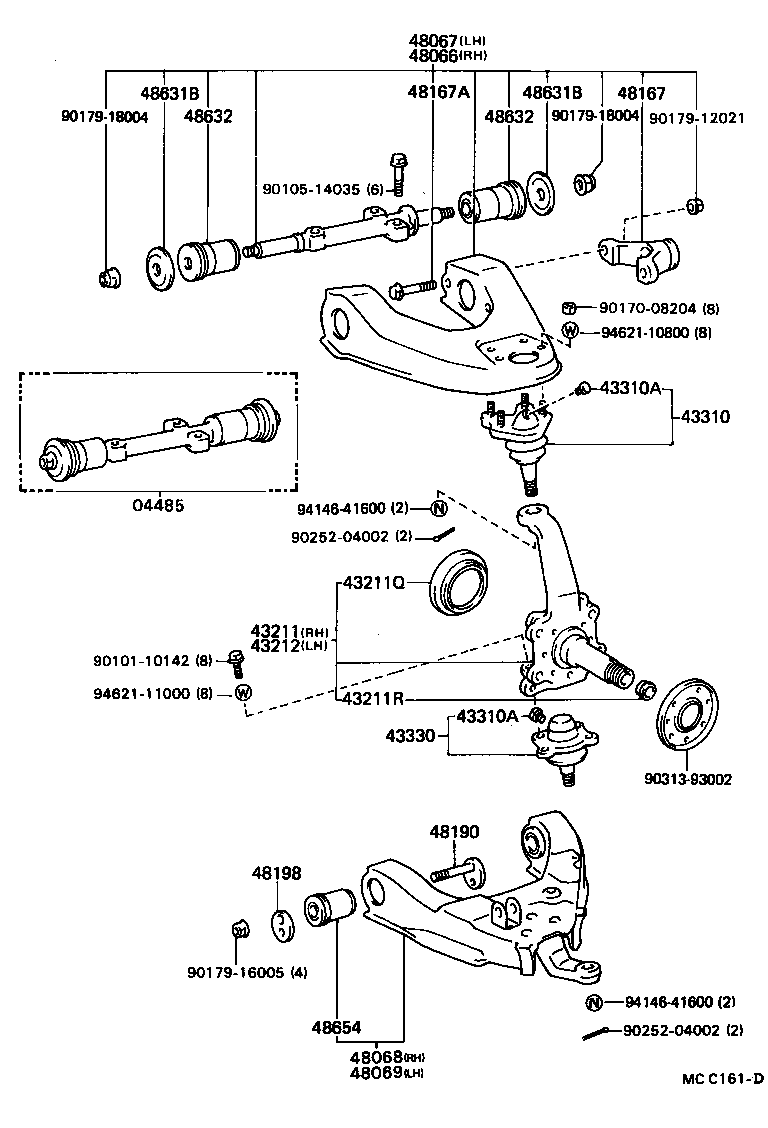

Exploded illustration MCC161D 48067 — ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH (3 parts) 48066 — ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH (3 parts) 48167A — BOLT(FOR TORQUE ARM SETTING) (3 parts) 48631B — RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) (3 parts) 48631B — RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) (3 parts) 48167 — ARM, TORQUE (3 parts) 48632 — BUSH, UPPER ARM (3 parts) 9017918004 — not listed in this catalogue 48632 — BUSH, UPPER ARM (3 parts) 9017918004 — not listed in this catalogue 9017912021 — not listed in this catalogue 9010514035 — not listed in this catalogue 9017008204 — not listed in this catalogue 9462110800 — not listed in this catalogue 43310A — PLUG (FOR BALL JOINT) (1 parts) 43310 — JOINT ASSY, UPPER BALL (3 parts) 04485 — SHAFT KIT, UPPER SUSPENSION ARM (2 parts) 9414641600 — not listed in this catalogue 9025204002 — not listed in this catalogue 43211Q — SEAL, OIL (FOR STEERING KNUCKLE) (2 parts) 43211 — KNUCKLE, STEERING, RH (5 parts) 43212 — KNUCKLE, STEERING, LH (5 parts) 9010110142 — not listed in this catalogue 9462111000 — not listed in this catalogue 43211R — BUSH (FOR STEERING KNUCKLE) (2 parts) 43310A — PLUG (FOR BALL JOINT) (1 parts) 43330 — JOINT ASSY, LOWER BALL, FRONT (4 parts) 9031393002 — not listed in this catalogue 48190 — CAM ASSY, CAMBER ADJUST (2 parts) 48198 — CAM, CAMBER ADJUST, NO.2 (1 parts) 9017916005 — not listed in this catalogue 9414641600 — not listed in this catalogue 48654 — BUSH, LOWER ARM (4 parts) 9025204002 — not listed in this catalogue 48068 — ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH (5 parts) 48069 — ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH (5 parts)
MCC161D · 22 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
59 parts on this figure
Part number Description Fitment Price
04485 — Shaft Kit, Upper Suspension Arm
04485-35030 Shaft Kit, Upper Suspension Arm
1983-08 → 1988-08 ended
LN5#,RN5#,7# —
04485-35040 Shaft Kit, Upper Suspension Arm
1985-08 → 1989-03 ended
LN66,RN6#,VZN6# —
43211 — Knuckle, Steering, RH
43201-35020 note Knuckle, Steering, RH
1985-08 → 1989-03 ended
LN66,RN6#,VZN6# —
43211-35070 Knuckle, Steering, RH
1984-08 → 1988-08 ended
LN5#,RN5#,7# —
43211-35070 Knuckle, Steering, RH
1983-08 → 1984-08 ended
RN55 3QT,HVY —
43211-35090 note Knuckle, Steering, RH
1983-08 → 1985-08 ended
LN65,RN6# —
43211-35100 Knuckle, Steering, RH
1983-08 → 1984-08 ended
LN5#,RN5# HLF —
43211Q — Seal, Oil (FOR STEERING KNUCKLE)
90316-60001 Seal, Oil (FOR STEERING KNUCKLE)
1985-08 → 1987-09 ended
LN66,RN6# —
90316-60002 Seal, Oil (FOR STEERING KNUCKLE)
1987-10 → 1989-03 ended
RN6#,VZN6# —
43211R — Bush (FOR STEERING KNUCKLE)
90381-30003 note Bush (FOR STEERING KNUCKLE)
1985-08 → 1989-03 ended
LN66,RN6#,VZN6# —
90999-70068 note Bush (FOR STEERING KNUCKLE)
1985-08 → 1989-03 ended
LN66,RN6#,VZN6# —
43212 — Knuckle, Steering, LH
43202-35010 note Knuckle, Steering, LH
1985-08 → 1989-03 ended
LN66,RN6#,VZN6# —
43212-35040 Knuckle, Steering, LH
1983-08 → 1984-08 ended
RN55 3QT,HVY —
43212-35040 Knuckle, Steering, LH
1984-08 → 1988-08 ended
LN5#,RN5#,7# —
43212-35050 note Knuckle, Steering, LH
1983-08 → 1985-08 ended
LN65,RN6# —
43212-35060 Knuckle, Steering, LH
1983-08 → 1984-08 ended
LN5#,RN5# HLF —
43310 — Joint Assy, Upper Ball
43350-39035 Joint Assy, Upper Ball
1983-08 → 1988-08 ended
LN5#,RN5#,7# —
43350-39045 note Joint Assy, Upper Ball
1985-08 → 1989-03 ended
LN66,RN6#,VZN6# —
43360-39075 note Joint Assy, Upper Ball
1985-08 → 1989-03 ended
LN66,RN6#,VZN6# —
43310A — Plug (FOR BALL JOINT)
90345-06014 Plug (FOR BALL JOINT)
1983-08 → 1989-03 ended
LN5#,66,RN5#,61,66,7#,VZN6# —
43330 — Joint Assy, Lower Ball, Front
43330-39165 note Joint Assy, Lower Ball, Front
1983-08 → 1988-08 ended
LN5#,RN5#,7# —
43330-39195 note Joint Assy, Lower Ball, Front
1985-08 → 1989-03 ended
LN66,RN6#,VZN6# —
43340-39145 note Joint Assy, Lower Ball, Front
1983-08 → 1988-08 ended
LN5#,RN5#,7# —
43340-39175 note Joint Assy, Lower Ball, Front
1985-08 → 1989-03 ended
LN66,RN6#,VZN6# —
48066 — Arm Sub-assy, Front Suspension, Upper RH
48066-35060 Arm Sub-assy, Front Suspension, Upper RH
1983-08 → 1988-08 ended
LN5#,RN5#,7# —
48066-35070 Arm Sub-assy, Front Suspension, Upper RH
1985-08 → 1988-08 ended
LN66,RN6#,VZN6# —
48066-35100 Arm Sub-assy, Front Suspension, Upper RH
1988-08 → 1989-03 ended
RN61,VZN61 —
48067 — Arm Sub-assy, Front Suspension, Upper LH
48066-35060 Arm Sub-assy, Front Suspension, Upper LH
1983-08 → 1988-08 ended
LN5#,RN5#,7# —
48067-35030 Arm Sub-assy, Front Suspension, Upper LH
1985-08 → 1988-08 ended
LN66,RN6#,VZN6# —
48067-35040 Arm Sub-assy, Front Suspension, Upper LH
1988-08 → 1989-03 ended
RN61,VZN61 —
48068 — Arm Sub-assy, Front Suspension, Lower NO.1 RH
48068-35040 Arm Sub-assy, Front Suspension, Lower NO.1 RH
1985-08 → 1989-03 ended
LN66,RN6#,VZN6# —
48605-35060 Arm Sub-assy, Front Suspension, Lower NO.1 RH
1983-08 → 1987-05 ended
RN55,75 10T,3QT,HVY —
48605-35070 Arm Sub-assy, Front Suspension, Lower NO.1 RH
1987-05 → 1988-08 ended
RN55,75 10T,HVY —
48605-35070 Arm Sub-assy, Front Suspension, Lower NO.1 RH
1987-05 → 1988-08 ended
LN56,RN5#,70 HLF —
48605-35080 Arm Sub-assy, Front Suspension, Lower NO.1 RH
1983-08 → 1987-05 ended
LN5#,RN5#,70 HLF —
48069 — Arm Sub-assy, Front Suspension, Lower NO.1 LH
48069-35040 Arm Sub-assy, Front Suspension, Lower NO.1 LH
1985-08 → 1989-03 ended
LN66,RN6#,VZN6# —
48606-35060 Arm Sub-assy, Front Suspension, Lower NO.1 LH
1983-08 → 1987-05 ended
RN55,75 10T,3QT,HVY —
48606-35070 Arm Sub-assy, Front Suspension, Lower NO.1 LH
1987-05 → 1988-08 ended
RN55,75 10T,HVY —
48606-35070 Arm Sub-assy, Front Suspension, Lower NO.1 LH
1987-05 → 1988-08 ended
LN56,RN5#,70 HLF —
48606-35080 Arm Sub-assy, Front Suspension, Lower NO.1 LH
1983-08 → 1987-05 ended
LN5#,RN5#,70 HLF —
48167 — Arm, Torque
48106-35010 Arm, Torque
1985-08 → 1988-03 ended
LN66,RN6#,VZN6# —
48106-35011 Arm, Torque
1988-04 → 1989-03 ended
RN6#,VZN6# —
48167-35020 Arm, Torque
1983-08 → 1988-08 ended
LN5#,RN5#,7# —
48167A — Bolt(FOR TORQUE ARM SETTING)
90105-10087 note Bolt(FOR TORQUE ARM SETTING)
1983-08 → 1988-08 ended
LN5#,RN5#,7# —
90105-10088 note Bolt(FOR TORQUE ARM SETTING)
1983-08 → 1988-08 ended
LN5#,RN5#,7# —
90105-12112 Bolt(FOR TORQUE ARM SETTING)
1985-08 → 1989-03 ended
LN66,RN6#,VZN6# —
48190 — Cam Assy, Camber Adjust
48190-35010 Cam Assy, Camber Adjust
1985-08 → 1988-07 ended
LN66,RN6#,VZN6# —
48190-35020 Cam Assy, Camber Adjust
1988-08 → 1989-03 ended
RN61,VZN61 —
48198 — Cam, Camber Adjust, NO.2
48198-35010 Cam, Camber Adjust, NO.2
1985-08 → 1989-03 ended
LN66,RN6#,VZN6# —
48631B — Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM)
90948-02020 Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM)
1983-08 → 1988-08 ended
LN5#,RN5#,7# —
90948-02065 note Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM)
1985-08 → 1989-03 ended
LN66,RN6#,VZN6# —
90948-02066 note Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM)
1985-08 → 1989-03 ended
LN66,RN6#,VZN6# —
48632 — Bush, Upper Arm
48632-26010 note Bush, Upper Arm
1985-08 → 1989-03 ended
LN66,RN6#,VZN6# —
48632-30040 Bush, Upper Arm
1983-08 → 1988-08 ended
LN5#,RN5#,7# —
48635-26010 note Bush, Upper Arm
1985-08 → 1989-03 ended
LN66,RN6#,VZN6# —
48654 — Bush, Lower Arm
48061-35010 Bush, Lower Arm
1985-08 → 1985-10 ended
LN66,RN6# —
48061-35011 Bush, Lower Arm
1985-11 → 1989-03 ended
LN66,RN6#,VZN6# —
48654-35010 Bush, Lower Arm
1985-08 → 1988-08 ended
LN56,RN5#,7# —
48654-35030 Bush, Lower Arm
1983-08 → 1985-07 ended
LN5#,RN5# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
