Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · United States

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

8 part groups · 6 illustrations

Illustrations

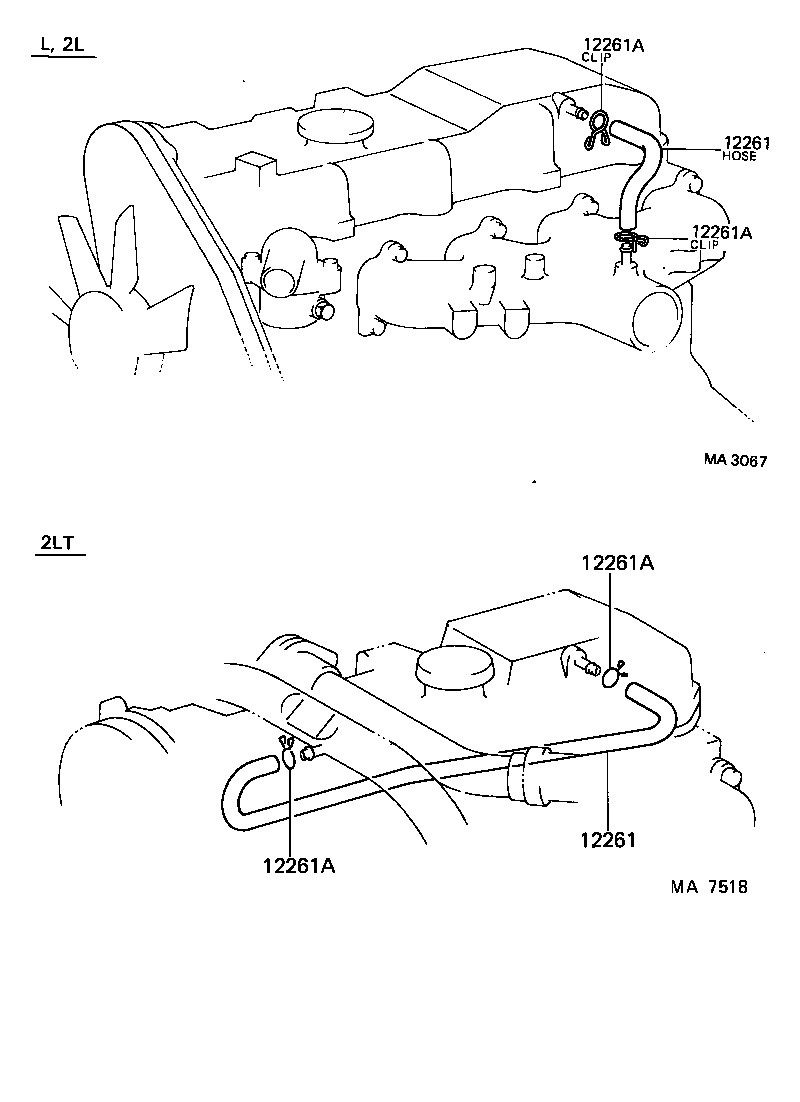

Figure MA7074 MA7074 1983-08 → 1987-08 Figure MA7518 MA7518 1984-08 → 1987-08 Figure MA5952 MA5952 1983-08 → 1988-08 Figure MAA956 MAA956 1988-08 → — Figure MA8992 MA8992 1985-01 → 1988-08 Figure MAA549 MAA549 1987-11 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
