Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · United States

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

52 part groups · 12 illustrations

Illustrations

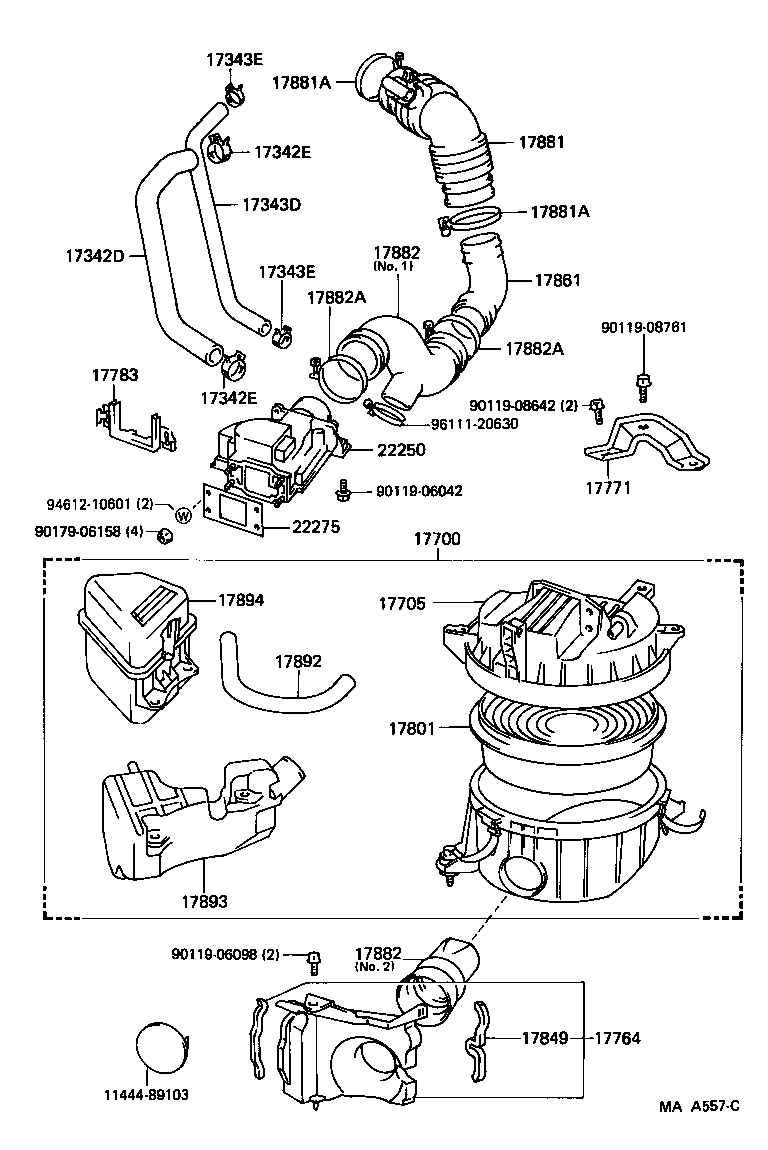

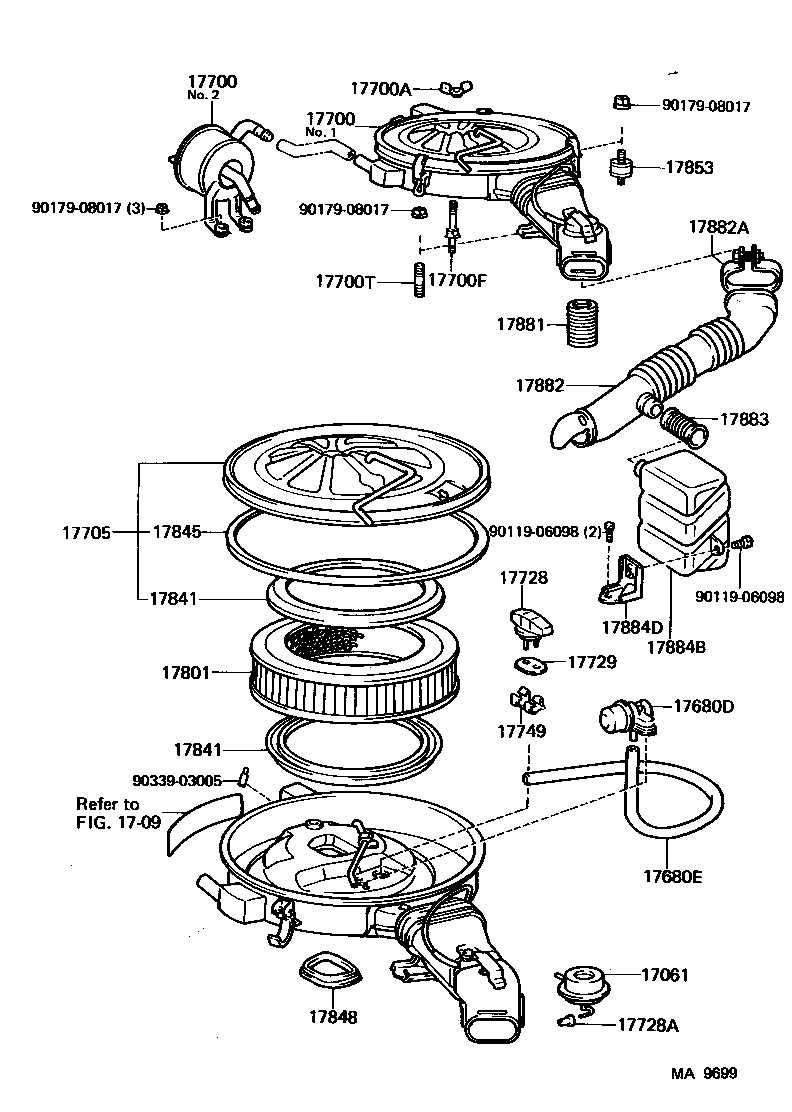

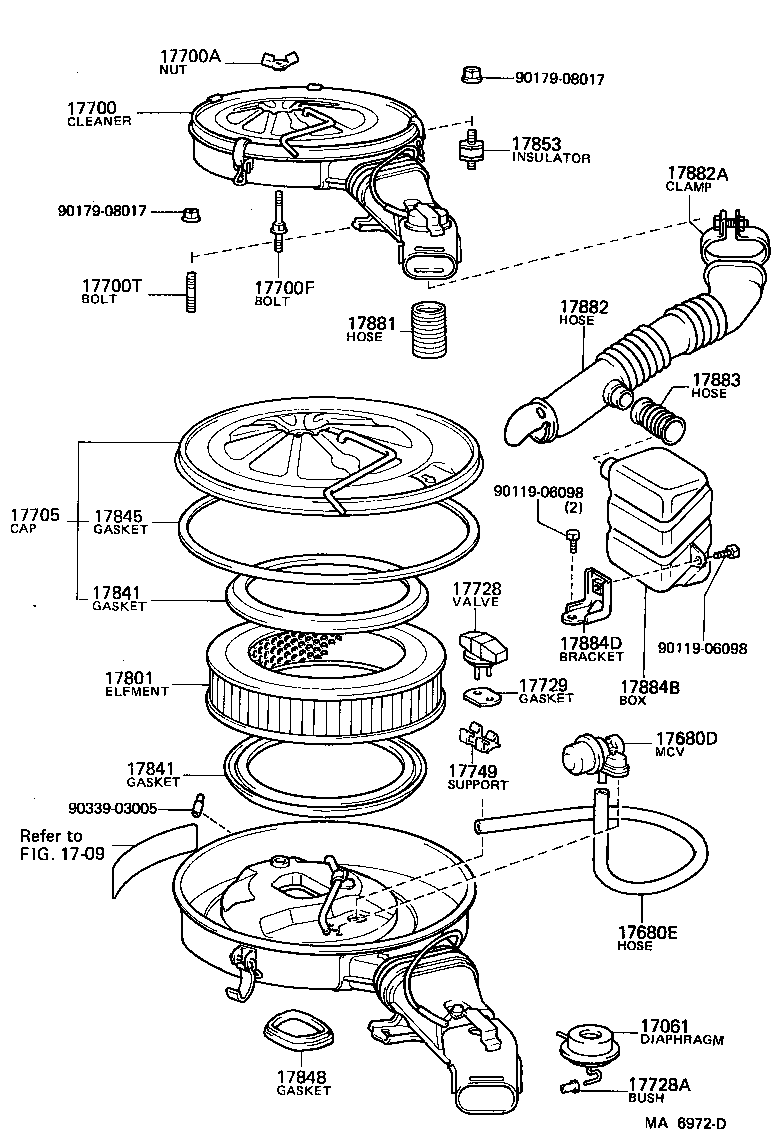

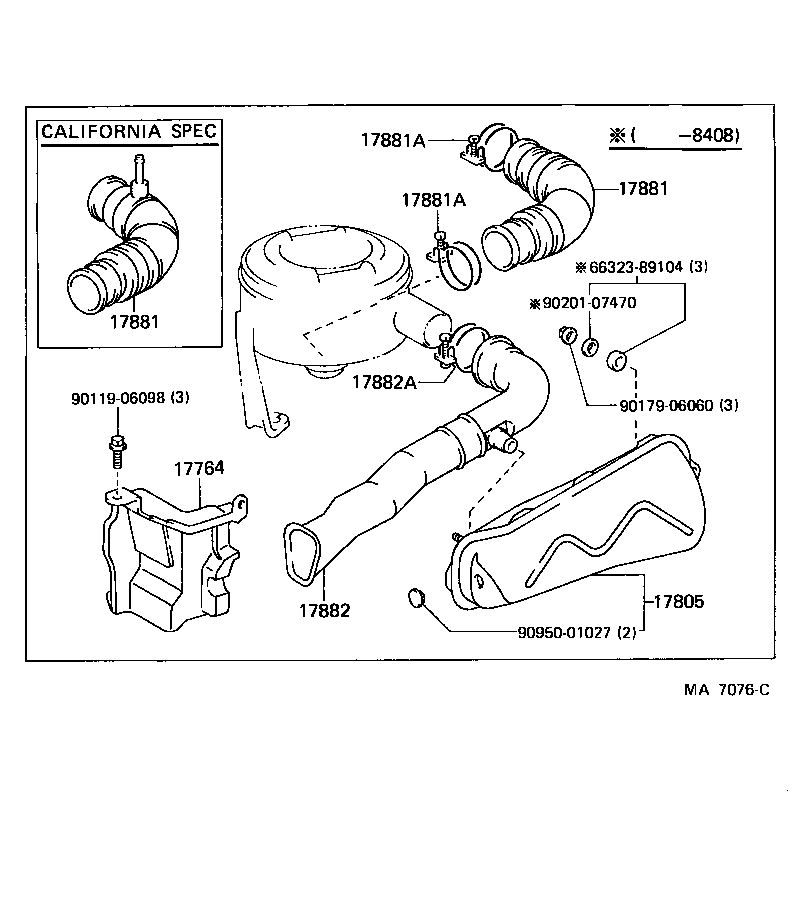

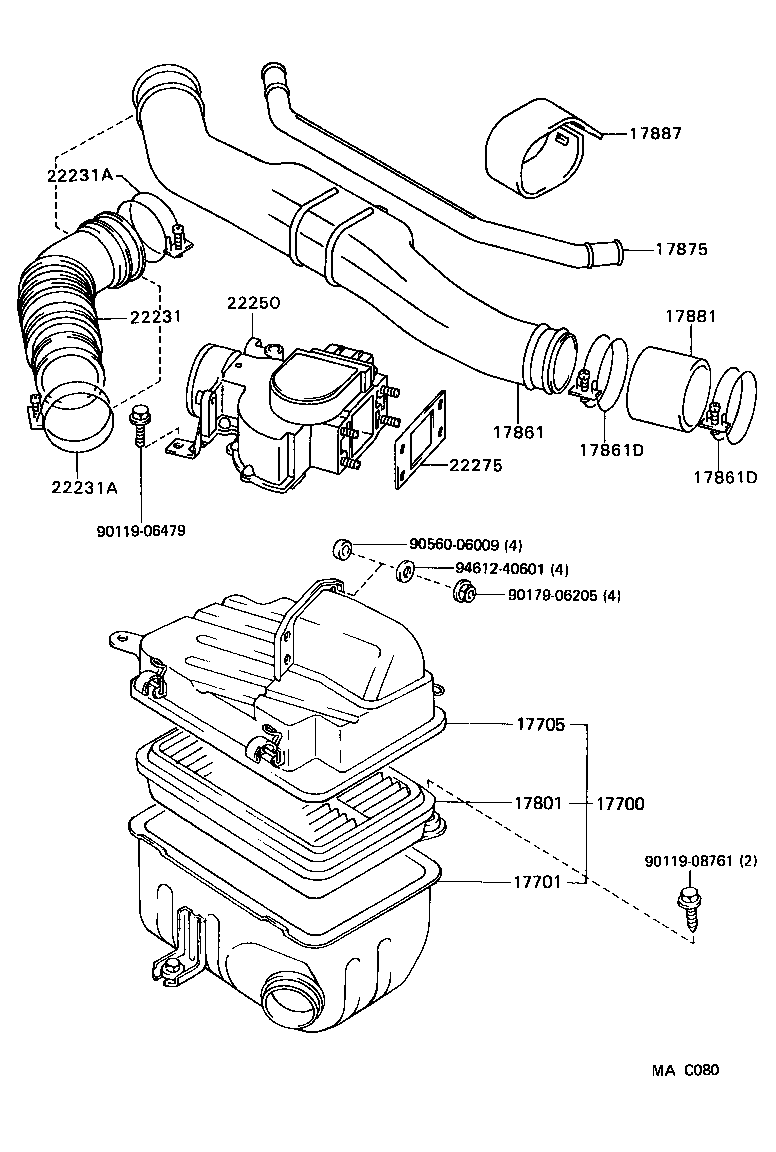

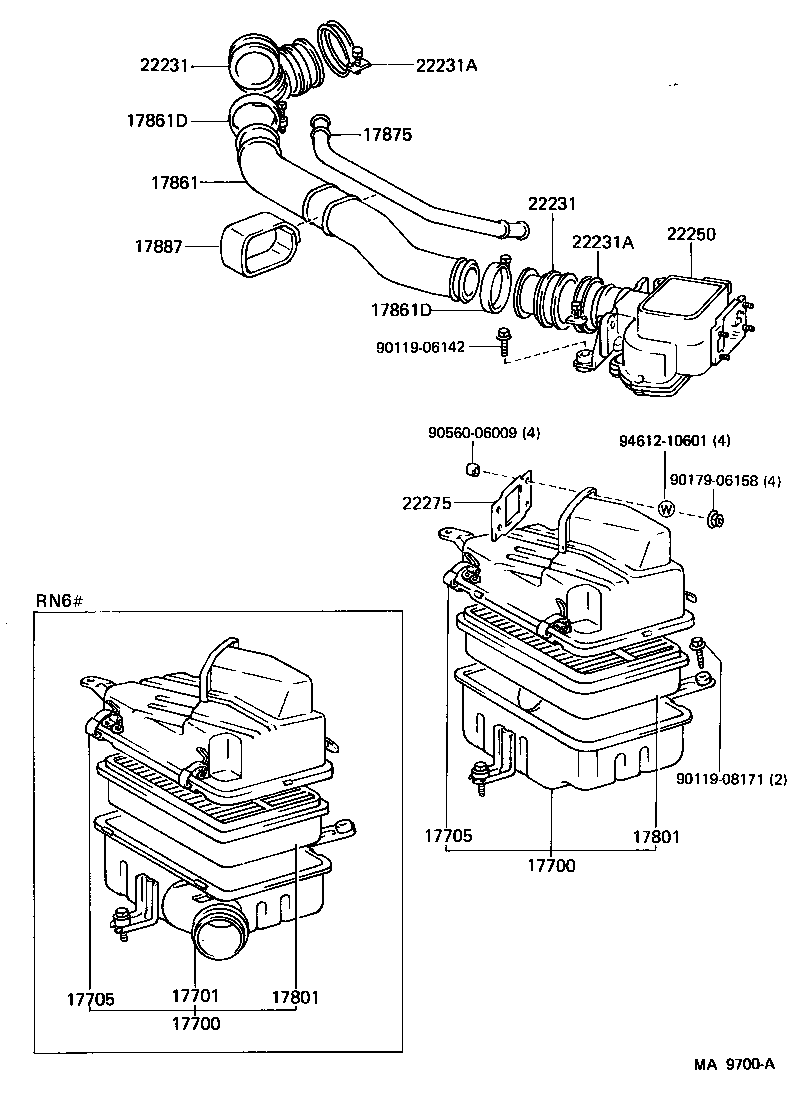

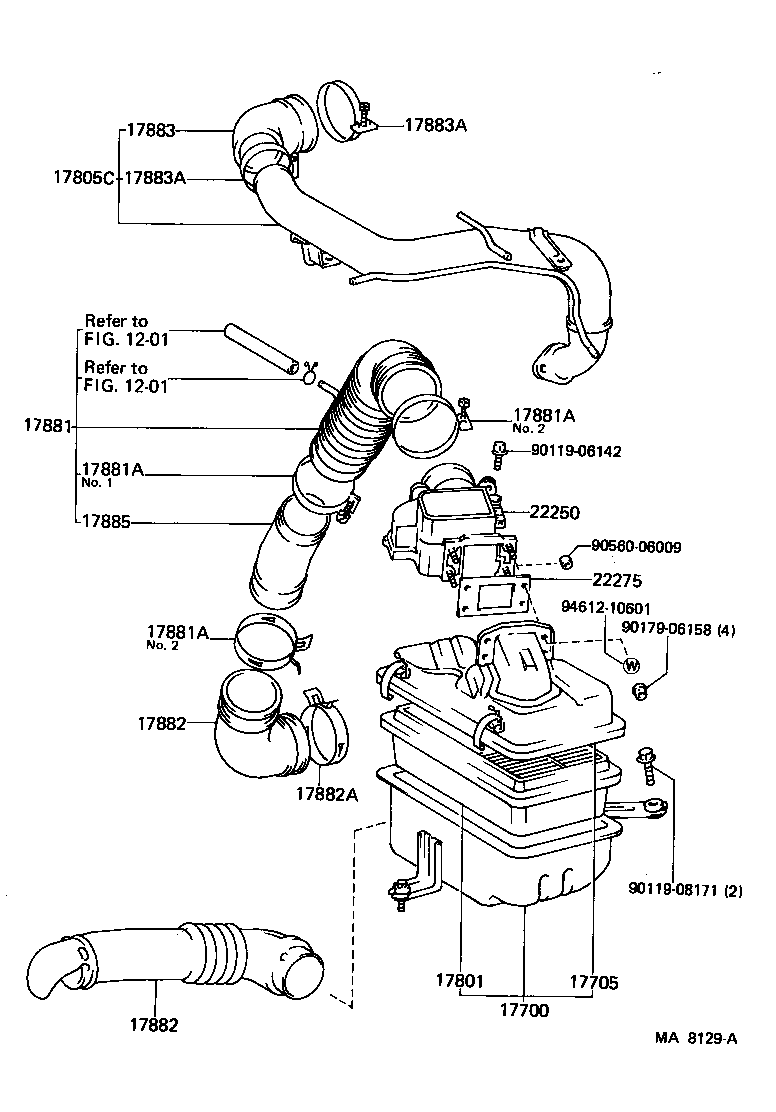

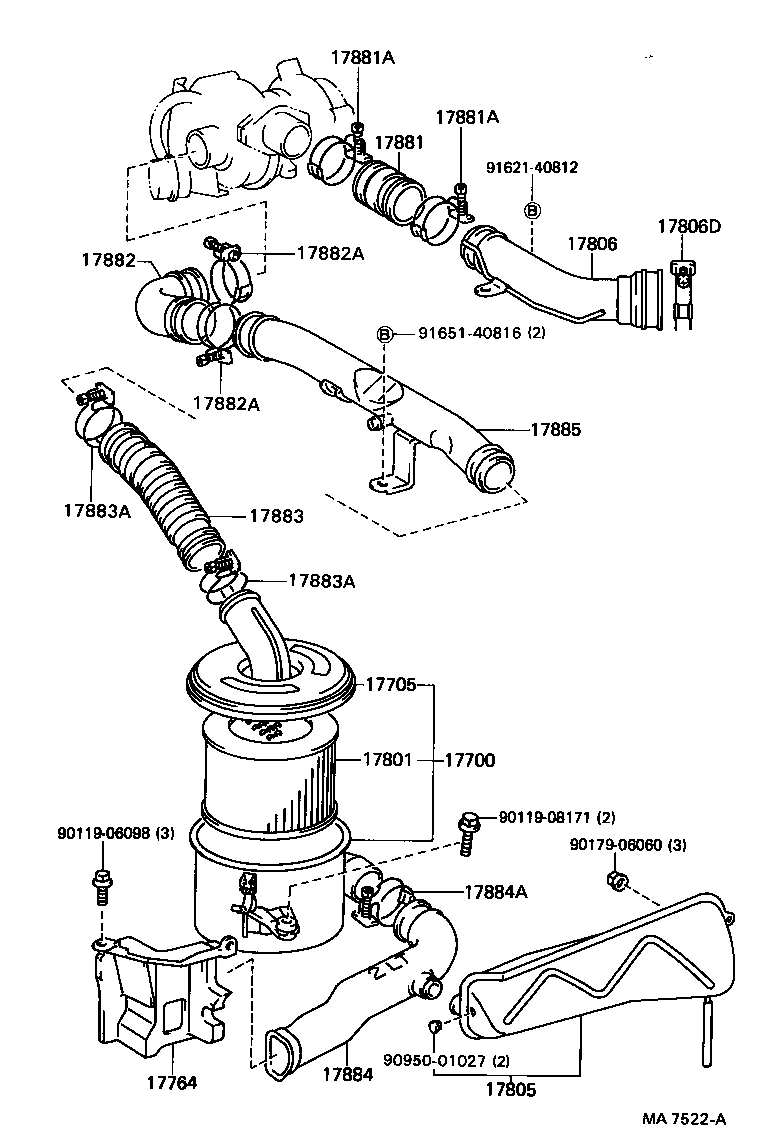

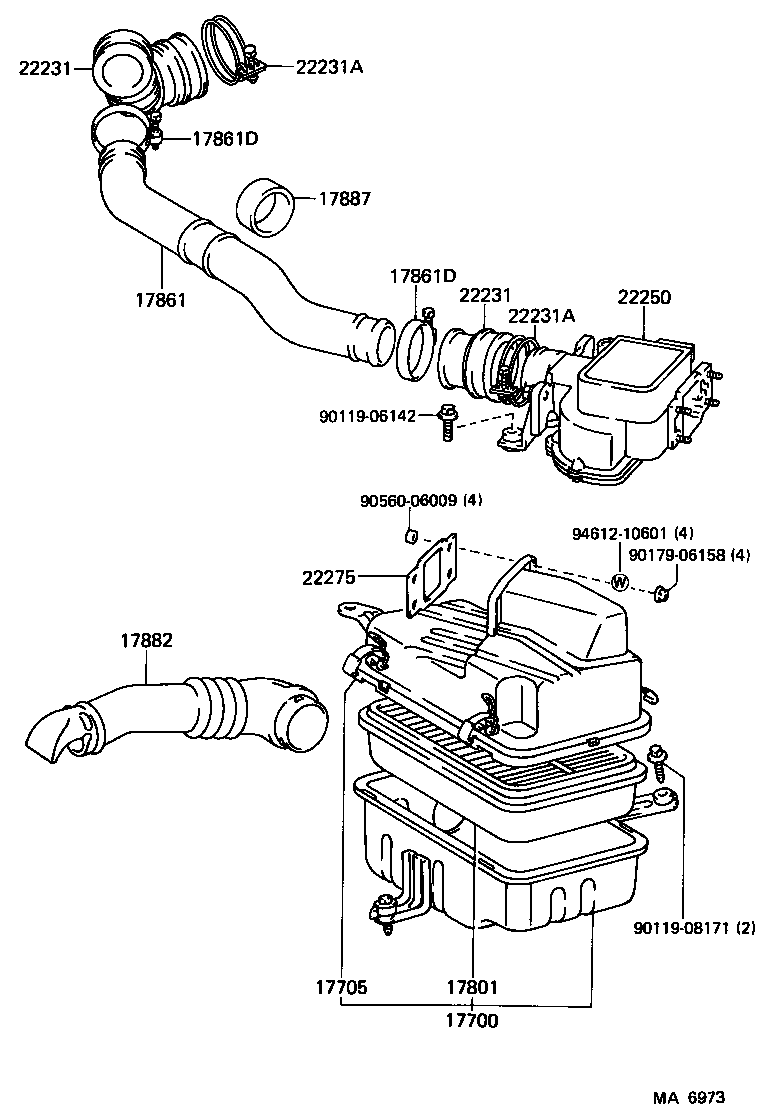

Figure MA7069 MA7069 1983-08 → 1987-08 Figure MA7076C MA7076C 1983-08 → 1987-08 Figure MA7522A MA7522A 1984-08 → 1987-08 Figure MA6972D MA6972D 1983-08 → 1987-08 Figure MA6972D MA6972D 1987-08 → 1988-08 Figure MA9699 MA9699 1987-08 → 1988-08 Figure MA6973 MA6973 1983-08 → 1987-08 Figure MA9700A MA9700A 1987-08 → 1988-08 Figure MAC080 MAC080 1988-08 → — Figure MA8129A MA8129A 1985-01 → 1988-08 Figure MA9858B MA9858B 1987-03 → — Figure MAA557C MAA557C 1987-11 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17680D Valve Assy, Mixture Control
17680E Hose, Air(FOR MIXTURE CONTROL VALVE)
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17700T Bolt, Stud(FOR AIR CLEANER)
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17728 Valve, Thermostatic
17728A Bush
17729 Gasket, Thermostat Valve
17749 Support, Thermostat Valve
17764 Duct, Air Cleaner
17771 Bracket, Air Cleaner Inlet Duct
17783 Plate, Air Cleaner Baffle
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805C Pipe Sub-assy, Air Cleaner, NO.1
17806 Pipe Sub-assy, Air Cleaner, NO.2
17806D Clamp(FOR AIR CLEANER PIPE)
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17849 Gasket, Intake Air Connector
17853 Insulator, Air Cleaner Bracket
17861 Connector, Intake Air
17861D Clamp(FOR INTAKE AIR CONNECTOR)
17875 Pipe, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17884 Hose, Air Cleaner, NO.4
17884A Clamp(FOR AIR CLEANER HOSE, NO.4)
17884B Box, Air Cleaner, NO.1
17884D Bracket, Air Cleaner Box
17885 Pipe, Air Cleaner
17887 Cover, Air Cleaner Hose
17892 Hose, Intake Air Resonator
17893 Resonator, Intake Air
17894 Bracket, Resonator
22231 Hose, Throttle Body
22231A Clamp OR Clip(FOR THROTTLE BODY HOSE)
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
