Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · United States

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Filter

12 part groups · 3 illustrations

Illustrations

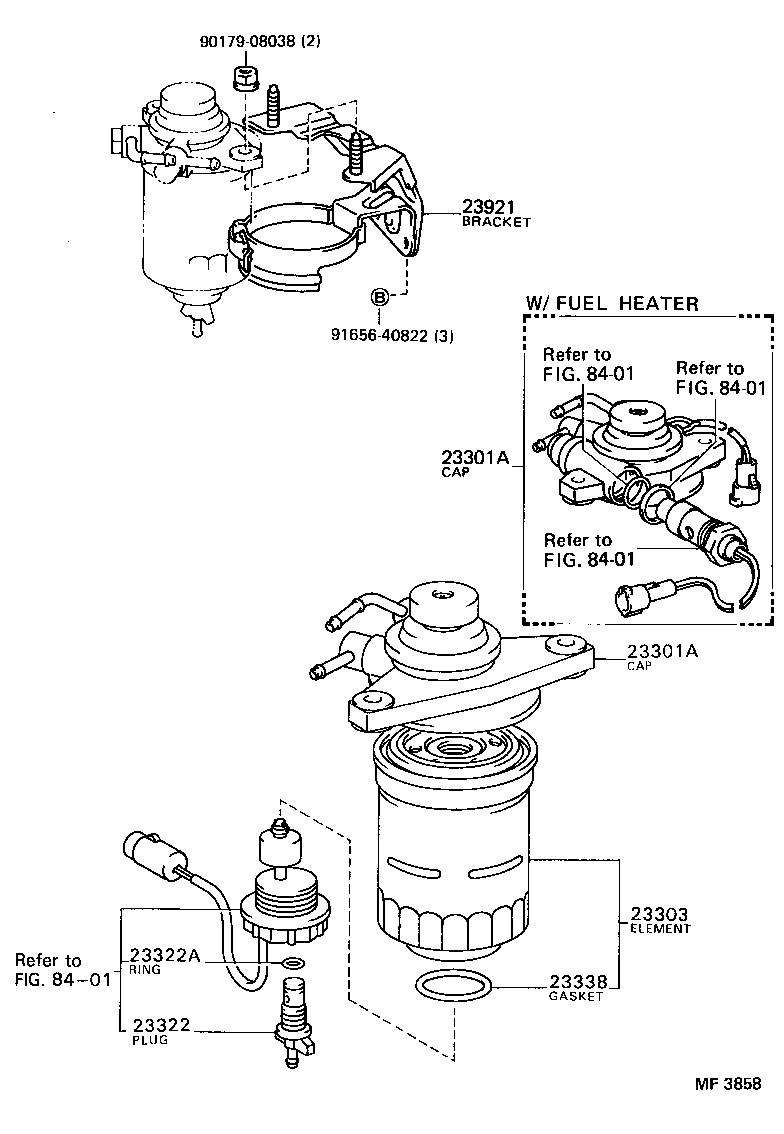

Figure MF3226E MF3226E 1983-08 → 1986-07 Figure MF3858 MF3858 1986-07 → 1987-08 Figure MF3203 MF3203 1983-08 → 1988-08

Part groups

PNCDescription
23300 Filter Assy, Fuel
23300A Union, Nipple(FOR FUEL FILTER INLET)
23300B Union, Nipple(FOR FUEL FILTER OUTLET)
23300C Gasket, Nipple Union(FOR FUEL)
23300D Filter Assy, Fuel(FOR DIESEL)
23301A Cap Assy, Fuel Filter
23303 Element Sub-assy, Fuel Filter
23319 Screw, Fuel Pipe Follow
23322 Plug, Drain(FOR FUEL FILTER)
23322A Ring, O(FOR DRAIN PLUG)
23338 Gasket(FOR WARNING SWITCH)
23921 Support, Fuel Filter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
