Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · United States

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

13 part groups · 6 illustrations

Illustrations

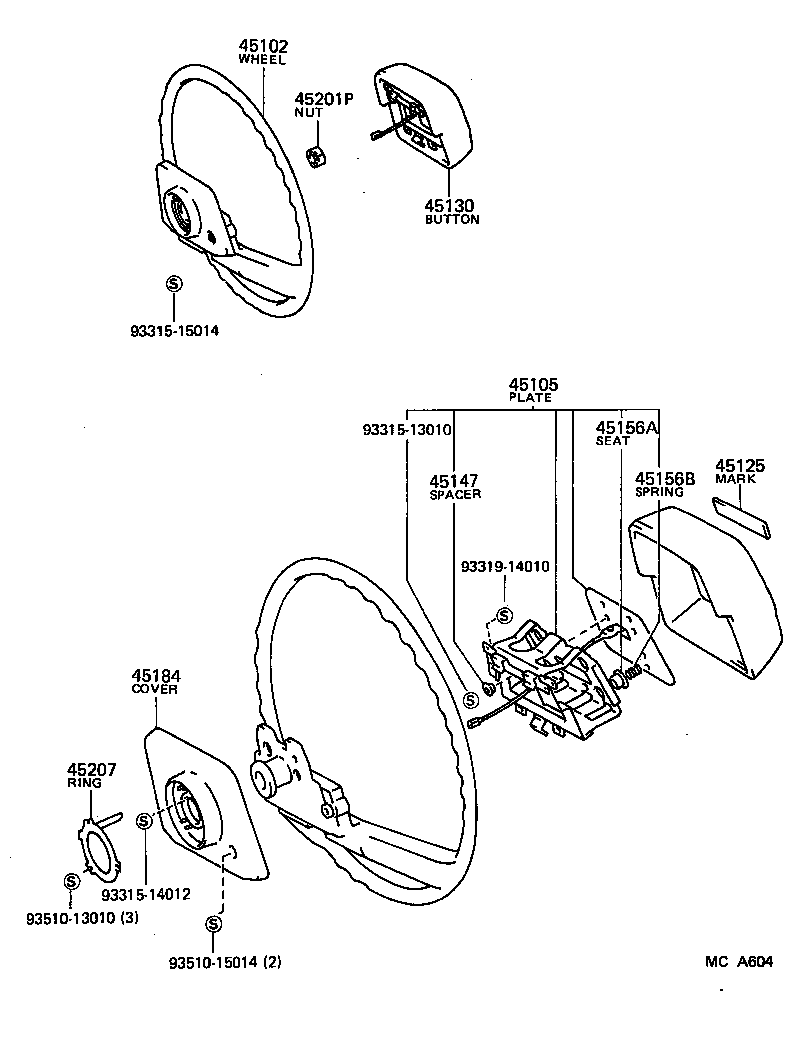

Figure MCA408 MCA408 1983-08 → 1985-08 Figure MCA408 MCA408 1985-08 → — Figure MCA408 MCA408 1986-08 → — Figure MCA604 MCA604 1983-08 → 1985-08 Figure MCA604 MCA604 1983-08 → — Figure MCA604 MCA604 1986-08 → —

Part groups

PNCDescription
45102 Wheel Sub-assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45125 Mark, Steering Wheel Pad
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45146 Spring, Horn Button Contact
45147 Spacer, Horn Button
45156A Seat, Horn Contact Spring Set
45156B Spring(FOR HORN CONTACT SPRING SET SEAT)
45184 Cover, Steering Wheel Boss, Lower
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
