Toyota 4-Runner Truck
1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · United States
Discontinued model
Data version 1989-05

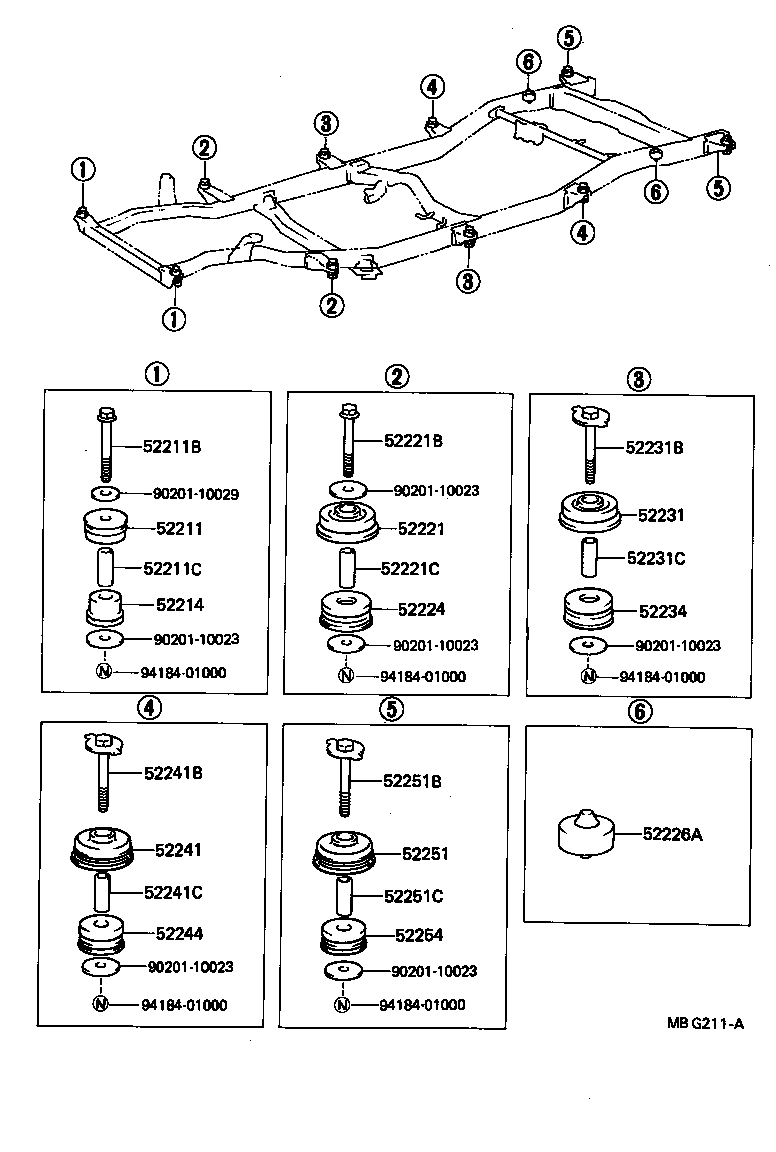

Cab Mounting & Body Mounting
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52211 | Cushion, Body Mounting, NO.1 Upper |
| 52211B | Bolt(FOR BODY MOUNTING NO.1 CUSHION) |
| 52211C | Spacer(FOR BODY MOUNTING NO.1 CUSHION) |
| 52214 | Cushion, Body Mount, NO.1 Lower |
| 52221 | Cushion, Body Mount, NO.2 Upper |
| 52221B | Bolt(FOR BODY MOUNT NO.2 CUSHION) |
| 52221C | Spacer(FOR BODY MOUNT NO.2 CUSHION) |
| 52224 | Cushion, Body Mount, NO.2 Lower |
| 52226A | Cushion, Body Rear Mounting, Upper |
| 52231 | Cushion, Body Mount, NO.3 Upper |
| 52231B | Bolt(FOR BODY MOUNT NO.3 CUSHION) |
| 52231C | Spacer(FOR BODY MOUNT NO.3 CUSHION) |
| 52234 | Cushion, Body Mount, NO.3 Lower |
| 52241 | Cushion, Body Mount, NO.4 Upper |
| 52241B | Bolt(FOR BODY MOUNT NO.4 CUSHION) |
| 52241C | Spacer(FOR BODY MOUNT NO.4 CUSHION) |
| 52244 | Cushion, Body Mount, NO.4 Lower |
| 52251 | Cushion, Body Mount, NO.5 Upper |
| 52251B | Bolt(FOR BODY MOUNT NO.5 CUSHION) |
| 52251C | Spacer(FOR BODY MOUNT NO.5 CUSHION) |
| 52254 | Cushion, Body Mount, NO.5 Lower |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
