Toyota 4-Runner Truck
1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · United States
Discontinued model
Data version 1989-05

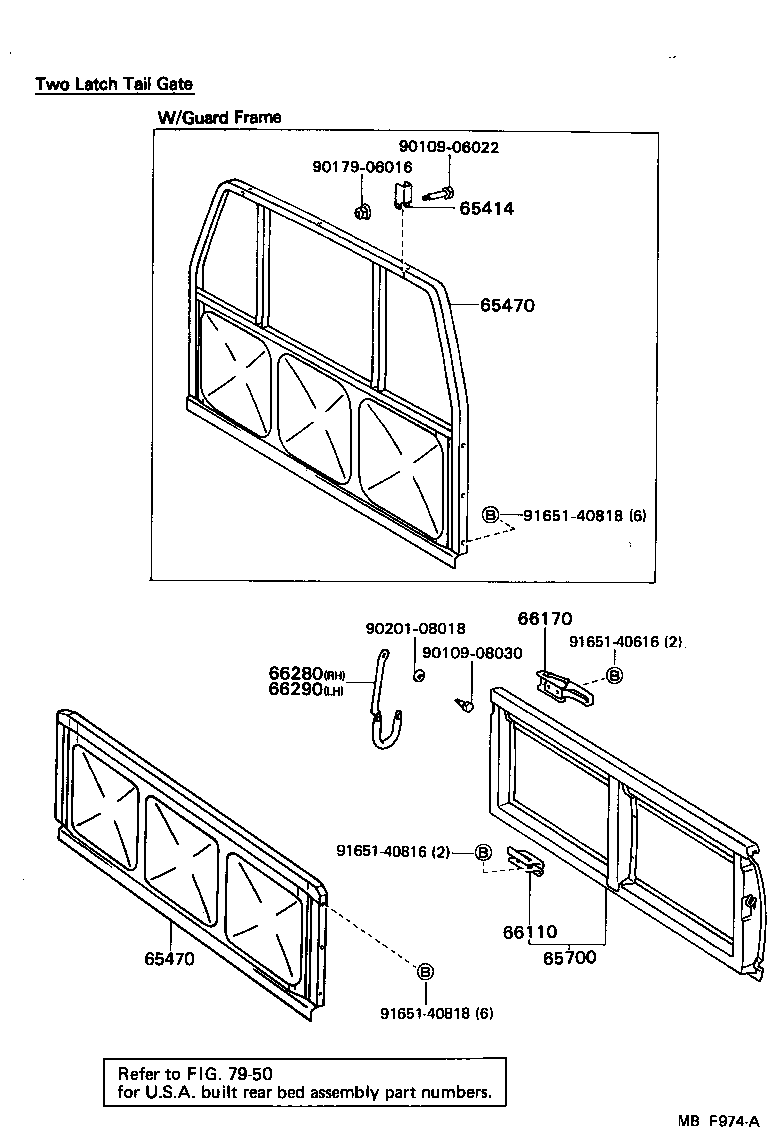

Rear Body Guard Frame & Tail Gate
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 65414 | Stopper, Guard Frame |
| 65470 | Board Assy, Header |
| 65700 | Gate Assy, Rear Body Tail |
| 65737 | Stop, Tail Gate |
| 65759 | Cover, Tail Gate Service Hole |
| 65768A | Striker, Tail Gate Lock |
| 65770A | Stay Assy, Tail Gate |
| 65778 | Stopper, Tail Gate Stay |
| 65780A | Lock Assy, Tail Gate, RH |
| 65790A | Lock Assy, Tail Gate, LH |
| 65865A | Pin, Cover Top Guide |
| 66110 | Hinge Assy, Tail Gate |
| 66170 | Latch Assy, Rear Body Tail Gate |
| 66280 | Chain Assy, Tail Gate, RH |
| 66290 | Chain Assy, Tail Gate, LH |
| 66321A | Bumper, Gate Rubber |
| 69250 | Handle Assy, Tail Gate Lock |
| 69759D | Silencer, Tail Gate Lock Link |
| 69759E | Snap, Tail Gate Lock Link |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
