Toyota 4-Runner Truck
1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · United States
Discontinued model
Data version 1989-05

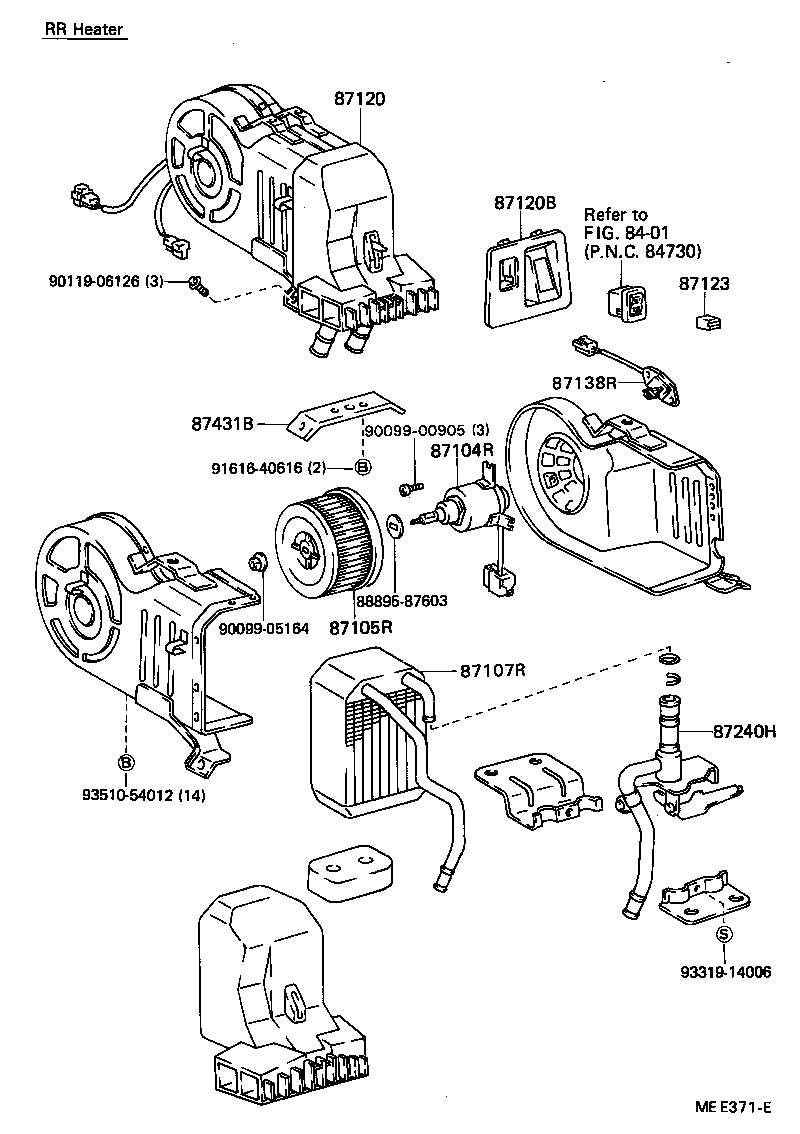

Heating & Air Conditioning - Heater Unit & Blower
18 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87104 | Motor Sub-assy, Heater Blower |
| 87104R | Motor Sub-assy, Rear Heater Blower |
| 87105 | Fan Sub-assy, Heater Blower |
| 87105R | Fan Sub-assy, Rear Heater Blower |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87107R | Unit Sub-assy, Rear Heater |
| 87116 | Spring, Heater Case Fastening |
| 87120 | Heater Assy, Rear |
| 87120B | Base, Rear Heater, NO.1 |
| 87123 | Knob, Heater |
| 87130 | Blower Assy, Heater, Front |
| 87138 | Resistor, Heater Blower |
| 87138R | Resistor, Rear Heater Blower |
| 87150 | Radiator Assy, Heater |
| 87240H | Valve Assy, Water Unit |
| 87431B | Bracket, Rear Heater |
| 88540B | Motor Assy, W/Fan |
| 88910 | Ventilator Assy, Boost |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
