Toyota 4-Runner Truck (JPP)

1988-08 → 1995-11 · chassis RN10#,110,13#,VZN10#,110,13# · catalogue 671450 · United States

Discontinued model Data version 1996-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

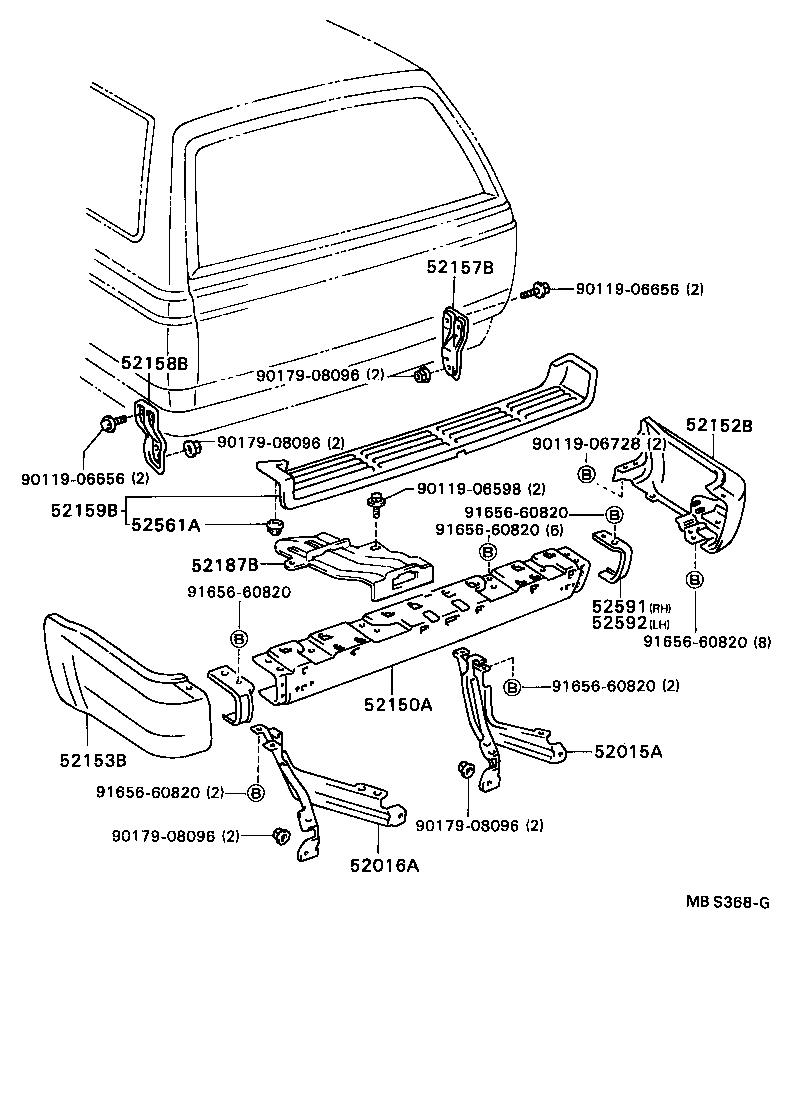

Exploded illustration MBS368G 52157B — STAY, REAR BUMPER SIDE, NO.2 RH (1 parts) 9011906656 — not listed in this catalogue 52158B — STAY, REAR BUMPER SIDE, NO.2 LH (1 parts) 9017908096 — not listed in this catalogue 52152B — EXTENSION, REAR BUMPER, RH (17 parts) 9011906728 — not listed in this catalogue 9017908096 — not listed in this catalogue 9011906656 — not listed in this catalogue 9011906598 — not listed in this catalogue 52159B — PLATE, REAR BUMPER (4 parts) 9165660820 — not listed in this catalogue 52561A — CLIP(FOR REAR BUMPER RETAINER) (1 parts) 9165660820 — not listed in this catalogue 52187B — GUIDE, REAR BUMPER LOCATION (1 parts) 9165660820 — not listed in this catalogue 52591 — SEAL, REAR BUMPER SIDE, RH (1 parts) 52592 — SEAL, REAR BUMPER SIDE, LH (1 parts) 9165660820 — not listed in this catalogue 9165660820 — not listed in this catalogue 52150A — BUMPER ASSY, REAR (22 parts) 52015A — ARM SUB-ASSY, REAR BUMPER, RH (1 parts) 52153B — EXTENSION, REAR BUMPER, LH (17 parts) 9165660820 — not listed in this catalogue 9017908096 — not listed in this catalogue 9017908096 — not listed in this catalogue 52016A — ARM SUB-ASSY, REAR BUMPER, LH (1 parts)
MBS368G · 12 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
68 parts on this figure
Part number Description Fitment Price
52015A — Arm Sub-assy, Rear Bumper, RH
52015-89109 Arm Sub-assy, Rear Bumper, RH
1989-04 → 1995-11 ended
RN13#,VZN13# —
52016A — Arm Sub-assy, Rear Bumper, LH
52016-89109 Arm Sub-assy, Rear Bumper, LH
1989-04 → 1995-11 ended
RN13#,VZN13# —
52150A — Bumper Assy, Rear
52105-35020 note Bumper Assy, Rear
1991-08 → 1995-11 ended
VZN13# —
52105-35030 note Bumper Assy, Rear
1991-08 → 1995-11 ended
VZN13# —
52105-35050-E0 note Bumper Assy, Rear
1991-08 → 1993-08 ended
VZN131 —
52105-35050-F0 note Bumper Assy, Rear
1991-08 → 1993-11 ended
VZN131 —
52105-35050-F0 note Bumper Assy, Rear
1994-08 → 1995-11 ended
VZN13# —
52105-35050-F0 note Bumper Assy, Rear
1993-11 → 1994-08 ended
VZN131 —
52105-35070-E0 note Bumper Assy, Rear
1991-08 → 1993-08 ended
RN131,VZN131 —
52105-35070-F0 note Bumper Assy, Rear
1991-08 → 1992-08 ended
RN130 W —
52105-35070-F0 note Bumper Assy, Rear
1991-08 → 1995-11 ended
RN13#,VZN13# —
52105-35090 Bumper Assy, Rear
1991-08 → 1995-11 ended
RN13#,VZN13# —
52105-35150 note Bumper Assy, Rear
1994-11 → 1995-11 ended
RN13#,VZN13# —
52105-89116 Bumper Assy, Rear
1989-04 → 1991-08 ended
RN13#,VZN13# —
52105-89117 note Bumper Assy, Rear
1989-04 → 1991-08 ended
RN13#,VZN13# —
52105-89117 note Bumper Assy, Rear
1991-08 → 1994-11 ended
RN13#,VZN13# —
52105-89120-03 note Bumper Assy, Rear
1989-04 → 1991-08 ended
VZN13# —
52105-89120-03 note Bumper Assy, Rear
1989-04 → 1991-08 ended
RN13# —
52105-89120-06 note Bumper Assy, Rear
1989-04 → 1990-08 ended
RN13# —
52105-89120-06 note Bumper Assy, Rear
1989-04 → 1990-08 ended
VZN13# —
52105-89120-13 note Bumper Assy, Rear
1989-04 → 1991-08 ended
RN13# —
52105-89120-13 note Bumper Assy, Rear
1989-04 → 1991-08 ended
VZN13# —
52150-35010 Bumper Assy, Rear
1991-08 → 1995-01 ended
RN10#,110,VZN10#,110 USA —
52150-89113 Bumper Assy, Rear
1988-08 → 1991-08 ended
RN10#,110,VZN10#,110 USA CBU —
52152B — Extension, Rear Bumper, RH
52106-35020 Extension, Rear Bumper, RH
1991-08 → 1995-11 ended
RN13#,VZN13# —
52106-35030-E0 note Extension, Rear Bumper, RH
1991-08 → 1993-08 ended
RN131,VZN131 —
52106-35030-F0 note Extension, Rear Bumper, RH
1991-08 → 1994-08 ended
RN130 W —
52106-35030-F0 note Extension, Rear Bumper, RH
1991-08 → 1995-11 ended
RN13#,VZN13# —
52106-35030-F0 note Extension, Rear Bumper, RH
1994-08 → 1994-11 ended
VZN131 —
52106-89105 Extension, Rear Bumper, RH
1989-04 → 1991-08 ended
RN13#,VZN13# —
52106-89106 note Extension, Rear Bumper, RH
1989-04 → 1991-08 ended
RN13#,VZN13# —
52106-89106 note Extension, Rear Bumper, RH
1991-08 → 1995-11 ended
VZN13# —
52106-89106 note Extension, Rear Bumper, RH
1991-08 → 1995-11 ended
RN13# —
52106-89107-03 note Extension, Rear Bumper, RH
1989-04 → 1991-08 ended
VZN13# —
52106-89107-03 note Extension, Rear Bumper, RH
1989-04 → 1991-08 ended
RN13# —
52106-89107-06 note Extension, Rear Bumper, RH
1989-04 → 1990-08 ended
VZN13# —
52106-89107-06 note Extension, Rear Bumper, RH
1989-04 → 1990-08 ended
RN13# —
52106-89107-13 note Extension, Rear Bumper, RH
1989-04 → 1991-08 ended
RN13# —
52106-89107-13 note Extension, Rear Bumper, RH
1989-04 → 1991-08 ended
VZN13# —
52152-35010 Extension, Rear Bumper, RH
1991-08 → 1995-01 ended
RN10#,110,VZN10#,110 USA —
52152-89112 Extension, Rear Bumper, RH
1988-08 → 1991-08 ended
RN10#,110,VZN10#,110 USA CBU —
52153B — Extension, Rear Bumper, LH
52107-35010 Extension, Rear Bumper, LH
1991-08 → 1995-11 ended
RN13#,VZN13# —
52107-35020-E0 note Extension, Rear Bumper, LH
1991-08 → 1993-08 ended
RN131,VZN131 —
52107-35020-F0 note Extension, Rear Bumper, LH
1991-08 → 1994-08 ended
RN130 W —
52107-35020-F0 note Extension, Rear Bumper, LH
1994-08 → 1994-11 ended
VZN131 —
52107-35020-F0 note Extension, Rear Bumper, LH
1991-08 → 1995-11 ended
RN13#,VZN13# —
52107-89103 Extension, Rear Bumper, LH
1989-04 → 1991-08 ended
RN13#,VZN13# —
52107-89104 note Extension, Rear Bumper, LH
1991-08 → 1995-11 ended
RN13# —
52107-89104 note Extension, Rear Bumper, LH
1989-04 → 1991-08 ended
RN13#,VZN13# —
52107-89104 note Extension, Rear Bumper, LH
1991-08 → 1995-11 ended
VZN13# —
52107-89105-03 note Extension, Rear Bumper, LH
1989-04 → 1991-08 ended
RN13# —
52107-89105-03 note Extension, Rear Bumper, LH
1989-04 → 1991-08 ended
VZN13# —
52107-89105-06 note Extension, Rear Bumper, LH
1989-04 → 1990-08 ended
VZN13# —
52107-89105-06 note Extension, Rear Bumper, LH
1989-04 → 1990-08 ended
RN13# —
52107-89105-13 note Extension, Rear Bumper, LH
1989-04 → 1991-08 ended
RN13# —
52107-89105-13 note Extension, Rear Bumper, LH
1989-04 → 1991-08 ended
VZN13# —
52153-35010 Extension, Rear Bumper, LH
1991-08 → 1995-01 ended
RN10#,110,VZN10#,110 USA —
52153-89112 Extension, Rear Bumper, LH
1988-08 → 1991-08 ended
RN10#,110,VZN10#,110 USA CBU —
52157B — Stay, Rear Bumper Side, NO.2 RH
52157-89103 Stay, Rear Bumper Side, NO.2 RH
1989-04 → 1995-11 ended
RN13#,VZN13# —
52158B — Stay, Rear Bumper Side, NO.2 LH
52158-89101 Stay, Rear Bumper Side, NO.2 LH
1989-04 → 1995-11 ended
RN13#,VZN13# —
52159B — Plate, Rear Bumper
52159-89102 Plate, Rear Bumper
1988-08 → 1995-01 ended
RN10#,110,VZN10#,110 USA CBU —
52159-89106 Plate, Rear Bumper
1989-04 → 1995-11 ended
RN13#,VZN13# —
52159-89107 note Plate, Rear Bumper
1989-04 → 1989-08 ended
VZN13# —
52159-89107 note Plate, Rear Bumper
1989-08 → 1991-08 ended
VZN13# —
52187B — Guide, Rear Bumper Location
52187-35010 Guide, Rear Bumper Location
1991-08 → 1995-11 ended
VZN13# —
52561A — Clip(FOR REAR BUMPER RETAINER)
90467-11059 Clip(FOR REAR BUMPER RETAINER)
1989-04 → 1995-11 ended
RN13#,VZN13# —
52591 — Seal, Rear Bumper Side, RH
52591-89101 Seal, Rear Bumper Side, RH
1989-04 → 1995-11 ended
RN13#,VZN13# —
52592 — Seal, Rear Bumper Side, LH
52592-89101 Seal, Rear Bumper Side, LH
1989-04 → 1995-11 ended
RN13#,VZN13# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
