Toyota 4-Runner Truck (JPP)
1988-08 → 1995-11 · chassis RN10#,110,13#,VZN10#,110,13# · catalogue 671450 · United States
Discontinued model
Data version 1996-08

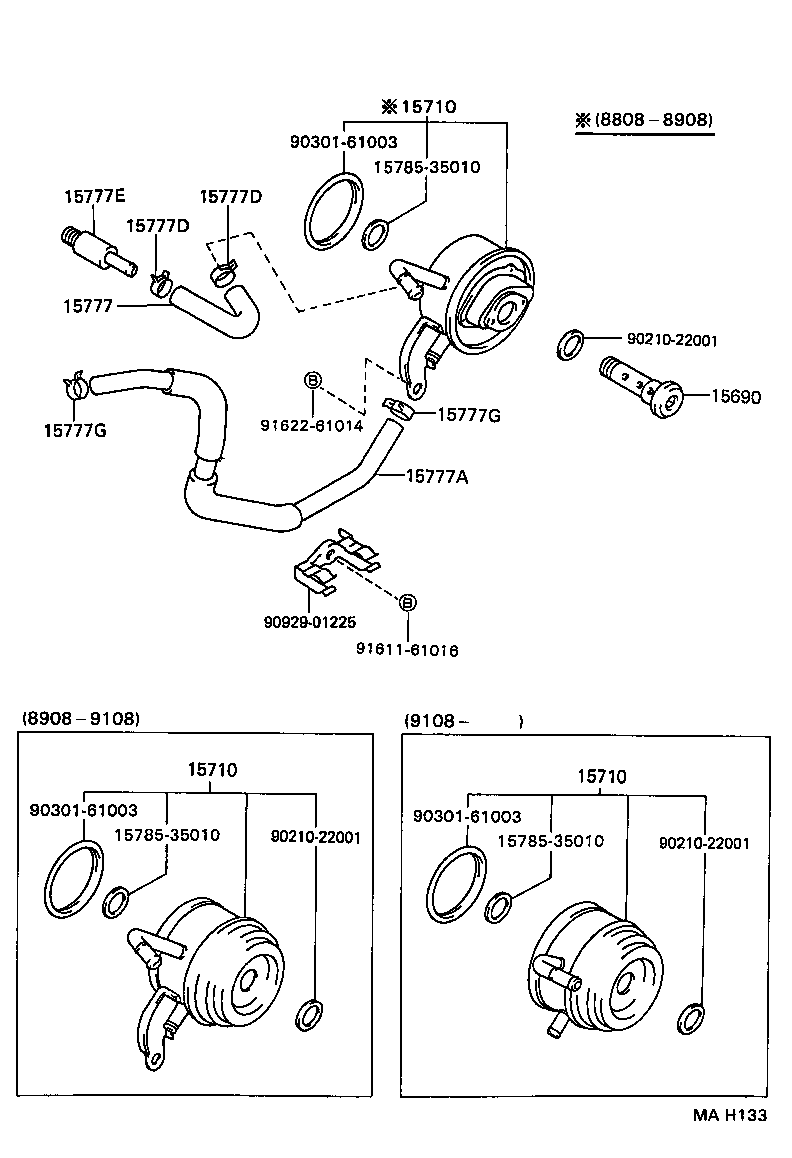

Engine Oil Cooler
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15690 | Valve Assy, Oil Cooler Relief |
| 15690A | Gasket(FOR OIL COOLER RELIEF VALVE) |
| 15710 | Cooler Assy, Oil |
| 15710B | Ring, O(FOR OIL COOLER) |
| 15777 | Hose, Oil Cooler |
| 15777A | Hose, Oil Cooler |
| 15777D | Clamp OR Clip, Hose(FOR OIL COOLER HOSE) |
| 15777E | Union |
| 15777G | Clamp OR Crip, Hose |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
