Toyota 4-Runner Truck (JPP)

1988-08 → 1995-11 · chassis RN10#,110,13#,VZN10#,110,13# · catalogue 671450 · United States

Discontinued model Data version 1996-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

16 part groups · 4 illustrations

Illustrations

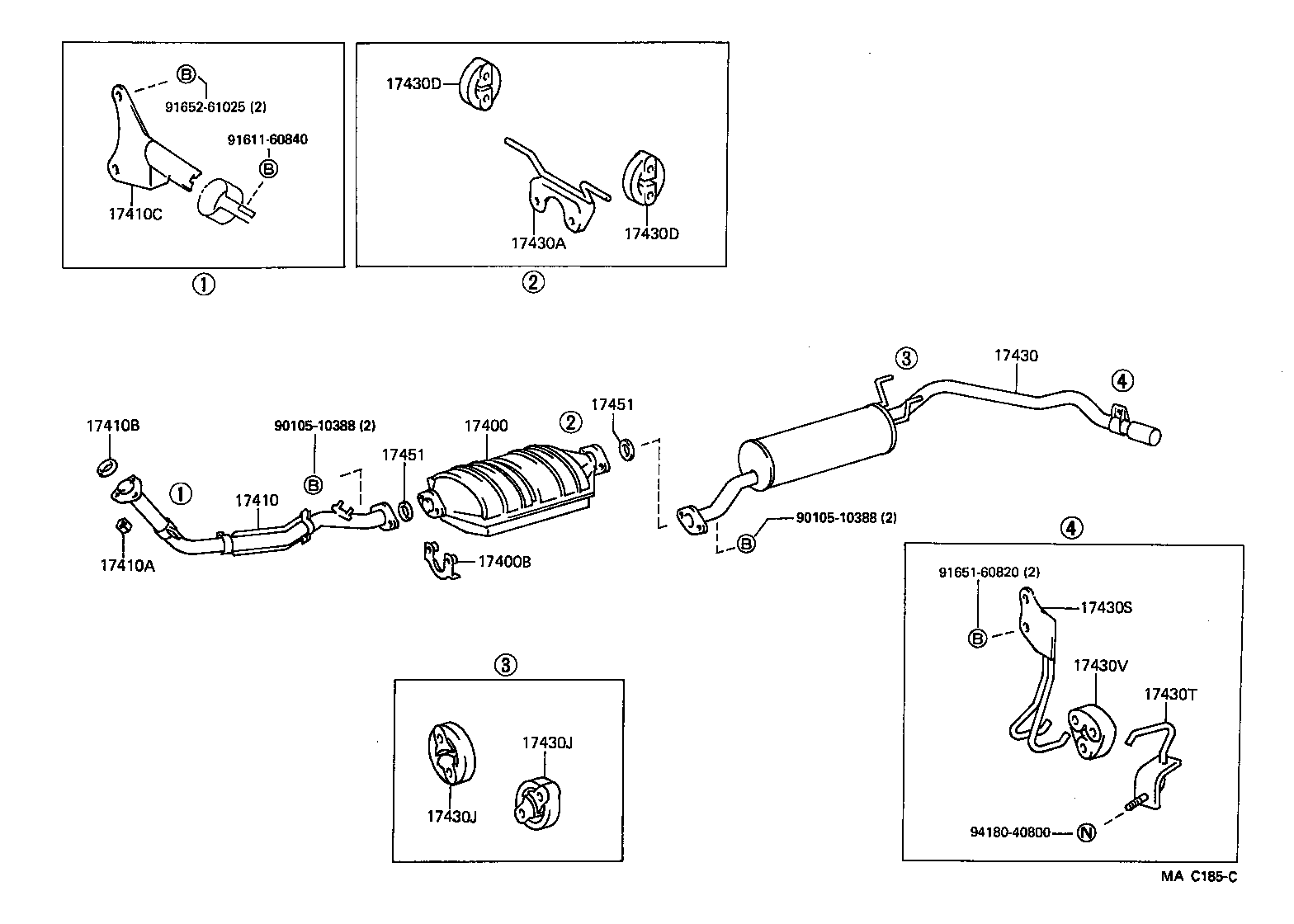

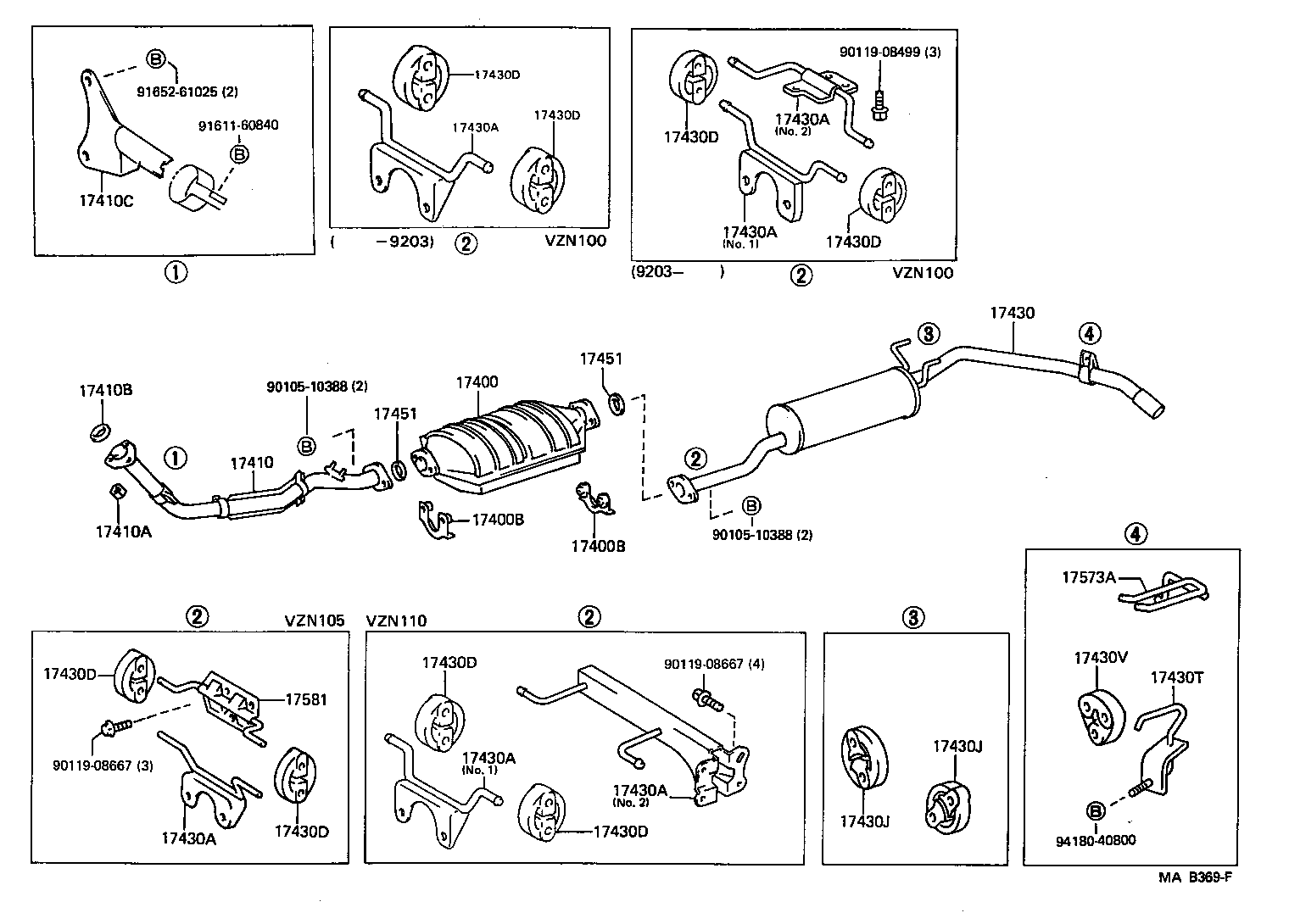

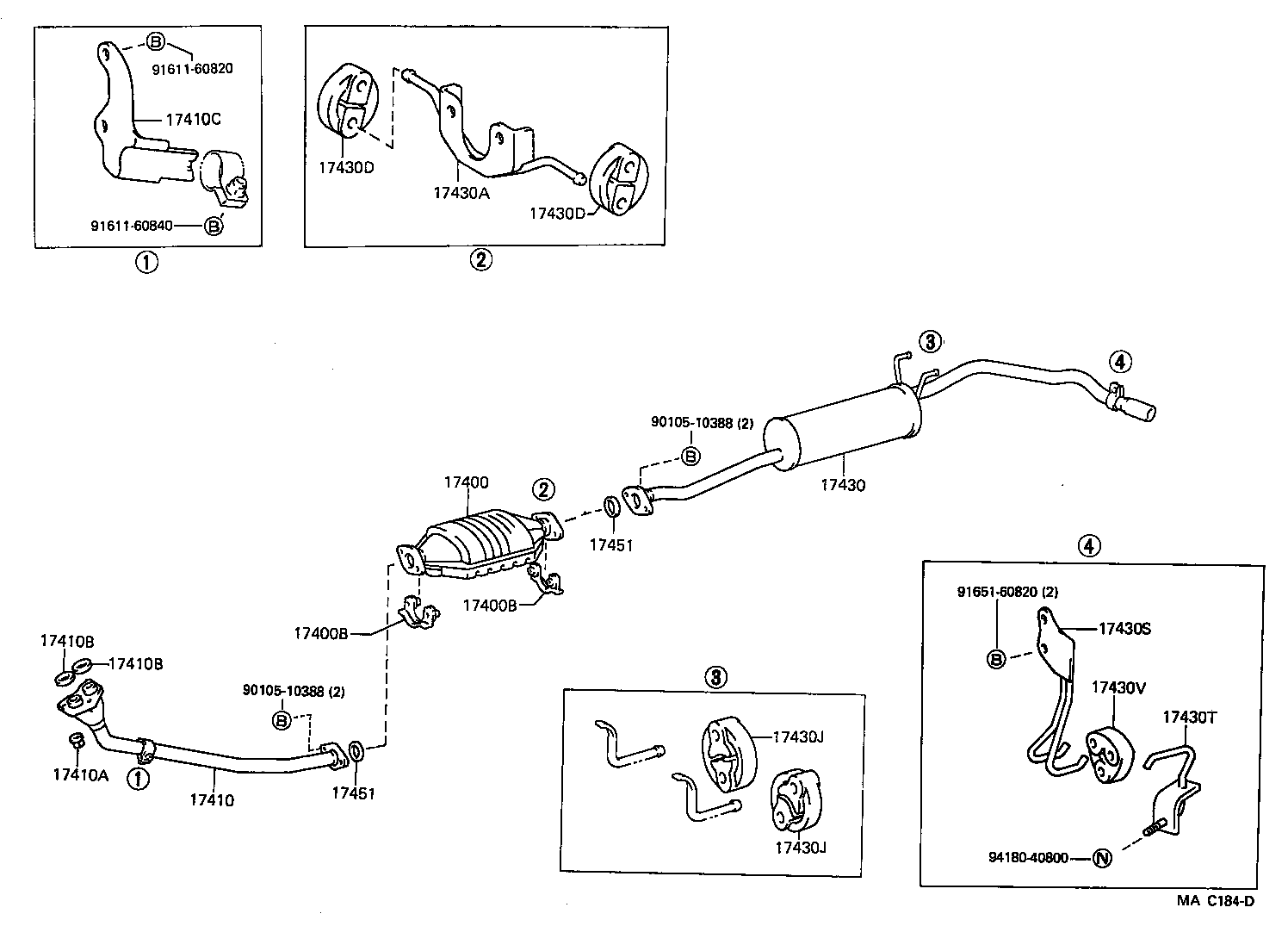

Figure MAB368G MAB368G 1988-08 → — Figure MAC184D MAC184D 1989-04 → — Figure MAB369F MAB369F 1988-08 → — Figure MAC185C MAC185C 1989-04 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17400B Retainer, Exhaust Pipe
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17430J Bolt OR Ring, Exhaust Tailpipe(FOR CENTER)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17451 Gasket, Exhaust Pipe
17573A Bracket, Exhaust Pipe Support, NO.3
17581 Bracket, Exhaust Pipe NO.1 Insulator Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
