Toyota 4-Runner Truck (JPP)
1988-08 → 1995-11 · chassis RN10#,110,13#,VZN10#,110,13# · catalogue 671450 · United States
Discontinued model
Data version 1996-08

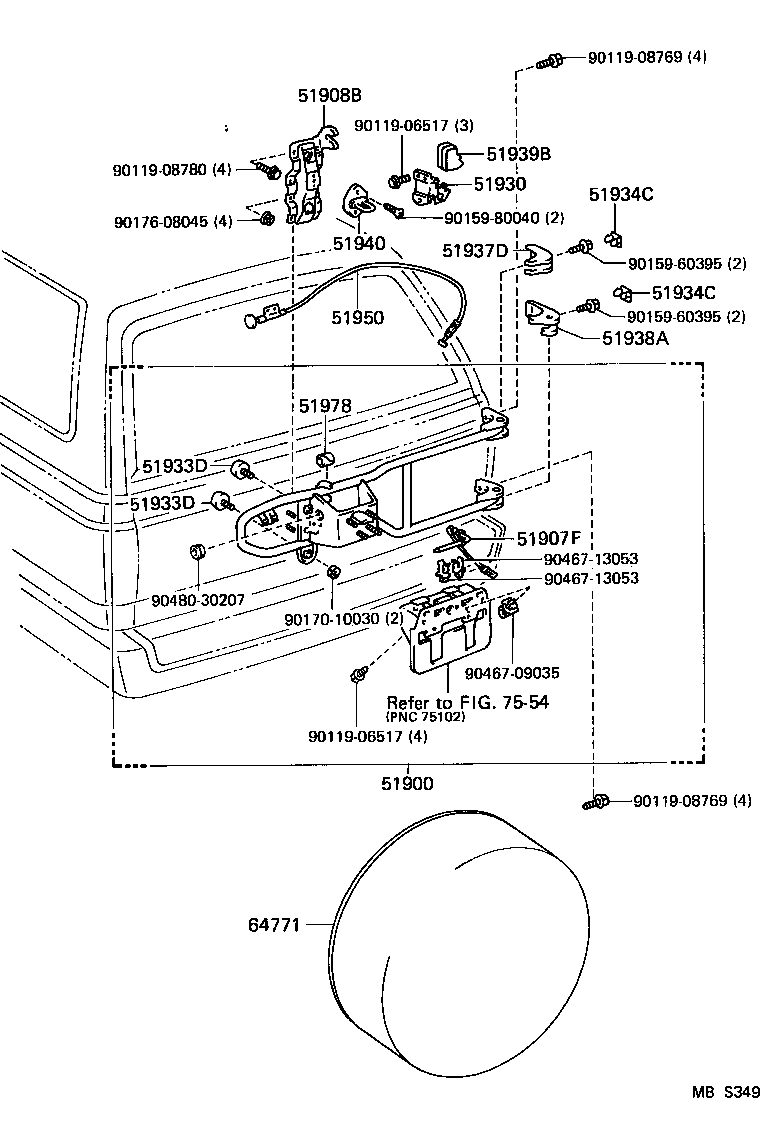

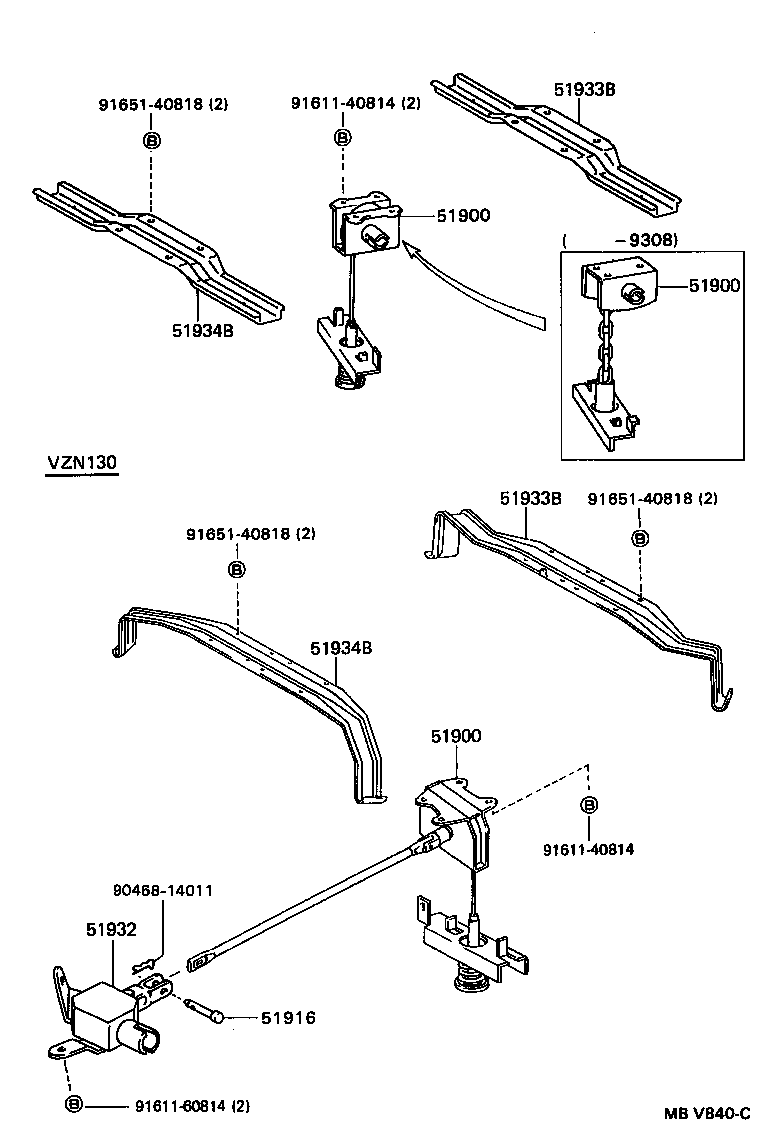

Spare Wheel Carrier
17 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 51900 | Carrier Assy, Spare Wheel |
| 51907F | Stopper Sub-assy, Spare Wheel Carrier |
| 51908B | Retainer Sub-assy, Spare Wheel Carrier Lock |
| 51916 | Pin, Spare Tire Carrier |
| 51930 | Lock Assy, Spare Wheel Carrier |
| 51932 | Carrier, Spare Wheel, NO.2 |
| 51933B | Stopper, Spare Wheel Carrier, RH |
| 51933D | Stopper, Spare Wheel Carrier |
| 51934B | Stopper, Spare Wheel Carrier, LH |
| 51934C | Reteiner, Spare Wheel Carrier, NO.1 |
| 51937D | Cover, Spare Wheel Carrier Hinge, Upper |
| 51938A | Hanger, Spare Wheel Carrier Lock Spring |
| 51939B | Cover, Spare Wheel Carrier Lock |
| 51940 | Striker Assy, Spare Wheel Carrier Lock |
| 51950 | Cable Assy, Spare Wheel Carrier Lock Control |
| 51978 | Protector, Spare Wheel Carrier |
| 64771 | Cover, Spare Wheel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
