Toyota 4-Runner Truck (JPP)

1988-08 → 1995-11 · chassis RN10#,110,13#,VZN10#,110,13# · catalogue 671450 · United States

Discontinued model Data version 1996-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Window

13 part groups · 3 illustrations

Illustrations

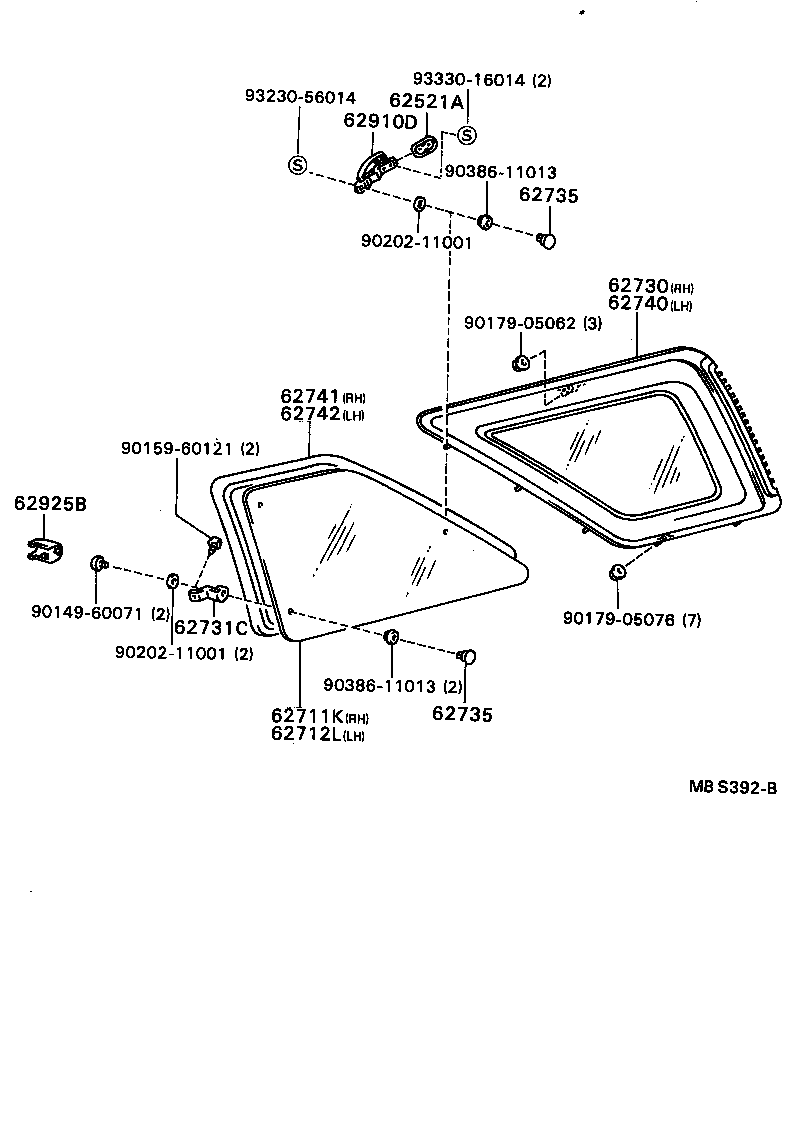

Figure MBP338E MBP338E 1988-08 → — Figure MBS393B MBS393B 1989-04 → — Figure MBS392B MBS392B 1989-04 → —

Part groups

PNCDescription
62521A Cover, Quarter Trim
62711 Glass, Quarter Window, RH
62711K Glass, Quarter Window, Front RH
62712 Glass, Quarter Window, LH
62712L Glass, Quarter Window, Front LH
62730 Panel Assy, Side Window, NO.3
62731C Hinge, Quarter Window, RH
62735 Retainer, Quarter Window Hinge
62740 Panel Assy, Side Window, NO.4
62741 Weatherstrip, Quarter Window, RH
62742 Weatherstrip, Quarter Window, LH
62910D Lock Assy, Quarter Window
62925B Cover, Side Rear Window Hinge, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
