Toyota 4-Runner Truck (JPP)

1988-08 → 1995-11 · chassis RN10#,110,13#,VZN10#,110,13# · catalogue 671450 · United States

Discontinued model Data version 1996-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

13 part groups · 2 illustrations

Illustrations

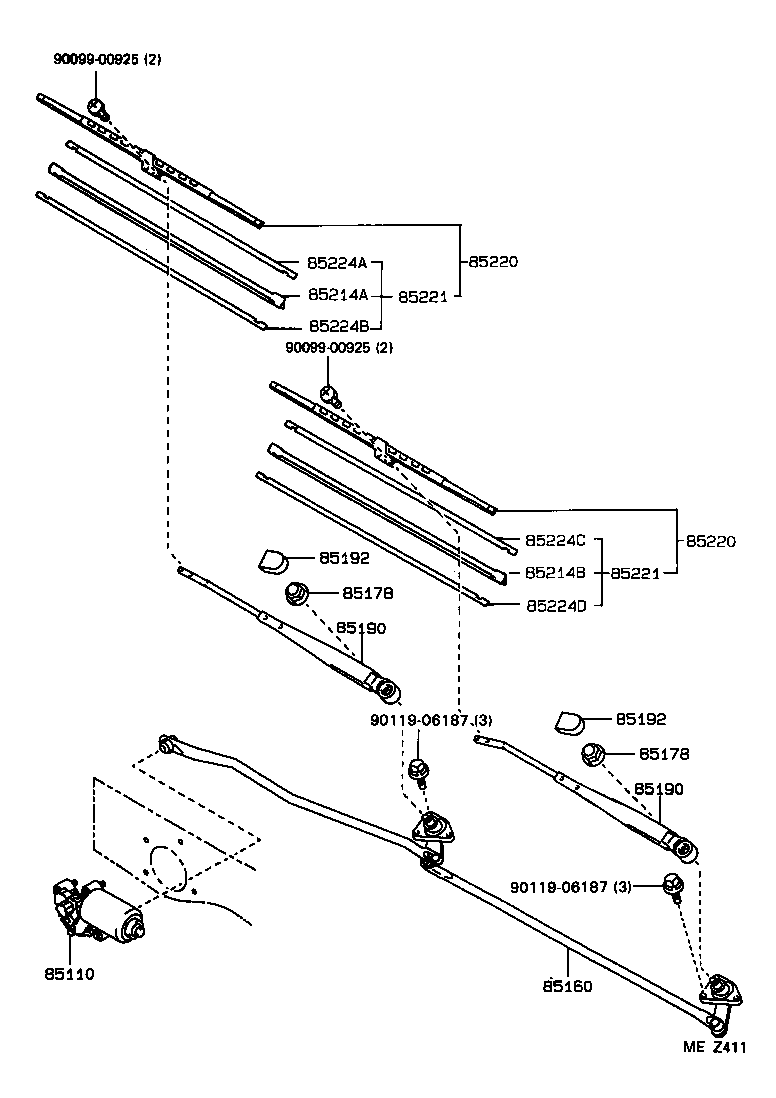

Figure NE0962B NE0962B 1988-08 → 1995-02 Figure MEZ411 MEZ411 1995-02 → —

Part groups

PNCDescription
85110 Motor Assy, Windshield Wiper
85160 Link Assy, Windshield Wiper
85178 Nut (FOR FRONT WIPER ARM SETTING)
85190 Arm Assy, Windshield Wiper
85192 Cover, Windshield Wiper Arm
85214A Rubber, Wiper, RH
85214B Rubber, Wiper, LH
85220 Blade Assy, Windshield Wiper
85221 Blade, Windshield Wiper
85224A Plate, Wiper Rubber Backing, NO.1
85224B Plate, Wiper Rubber Backing, NO.2
85224C Plate, Wiper Rubber Backing, NO.3
85224D Plate, Wiper Rubber Backing, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
