Toyota 4Runner

1995-11 → 2002-08 · chassis RZN18#,VZN18# · catalogue 671460 · United States

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

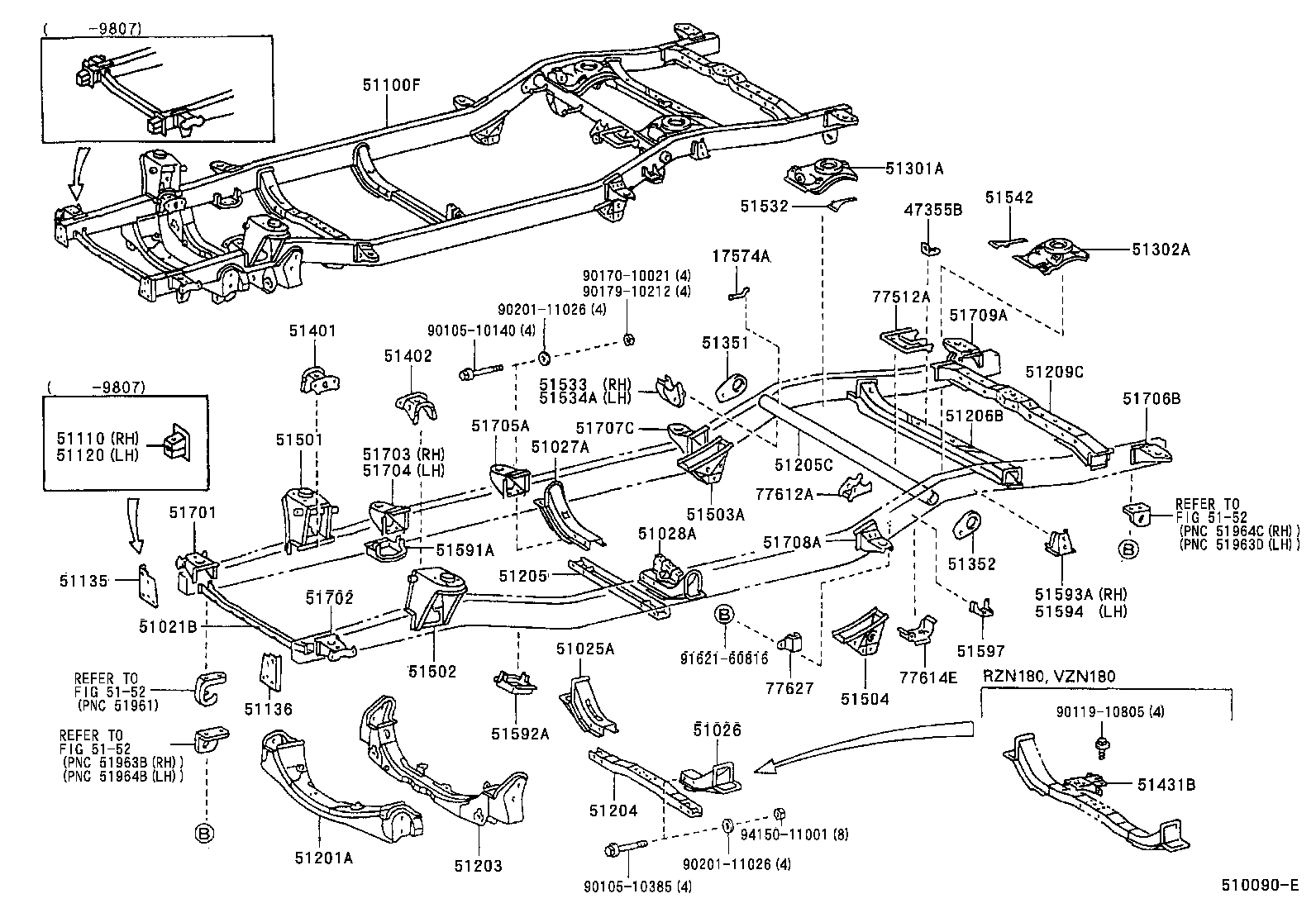

Exploded illustration 510090E 51100F — FRAME SUB-ASSY (25 parts) 51301A — BRACKET SUB-ASSY, REAR SPRING, REAR RH (1 parts) 51542 — REINFORCEMENT, REAR SPRING SUPPORT BRACKET, LH (1 parts) 51532 — REINFORCEMENT, REAR SPRING SUPPORT BRACKET, RH (1 parts) 47355B — BRACKET, FLEXIBLE HOSE, NO.5 (2 parts) 51302A — BRACKET SUB-ASSY, REAR SPRING, REAR LH (1 parts) 17574A — BRACKET, EXHAUST PIPE SUPPORT, NO.4 (1 parts) 9017010021 — not listed in this catalogue 9017910212 — not listed in this catalogue 77512A — BRACKET, FUEL TANK, REAR (1 parts) 9020111026 — not listed in this catalogue 51709A — BRACKET SUB-ASSY, BODY REAR END MOUNTING (1 parts) 51401 — BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH (2 parts) 9010510140 — not listed in this catalogue 51351 — GUSSET, CROSSMEMBER, NO.5 RH (1 parts) 51402 — BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH (2 parts) 51209C — CROSSMEMBER SUB-ASSY, FRAME, REAR (2 parts) 51533 — BRACKET, UPPER CONTROL LINK, RH (1 parts) 51534A — BRACKET, UPPER CONTROL LINK, LH (1 parts) 51706B — BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH (1 parts) 51206B — CROSSMEMBER SUB-ASSY, FRAME, NO.6 (2 parts) 51705A — BRACKET SUB-ASSY, CAB MOUNTING, NO.3 (2 parts) 51707C — BRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH (2 parts) 51110 — EXTENSION ASSY, SIDE RAIL, RH (1 parts) 51501 — SUPPORT SUB-ASSY, SUSPENSION ARM, RH (1 parts) 51027A — BRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, RH (1 parts) 51703 — BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH (2 parts) 51120 — EXTENSION ASSY, SIDE RAIL, LH (1 parts) 51205C — CROSSMEMBER SUB-ASSY, FRAME, NO.5 (1 parts) 51704 — BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH (2 parts) 77612A — BRACKET, FUEL TANK BAND (1 parts) 51701 — BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH (1 parts) 51503A — BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH (1 parts) 5152 — not listed in this catalogue 51028A — BRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, LH (1 parts) 51708A — BRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH (2 parts) 51591A — SUPPORT, STABILIZER, RH (1 parts) 51352 — GUSSET, CROSSMEMBER, NO.5 LH (1 parts) 51205 — CROSSMEMBER SUB-ASSY, FRAME, NO.4 (1 parts) 51135 — PLATE, FRAME SIDE RAIL, RH (1 parts) 51593A — BRACKET, REAR SPRING BUMPER, RH (1 parts) 51702 — BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH (1 parts) 51594 — BRACKET, REAR SPRING BUMPER, LH (1 parts) 51021B — CROSSMEMBER SUB-ASSY, FRAME AUXILIARY (2 parts) 51025A — BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH (1 parts) 51597 — BRACKET, REAR STABILIZER SUPPORT, FRONT (1 parts) 9162160816 — not listed in this catalogue 51502 — SUPPORT SUB-ASSY, SUSPENSION ARM, LH (1 parts) 77614E — BRACKET, FUEL TANK BAND, NO.2 (1 parts) 77627 — SPACER, FUEL TANK BAND (1 parts) 5152 — not listed in this catalogue 51504 — BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH (1 parts) 51136 — PLATE, FRAME SIDE RAIL, LH (1 parts) 9011910805 — not listed in this catalogue 51026 — BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH (1 parts) 51592A — SUPPORT, STABILIZER, LH (1 parts) 5152 — not listed in this catalogue 51431B — BRACKET, ENGINE REAR MOUNTING (3 parts) 51204 — CROSSMEMBER SUB-ASSY, FRAME, NO.3 (4 parts) 9415011001 — not listed in this catalogue 51201A — CROSSMEMBER SUB-ASSY, FRAME, FRONT (1 parts) 9020111026 — not listed in this catalogue 51203 — CROSSMEMBER SUB-ASSY, FRAME, NO.2 (1 parts) 9010510385 — not listed in this catalogue
510090E · 52 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
92 parts on this figure
Part number Description Fitment Price
17574A — Bracket, Exhaust Pipe Support, NO.4
17574-67010 Bracket, Exhaust Pipe Support, NO.4
1995-11 → 2002-08 ended
3RZFE,5VZFE RZN18#,VZN18# —
47355B — Bracket, Flexible Hose, NO.5
47355-35100 Bracket, Flexible Hose, NO.5
1995-11 → 2000-04 ended
RZN18#,VZN18# —
47355-35110 Bracket, Flexible Hose, NO.5
2000-04 → 2002-08 ended
RZN18#,VZN18# —
51021B — Crossmember Sub-assy, Frame Auxiliary
51021-35040 Crossmember Sub-assy, Frame Auxiliary
1995-11 → 1997-10 ended
RZN18#,VZN18# —
51021-60010 Crossmember Sub-assy, Frame Auxiliary
1997-10 → 2002-08 ended
RZN18#,VZN18# —
51025A — Bracket Sub-assy, Frame NO.3 Crossmember, RH
51025-35020 Bracket Sub-assy, Frame NO.3 Crossmember, RH
1995-11 → 2002-08 ended
RZN18#,VZN18# —
51026 — Bracket Sub-assy, Frame NO.3 Crossmember, LH
51026-35020 Bracket Sub-assy, Frame NO.3 Crossmember, LH
1995-11 → 2002-08 ended
RZN18#,VZN18# —
51027A — Bracket Sub-assy, Frame NO.4 Crossmember, RH
51027-35010 Bracket Sub-assy, Frame NO.4 Crossmember, RH
1995-11 → 2002-08 ended
RZN18#,VZN18# —
51028A — Bracket Sub-assy, Frame NO.4 Crossmember, LH
51028-35010 Bracket Sub-assy, Frame NO.4 Crossmember, LH
1995-11 → 2002-08 ended
RZN18#,VZN18# —
51100F — Frame Sub-assy
51001-3G080 Frame Sub-assy
1995-11 → 1997-04 ended
RZN180 —
51001-3G081 Frame Sub-assy
1997-04 → 1997-10 ended
RZN180 —
51001-3G082 Frame Sub-assy
1997-10 → 1998-07 ended
RZN180 —
51001-3G090 Frame Sub-assy
1995-11 → 1997-04 ended
VZN180 —
51001-3G091 Frame Sub-assy
1997-04 → 1997-10 ended
VZN180 —
51001-3G092 Frame Sub-assy
1997-10 → 1998-07 ended
VZN180 —
51001-3G100 Frame Sub-assy
1995-11 → 1997-04 ended
RZN185 5F —
51001-3G101 Frame Sub-assy
1997-04 → 1997-10 ended
RZN185 5F —
51001-3G102 Frame Sub-assy
1997-10 → 1998-07 ended
RZN185 5F —
51001-3G110 Frame Sub-assy
1995-11 → 1997-04 ended
RZN185 4FC —
51001-3G111 Frame Sub-assy
1997-04 → 1997-10 ended
RZN185 4FC —
51001-3G112 Frame Sub-assy
1997-10 → 1998-07 ended
RZN185 4FC —
51002-3G060 Frame Sub-assy
1998-07 → 1999-06 ended
RZN180 —
51002-3G061 Frame Sub-assy
1999-06 → 2000-08 ended
RZN180 —
51002-3G070 Frame Sub-assy
1998-07 → 1999-06 ended
VZN180 —
51002-3G071 Frame Sub-assy
1999-06 → 2002-08 ended
VZN180 —
51002-3G080 Frame Sub-assy
1998-07 → 1999-06 ended
RZN185 5F —
51002-3G081 Frame Sub-assy
1999-06 → 2000-08 ended
RZN185 5F —
51002-3G090 Frame Sub-assy
1998-07 → 1999-06 ended
RZN185 4FC —
51002-3G091 Frame Sub-assy
1999-06 → 2000-08 ended
RZN185 4FC —
51002-3G100 Frame Sub-assy
1998-07 → 1999-06 ended
VZN185 —
51002-3G101 Frame Sub-assy
1999-06 → 2002-08 ended
VZN185 —
51003-3D780 Frame Sub-assy
1995-11 → 1997-04 ended
VZN185 —
51003-3D781 Frame Sub-assy
1997-04 → 1997-10 ended
VZN185 —
51003-3D782 Frame Sub-assy
1997-10 → 1998-07 ended
VZN185 —
51110 — Extension Assy, Side Rail, RH
51110-35010 Extension Assy, Side Rail, RH
1995-11 → 1998-07 ended
RZN18#,VZN18# —
51120 — Extension Assy, Side Rail, LH
51120-35010 Extension Assy, Side Rail, LH
1995-11 → 1998-07 ended
RZN18#,VZN18# —
51135 — Plate, Frame Side Rail, RH
51135-35050 Plate, Frame Side Rail, RH
1998-07 → 2002-08 ended
RZN18#,VZN18# —
51136 — Plate, Frame Side Rail, LH
51136-35050 Plate, Frame Side Rail, LH
1998-07 → 2002-08 ended
RZN18#,VZN18# —
51201A — Crossmember Sub-assy, Frame, Front
51201-35261 Crossmember Sub-assy, Frame, Front
1995-11 → 2002-08 ended
RZN18#,VZN18# —
51203 — Crossmember Sub-assy, Frame, NO.2
51202-35321 Crossmember Sub-assy, Frame, NO.2
1995-11 → 2002-08 ended
RZN18#,VZN18# —
51204 — Crossmember Sub-assy, Frame, NO.3
51203-35320 Crossmember Sub-assy, Frame, NO.3
1995-11 → 1997-08 ended
RZN185,VZN185 —
51203-35321 Crossmember Sub-assy, Frame, NO.3
1997-08 → 2002-08 ended
RZN185,VZN185 —
51203-35350 Crossmember Sub-assy, Frame, NO.3
1995-11 → 1997-08 ended
RZN180,VZN180 —
51203-35351 Crossmember Sub-assy, Frame, NO.3
1997-08 → 2002-08 ended
RZN180,VZN180 —
51205 — Crossmember Sub-assy, Frame, NO.4
51204-35530 Crossmember Sub-assy, Frame, NO.4
1995-11 → 2002-08 ended
RZN18#,VZN18# —
51205C — Crossmember Sub-assy, Frame, NO.5
51251-35090 Crossmember Sub-assy, Frame, NO.5
1995-11 → 2002-08 ended
RZN18#,VZN18# —
51206B — Crossmember Sub-assy, Frame, NO.6
51206-35040 Crossmember Sub-assy, Frame, NO.6
1995-11 → 2000-04 ended
RZN18#,VZN18# —
51206-35050 Crossmember Sub-assy, Frame, NO.6
2000-04 → 2002-08 ended
RZN18#,VZN18# —
51209C — Crossmember Sub-assy, Frame, Rear
51209-35170 Crossmember Sub-assy, Frame, Rear
1995-11 → 1999-06 ended
RZN18#,VZN18# —
51209-35171 Crossmember Sub-assy, Frame, Rear
1999-06 → 2002-08 ended
RZN18#,VZN18# —
51301A — Bracket Sub-assy, Rear Spring, Rear RH
51301-35030 Bracket Sub-assy, Rear Spring, Rear RH
1995-11 → 2002-08 ended
RZN18#,VZN18# —
51302A — Bracket Sub-assy, Rear Spring, Rear LH
51302-35040 Bracket Sub-assy, Rear Spring, Rear LH
1995-11 → 2002-08 ended
RZN18#,VZN18# —
51351 — Gusset, Crossmember, NO.5 RH
51351-35020 Gusset, Crossmember, NO.5 RH
1995-11 → 2002-08 ended
RZN18#,VZN18# —
51352 — Gusset, Crossmember, NO.5 LH
51351-35020 Gusset, Crossmember, NO.5 LH
1995-11 → 2002-08 ended
RZN18#,VZN18# —
51401 — Bracket Sub-assy, Engine Front Mounting, RH
51401-35310 Bracket Sub-assy, Engine Front Mounting, RH
1995-11 → 2002-08 ended
VZN18# —
51401-35320 Bracket Sub-assy, Engine Front Mounting, RH
1995-11 → 2000-08 ended
RZN18# —
51402 — Bracket Sub-assy, Engine Front Mounting, LH
51401-35310 Bracket Sub-assy, Engine Front Mounting, LH
1995-11 → 2002-08 ended
VZN18# —
51401-35320 Bracket Sub-assy, Engine Front Mounting, LH
1995-11 → 2000-08 ended
RZN18# —
51431B — Bracket, Engine Rear Mounting
51431-35190 Bracket, Engine Rear Mounting
1995-11 → —
VZN180 —
51431-35200 Bracket, Engine Rear Mounting
1995-11 → 2000-08 ended
RZN180 5F —
51431-35210 Bracket, Engine Rear Mounting
1995-11 → 2000-08 ended
RZN180 4FC —
51501 — Support Sub-assy, Suspension Arm, RH
51501-35100 Support Sub-assy, Suspension Arm, RH
1995-11 → 2002-08 ended
RZN18#,VZN18# —
51502 — Support Sub-assy, Suspension Arm, LH
51502-35100 Support Sub-assy, Suspension Arm, LH
1995-11 → 2002-08 ended
RZN18#,VZN18# —
51503A — Bracket Sub-assy, Lower Control Link Support, RH
51503-35020 Bracket Sub-assy, Lower Control Link Support, RH
1995-11 → 2002-08 ended
RZN18#,VZN18# —
51504 — Bracket Sub-assy, Lower Control Link Support, LH
51504-35010 Bracket Sub-assy, Lower Control Link Support, LH
1995-11 → 2002-08 ended
RZN18#,VZN18# —
51532 — Reinforcement, Rear Spring Support Bracket, RH
51532-35010 Reinforcement, Rear Spring Support Bracket, RH
2001-07 → 2002-08 ended
VZN18# —
51533 — Bracket, Upper Control Link, RH
51533-35020 Bracket, Upper Control Link, RH
1995-11 → 2002-08 ended
RZN18#,VZN18# —
51534A — Bracket, Upper Control Link, LH
51534-35020 Bracket, Upper Control Link, LH
1995-11 → 2002-08 ended
RZN18#,VZN18# —
51542 — Reinforcement, Rear Spring Support Bracket, LH
51542-35010 Reinforcement, Rear Spring Support Bracket, LH
2001-07 → 2002-08 ended
VZN18# —
51591A — Support, Stabilizer, RH
51591-35060 Support, Stabilizer, RH
1995-11 → 2002-08 ended
RZN18#,VZN18# —
51592A — Support, Stabilizer, LH
51592-35020 Support, Stabilizer, LH
1995-11 → 2002-08 ended
RZN18#,VZN18# —
51593A — Bracket, Rear Spring Bumper, RH
51593-35020 Bracket, Rear Spring Bumper, RH
1995-11 → 2002-08 ended
RZN18#,VZN18# —
51594 — Bracket, Rear Spring Bumper, LH
51594-35020 Bracket, Rear Spring Bumper, LH
1995-11 → 2002-08 ended
RZN18#,VZN18# —
51597 — Bracket, Rear Stabilizer Support, Front
51597-35010 Bracket, Rear Stabilizer Support, Front
1995-11 → 2002-08 ended
RZN18#,VZN18# —
51701 — Bracket Sub-assy, Cab Mounting, NO.1 RH
51701-35140 Bracket Sub-assy, Cab Mounting, NO.1 RH
1995-11 → 2002-08 ended
RZN18#,VZN18# —
51702 — Bracket Sub-assy, Cab Mounting, NO.1 LH
51701-35140 Bracket Sub-assy, Cab Mounting, NO.1 LH
1995-11 → 2002-08 ended
RZN18#,VZN18# —
51703 — Bracket Sub-assy, Cab Mounting, NO.2, RH
51703-35110 Bracket Sub-assy, Cab Mounting, NO.2, RH
1995-11 → 1999-06 ended
RZN18#,VZN18# —
51703-35160 Bracket Sub-assy, Cab Mounting, NO.2, RH
1999-06 → 2002-08 ended
RZN18#,VZN18# —
51704 — Bracket Sub-assy, Cab Mounting, NO.2 LH
51703-35110 Bracket Sub-assy, Cab Mounting, NO.2 LH
1995-11 → 1999-06 ended
RZN18#,VZN18# —
51704-35150 Bracket Sub-assy, Cab Mounting, NO.2 LH
1999-06 → 2002-08 ended
RZN18#,VZN18# —
51705A — Bracket Sub-assy, Cab Mounting, NO.3
51705-35120 Bracket Sub-assy, Cab Mounting, NO.3
1996-08 → 1997-04 ended
RZN18#,VZN18# —
51705-35160 Bracket Sub-assy, Cab Mounting, NO.3
1997-04 → 2002-08 ended
RZN18#,VZN18# —
51706B — Bracket Sub-assy, Cab Mounting, NO.3 LH
51706-35030 Bracket Sub-assy, Cab Mounting, NO.3 LH
1995-11 → 2002-08 ended
RZN18#,VZN18# —
51707C — Bracket Sub-assy, Cab Mounting, NO.4 RH
51707-35070 Bracket Sub-assy, Cab Mounting, NO.4 RH
1995-11 → 1997-10 ended
RZN18#,VZN18# —
51707-35071 Bracket Sub-assy, Cab Mounting, NO.4 RH
1997-10 → 2002-08 ended
RZN18#,VZN18# —
51708A — Bracket Sub-assy, Cab Mounting, NO.4 LH
51708-35070 Bracket Sub-assy, Cab Mounting, NO.4 LH
1995-11 → 1997-10 ended
RZN18#,VZN18# —
51708-35071 Bracket Sub-assy, Cab Mounting, NO.4 LH
1997-10 → 2002-08 ended
RZN18#,VZN18# —
51709A — Bracket Sub-assy, Body Rear End Mounting
51709-35030 Bracket Sub-assy, Body Rear End Mounting
1995-11 → 2002-08 ended
RZN18#,VZN18# —
77512A — Bracket, Fuel Tank, Rear
77512-35080 Bracket, Fuel Tank, Rear
1995-11 → 2002-08 ended
RZN18#,VZN18# —
77612A — Bracket, Fuel Tank Band
77612-35040 Bracket, Fuel Tank Band
1995-11 → 2002-08 ended
RZN18#,VZN18# —
77614E — Bracket, Fuel Tank Band, NO.2
77614-35030 Bracket, Fuel Tank Band, NO.2
1995-11 → 2002-08 ended
RZN18#,VZN18# —
77627 — Spacer, Fuel Tank Band
77627-35010 Spacer, Fuel Tank Band
1995-11 → 2002-08 ended
RZN18#,VZN18# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
