Toyota 4Runner
1995-11 → 2002-08 · chassis RZN18#,VZN18# · catalogue 671460 · United States
Discontinued model
Data version 2003-02

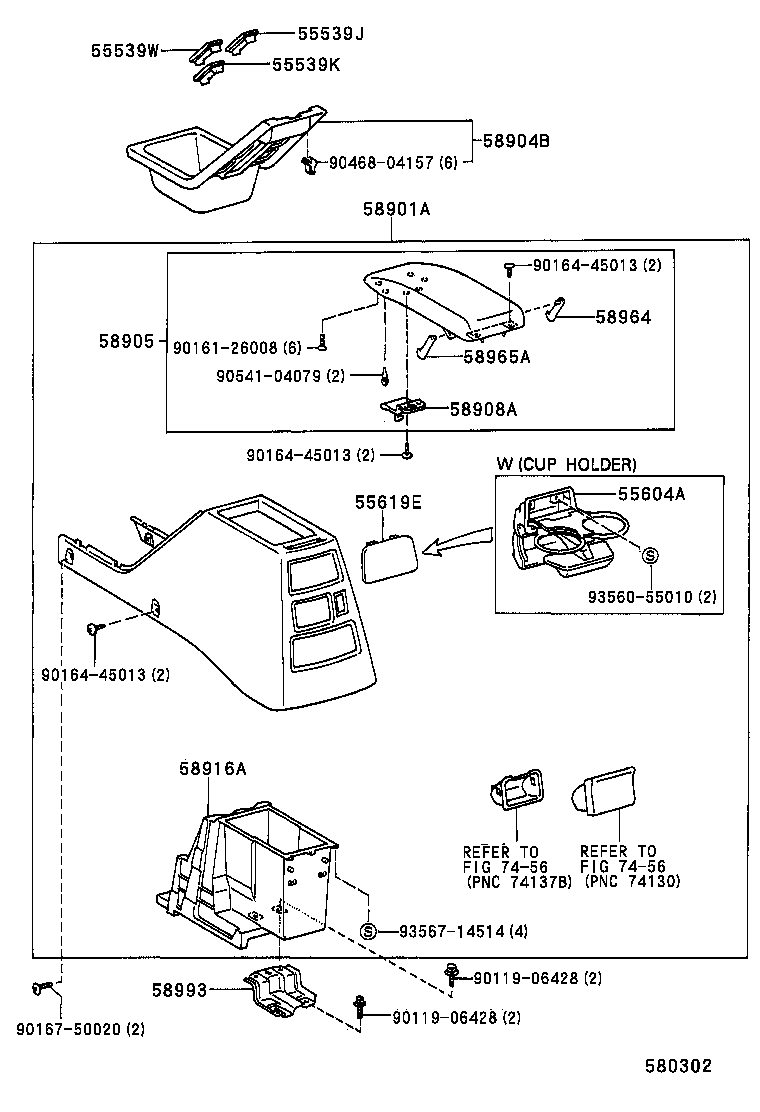

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55539J — Cover, Spare Switch Hole | ||||
| 55539-32010-C0 note |
Cover, Spare Switch Hole
1996-08 → 1998-07
ended
|
RZN18#,VZN185 5F | — | |
| 55539-89105 |
Cover, Spare Switch Hole
1995-11 → 1996-08
ended
|
RZN18#,VZN185 5F | — | |
| 55539K — Cover, Spare Switch Hole | ||||
| 55539-32010-C0 note |
Cover, Spare Switch Hole
1996-08 → 1998-07
ended
|
VZN18# LULI | — | |
| 55539-32010-C0 note |
Cover, Spare Switch Hole
1996-08 → 1998-07
ended
|
RZN18#,VZN18# SR5B,SR5V | — | |
| 55539-89105 |
Cover, Spare Switch Hole
1995-11 → 1996-08
ended
|
RZN18#,VZN18# | — | |
| 55539W — Cover, Spare Switch Hole | ||||
| 55539-32010-C0 note |
Cover, Spare Switch Hole
1996-08 → 1998-07
ended
|
VZN18# LULI | — | |
| 55539-32010-C0 note |
Cover, Spare Switch Hole
1996-08 → 1998-07
ended
|
RZN18#,VZN18# SR5B,SR5V | — | |
| 55539-89105 |
Cover, Spare Switch Hole
1995-11 → 1996-08
ended
|
RZN18#,VZN18# | — | |
| 55604A — Holder Sub-assy, Instrument Panel Cup | ||||
| 55604-35030-B0 note |
Holder Sub-assy, Instrument Panel Cup
1995-11 → 1999-08
ended
|
RZN18#,VZN18# SR5B,SR5V | — | |
| 55604-35030-E0 note |
Holder Sub-assy, Instrument Panel Cup
1995-11 → 1999-08
ended
|
RZN18#,VZN18# | — | |
| 55604-35040-B0 note |
Holder Sub-assy, Instrument Panel Cup
1999-08 → 2000-08
ended
|
RZN18#,VZN18# SR5B,SR5V | — | |
| 55604-35040-B2 note |
Holder Sub-assy, Instrument Panel Cup
2000-08 → —
|
VZN18# SR5B,SR5V | — | |
| 55604-35040-E0 note |
Holder Sub-assy, Instrument Panel Cup
1999-08 → —
|
RZN18#,VZN18# | — | |
| 55619E — Cover, Cup Holder Hole | ||||
| 55619-35020-B0 note |
Cover, Cup Holder Hole
1995-11 → 1996-08
ended
|
RZN18#,VZN18# SR5B,SR5V | — | |
| 55619-35020-E0 note |
Cover, Cup Holder Hole
1995-11 → 1996-08
ended
|
RZN18#,VZN18# SR5B,SR5V | — | |
| 58901A — Box Sub-assy, Console, Rear | ||||
| 58901-35100-B0 note |
Box Sub-assy, Console, Rear
1995-11 → 1996-08
ended
|
RZN18#,VZN18# SR5B,SR5V | — | |
| 58901-35100-E0 note |
Box Sub-assy, Console, Rear
1995-11 → 1996-08
ended
|
RZN18#,VZN18# SR5B,SR5V | — | |
| 58901-35110-B0 note |
Box Sub-assy, Console, Rear
1995-11 → 1998-07
ended
|
RZN18#,VZN18# SR5B,SR5V | — | |
| 58901-35110-E0 note |
Box Sub-assy, Console, Rear
1995-11 → 1998-07
ended
|
RZN18#,VZN18# SR5B,SR5V | — | |
| 58901-35120-B0 note |
Box Sub-assy, Console, Rear
1995-11 → 1998-07
ended
|
RZN185,VZN18# SR5B,SR5V | — | |
| 58901-35120-B0 note |
Box Sub-assy, Console, Rear
1995-11 → 1998-07
ended
|
RZN180 | — | |
| 58901-35120-E0 note |
Box Sub-assy, Console, Rear
1995-11 → 1998-07
ended
|
RZN185,VZN18# SR5B,SR5V | — | |
| 58901-35120-E0 note |
Box Sub-assy, Console, Rear
1995-11 → 1998-07
ended
|
RZN180 | — | |
| 58901-35140-E0 note |
Box Sub-assy, Console, Rear
1995-11 → 1996-08
ended
|
VZN18# SR5V | — | |
| 58901-35150-E0 note |
Box Sub-assy, Console, Rear
1995-11 → 1998-07
ended
|
VZN18# LULI | — | |
| 58901-35150-E0 note |
Box Sub-assy, Console, Rear
1995-11 → 1998-07
ended
|
VZN18# SR5V | — | |
| 58901-35160-E0 note |
Box Sub-assy, Console, Rear
1995-11 → 1998-07
ended
|
VZN18# SR5V | — | |
| 58901-35160-E0 note |
Box Sub-assy, Console, Rear
1995-11 → 1998-07
ended
|
VZN18# LULI | — | |
| 58901-35220-B0 note |
Box Sub-assy, Console, Rear
1998-07 → 1999-08
ended
|
RZN18#,VZN18# SR5B,SR5V | — | |
| 58901-35220-E0 note |
Box Sub-assy, Console, Rear
1998-07 → 1999-08
ended
|
RZN18#,VZN18# SR5B,SR5V | — | |
| 58901-35221-B0 note |
Box Sub-assy, Console, Rear
1999-08 → 2000-08
ended
|
RZN18#,VZN18# SR5B,SR5V | — | |
| 58901-35221-E0 note |
Box Sub-assy, Console, Rear
1999-08 → 2000-08
ended
|
RZN18#,VZN18# SR5B,SR5V | — | |
| 58901-35230-B0 note |
Box Sub-assy, Console, Rear
1998-07 → 1999-08
ended
|
RZN18#,VZN18# SR5B,SR5V | — | |
| 58901-35230-E0 note |
Box Sub-assy, Console, Rear
1998-07 → 1999-08
ended
|
RZN18#,VZN18# SR5B,SR5V | — | |
| 58901-35231-B0 note |
Box Sub-assy, Console, Rear
1999-08 → 2000-08
ended
|
RZN18#,VZN18# SR5B,SR5V | — | |
| 58901-35231-E0 note |
Box Sub-assy, Console, Rear
1999-08 → 2000-08
ended
|
RZN18#,VZN18# SR5B,SR5V | — | |
| 58901-35240-E0 note |
Box Sub-assy, Console, Rear
1998-07 → 1999-08
ended
|
VZN18# | — | |
| 58901-35241-E0 note |
Box Sub-assy, Console, Rear
1999-08 → 2000-08
ended
|
VZN18# LULI | — | |
| 58901-35241-E0 note |
Box Sub-assy, Console, Rear
1999-08 → 2000-08
ended
|
VZN18# SR5V | — | |
| 58901-35250-E0 note |
Box Sub-assy, Console, Rear
1998-07 → 1999-08
ended
|
VZN18# | — | |
| 58901-35251-E0 note |
Box Sub-assy, Console, Rear
1999-08 → 2000-08
ended
|
VZN18# LULI | — | |
| 58901-35251-E0 note |
Box Sub-assy, Console, Rear
1999-08 → 2000-08
ended
|
VZN18# SR5V | — | |
| 58901-35260-B0 note |
Box Sub-assy, Console, Rear
2000-08 → —
|
VZN18# SR5B,SR5V | — | |
| 58901-35260-E0 note |
Box Sub-assy, Console, Rear
2000-08 → —
|
VZN18# SR5B,SR5V | — | |
| 58901-35270-E0 note |
Box Sub-assy, Console, Rear
2000-08 → —
|
VZN18# LULI,SR5V | — | |
| 58901-35280-B0 note |
Box Sub-assy, Console, Rear
2000-08 → —
|
VZN18# SR5B,SR5V | — | |
| 58901-35280-E0 note |
Box Sub-assy, Console, Rear
2000-08 → —
|
VZN18# SR5B,SR5V | — | |
| 58901-35290-E0 note |
Box Sub-assy, Console, Rear
2000-08 → —
|
VZN18# LULI,SR5V | — | |
| 58904B — Cover Sub-assy, Parking Brake Hole | ||||
| 58904-35010 |
Cover Sub-assy, Parking Brake Hole
1995-11 → 1998-07
ended
|
RZN18#,VZN18# | — | |
| 58904-35030 |
Cover Sub-assy, Parking Brake Hole
1998-07 → 1999-08
ended
|
RZN18#,VZN18# | — | |
| 58904-35040 |
Cover Sub-assy, Parking Brake Hole
1999-08 → —
|
RZN18#,VZN18# | — | |
| 58905 — Door Sub-assy, Console Compartment | ||||
| 58905-35040-B1 note |
Door Sub-assy, Console Compartment
1995-11 → 1998-07
ended
|
RZN18#,VZN18# SR5B,SR5V | — | |
| 58905-35040-E0 note |
Door Sub-assy, Console Compartment
1995-11 → 1998-07
ended
|
RZN18#,VZN18# SR5B,SR5V | — | |
| 58905-35050-E1 note |
Door Sub-assy, Console Compartment
1995-11 → 1998-07
ended
|
VZN18# LULI | — | |
| 58905-35050-E1 note |
Door Sub-assy, Console Compartment
1995-11 → 1998-07
ended
|
VZN18# SR5V | — | |
| 58905-35070-B0 note |
Door Sub-assy, Console Compartment
1998-07 → 2000-08
ended
|
RZN18#,VZN18# SR5B,SR5V | — | |
| 58905-35070-B1 note |
Door Sub-assy, Console Compartment
2000-08 → —
|
VZN18# SR5B,SR5V | — | |
| 58905-35070-E0 note |
Door Sub-assy, Console Compartment
1998-07 → —
|
RZN18#,VZN18# SR5B,SR5V | — | |
| 58905-35080-E0 note |
Door Sub-assy, Console Compartment
1998-07 → —
|
VZN18# LULI,SR5V | — | |
| 58908A — Lock Sub-assy, Console Compartment Door | ||||
| 58908-32050 |
Lock Sub-assy, Console Compartment Door
1995-11 → —
|
RZN18#,VZN18# | — | |
| 58916A — Insert, Console Box, Rear | ||||
| 58916-35020 |
Insert, Console Box, Rear
1995-11 → 1998-07
ended
|
RZN18#,VZN18# | — | |
| 58916-35040 |
Insert, Console Box, Rear
1998-07 → 2000-08
ended
|
RZN18#,VZN18# | — | |
| 58916-35060 |
Insert, Console Box, Rear
2000-08 → —
|
VZN18# | — | |
| 58964 — Stopper, Console Compartment Door, NO.1 | ||||
| 58964-16010 |
Stopper, Console Compartment Door, NO.1
1995-11 → —
|
RZN18#,VZN18# | — | |
| 58965A — Stopper, Console Compartment Door, NO.2 | ||||
| 58965-16010 |
Stopper, Console Compartment Door, NO.2
1995-11 → —
|
RZN18#,VZN18# | — | |
| 58993 — Bracket, Console Box Mounting, Rear | ||||
| 58902-35020 |
Bracket, Console Box Mounting, Rear
2000-08 → —
|
VZN18# | — | |
| 58993-35030 |
Bracket, Console Box Mounting, Rear
1995-11 → 1998-07
ended
|
RZN18#,VZN18# | — | |
| 58993-35050 |
Bracket, Console Box Mounting, Rear
1998-07 → 2000-08
ended
|
RZN18#,VZN18# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
