Toyota 4Runner

1995-11 → 2002-08 · chassis RZN18#,VZN18# · catalogue 671460 · United States

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

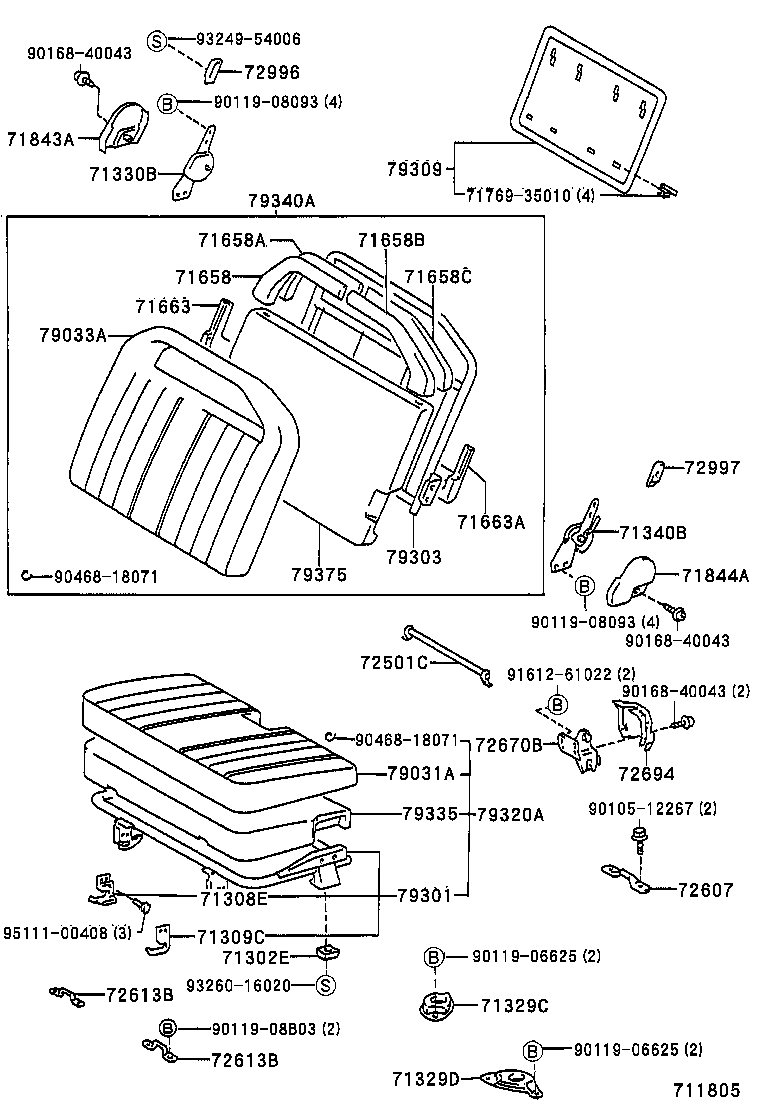

Exploded illustration 711805 9324954006 — not listed in this catalogue 9016840043 — not listed in this catalogue 72996 — COVER, REAR SEATBACK, RH (2 parts) 9011908093 — not listed in this catalogue 71843A — COVER, REAR SEAT RECLINING, NO.2 RH (2 parts) 79309 — BOARD SUB-ASSY, NO.3 SEATBACK (2 parts) 71330B — HINGE ASSY, REAR NO.2 SEAT, RH (1 parts) 7176935010 — not listed in this catalogue 79340A — BACK ASSY, NO.3 SEAT (2 parts) 71658A — PAD, REAR NO.2 SEATBACK SAFETY, REAR RH (1 parts) 71658B — PAD, REAR NO.2 SEATBACK SAFETY, FRONT LH (1 parts) 71658C — PAD, REAR NO.2 SEATBACK SAFETY, REAR LH (1 parts) 71658 — PAD, REAR NO.2 SEATBACK SAFETY, FRONT RH (1 parts) 71663 — PAD, REAR SEATBACK, LOWER (1 parts) 79033A — COVER SUB-ASSY, NO.3 SEATBACK (4 parts) 72997 — COVER, REAR SEATBACK, LH (2 parts) 71663A — PAD, REAR SEATBACK, LOWER A (1 parts) 71340B — HINGE ASSY, REAR NO.2 SEAT, LH (1 parts) 79303 — FRAME SUB-ASSY, NO.3 SEATBACK (1 parts) 79375 — PAD, NO.3 SEATBACK (1 parts) 71844A — COVER, REAR SEAT RECLINING, NO.2 LH (2 parts) 9046818071 — not listed in this catalogue 9011908093 — not listed in this catalogue 9016840043 — not listed in this catalogue 72501C — PIPE SUB-ASSY, RECLINING CONNECTING (1 parts) 9161261022 — not listed in this catalogue 9016840043 — not listed in this catalogue 9046818071 — not listed in this catalogue 72670B — LOCK ASSY, REAR SEAT CUSHION, RH (1 parts) 79031A — COVER SUB-ASSY, NO.3 SEAT CUSHION (5 parts) 72694 — COVER, REAR SEAT CUSHION LOCK (2 parts) 9010512267 — not listed in this catalogue 79335 — PAD, NO.3 SEAT CUSHION (1 parts) 79320A — CUSHION ASSY, NO.3 SEAT (6 parts) 72607 — STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK (1 parts) 79301 — FRAME SUB-ASSY, NO.3 SEAT CUSHION (1 parts) 71308E — LEG SUB-ASSY, REAR SEAT, RH (1 parts) 9511100408 — not listed in this catalogue 71309C — LEG SUB-ASSY, REAR SEAT, REAR LH (1 parts) 9011906625 — not listed in this catalogue 71302E — STOPPER SUB-ASSY, REAR SEAT LEG (1 parts) 9326016020 — not listed in this catalogue 72613B — STRIKER, REAR SEAT LOCK (1 parts) 71329C — REINFORCEMENT, REAR SEAT LEG BRACKET, RH (1 parts) 9011908B03 — not listed in this catalogue 9011906625 — not listed in this catalogue 72613B — STRIKER, REAR SEAT LOCK (1 parts) 71329D — REINFORCEMENT, REAR SEAT LEG BRACKET, LH (1 parts)
711805 · 32 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
50 parts on this figure
Part number Description Fitment Price
71302E — Stopper Sub-assy, Rear Seat Leg
71302-35020 Stopper Sub-assy, Rear Seat Leg
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
71308E — Leg Sub-assy, Rear Seat, RH
71308-35030 Leg Sub-assy, Rear Seat, RH
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
71309C — Leg Sub-assy, Rear Seat, Rear LH
71309-35010 Leg Sub-assy, Rear Seat, Rear LH
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
71329C — Reinforcement, Rear Seat Leg Bracket, RH
71329-35030 Reinforcement, Rear Seat Leg Bracket, RH
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
71329D — Reinforcement, Rear Seat Leg Bracket, LH
71329-35040 Reinforcement, Rear Seat Leg Bracket, LH
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
71330B — Hinge Assy, Rear NO.2 Seat, RH
71330-35010 Hinge Assy, Rear NO.2 Seat, RH
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
71340B — Hinge Assy, Rear NO.2 Seat, LH
71340-35020 Hinge Assy, Rear NO.2 Seat, LH
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
71658 — Pad, Rear NO.2 Seatback Safety, Front RH
71658-35010 Pad, Rear NO.2 Seatback Safety, Front RH
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
71658A — Pad, Rear NO.2 Seatback Safety, Rear RH
71658-35030 Pad, Rear NO.2 Seatback Safety, Rear RH
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
71658B — Pad, Rear NO.2 Seatback Safety, Front LH
71658-35020 Pad, Rear NO.2 Seatback Safety, Front LH
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
71658C — Pad, Rear NO.2 Seatback Safety, Rear LH
71658-35040 Pad, Rear NO.2 Seatback Safety, Rear LH
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
71663 — Pad, Rear Seatback, Lower
71663-35010 Pad, Rear Seatback, Lower
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
71663A — Pad, Rear Seatback, Lower A
71663-35020 Pad, Rear Seatback, Lower A
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
71843A — Cover, Rear Seat Reclining, NO.2 RH
71843-35010-B0 note Cover, Rear Seat Reclining, NO.2 RH
1995-11 → 2000-08 ended
VZN18# SR5V —
71843-35010-E0 note Cover, Rear Seat Reclining, NO.2 RH
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
71844A — Cover, Rear Seat Reclining, NO.2 LH
71844-35010-B0 note Cover, Rear Seat Reclining, NO.2 LH
1995-11 → 2000-08 ended
VZN18# SR5V —
71844-35010-E0 note Cover, Rear Seat Reclining, NO.2 LH
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
72501C — Pipe Sub-assy, Reclining Connecting
72501-35020 Pipe Sub-assy, Reclining Connecting
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
72607 — Striker Sub-assy, Rear Seat Cushion Lock
72607-35010 Striker Sub-assy, Rear Seat Cushion Lock
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
72613B — Striker, Rear Seat Lock
72613-35020 Striker, Rear Seat Lock
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
72670B — Lock Assy, Rear Seat Cushion, RH
72670-35010 Lock Assy, Rear Seat Cushion, RH
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
72694 — Cover, Rear Seat Cushion Lock
72694-35010-B0 note Cover, Rear Seat Cushion Lock
1995-11 → 2000-08 ended
VZN18# SR5V —
72694-35010-E0 note Cover, Rear Seat Cushion Lock
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
72996 — Cover, Rear Seatback, RH
72996-35020-B0 note Cover, Rear Seatback, RH
1995-11 → 2000-08 ended
VZN18# SR5V —
72996-35020-E0 note Cover, Rear Seatback, RH
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
72997 — Cover, Rear Seatback, LH
72997-35010-B0 note Cover, Rear Seatback, LH
1995-11 → 2000-08 ended
VZN18# SR5V —
72997-35010-E0 note Cover, Rear Seatback, LH
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
79031A — Cover Sub-assy, NO.3 Seat Cushion
71075-35370-B1 note Cover Sub-assy, NO.3 Seat Cushion
1995-11 → 1996-10 ended
VZN18# SR5V —
71075-35370-B3 note Cover Sub-assy, NO.3 Seat Cushion
1995-11 → 2000-08 ended
VZN18# SR5V —
71075-35370-E1 note Cover Sub-assy, NO.3 Seat Cushion
1995-11 → 1996-08 ended
VZN185 LULI —
71075-35370-E3 note Cover Sub-assy, NO.3 Seat Cushion
1995-11 → 1996-08 ended
VZN18# SR5V —
71075-35370-E3 note Cover Sub-assy, NO.3 Seat Cushion
1996-08 → 2000-08 ended
VZN185;VZN180 SR5V —
79033A — Cover Sub-assy, NO.3 Seatback
71077-35630-B1 note Cover Sub-assy, NO.3 Seatback
1995-11 → 1998-07 ended
VZN18# SR5V —
71077-35630-B2 note Cover Sub-assy, NO.3 Seatback
1998-07 → 2000-08 ended
VZN18# SR5V —
71077-35630-E1 note Cover Sub-assy, NO.3 Seatback
1995-11 → 1998-07 ended
VZN185;VZN180 SR5V —
71077-35630-E2 note Cover Sub-assy, NO.3 Seatback
1998-07 → 2000-08 ended
VZN185;VZN180 SR5V —
79301 — Frame Sub-assy, NO.3 Seat Cushion
71015-35030 Frame Sub-assy, NO.3 Seat Cushion
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
79303 — Frame Sub-assy, NO.3 Seatback
71017-35070 Frame Sub-assy, NO.3 Seatback
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
79309 — Board Sub-assy, NO.3 Seatback
79309-35010-B0 note Board Sub-assy, NO.3 Seatback
1995-11 → 2000-08 ended
VZN18# SR5V —
79309-35010-E0 note Board Sub-assy, NO.3 Seatback
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
79320A — Cushion Assy, NO.3 Seat
71460-35590 Cushion Assy, NO.3 Seat
1998-07 → 2000-08 ended
VZN185 LULI —
71460-35590-B1 note Cushion Assy, NO.3 Seat
1995-11 → 2000-08 ended
VZN18# SR5V —
71460-35590-B3 note Cushion Assy, NO.3 Seat
1997-08 → 1998-07 ended
VZN18# SR5V —
71460-35590-E1 note Cushion Assy, NO.3 Seat
1995-11 → 1998-07 ended
VZN185;VZN180 SR5V —
71460-35590-E1 note Cushion Assy, NO.3 Seat
1998-07 → 2000-08 ended
VZN18# SR5V —
71460-35590-E3 note Cushion Assy, NO.3 Seat
1997-08 → 1998-07 ended
VZN18# SR5V —
79335 — Pad, NO.3 Seat Cushion
71613-35010 Pad, NO.3 Seat Cushion
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
79340A — Back Assy, NO.3 Seat
71480-35670-B0 note Back Assy, NO.3 Seat
1995-11 → 2000-08 ended
VZN18# SR5V —
71480-35670-E0 note Back Assy, NO.3 Seat
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
79375 — Pad, NO.3 Seatback
71653-35010 Pad, NO.3 Seatback
1995-11 → 2000-08 ended
VZN185;VZN180 SR5V —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
