Toyota 4Runner

1995-11 → 2002-08 · chassis RZN18#,VZN18# · catalogue 671460 · United States

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

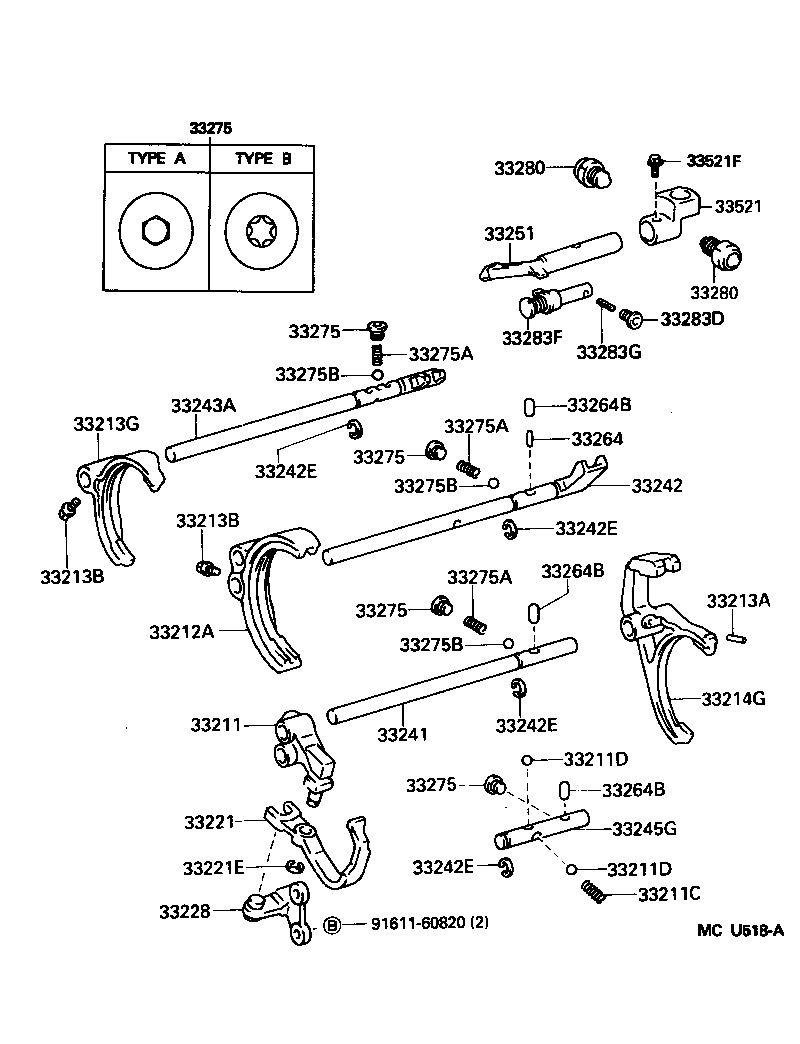

Exploded illustration MCU518A 33275 — SEAT, SHIFT DETENT BALL SPRING, NO.1 (3 parts) 33521F — PIN OR BOLT (FOR SHIFT LEVER HOUSING) (1 parts) 33280 — PIN ASSY, REVERSE RESTRICT (6 parts) 33521 — HOUSING, SHIFT LEVER (3 parts) 33251 — LEVER, SHIFT & SELECT (3 parts) 33280 — PIN ASSY, REVERSE RESTRICT (6 parts) 33283D — PLUG (FOR REVERSE RESTRICT PIN) (3 parts) 33275 — SEAT, SHIFT DETENT BALL SPRING, NO.1 (3 parts) 33283F — PIN, REVERSE RESTRICT (2 parts) 33283G — PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) (2 parts) 33275A — SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) (2 parts) 33275B — BALL, SHAFT DETENT (2 parts) 33243A — SHAFT, GEAR SHIFT FORK, NO.2 (2 parts) 33264B — ROLLER, NO.1 (FOR SHIFT INTERLOCK ) (1 parts) 33213G — FORK, GEAR SHIFT, NO.2 (2 parts) 33275A — SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) (2 parts) 33264 — PIN, OR BALL, SHIFT INTERLOCK, NO.1 (2 parts) 33275 — SEAT, SHIFT DETENT BALL SPRING, NO.1 (3 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (2 parts) 33275B — BALL, SHAFT DETENT (2 parts) 33242 — SHAFT, GEAR SHIFT FORK, NO.1 (3 parts) 33213B — BOLT(FOR SHIFT FORK SET) (2 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (2 parts) 33264B — ROLLER, NO.1 (FOR SHIFT INTERLOCK ) (1 parts) 33213B — BOLT(FOR SHIFT FORK SET) (2 parts) 33275A — SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) (2 parts) 33213A — PIN, SLOTTED SPRING(FOR SHIFT FORK SET) (1 parts) 33275 — SEAT, SHIFT DETENT BALL SPRING, NO.1 (3 parts) 33212A — FORK, GEAR SHIFT, NO.1 (2 parts) 33275B — BALL, SHAFT DETENT (2 parts) 33214G — FORK, GEAR SHIFT, NO.3 (2 parts) 33211 — FORK, REVERSE SHIFT (1 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (2 parts) 33241 — SHAFT, REVERSE SHIFT FORK (1 parts) 33211D — BALL(FOR REVERSE SHIFT FORK) (1 parts) 33275 — SEAT, SHIFT DETENT BALL SPRING, NO.1 (3 parts) 33264B — ROLLER, NO.1 (FOR SHIFT INTERLOCK ) (1 parts) 33221 — ARM, REVERSE SHIFT (2 parts) 33245G — SHAFT, GEAR SHIFT FORK, NO.4 (2 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (2 parts) 33221E — RING(FOR REVERSE SHIFT ARM END SHAFT) (1 parts) 33211D — BALL(FOR REVERSE SHIFT FORK) (1 parts) 33211C — SPRING, COMPRESSION(FOR REVERSE SHIFT FORK RETURN) (1 parts) 33228 — BRACKET, REVERSE SHIFT ARM (1 parts) 9161160820 — not listed in this catalogue
MCU518A · 44 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
56 parts on this figure
Part number Description Fitment Price
33211 — Fork, Reverse Shift
33211-35050 Fork, Reverse Shift
1995-11 → 2000-08 ended
VZN185 5F —
33211C — Spring, Compression(FOR REVERSE SHIFT FORK RETURN)
90501-12166 Spring, Compression(FOR REVERSE SHIFT FORK RETURN)
1995-11 → 2000-08 ended
VZN185 5F —
33211D — Ball(FOR REVERSE SHIFT FORK)
90360-10003 note Ball(FOR REVERSE SHIFT FORK)
1995-11 → 2000-08 ended
VZN185 5F —
33212A — Fork, Gear Shift, NO.1
33212-30050 Fork, Gear Shift, NO.1
1995-11 → 2000-08 ended
RZN18# 5F —
33212-35032 Fork, Gear Shift, NO.1
1995-11 → 2000-08 ended
VZN185 5F —
33213A — Pin, Slotted Spring(FOR SHIFT FORK SET)
90254-05016 Pin, Slotted Spring(FOR SHIFT FORK SET)
1995-11 → 2000-08 ended
RZN18#,VZN185 5F —
33213B — Bolt(FOR SHIFT FORK SET)
90105-06077 Bolt(FOR SHIFT FORK SET)
1995-11 → 2000-08 ended
VZN185 5F —
90105-06143 Bolt(FOR SHIFT FORK SET)
1995-11 → 2000-08 ended
RZN18# 5F —
33213G — Fork, Gear Shift, NO.2
33213-30060 Fork, Gear Shift, NO.2
1995-11 → 2000-08 ended
RZN18# 5F —
33213-35040 Fork, Gear Shift, NO.2
1995-11 → 2000-08 ended
VZN185 5F —
33214G — Fork, Gear Shift, NO.3
33230-30011 Fork, Gear Shift, NO.3
1995-11 → 2000-08 ended
RZN18# 5F —
33230-35010 Fork, Gear Shift, NO.3
1995-11 → 2000-08 ended
VZN185 5F —
33221 — Arm, Reverse Shift
33221-22020 Arm, Reverse Shift
1995-11 → 2000-08 ended
RZN18# 5F —
33221-35050 Arm, Reverse Shift
1995-11 → 2000-08 ended
VZN185 5F —
33221E — Ring(FOR REVERSE SHIFT ARM END SHAFT)
96160-01000 Ring(FOR REVERSE SHIFT ARM END SHAFT)
1995-11 → 2000-08 ended
VZN185 5F —
33228 — Bracket, Reverse Shift Arm
33228-35030 Bracket, Reverse Shift Arm
1995-11 → 2000-08 ended
VZN185 5F —
33241 — Shaft, Reverse Shift Fork
33244-35060 Shaft, Reverse Shift Fork
1995-11 → 2000-08 ended
VZN185 5F —
33242 — Shaft, Gear Shift Fork, NO.1
33242-30070 Shaft, Gear Shift Fork, NO.1
1995-11 → 2000-08 ended
RZN18# 5F —
33242-35040 Shaft, Gear Shift Fork, NO.1
1995-11 → 1998-06 ended
VZN185 5F —
33242-60090 Shaft, Gear Shift Fork, NO.1
1998-06 → 2000-08 ended
VZN185 5F —
33242E — Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
90520-12003 Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
1995-11 → 2000-08 ended
RZN18# 5F —
90520-12003 Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
1995-11 → 2000-08 ended
VZN185 5F —
33243A — Shaft, Gear Shift Fork, NO.2
33243-30130 Shaft, Gear Shift Fork, NO.2
1995-11 → 2000-08 ended
RZN18# 5F —
33243-35080 Shaft, Gear Shift Fork, NO.2
1995-11 → 2000-08 ended
VZN185 5F —
33245G — Shaft, Gear Shift Fork, NO.4
33245-22011 Shaft, Gear Shift Fork, NO.4
1995-11 → 2000-08 ended
RZN18# 5F —
33245-35090 Shaft, Gear Shift Fork, NO.4
1995-11 → 2000-08 ended
VZN185 5F —
33251 — Lever, Shift & Select
33251-30100 Lever, Shift & Select
1995-11 → 2000-08 ended
RZN180 5F —
33251-35150 Lever, Shift & Select
1995-11 → 2000-08 ended
VZN185 5F —
33251-35160 Lever, Shift & Select
1995-11 → 2000-08 ended
RZN185 5F —
33264 — Pin, OR Ball, Shift Interlock, NO.1
33264-22010 Pin, OR Ball, Shift Interlock, NO.1
1995-11 → 2000-08 ended
RZN18# 5F —
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
1995-11 → 2000-08 ended
VZN185 5F —
33264B — Roller, NO.1 (FOR SHIFT INTERLOCK )
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
1995-11 → 2000-08 ended
VZN185 5F —
33275 — Seat, Shift Detent Ball Spring, NO.1
90341-12008 note Seat, Shift Detent Ball Spring, NO.1
1996-02 → 2000-08 ended
VZN185 5F —
90341-12014 note Seat, Shift Detent Ball Spring, NO.1
1995-11 → 1996-02 ended
VZN185 5F —
90341-12014 note Seat, Shift Detent Ball Spring, NO.1
1996-02 → 2000-08 ended
VZN185 5F —
33275A — Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
90501-14123 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
1995-11 → 2000-08 ended
RZN18# 5F —
90501-16143 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
1995-11 → 2000-08 ended
VZN185 5F —
33275B — Ball, Shaft Detent
90360-10003 Ball, Shaft Detent
1995-11 → 2000-08 ended
RZN18# 5F —
90360-10003 Ball, Shaft Detent
1995-11 → 2000-08 ended
VZN185 5F —
33280 — Pin Assy, Reverse Restrict
33280-27011 note Pin Assy, Reverse Restrict
1996-01 → 2000-08 ended
VZN185 5F —
33280-30041 note Pin Assy, Reverse Restrict
1995-11 → 2000-08 ended
RZN180 5F —
33280-30051 note Pin Assy, Reverse Restrict
1995-11 → 2000-08 ended
RZN180 5F —
33280-35021 note Pin Assy, Reverse Restrict
1995-11 → 2000-08 ended
RZN185,VZN185 5F —
33280-35031 note Pin Assy, Reverse Restrict
1995-11 → 2000-08 ended
RZN185 5F —
33280-35062 note Pin Assy, Reverse Restrict
1995-11 → 1996-01 ended
VZN185 5F —
33283D — Plug (FOR REVERSE RESTRICT PIN)
90341-10065 Plug (FOR REVERSE RESTRICT PIN)
1995-11 → 2000-08 ended
RZN185 5F —
90341-10065 Plug (FOR REVERSE RESTRICT PIN)
1995-11 → 2000-08 ended
RZN180 5F —
90341-12014 Plug (FOR REVERSE RESTRICT PIN)
1995-11 → 2000-08 ended
VZN185 5F —
33283F — Pin, Reverse Restrict
33280-30061 Pin, Reverse Restrict
1995-11 → 2000-08 ended
RZN18# 5F —
33280-35100 Pin, Reverse Restrict
1995-11 → 2000-08 ended
VZN185 5F —
33283G — Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
90254-05001 Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
1995-11 → 2000-08 ended
VZN185 5F —
90254-05016 Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
1995-11 → 2000-08 ended
RZN18# 5F —
33521 — Housing, Shift Lever
33521-35221 Housing, Shift Lever
1995-11 → 2000-08 ended
RZN180 5F —
33521-35260 Housing, Shift Lever
1995-11 → 2000-08 ended
VZN185 5F —
33521-35270 Housing, Shift Lever
1995-11 → 2000-08 ended
RZN185 5F —
33521F — Pin OR Bolt (FOR SHIFT LEVER HOUSING)
90105-08079 Pin OR Bolt (FOR SHIFT LEVER HOUSING)
1995-11 → 2000-08 ended
VZN185 5F —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
