Toyota 4Runner

2002-08 → 2009-08 · chassis GRN21#,UZN21# · catalogue 671470 · United States

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

20 part groups · 2 illustrations

Illustrations

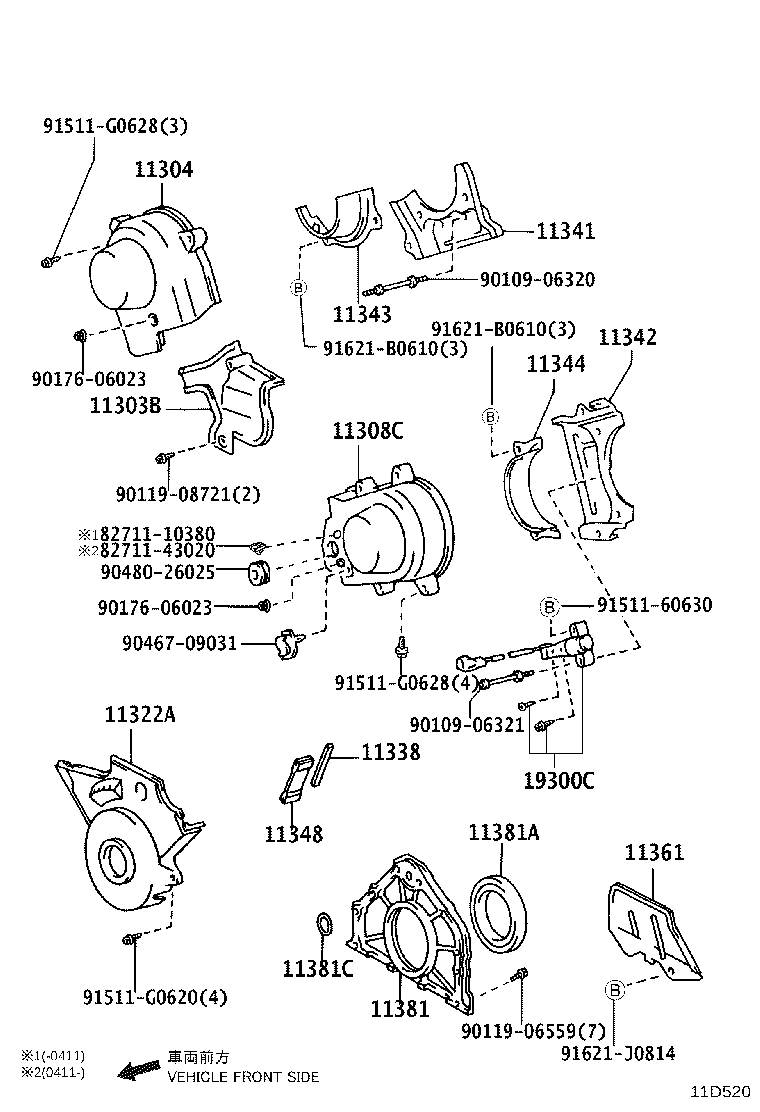

Figure 11D431 11D431 2002-11 → — Figure 11D520 11D520 2002-08 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301M Sensor, Cam Position
11302 Cover Sub-assy, Timing Chain OR Belt
11303B Cover Sub-assy, Timing Belt, NO.2
11304 Cover, Timing Chain OR Belt, NO.2
11308C Cover Sub-assy, Timing Belt, NO.3 LH
11322A Cover, Timing Belt, NO.1
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11338 Gasket, Timing Chain Cover, NO.2
11341 Plate, Timing Belt, Rear RH
11342 Plate, Timing Belt, Rear LH
11343 Plate, Timing Belt, Rear RH NO.2
11344 Plate, Timing Belt, Rear LH NO.2
11348 Spacer, Timing Gear Cover
11361 Cover, Flywheel Housing Under
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11381C Ring, O(FOR OIL SEAL RETAINER)
19300C Sensor Assy, Cam Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
