Toyota 4Runner

2002-08 → 2009-08 · chassis GRN21#,UZN21# · catalogue 671470 · United States

Supported model Data version 2010-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

13 part groups · 3 illustrations

Illustrations

Figure 163858B

163858B 2002-11 → 2009-03

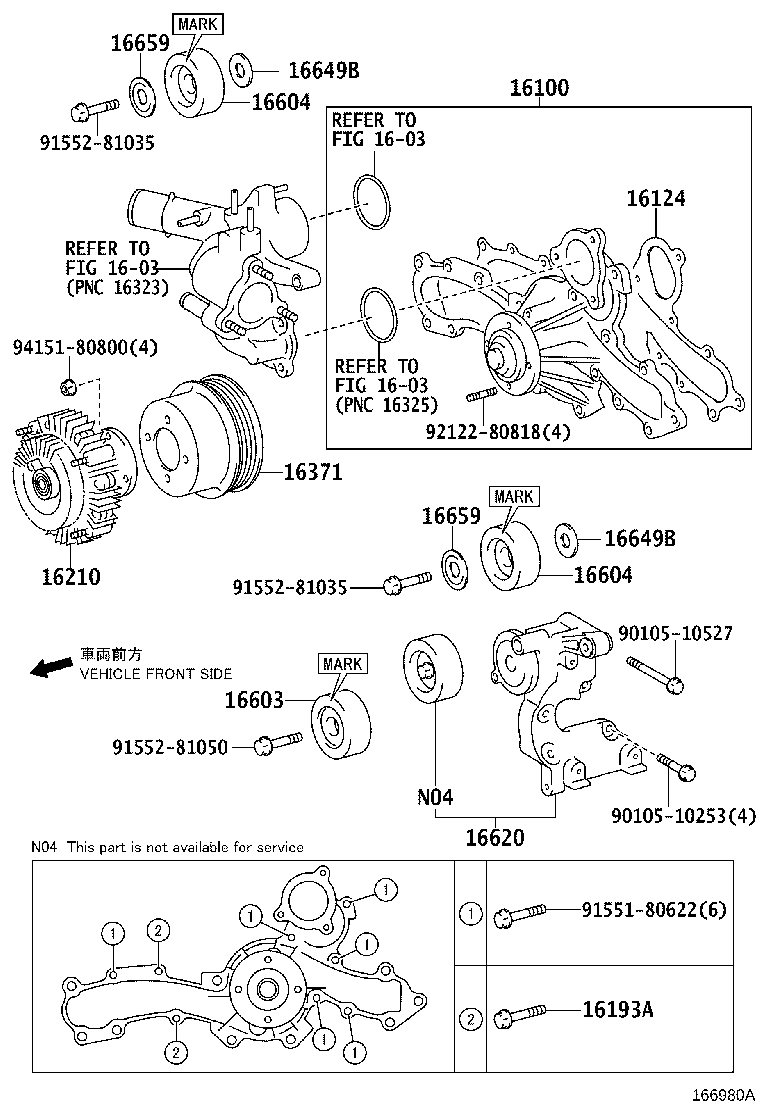

Figure 166980A

166980A 2009-03 → —

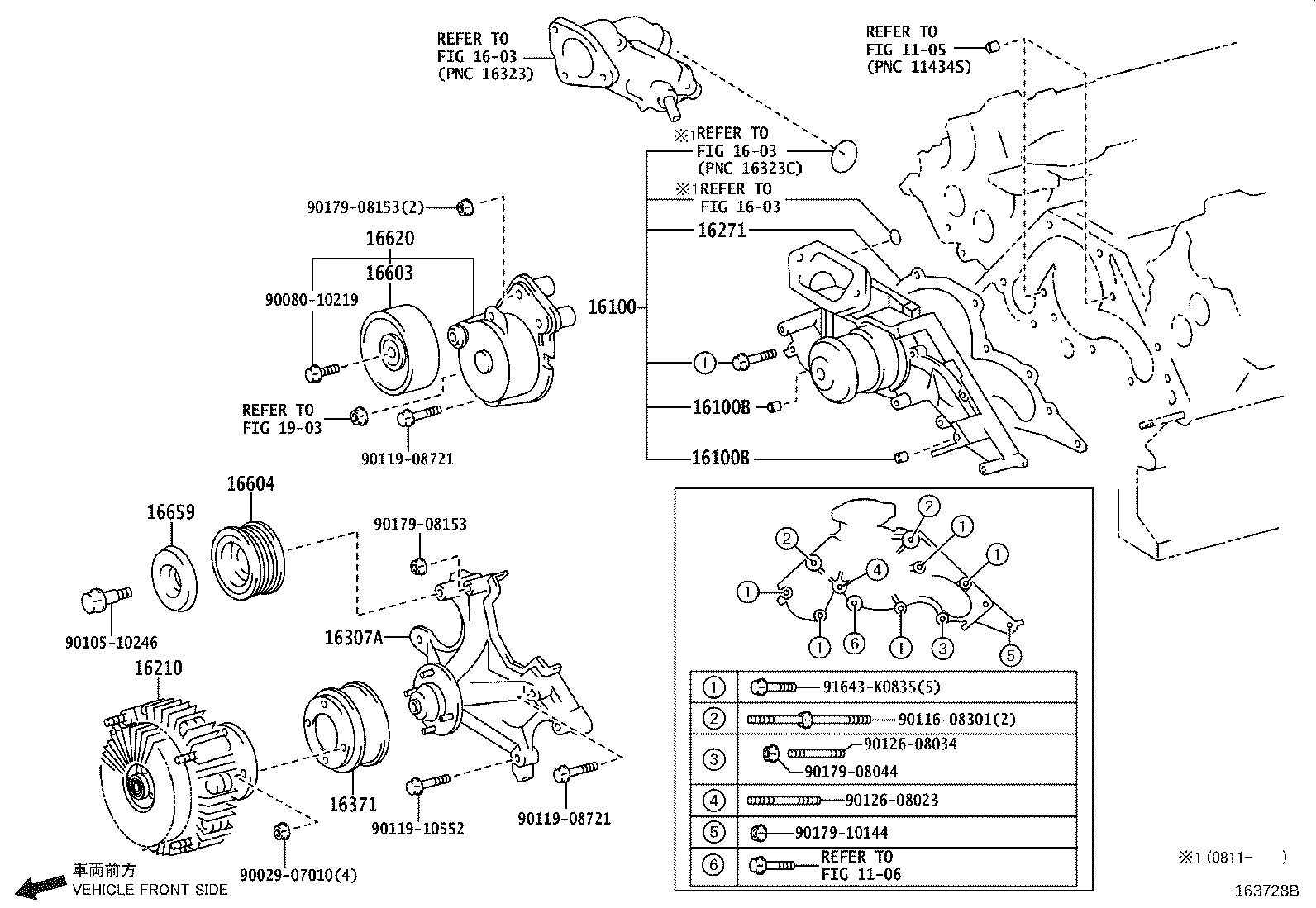

Figure 163728B

163728B 2002-08 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16100B	Pin, Ring(FOR WATER PUMP SET)
16124	Gasket, Water Pump Cover
16193A	Bolt(FOR WATER PUMP COVER)
16210	Coupling Assy, Fluid
16271	Gasket, Water Pump
16307A	Bracket Sub-assy, Fan
16371	Pulley, Fan
16603	Pulley Sub-assy, Idler, NO.1
16604	Pulley Sub-assy, Idler, NO.2
16620	Tensioner Assy, V-ribbed Belt
16649B	Plate, Idler Pulley Cover
16659	Plate, Idler Pulley Cover, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
