Toyota 4Runner

2002-08 → 2009-08 · chassis GRN21#,UZN21# · catalogue 671470 · United States

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

26 part groups · 3 illustrations

Illustrations

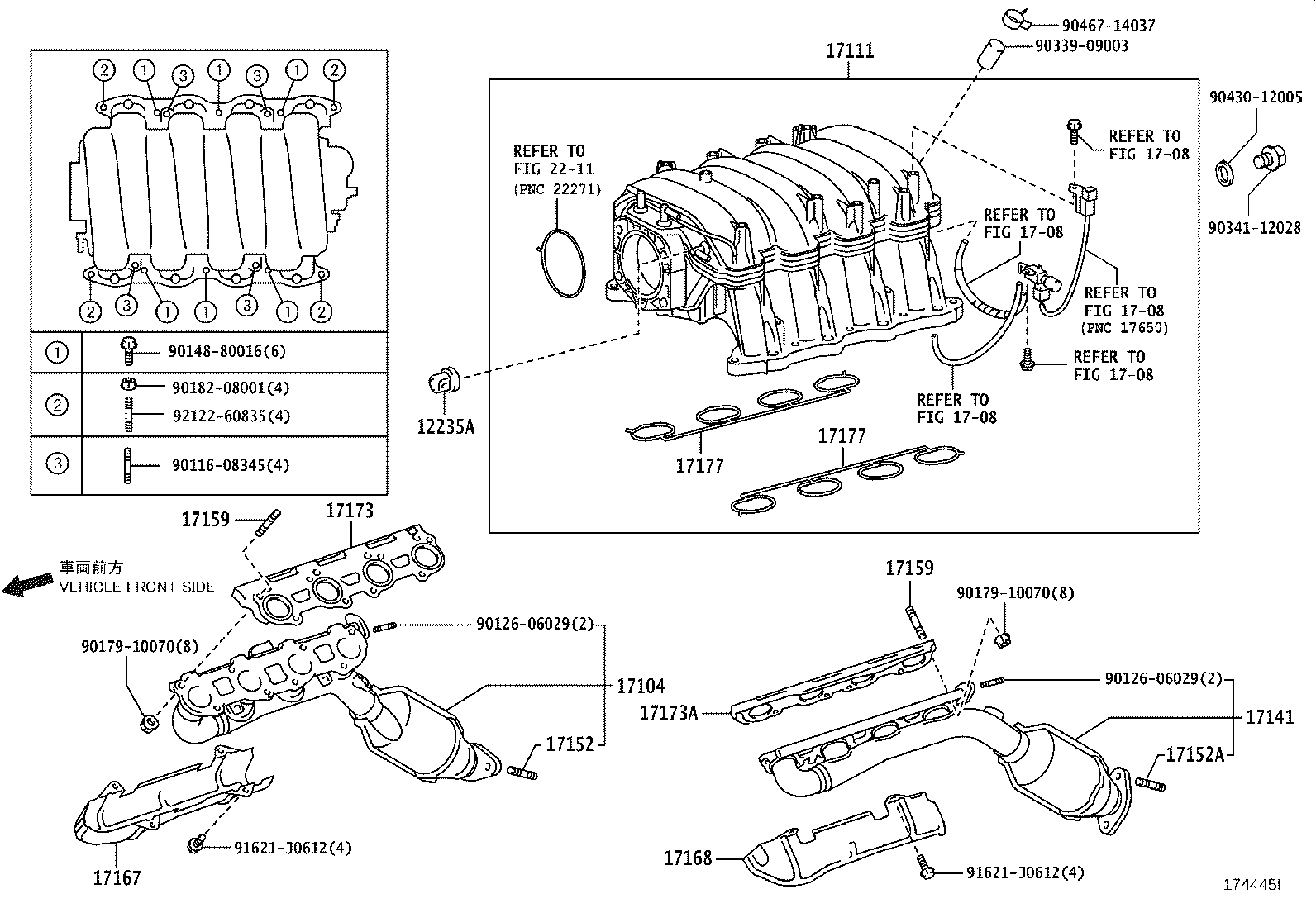

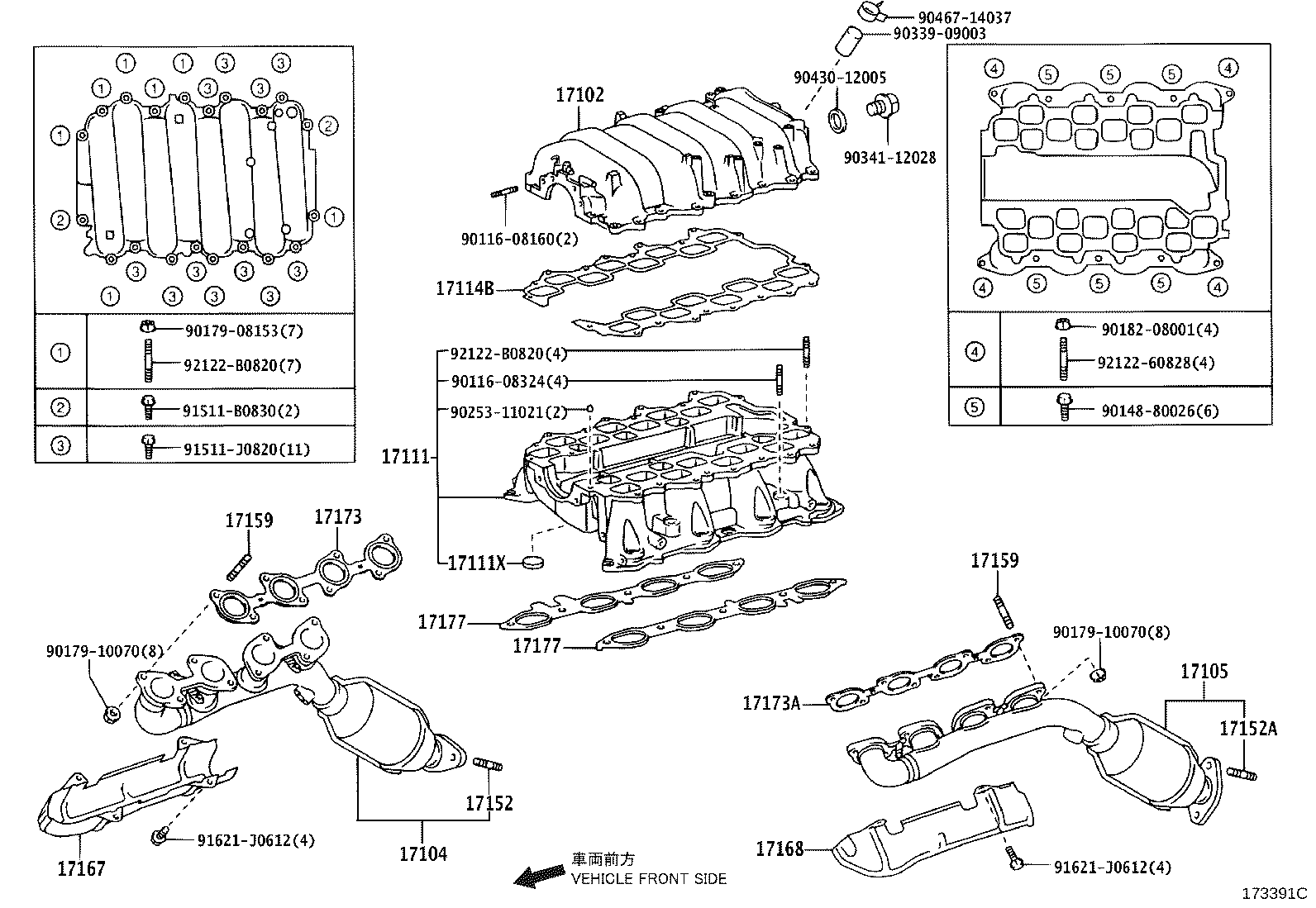

Figure 17A114 17A114 2002-11 → — Figure 173391C 173391C 2002-08 → 2004-11 Figure 174445I 174445I 2004-11 → —

Part groups

PNCDescription
12216C Plate, Oil Baffle
12235A Cap, Ventilation
17102 Manifold Sub-assy, Intake, Upper
17104 Manifold Sub-assy, Exhaust, RH
17105 Manifold Sub-assy, Exhaust, LH
17111 Manifold, Intake
17111X Plug, Tight NO.1(FOR INTAKE MANIFOLD)
17114B Gasket, Intake Flange
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17129 Tank, Intake Air Surge
17141 Manifold, Exhaust
17141J Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17152A Bolt,Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17173A Gasket, Exhaust Manifold TO Head, LH
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
22267A Bracket, Throttle Body
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
