Toyota 4Runner

2002-08 → 2009-08 · chassis GRN21#,UZN21# · catalogue 671470 · United States

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

17 part groups · 3 illustrations

Illustrations

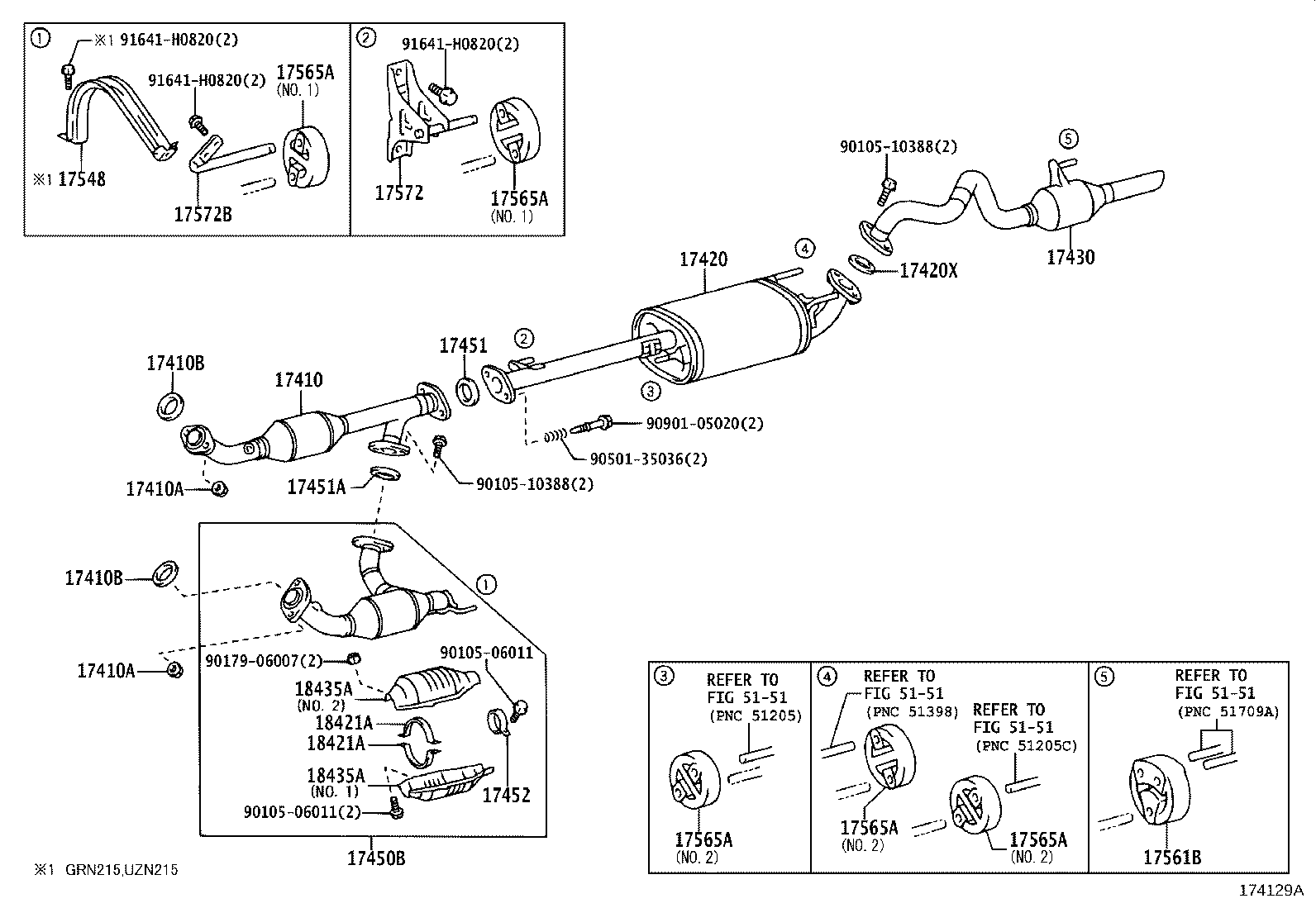

Figure 173404A 173404A 2002-08 → 2004-08 Figure 174129A 174129A 2002-11 → — Figure 174129A 174129A 2004-08 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17450B Pipe Assy, Exhaust, Front NO.2
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17452 Clamp, Exhaust Pipe
17548 Bracket, Exhaust Pipe Stopper
17561B Support, Exhaust Pipe, NO.1
17565A Support, Exhaust Pipe, NO.4
17572 Bracket, Exhaust Pipe NO.1 Support
17572B Bracket, Exhaust Pipe Support, NO.2
18421A Stay, Converter Protector, LH
18435A Protector, Monolithic Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
