Toyota 4Runner

2002-08 → 2009-08 · chassis GRN21#,UZN21# · catalogue 671470 · United States

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Lever & Shift Rod

10 part groups · 2 illustrations

Illustrations

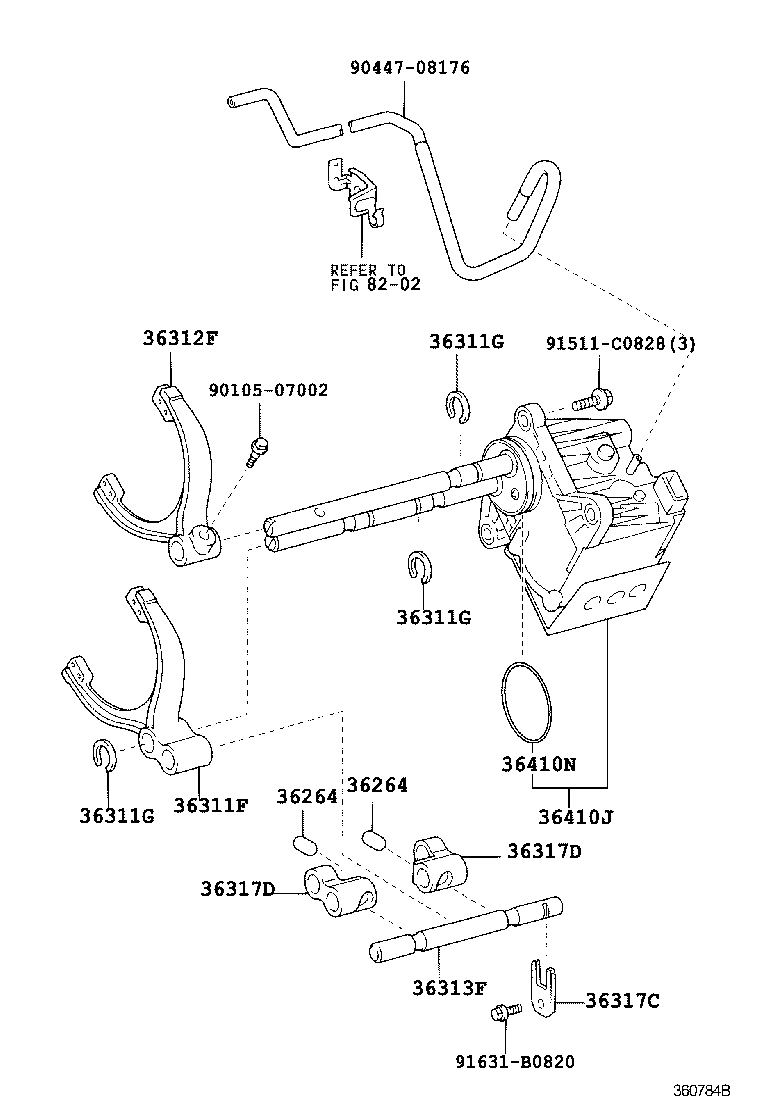

Figure 360740B 360740B 2002-08 → — Figure 360784B 360784B 2002-11 → —

Part groups

PNCDescription
36264 Pin OR Roller, Shift Inter-lock
36311F Fork, Transfer Gear Shift, NO.1
36311G Ring, Shaft Snap (FOR TRANSFER GEAR SHIFT FORK)
36312F Fork, Transfer Gear Shift, NO.2
36313F Shaft, Transfer Front Drive Shift Fork
36317C Stopper, Transfer Shift Shaft
36317D Stopper, NO.2, Transfer Shift Shaft
36410J Actuator Assy, Transfer Shift
36410N Ring, O (FOR TRANSFER SHIFT ACTUATOR)
41408 Fork Sub-assy, Center Differential Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
