Toyota 4Runner

2002-08 → 2009-08 · chassis GRN21#,UZN21# · catalogue 671470 · United States

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Drive Shaft

19 part groups · 2 illustrations

Illustrations

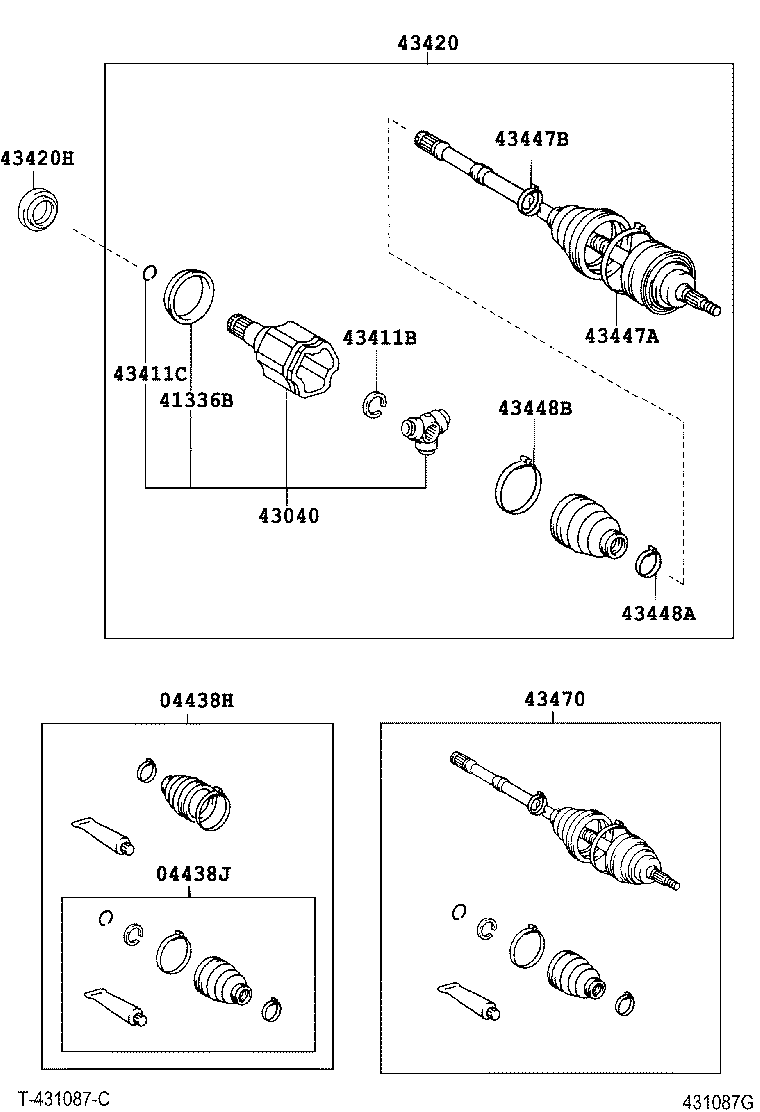

Figure 431086I 431086I 2002-08 → — Figure 431087G 431087G 2002-08 → —

Part groups

PNCDescription
04438F Boot Kit, Front Drive Shaft, IN & Outboard, RH
04438G Boot Kit, Front Drive Shaft Inboard Joint, RH
04438H Boot Kit, Front Drive Shaft, IN & Outboard, LH
04438J Boot Kit, Front Drive Shaft Inboard Joint, LH
41336B Cover, Dust(FOR FRONT DRIVE SHAFT)
43030 Joint Assy, Front Drive Inboard, RH
43040 Joint Assy, Front Drive Inboard, LH
43410 Shaft Assy, Front Drive, RH
43410M Oil Seal, Front Drive Shaft, RH
43411B Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER)
43411C Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT OUTER)
43420 Shaft Assy, Front Drive, LH
43420H Oil Seal, Front Drive Shaft, LH
43447A Clamp, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43447B Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43448A Clamp, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43448B Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43460 Shaft Assy, Front Drive Outboard Joint, RH
43470 Shaft Assy, Front Drive Outboard Joint, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
