Toyota 4Runner
2002-08 → 2009-08 · chassis GRN21#,UZN21# · catalogue 671470 · United States
Supported model
Data version 2010-01

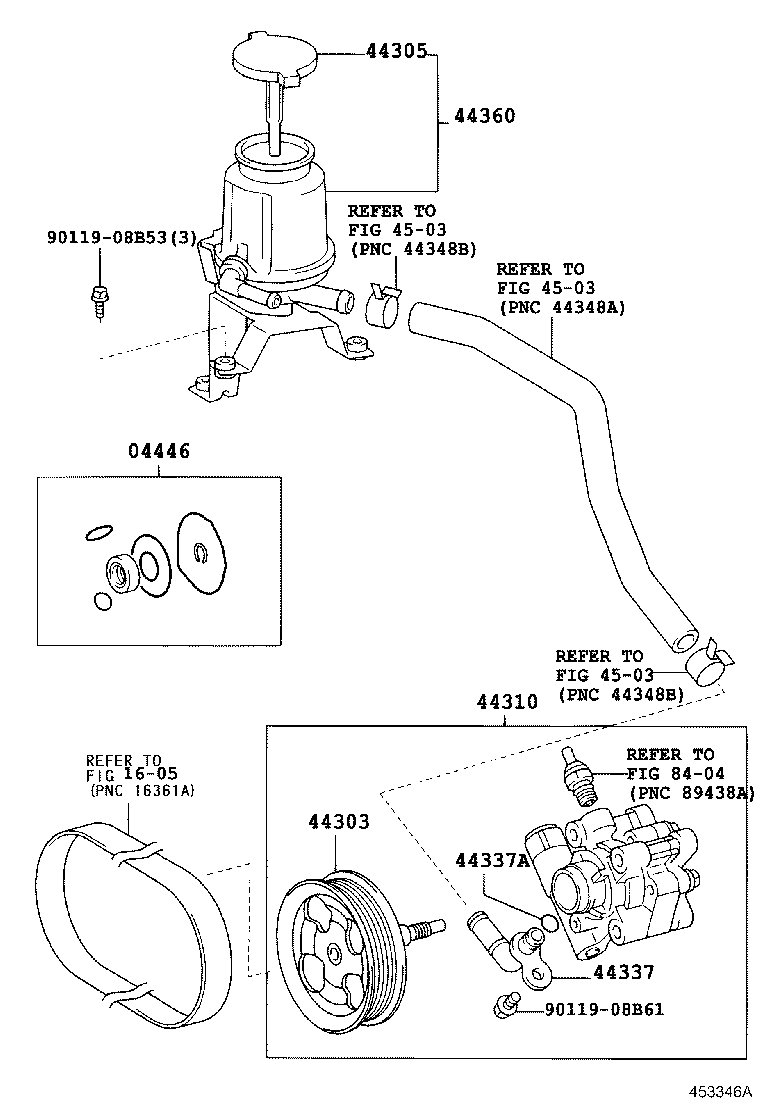

Vane Pump & Reservoir (POWER STEERING)
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04446 | Gasket Kit, Power Steering Pump |
| 44303 | Shaft Sub-assy, W/Rotor |
| 44305 | Cap Sub-assy, Vane Pump Oil Reservoir |
| 44310 | Pump Assy, Vane |
| 44311 | Pulley, Vane Pump |
| 44311B | Nut(FOR VANE PUMP PULLEY) |
| 44320 | Pump Assy, Vane |
| 44337 | Union, Power Steering Suction Port |
| 44337A | Ring, O(FOR POWER STEERING SUCTION PORT) |
| 44360 | Reservoir Assy, Vane Pump Oil |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
