Toyota 4Runner
2002-08 → 2009-08 · chassis GRN21#,UZN21# · catalogue 671470 · United States
Supported model
Data version 2010-01

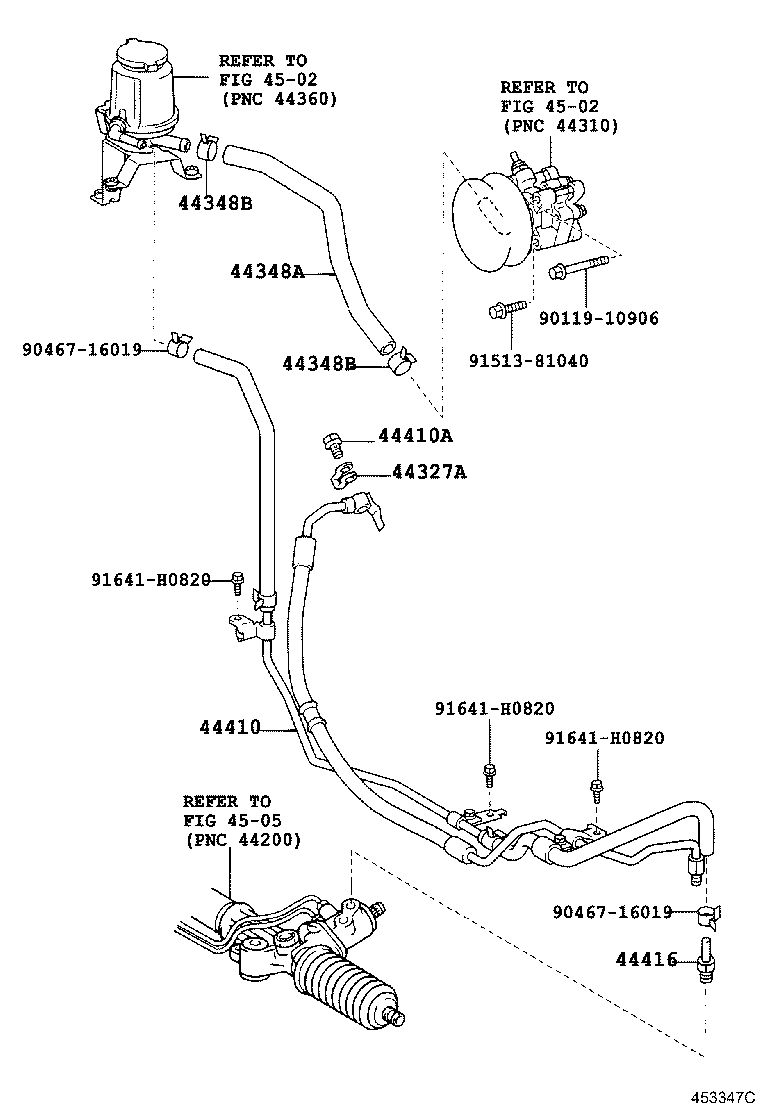

Power Steering Tube
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44327A | Gasket, Pressure Port, NO.1 |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44348B | Clamp(FOR OIL RESERVOIR TO PUMP HOSE) |
| 44406 | Tube Sub-assy, Return |
| 44410 | Tube Assy, Pressure Feed |
| 44410A | Bolt, Union(FOR PRESSURE FEED TUBE) |
| 44413 | Tube, Pressure Feed, NO.1 |
| 44416 | Tube, Return(FOR STEERING GEAR OUTLET) |
| 44417 | Tube, Return, NO.2 |
| 44420 | Cooler Assy, Oil |
| 44443 | Bracket, Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
