Toyota 4Runner

2002-08 → 2009-08 · chassis GRN21#,UZN21# · catalogue 671470 · United States

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

33 part groups · 4 illustrations

Illustrations

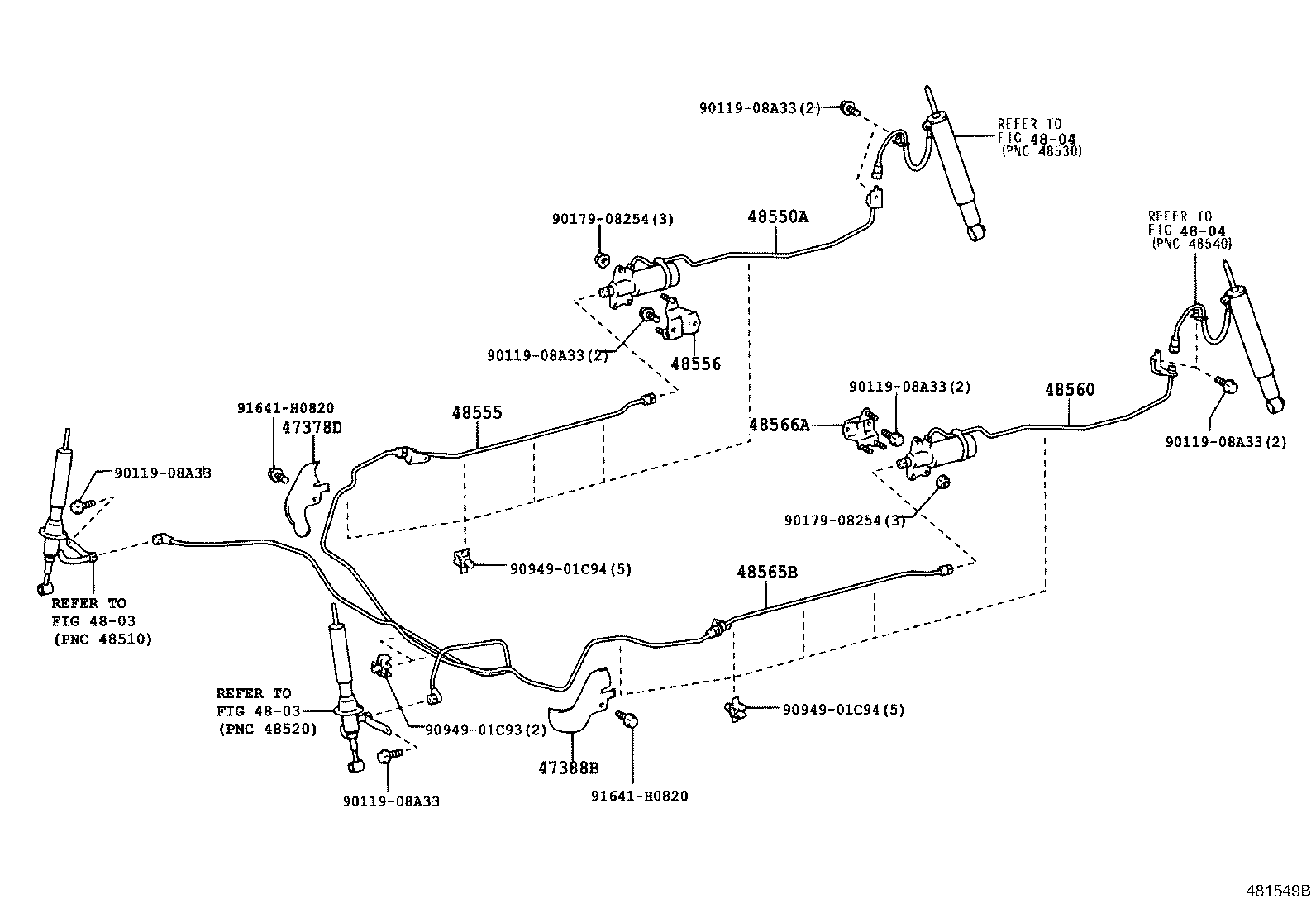

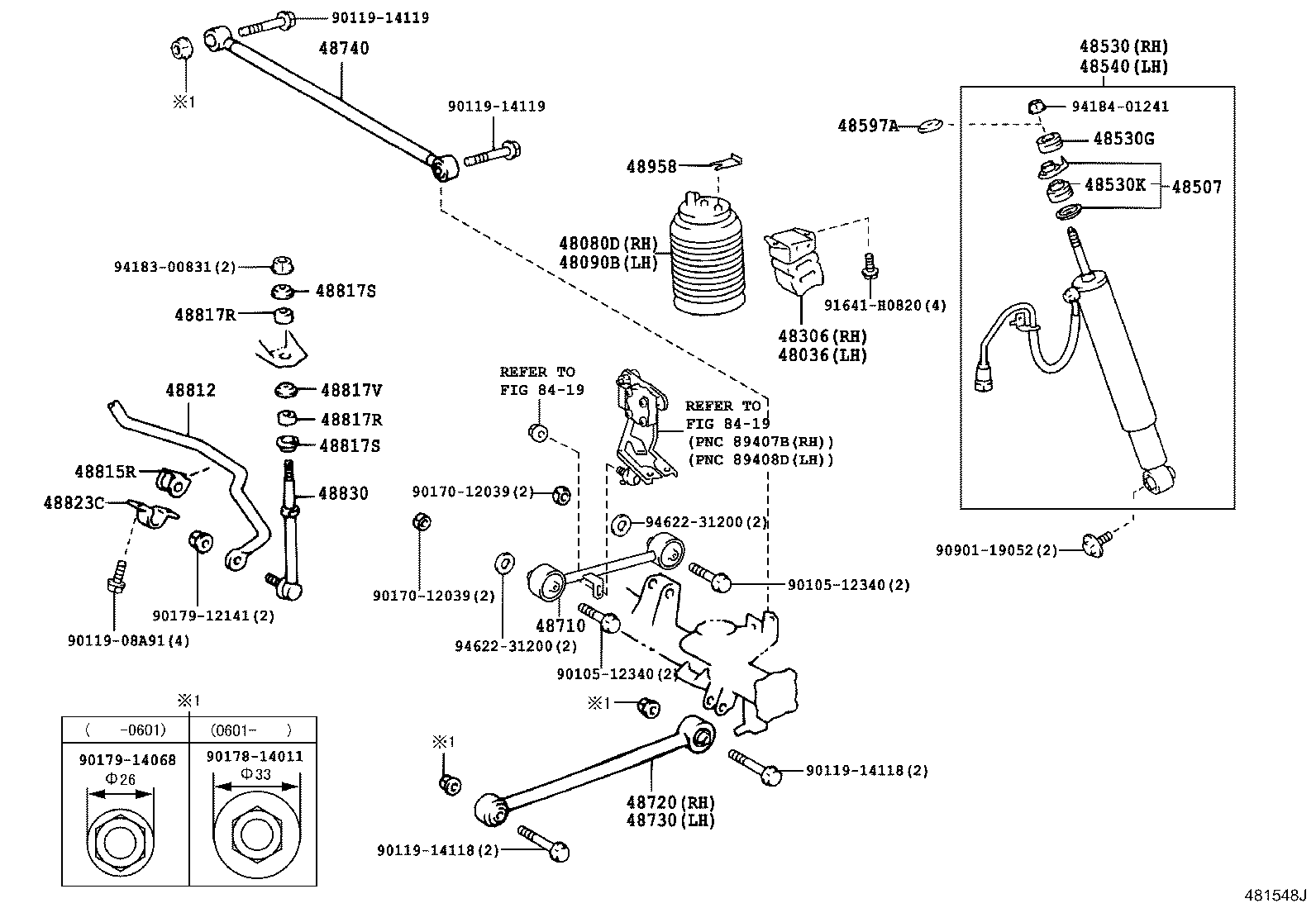

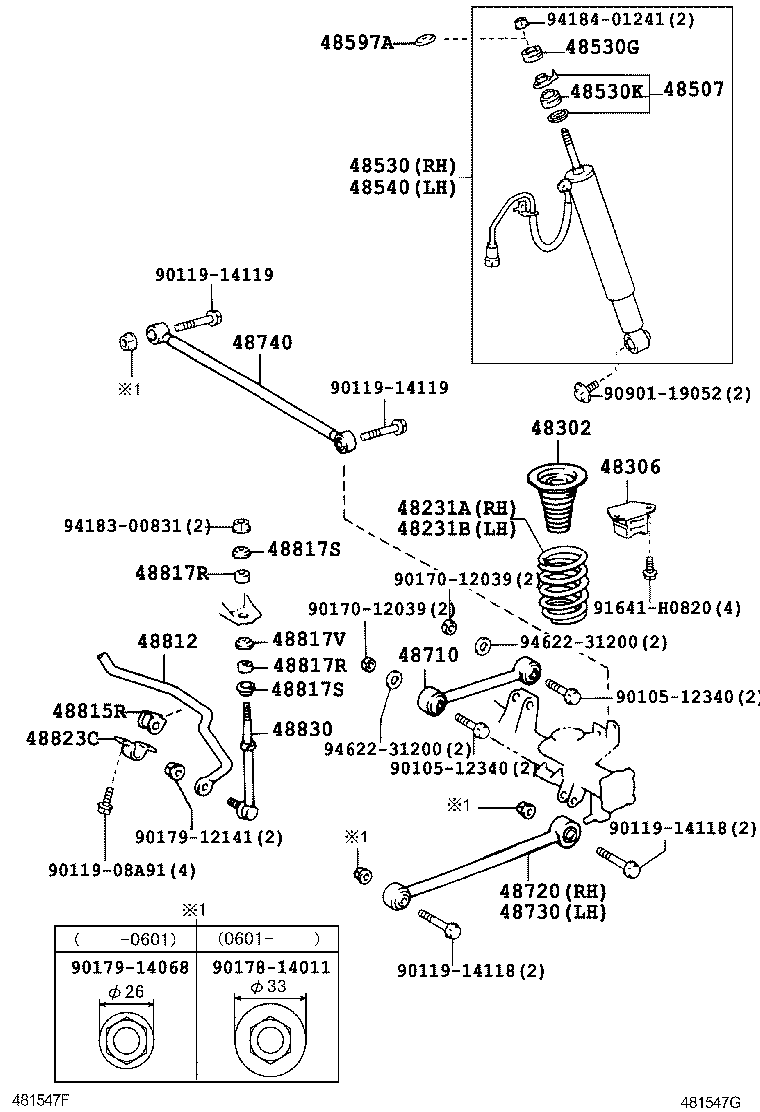

Figure 481546F 481546F 2002-08 → — Figure 481547G 481547G 2002-08 → — Figure 481548J 481548J 2002-08 → — Figure 481549B 481549B 2002-08 → —

Part groups

PNCDescription
47378D Protector, Tube, RH
47388B Protector, Tube, LH
48036 Bumper Sub-assy, Rear Spring, LH
48080D Cylinder Assy, Pneumatic, Rear RH
48090B Cylinder Assy, Pneumatic, Rear LH
48231A Spring, Coil, Rear RH
48231B Spring, Coil, Rear LH
48302 Spring Sub-assy, Hollow
48306 Bumper Sub-assy, Rear Spring
48507 Bracket Sub-assy, Rear Shock Absorber, Lwr
48530 Absorber Assy, Shock, Rear RH
48530G Cushion, Rear Shock Absorber, NO.1
48530K Cushion, Rear Shock Absorber, NO.2
48540 Absorber Assy, Shock, Rear LH
48550A Absorber Assy, Center Control, RH
48555 Tube, Center Control Absorber, RH
48556 Bracket, Center Control Absorber, RH
48560 Absorber Assy, Center Control, LH
48565B Tube, Center Control Absorber, LH
48566A Bracket, Center Control Absorber, LH
48597A Retainer, Rear Shock Absorber Cushion
48710 Arm Assy, Upper Control
48720 Arm Assy, Lower Control, RH
48730 Arm Assy, Lower Control, LH
48740 Rod Assy, Rear Lateral Control
48812 Bar, Stabilizer, Rear
48815R Bush, Stabilizer(FOR REAR)
48817R Cushion, Stabilizer(FOR REAR)
48817S Retainer, Cushion, NO.1(FOR STABILIZER REAR BAR)
48817V Retainer, Cushion, NO.2(FOR STABILIZER REAR BAR)
48823C Cover, Rear Stabilizer Bracket
48830 Link Assy, Rear Stabilizer
48958 Clip, Pneumatic Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
