Toyota 4Runner

2002-08 → 2009-08 · chassis GRN21#,UZN21# · catalogue 671470 · United States

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

23 part groups · 14 illustrations

Illustrations

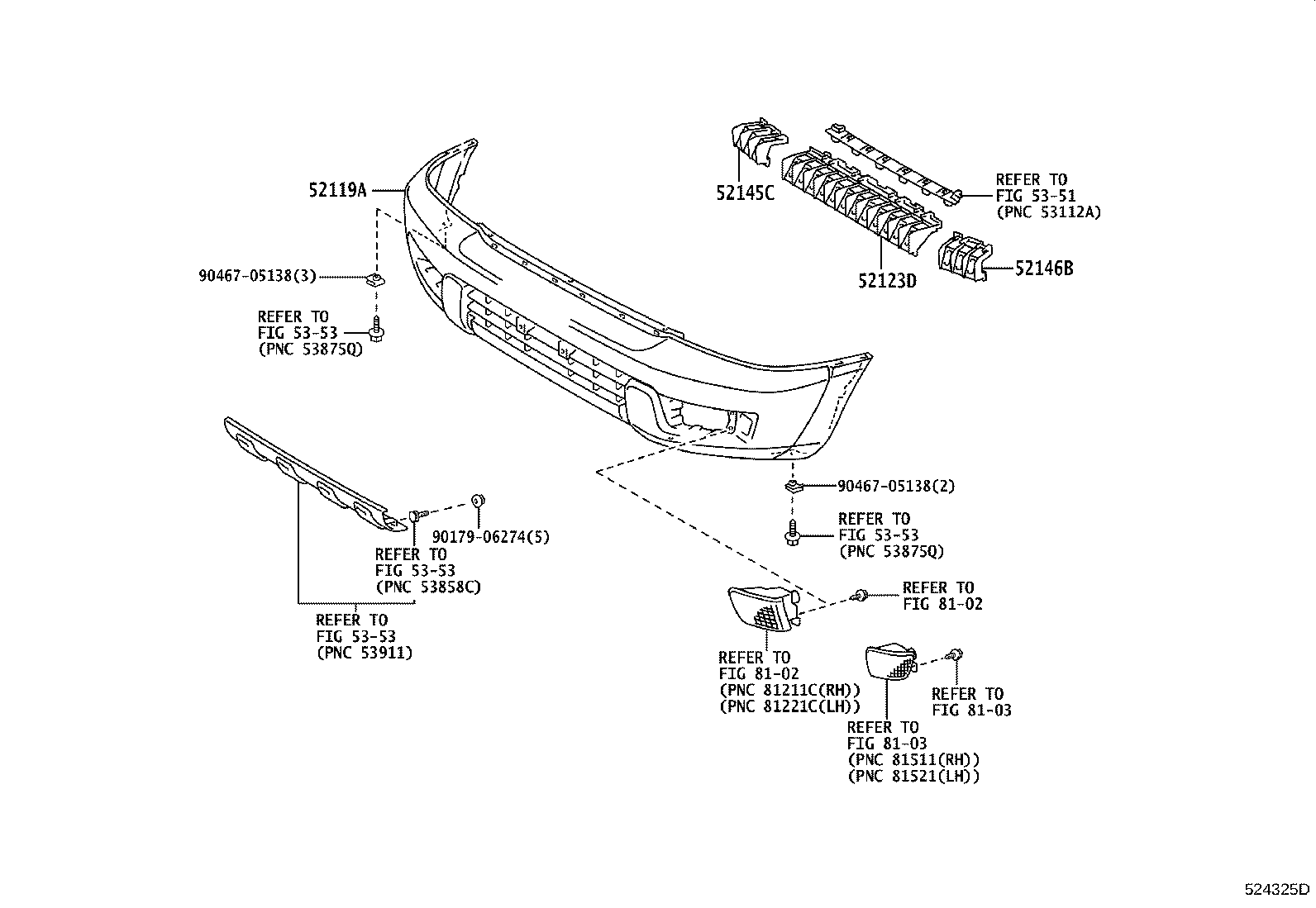

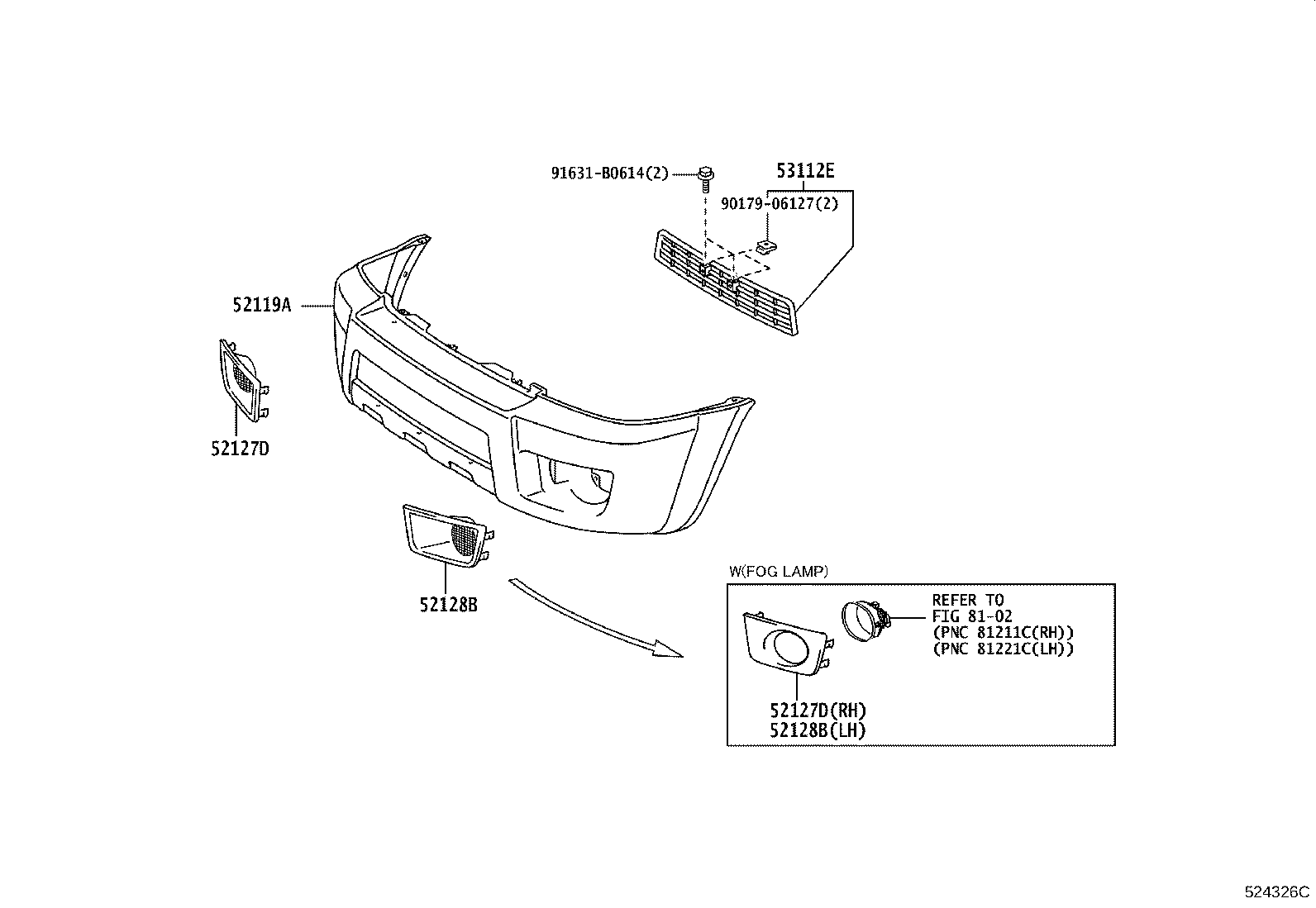

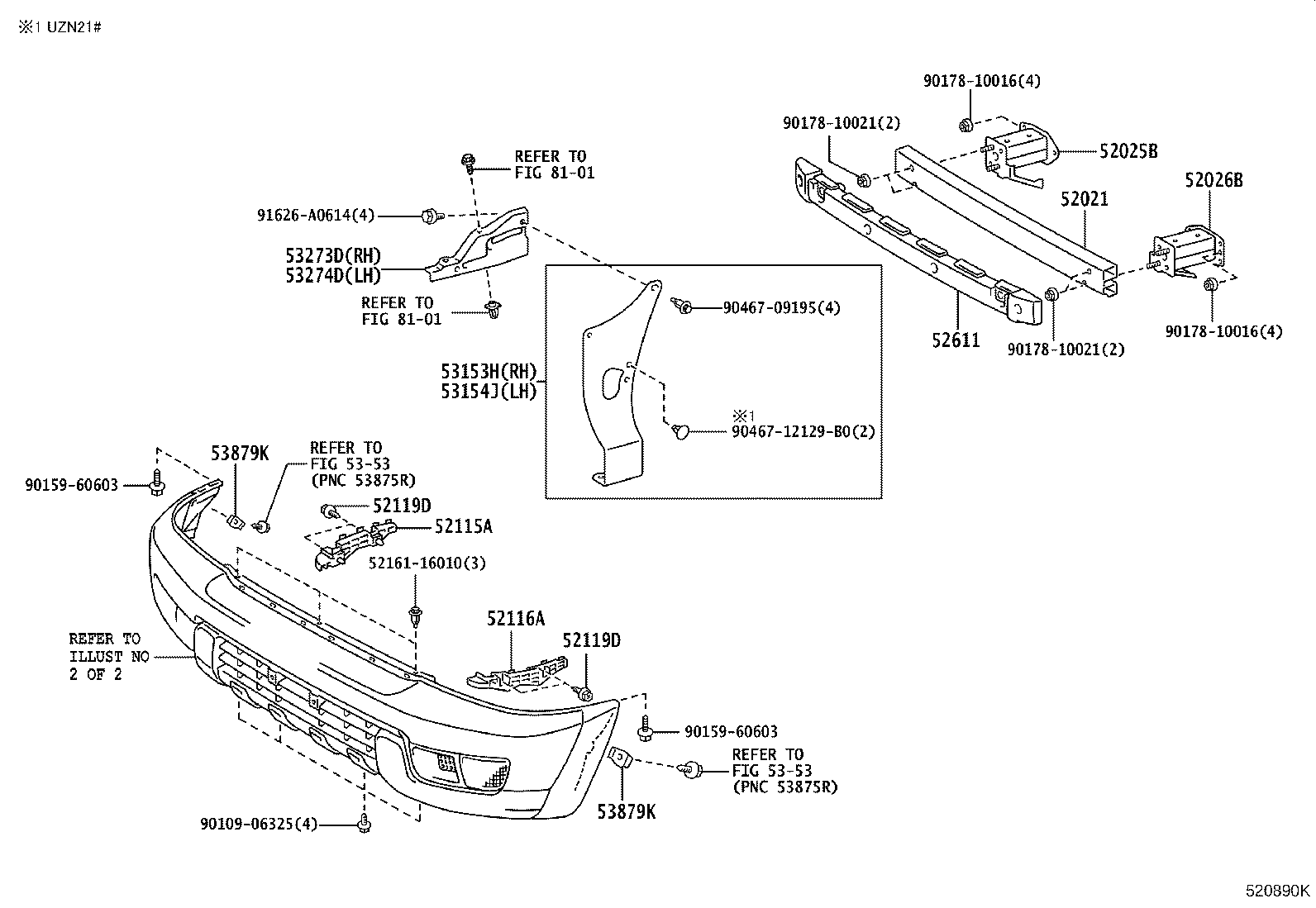

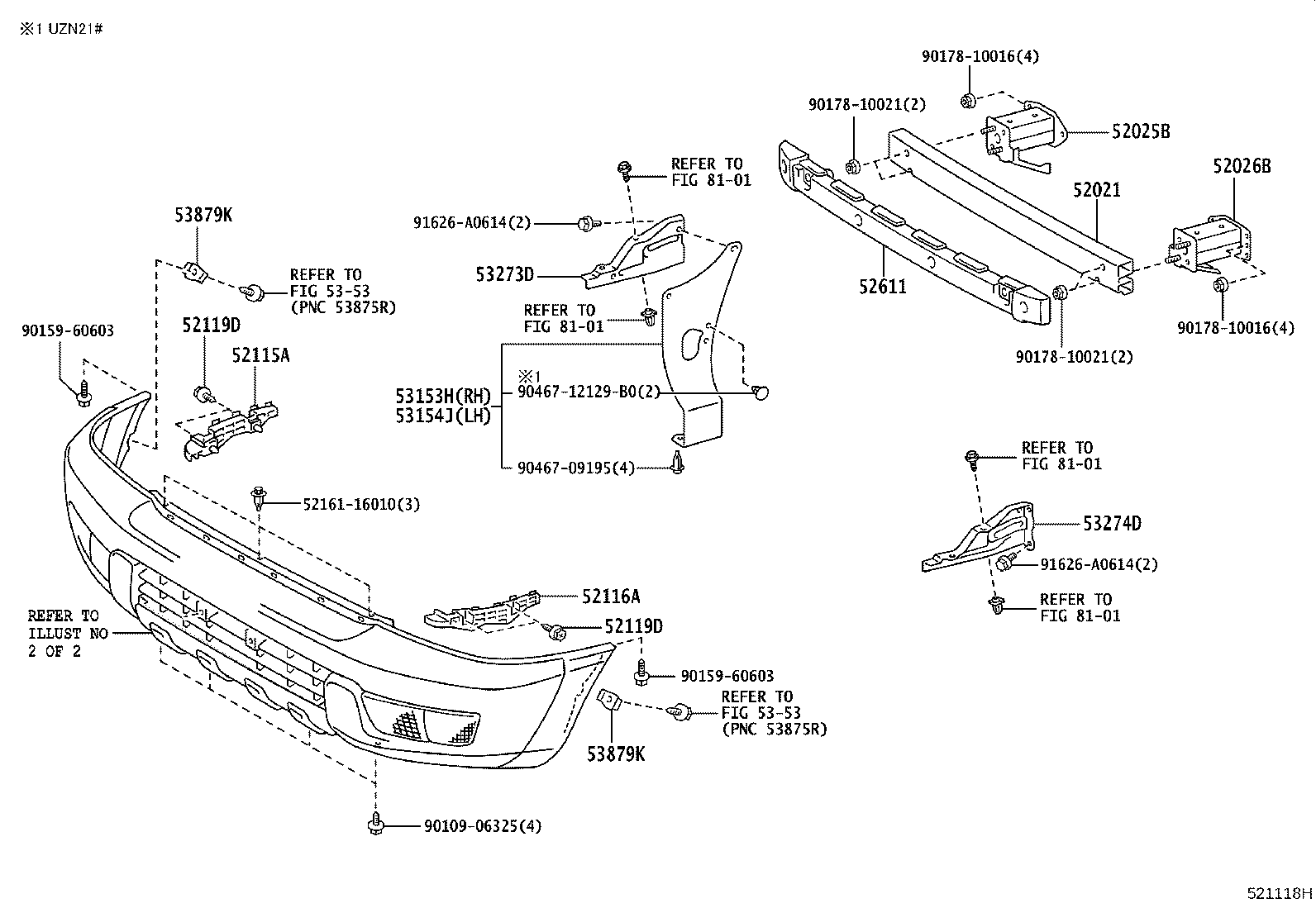

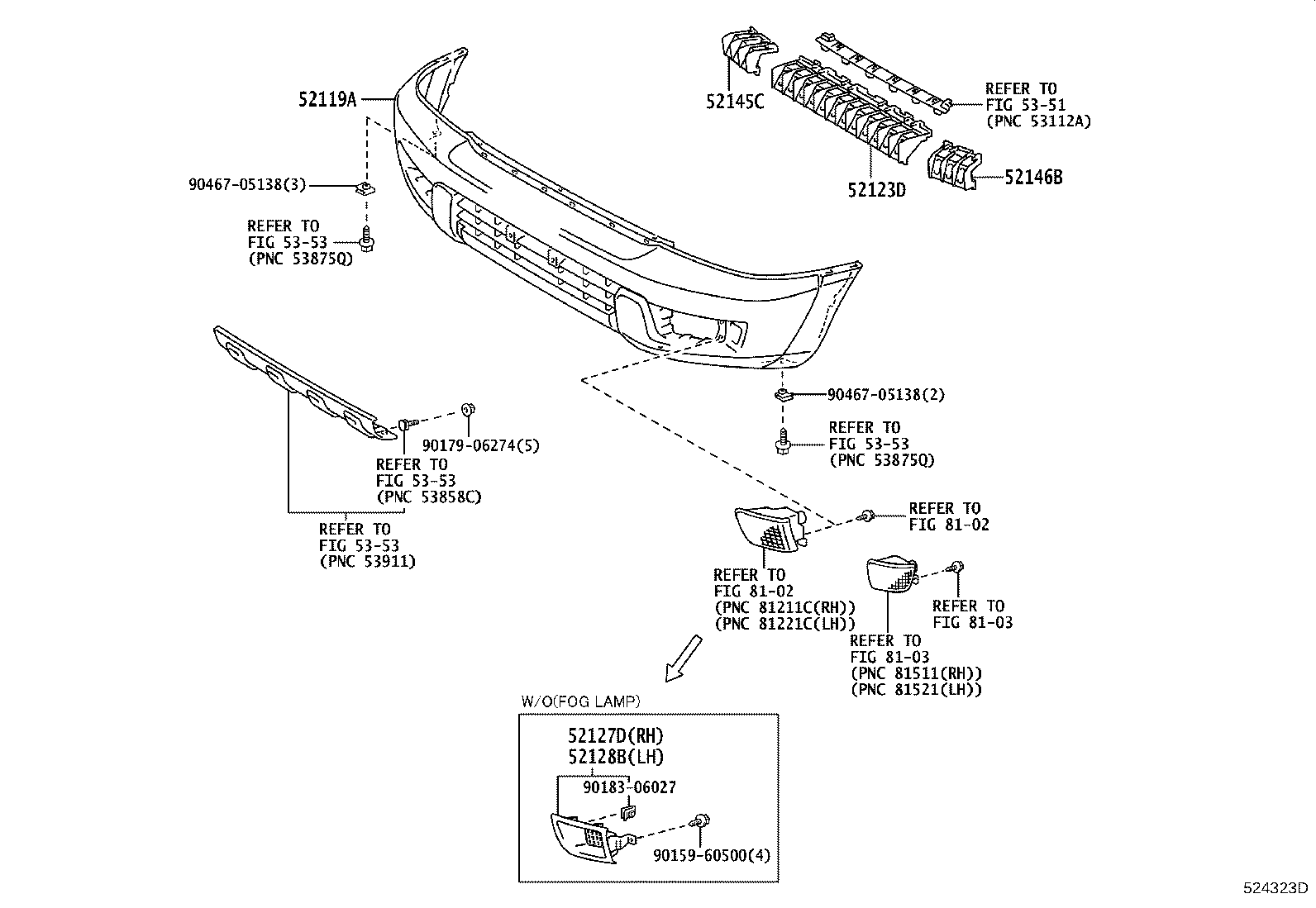

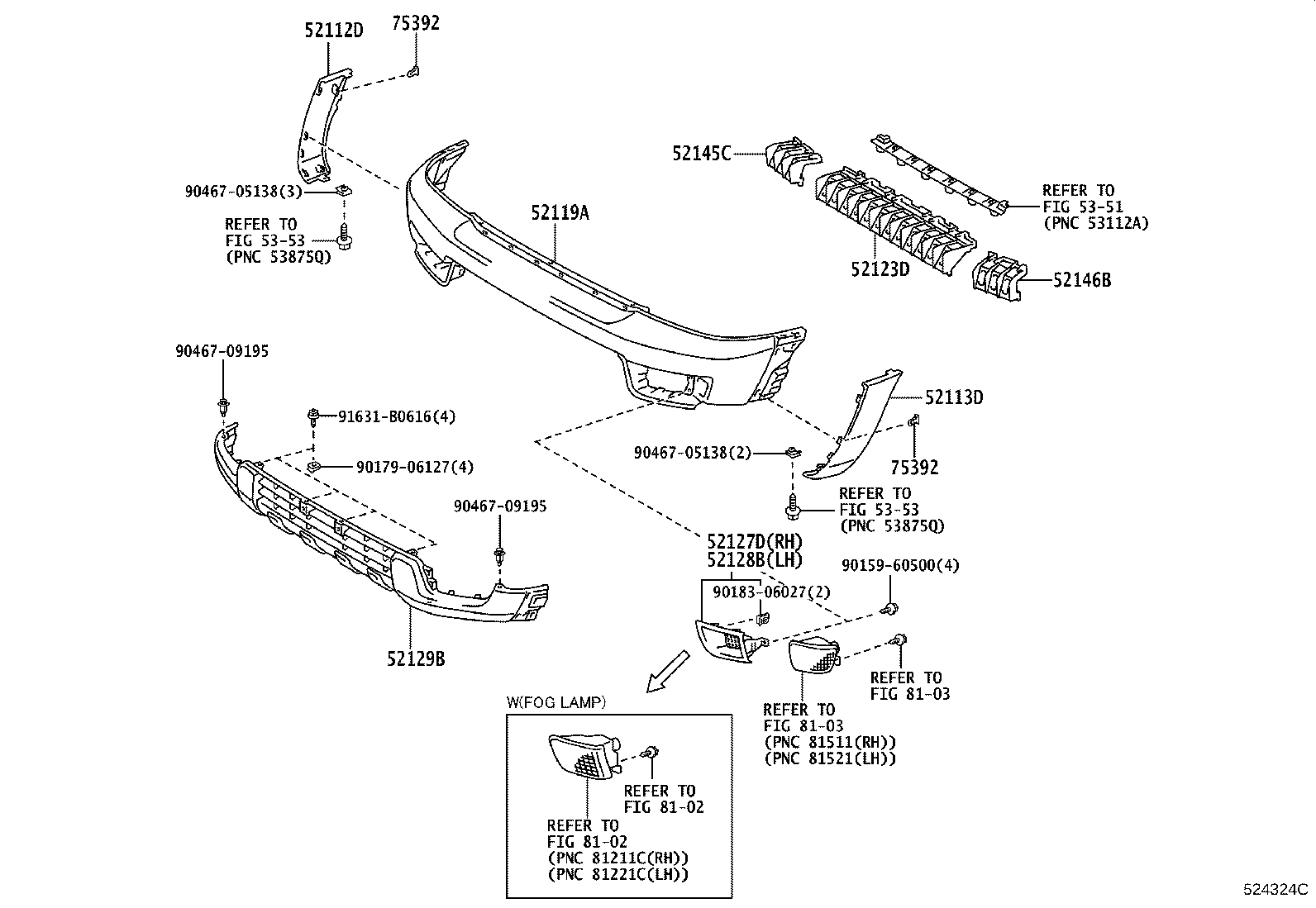

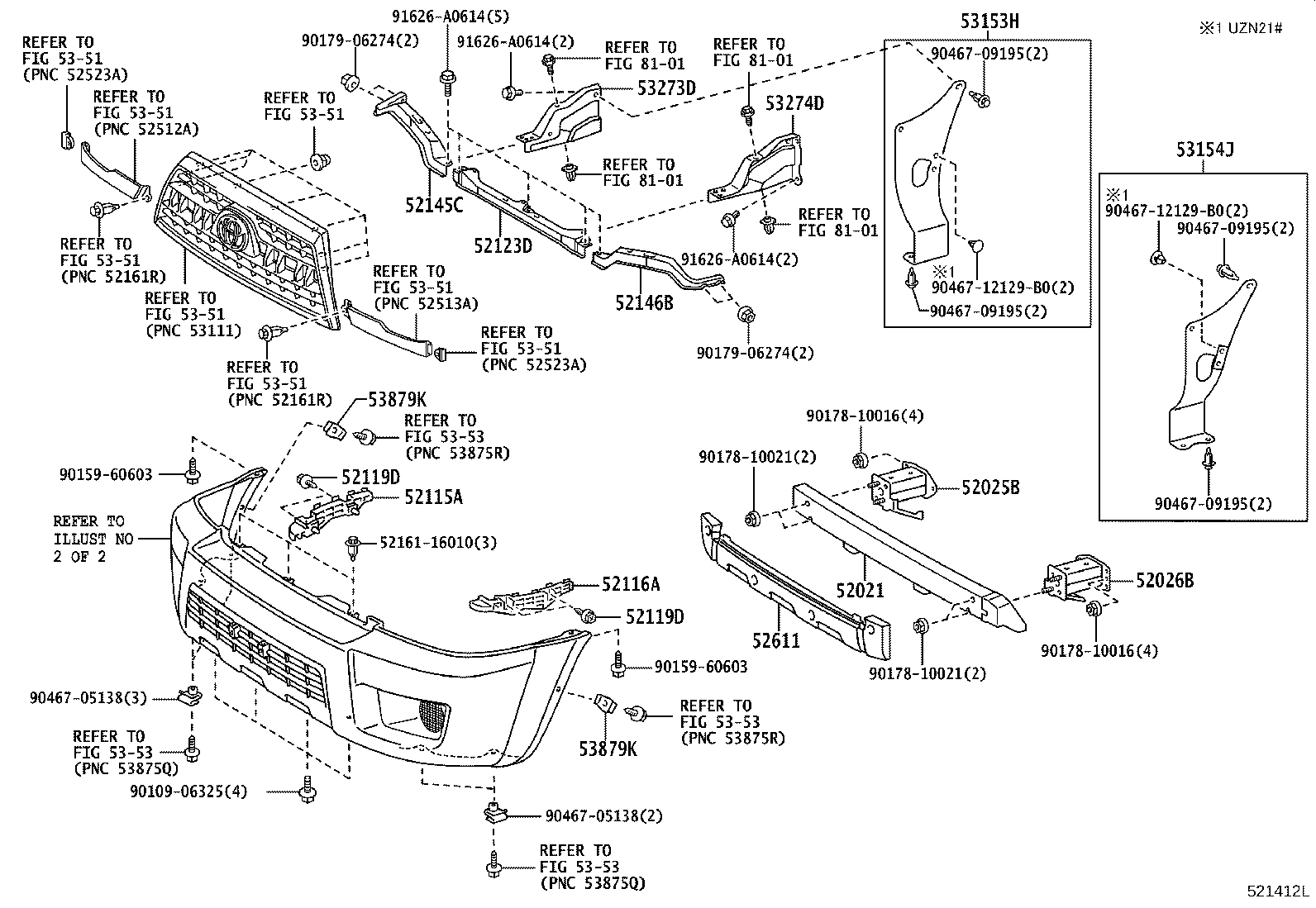

Figure 520891M 520891M 2002-08 → 2005-08 Figure 520891M 520891M 2004-08 → 2005-08 Figure 524323D 524323D 2002-08 → 2005-08 Figure 524323D 524323D 2004-08 → 2005-08 Figure 520890K 520890K 2002-08 → 2004-08 Figure 520890K 520890K 2002-11 → 2005-08 Figure 524324C 524324C 2002-08 → 2004-08 Figure 524324C 524324C 2002-11 → 2005-08 Figure 521118H 521118H 2003-01 → 2004-08 Figure 521118H 521118H 2003-01 → 2005-08 Figure 524325D 524325D 2003-01 → 2004-08 Figure 524325D 524325D 2003-01 → 2005-08 Figure 521412L 521412L 2005-08 → — Figure 524326C 524326C 2005-08 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52025B Extension Sub-assy, Front Bumper, NO.2 RH
52026B Extension Sub-assy, Front Bumper, NO.2 LH
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52119D Screw, NO.1
52123D Plate, Front Bumper Reinforcement
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52145C Bracket, Front Bumper Side Mounting, RH
52146B Bracket, Front Bumper Side Mounting, LH
52611 Absorber, Front Bumper Energy
53112E Grille, Radiator, Lower NO.1
53153H Guide, Radiator Grille Side Air, RH
53154J Guide, Radiator Grille Side Air, LH
53273D Bracket, Front Bumper Arm Mounting, RH
53274D Bracket, Front Bumper Arm Mounting, LH
53879K Retainer, Front Fender Liner
75392 Retainer, Outside Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
