Toyota 4Runner

2002-08 → 2009-08 · chassis GRN21#,UZN21# · catalogue 671470 · United States

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

32 part groups · 3 illustrations

Illustrations

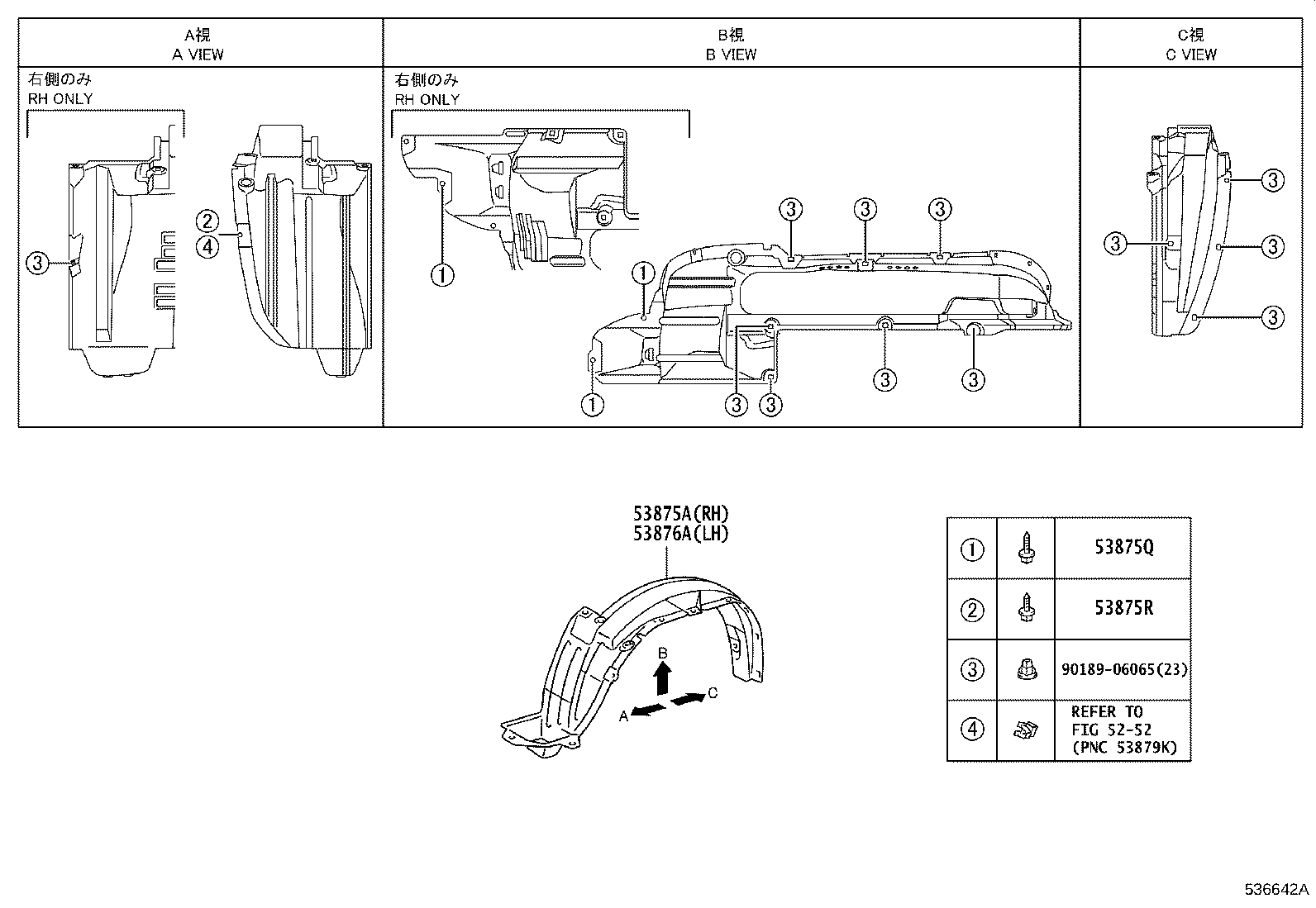

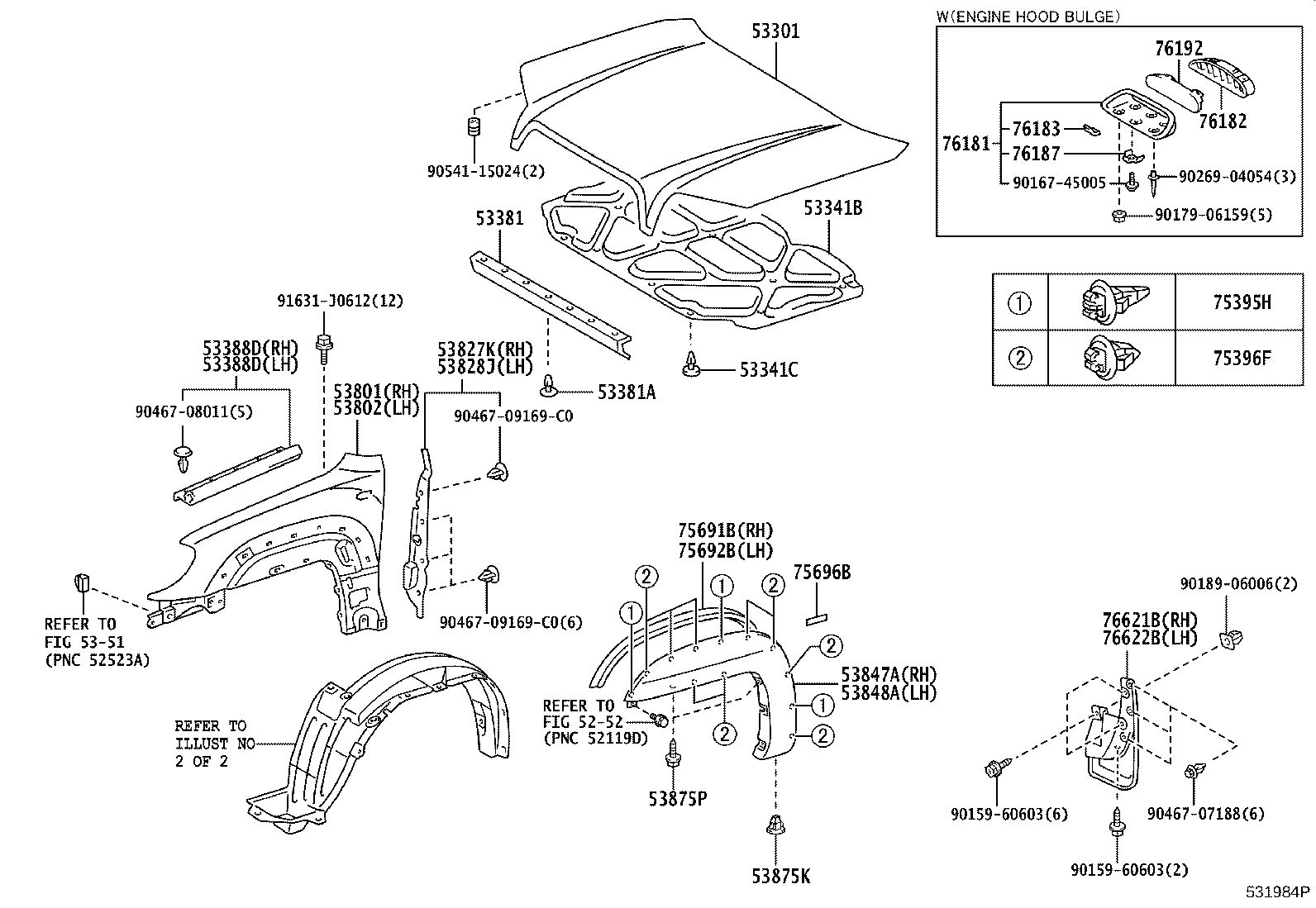

Figure 531350V 531350V 2002-08 → 2005-08 Figure 531984P 531984P 2005-08 → — Figure 536642A 536642A 2002-08 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53388D Seal, Hood TO Front Fender, RH
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53827K Protector, Front Fender Side Panel, RH
53828J Protector, Front Fender Side Panel, LH
53847A Extension, Front Wheel Opening OR Arch Moulding, RH
53848A Extension, Front Wheel Opening OR Arch Moulding, LH
53858C Bolt, Wheel Opening
53875A Liner, Front Fender, RH
53875K Grommet, Screw
53875P Screw, NO.1
53875Q Screw, NO.2
53875R Screw, NO.3
53876A Liner, Front Fender, LH
53911 Panel, Front Valance
75395H Clip, Outside Moulding, NO.1
75396F Clip, Outside Moulding, NO.2
75691B Pad, Front Fender Outside Moulding, RH
75692B Pad, Front Fender Outside Moulding, LH
75696B Pad, Body Outside Moulding, RH
76181 Bulge, Hood
76182 Guide, Hood Air Intake
76183 Protector, Hood Bulge, NO.1
76187 Retainer, Hood Air Intake Guide, NO.1
76192 Plate, Hood Bulge
76621B Mudguard, Front Body, RH
76622B Mudguard, Front Body, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
