Toyota 4Runner

2002-08 → 2009-08 · chassis GRN21#,UZN21# · catalogue 671470 · United States

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

19 part groups · 2 illustrations

Illustrations

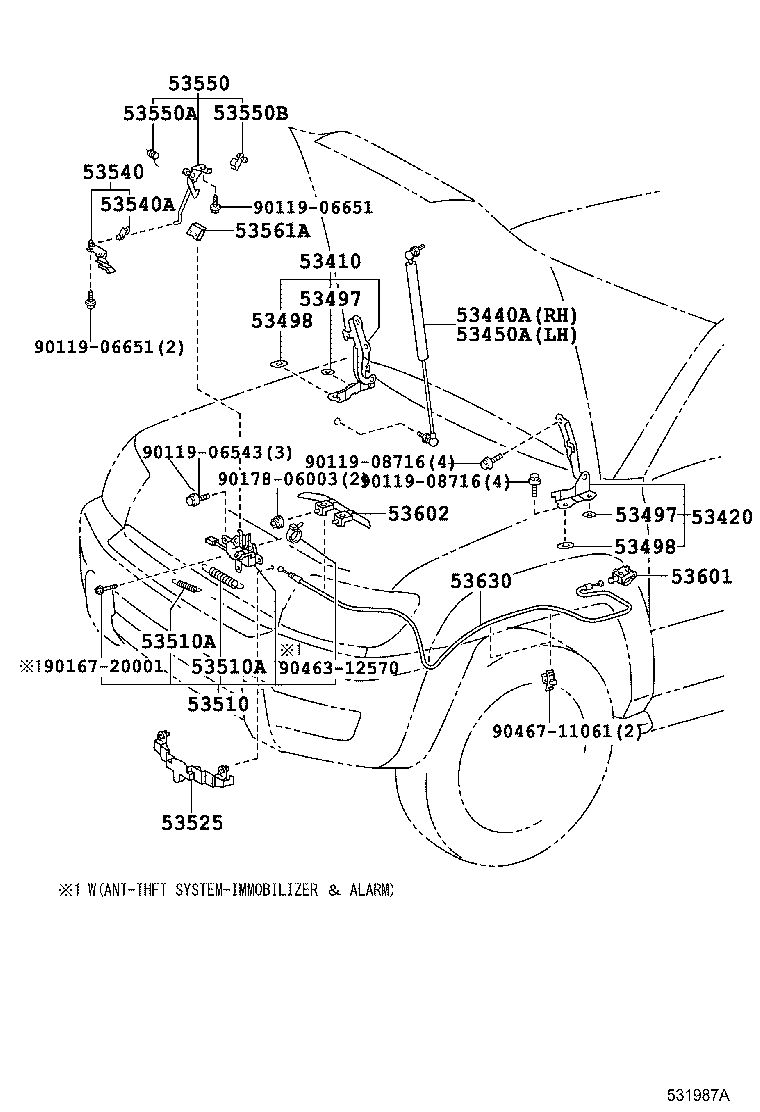

Figure 531347F 531347F 2002-08 → 2005-08 Figure 531987A 531987A 2005-08 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53420 Hinge Assy, Hood, LH
53440A Support Assy, Hood, RH
53440B Bolt, Hood Support, NO.1
53450A Support Assy, Hood, LH
53497 Pad, Hood Hinge, NO.1
53498 Pad, Hood Hinge, NO.2
53510 Lock Assy, Hood
53510A Spring, Tension(FOR HOOD LOCK)
53525 Protector, Hood Lock Release Lever
53540 Lever Assy, Auxiliary Catch Release
53540A Snap, Auxiliary Catch Release Lever Control Link
53550 Hook Assy, Hood Auxiliary Catch
53550A Spring, Torsion(FOR HOOD LOCK HOOK)
53550B Snap, Hood Auxiliary Catch Hook Control Link
53561A Guide, Hood Auxiliary Catch Hook
53601 Lever Sub-assy, Hood Lock Control
53602 Protector Sub-assy, Hood Lock Control Cable
53630 Cable Assy, Hood Lock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
