Toyota 4Runner

2002-08 → 2009-08 · chassis GRN21#,UZN21# · catalogue 671470 · United States

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Floor Panel & Front Floor Member

30 part groups · 2 illustrations

Illustrations

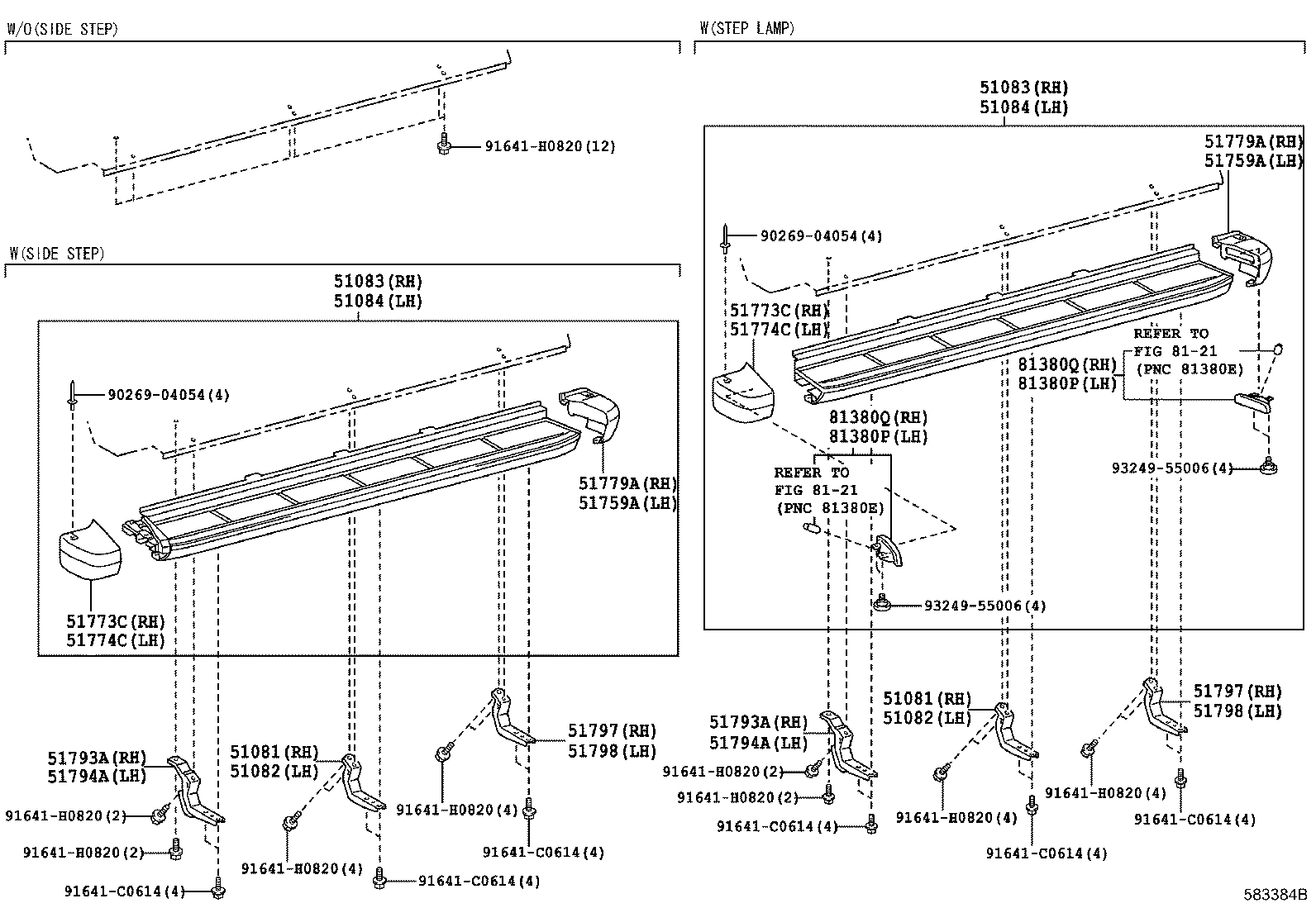

Figure 581637D 581637D 2002-08 → — Figure 583384B 583384B 2002-08 → —

Part groups

PNCDescription
51081 Stay Sub-assy, Side Step, NO.1 RH
51082 Stay Sub-assy, Side Step, NO.1 LH
51083 Step Sub-assy, RH
51084 Step Sub-assy, LH
51759A Cover, Side Door Step Plate, Rear LH
51773C Cover, Step Plate, RH
51774C Cover, Step Plate, LH
51779A Cover, Side Door Step Plate, Rear RH
51793A Bracket, Side Step, NO.1 RH
51794A Bracket, Side Step, NO.1 LH
51797 Bracket, Side Step, NO.3 RH
51798 Bracket, Side Step, NO.3 LH
57051 Member Sub-assy, Front Floor Cross, RH
57052 Member Sub-assy, Front Floor Cross, LH
57401C Member Sub-assy, Floor Side, Inner RH
57402C Member Sub-assy, Floor Side, Inner LH
57417 Reinforcement, Front Floor Under, RH
57418 Reinforcement, Front Floor Under, LH
57461B Member Sub-assy, Center Floor Cross, NO.1
57509 Reinforcement Sub-assy, Front Floor, Center
58111 Pan, Front Floor
58111B Bolt, Weld(FOR FRONT FLOOR PAN)
58115A Reinforcement, Front Floor Panel
58127A Reinforce, Front Cross TO Front Panel Member, RH
58128A Reinforcement, Front Cross TO Front Panel Member, LH
58171 Reinforcement, Parking Brake Base
58191 Footrest, Front Floor
58198 Clip, Footrest
81380P Lamp Assy, Step
81380Q Lamp Assy, Step
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
