Toyota 4Runner

2002-08 → 2009-08 · chassis GRN21#,UZN21# · catalogue 671470 · United States

Supported model Data version 2010-01

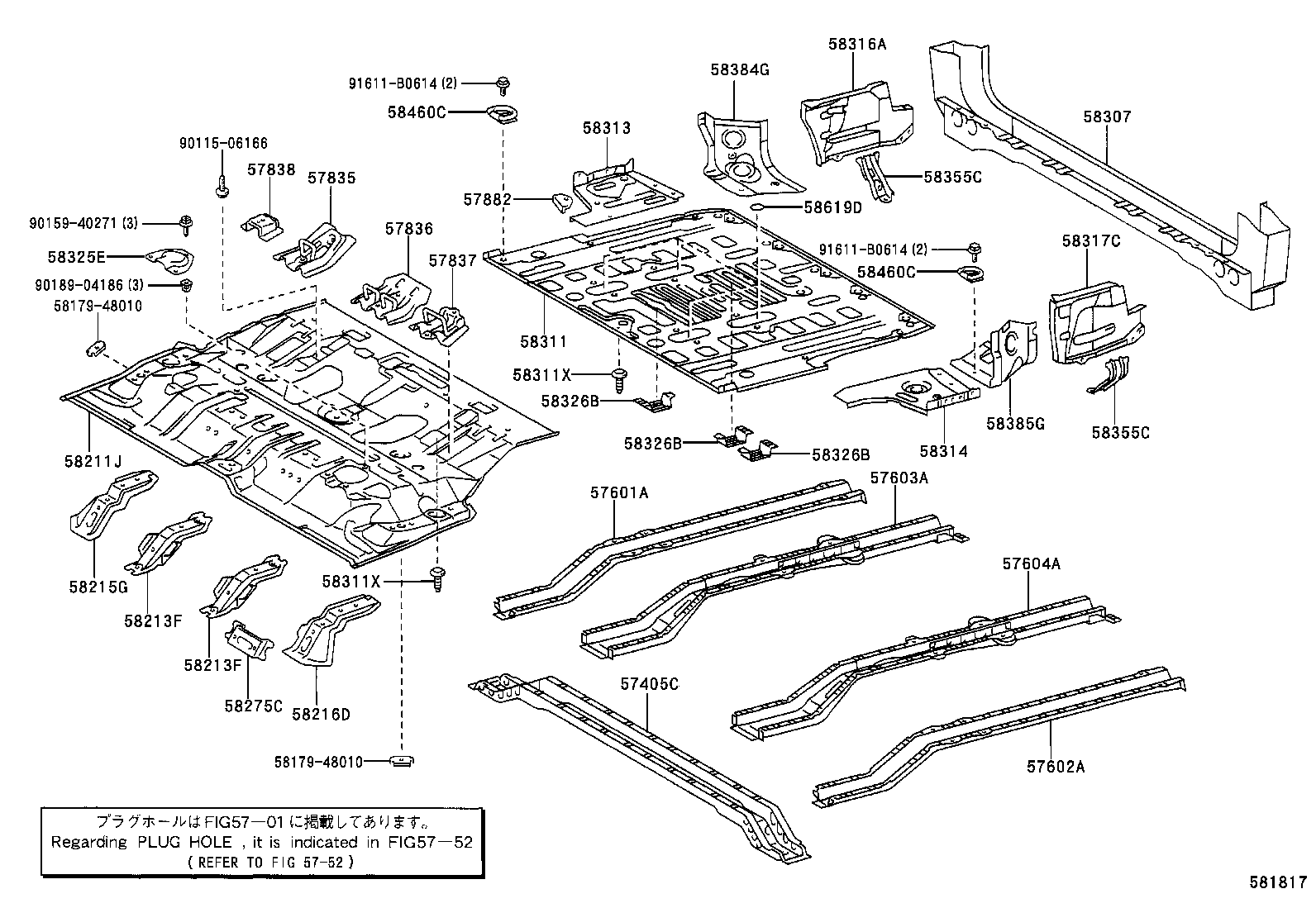

Rear Floor Panel & Rear Floor Member

36 part groups · 2 illustrations

PNC	Description
57405C	Member Sub-assy, Center Floor Cross, Rear
57601A	Member Sub-assy, Rear Floor Side, RH
57602A	Member Sub-assy, Rear Floor Side, LH
57603A	Member Sub-assy, Rear Floor Side, Rear RH
57604A	Member Sub-assy, Rear Floor Side, Rear LH
57835	Reinforcement, Rear NO.1 Seat Leg, Rear NO.1
57836	Reinforcement, Rear NO.1 Seat Leg, Rear NO.2
57837	Reinforcement, Rear NO.1 Seat Leg, Rear NO.3
57838	Reinforcement, Rear NO.1 Seat Leg, Rear NO.4
57882	Reinforcement, Belt Anchor, NO.4
58204D	Bracket Sub-assy, Rear Seat Hinge, Outer LH
58211J	Pan, Center Floor
58213F	Reinforcement, Center Floor Panel
58215G	Bracket, Rear Seat Mounting, NO.1
58216D	Bracket, Rear Seat Mounting, LH
58244N	Stopper, Rear Seat Cushion Bracket
58247C	Reinforcement, Rear Seat Cushion Hinge, RH
58248C	Reinforcement, Rear Seat Cushion Hinge, LH
58249K	Bracket, Center Floor Board Support
58271B	Plate, Floor Side, Rear, RH
58275C	Bracket, Wire Harness Protector
58307	Panel Sub-assy, Body Lower Back
58311	Pan, Rear Floor
58311X	Bolt, Rear Floor Weld
58313	Panel, Rear Floor Side, RH
58314	Panel, Rear Floor Side, LH
58316A	Extension, Rear Floor Side Panel, Rear RH
58317C	Extension, Rear Floor Side Panel, Rear LH
58325E	Cover, Rear Floor Service Hole
58326B	Bracket, Flexible Hose Mounting
58355C	Bracket, Rear Bumper Arm
58384G	Gusset, Lower Back, Upper RH
58385G	Gusset, Lower Back, Upper LH
58393C	Support, Deck Board Set
58460C	Striker Assy, Luggage Hold Belt
58619D	Sheet, Center Floor Silencer Sub

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
