Toyota 4Runner

2002-08 → 2009-08 · chassis GRN21#,UZN21# · catalogue 671470 · United States

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

32 part groups · 3 illustrations

Illustrations

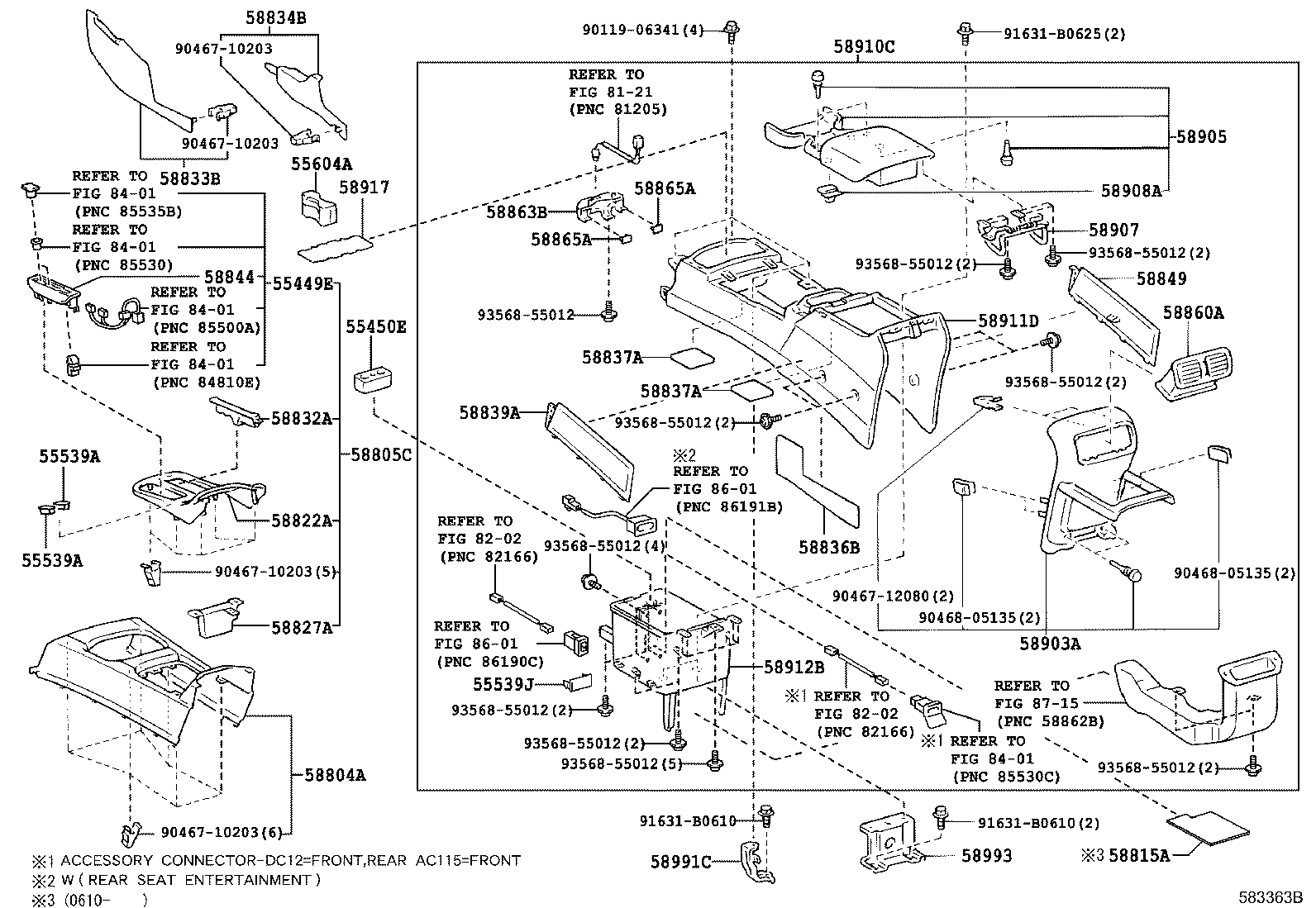

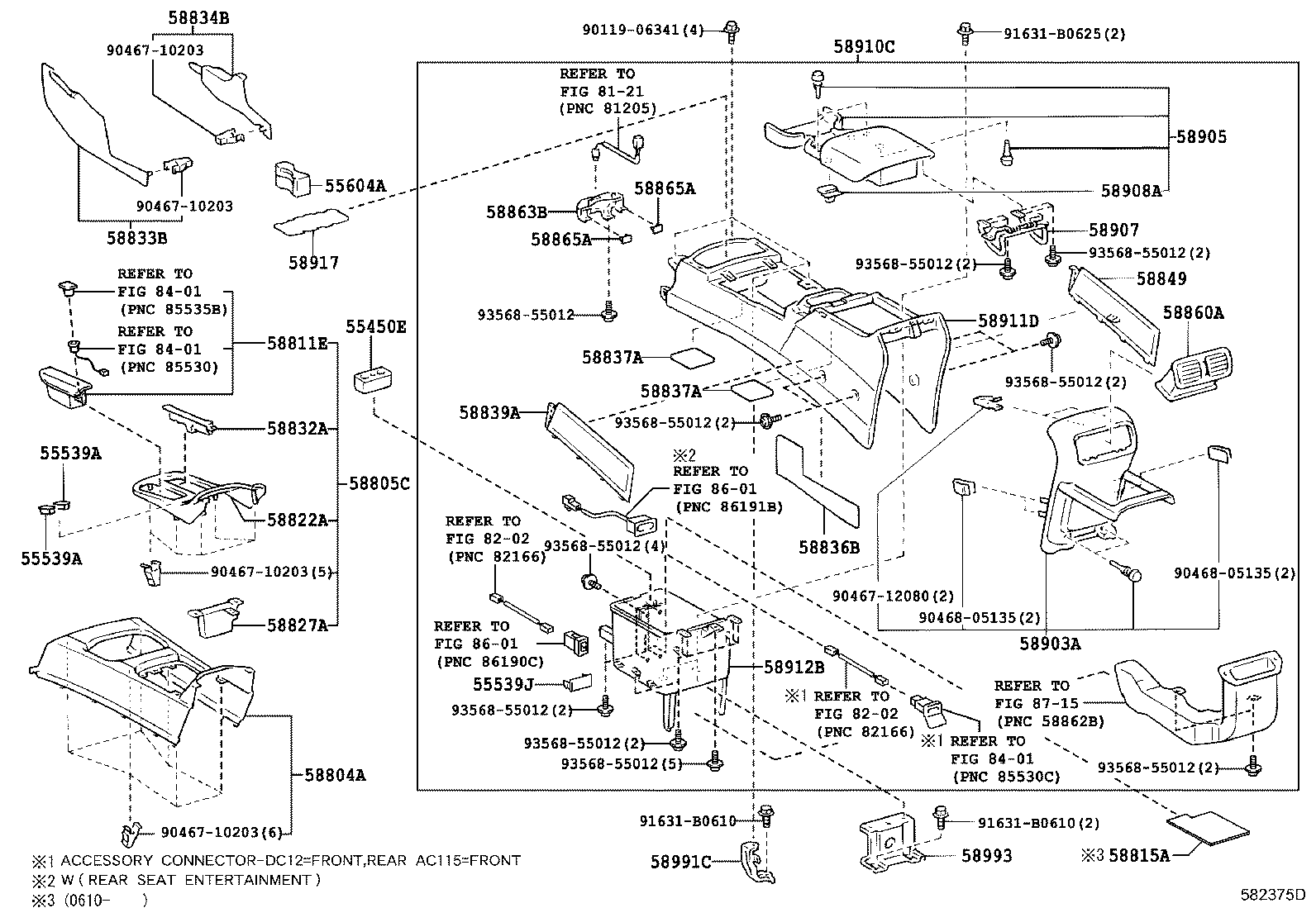

Figure 581619F 581619F 2002-08 → 2005-08 Figure 582375D 582375D 2005-08 → 2008-08 Figure 583363B 583363B 2008-08 → —

Part groups

PNCDescription
55449E Base, Switch
55450E Box Assy, Coin
55539A Cover, Spare Switch Hole
55539J Cover, Spare Switch Hole
55604A Holder Sub-assy, Instrument Panel Cup
58804A Panel Sub-assy, Console, Upper
58805C Panel Sub-assy, Console, Upper Rear
58811E Box, Console, Upper
58815A Carpet, Console Box
58822A Panel, Console, Upper Rear
58827A Garnish, Console Box Pocket
58832A Garnish, Console Upper Panel, Rear
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58836B Pad, Console Box Silencer, NO.1
58837A Pad, Console Box Silencer, NO.2
58839A Cover, Console Box Hole
58844 Bezel, Console Box
58849 Cover, Console Box Hole, NO.2
58860A Register Assy, Console Box
58863B Support, Console Box, NO.3
58865A Lens, Front Console Box, NO.1
58903A Panel Sub-assy, Console Rear End
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58911D Box, Rear Console, Upper
58912B Box, Rear Console, Lower
58917 Mat, Box Bottom, NO.2
58991C Bracket, Console Box Mounting, Front
58993 Bracket, Console Box Mounting, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
