Toyota 4Runner
2002-08 → 2009-08 · chassis GRN21#,UZN21# · catalogue 671470 · United States
Supported model
Data version 2010-01

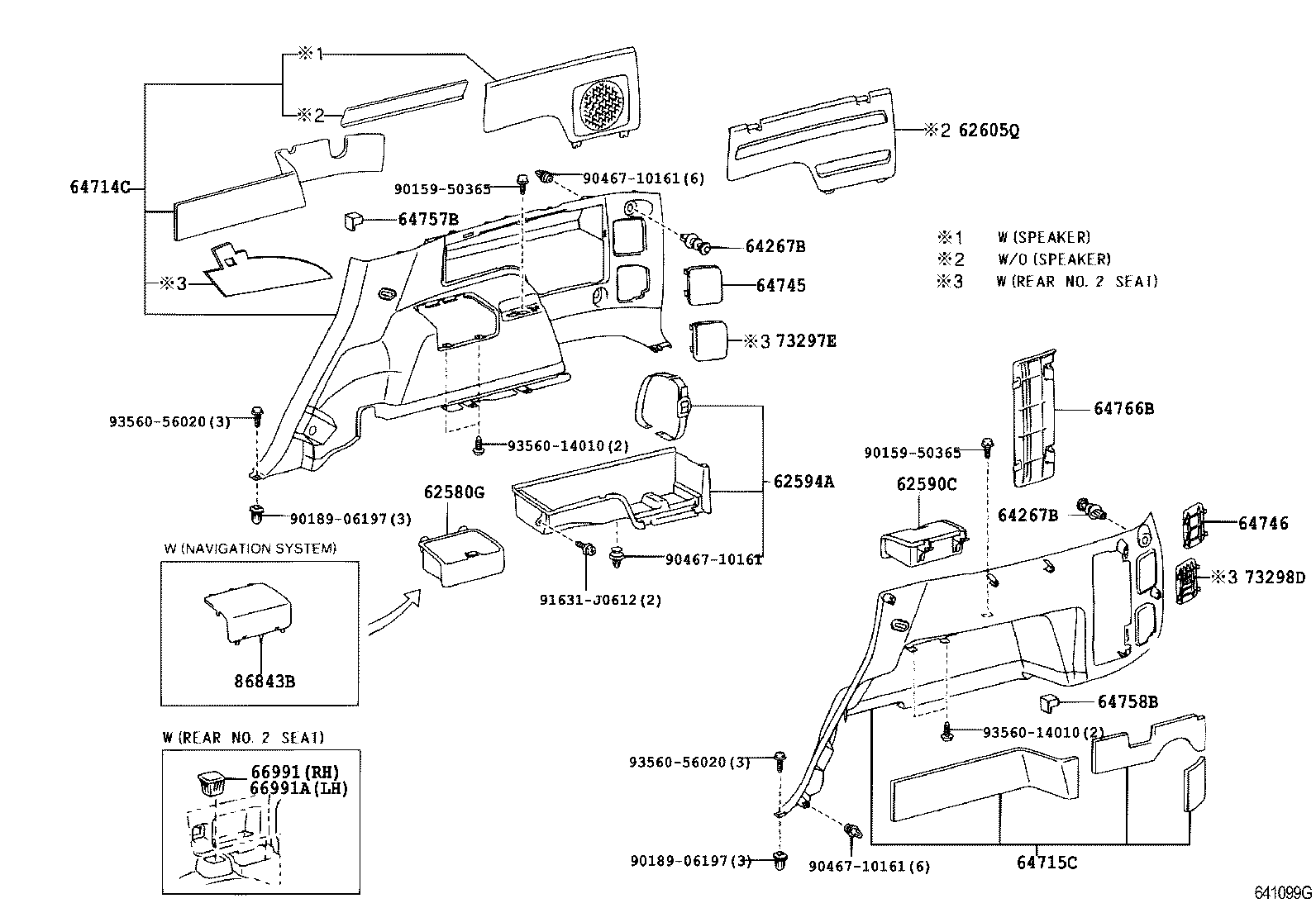

Inside Trim Board
51 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62135B | Retainer, Cowl Side Carpet, RH |
| 62136A | Retainer, Cowl Side Carpet, LH |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62217H | Clip, Center Piller Garnish |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62470A | Garnish Assy, Roof Side, Inner RH |
| 62480A | Garnish Assy, Roof Side, Inner LH |
| 62521B | Cover, Quarter Trim, RH |
| 62522A | Cover, Quarter Trim, LH |
| 62580G | Box Assy, Side Trim, RH |
| 62590C | Box Assy, Side Trim, LH |
| 62594A | Pocket, Quarter Trim, NO.1 |
| 62605Q | Lid Sub-assy, Quarter Trim, RH |
| 64267B | Hook, Package Holder Net |
| 64714C | Cover, Deck Side Trim, RH |
| 64715C | Cover, Deck Side Trim, LH |
| 64745 | Cover, Rear Combination Lamp Service, RH |
| 64746 | Cover, Rear Combination Lamp Service, LH |
| 64757B | Protector, Deck Side Garnish, Rear RH |
| 64758B | Protector, Deck Side Garnish, Rear LH |
| 64766B | Cover, Quarter Trim Jack |
| 64788 | Pad, Roof Side |
| 64935A | Holder, Tonneau Cover |
| 64936A | Holder, Tonneau Cover, LH |
| 64938A | Hook, Tonneau Cover, A |
| 64946B | Hook, Tonneau Cover, B |
| 66991 | Holder, Quarter Trim Cup, RH |
| 66991A | Holder, Quarter Trim Cup, LH |
| 67911B | Plate, Front Door Scuff, Outside, RH |
| 67912A | Plate, Front Door Scuff, Outside LH |
| 67913B | Plate, Front Door Scuff, RH |
| 67914B | Plate, Front Door Scuff, LH |
| 67915 | Plate, Rear Door Scuff, Outside RH |
| 67916 | Plate, Rear Door Scuff, Outside LH |
| 67917C | Plate, Rear Door Scuff, RH |
| 67918E | Plate, Rear Door Scuff, LH |
| 73297E | Cover, Deck Trim Side Belt Hole, RH |
| 73298D | Cover,Deck Trim Side Belt Hole, LH |
| 86269F | Grille, Speaker, RH |
| 86279A | Grille, Speaker, LH |
| 86843B | Cover, Navigation Computer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
