Toyota 4Runner
2002-08 → 2009-08 · chassis GRN21#,UZN21# · catalogue 671470 · United States
Supported model
Data version 2010-01

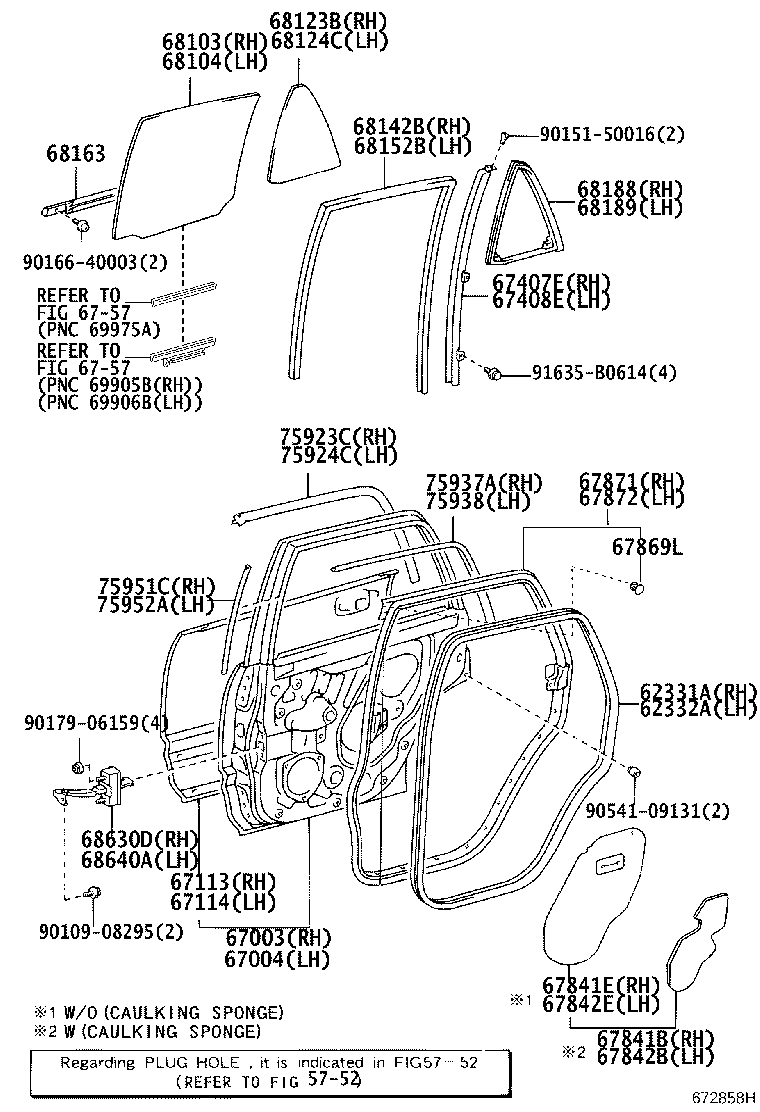

Rear Door Panel & Glass
37 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62331A | Weatherstrip, Rear Door Opening Trim, RH |
| 62332A | Weatherstrip, Rear Door Opening Trim, LH |
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67407E | Bar Sub-assy, Rear Door Window Division, RH |
| 67408E | Bar Sub-assy, Rear Door Window Division, LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67841B | Cover, Rear Door Service Hole |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842B | Cover, Rear Door Service Hole, Lower |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67869L | Clip, Rear Door Weatherstrip |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68123B | Glass, Rear Door Quarter Window, RH |
| 68124C | Glass, Rear Door Quarter Window, LH |
| 68142B | Run, Rear Door Window, RH |
| 68152B | Run, Rear Door Window, LH |
| 68163 | Weatherstrip, Rear Door Glass, Outer |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68188 | Weatherstrip, Rear Door Quarter Window, RH |
| 68189 | Weatherstrip, Rear Door Quarter Window, LH |
| 68630D | Check Assy, Rear Door, RH |
| 68640A | Check Assy, Rear Door, LH |
| 75923C | Tape, Black Out, NO.2 RH |
| 75924C | Tape, Black Out, NO.2 LH |
| 75937A | Tape, Black Out, Inner Upper RH |
| 75938 | Tape, Black Out, Inner Upper LH |
| 75951C | Tape, Black Out, Inner Front RH |
| 75952A | Tape, Black Out, Inner Front LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
