Toyota 4Runner

2002-08 → 2009-08 · chassis GRN21#,UZN21# · catalogue 671470 · United States

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

17 part groups · 2 illustrations

Illustrations

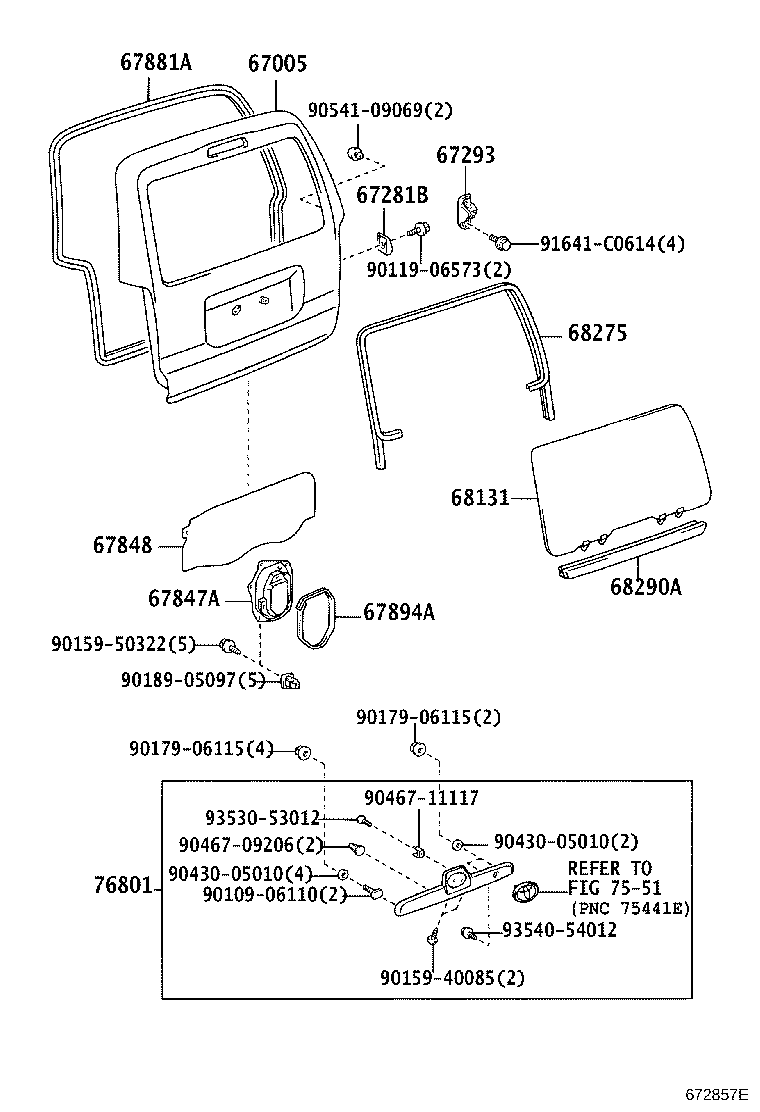

Figure 672854C 672854C 2002-08 → — Figure 672857E 672857E 2002-08 → —

Part groups

PNCDescription
64787 Pad, Back Door Trim
64791B Cover, Back Door Trim
67005 Panel Sub-assy, Back Door
67281B Stopper, Back Door, Lower
67293 Cushion, Back Door Lower Stopper
67751 Board, Back Door Trim
67847A Cover, Back Door Service Hole
67848 Cover, Back Door Service Hole, LH
67881A Weatherstrip, Back Door
67894A Protector, Back Door Panel, NO.1
68131 Glass, Back Door
68275 Run, Back Door Glass
68290A Weatherstrip Assy, Back Door Glass, Outer
68291 Weatherstrip, Back Door Glass
74629A Cover, Assist Strap Hole
74650A Strap Assy, Assist
76801 Garnish Sub-assy, Back Door, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
