Toyota 4Runner

2002-08 → 2009-08 · chassis GRN21#,UZN21# · catalogue 671470 · United States

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Hinge

10 part groups · 2 illustrations

Illustrations

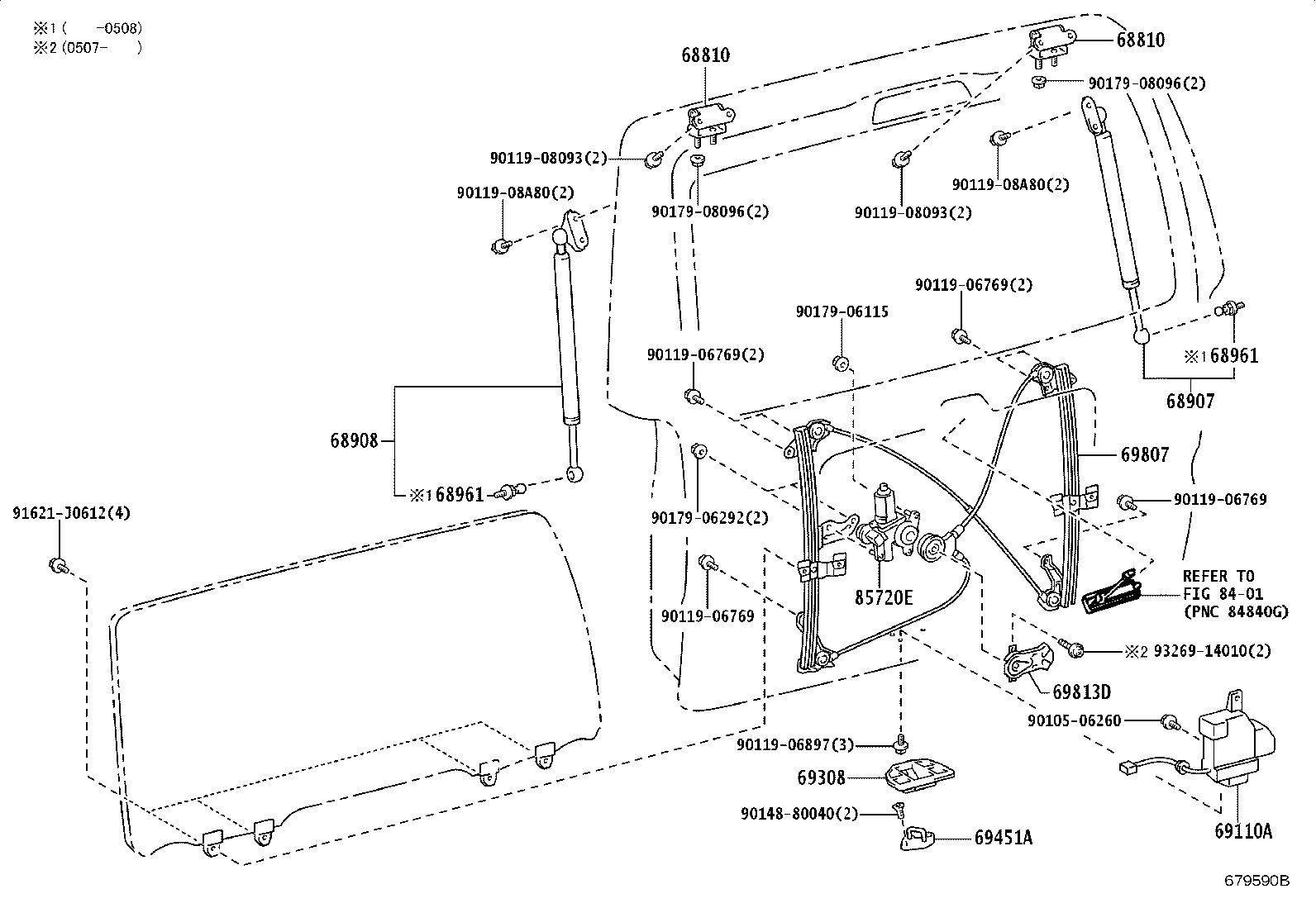

Figure 672985I 672985I 2002-08 → 2004-01 Figure 679590B 679590B 2004-01 → —

Part groups

PNCDescription
68810 Hinge Assy, Back Door, Upper
68907 Stay Sub-assy, Back Door Damper, RH
68908 Stay Sub-assy, Back Door Damper, LH
68961 Bolt, Back Door Stay
69110A Lock Assy, Back Door W/Motor
69308 Protector Sub-assy, Back Door Lock
69451A Plate, Door Lock Striker
69807 Regulator Sub-assy, Back Door Power Window
69813D Plate, Back Door Window Regulator Base, RH
85720E Motor Assy, Power Window Regulator, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
