Toyota 4Runner

2002-08 → 2009-08 · chassis GRN21#,UZN21# · catalogue 671470 · United States

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

200 part groups · 21 illustrations

Illustrations

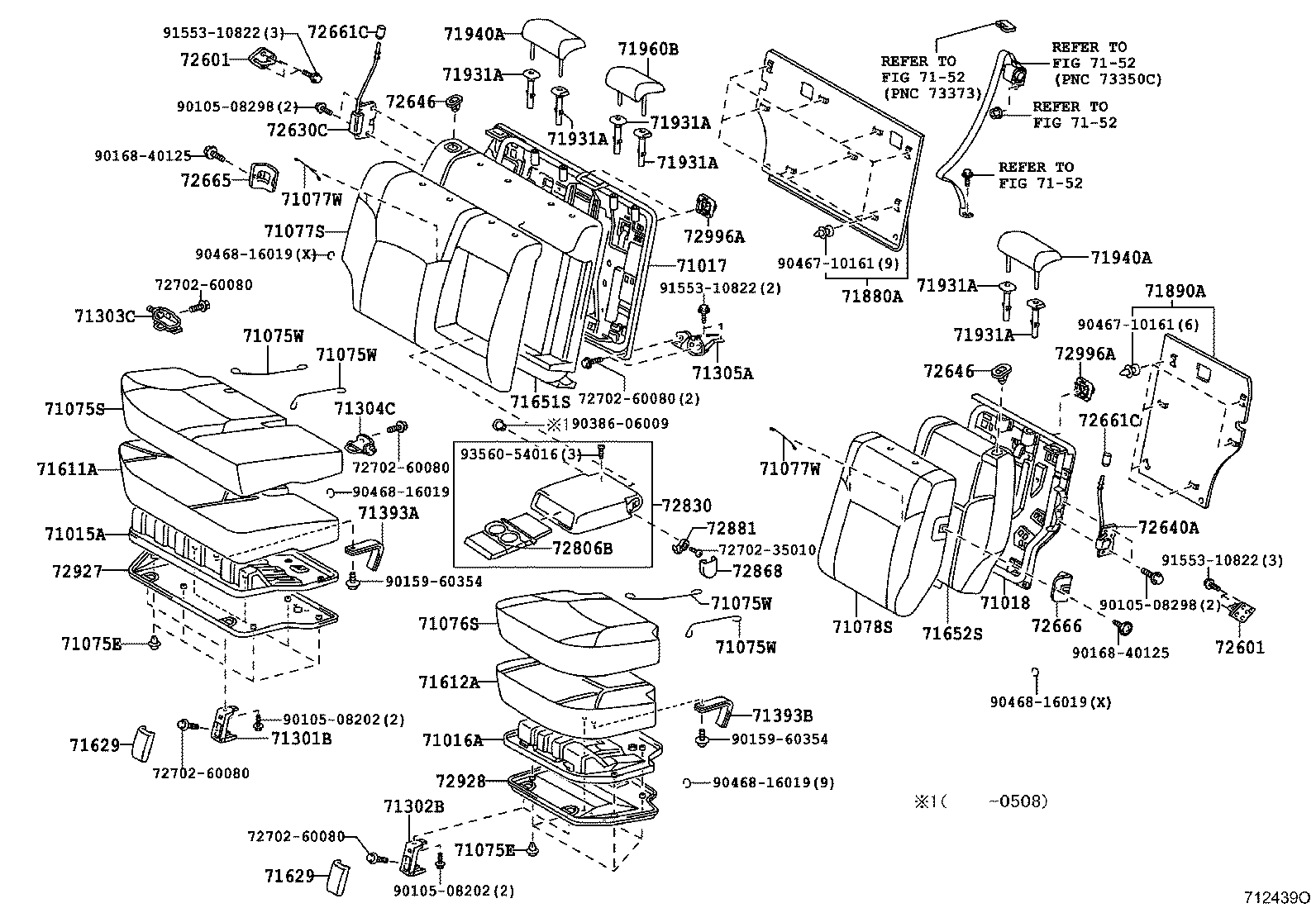

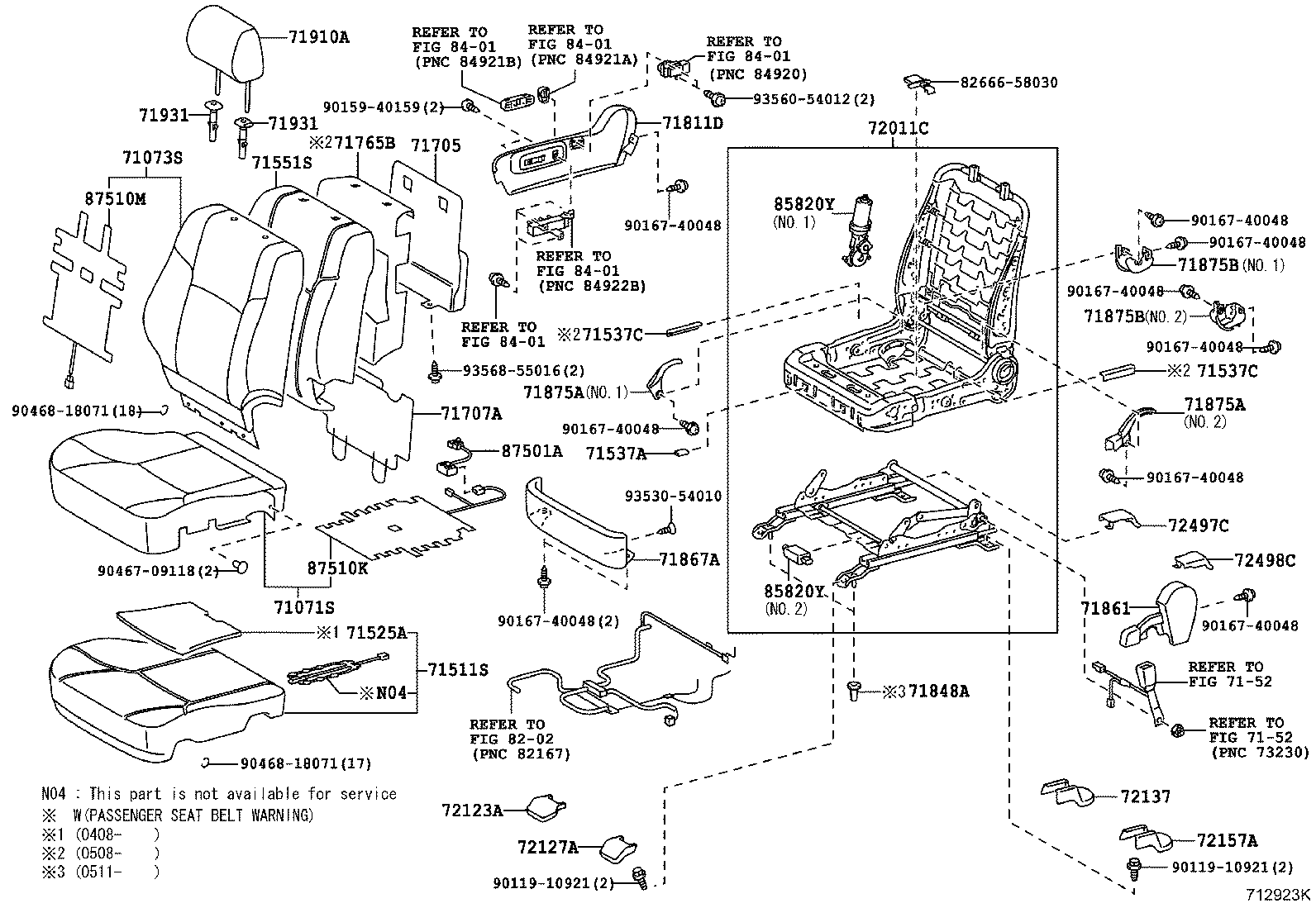

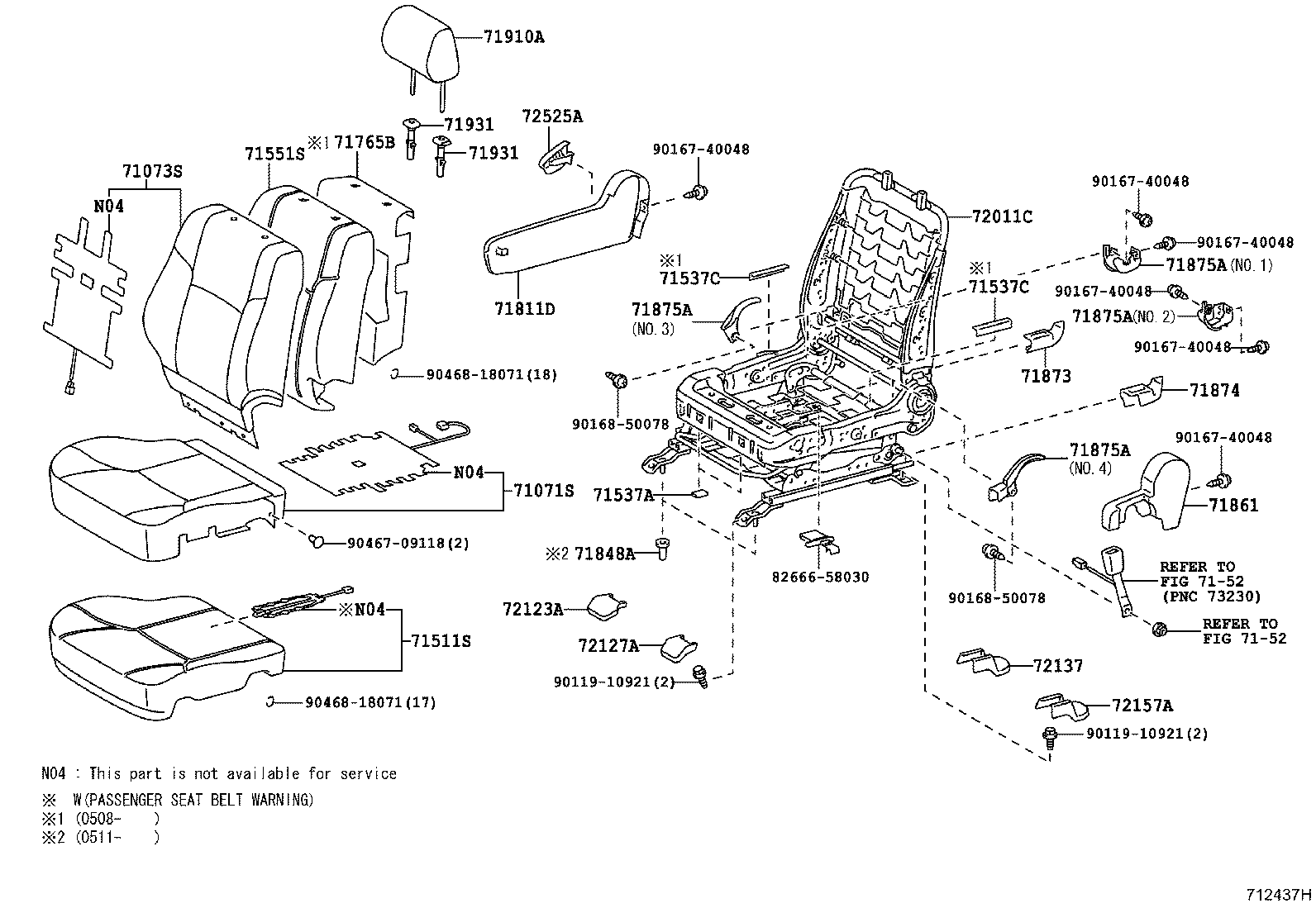

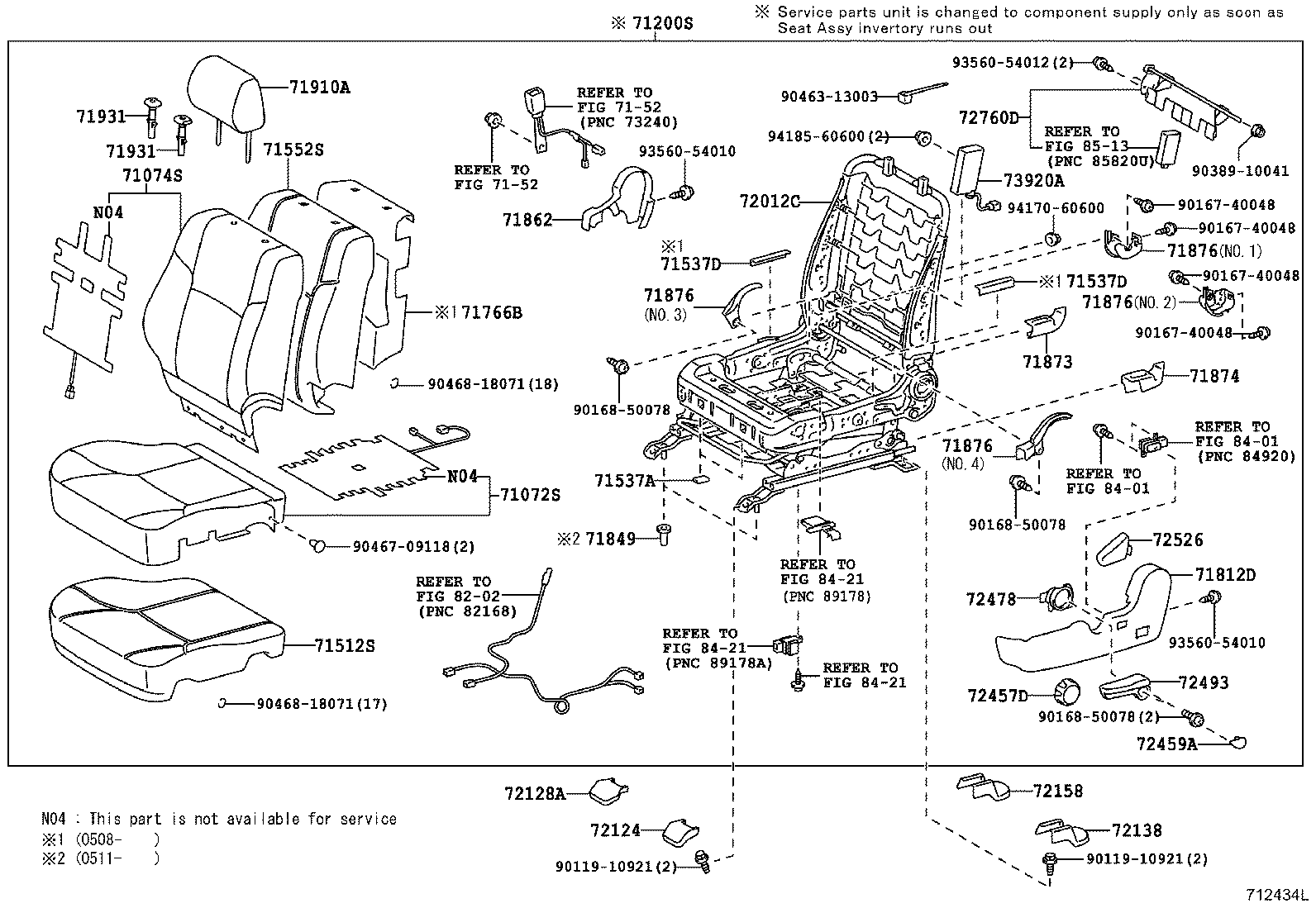

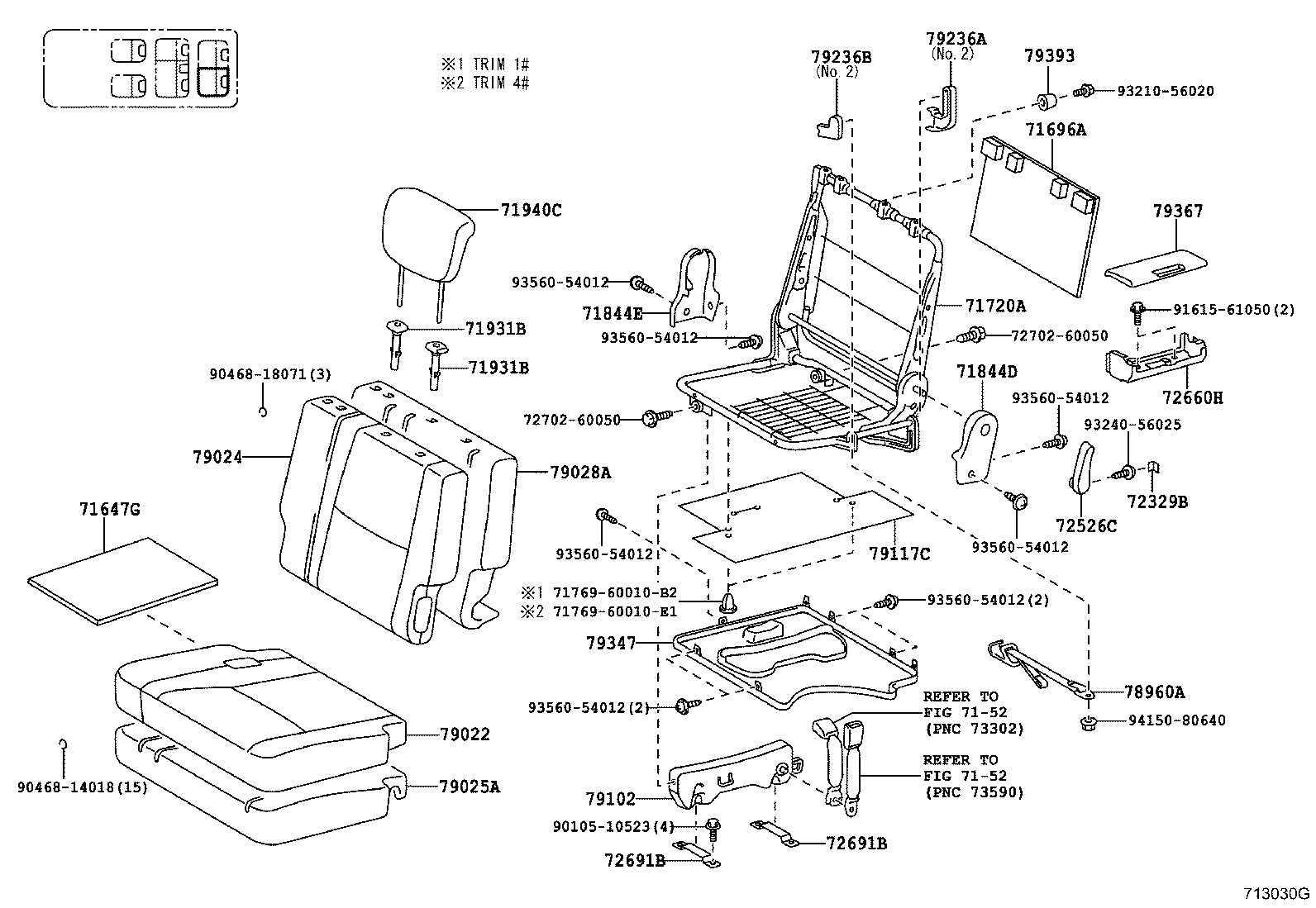

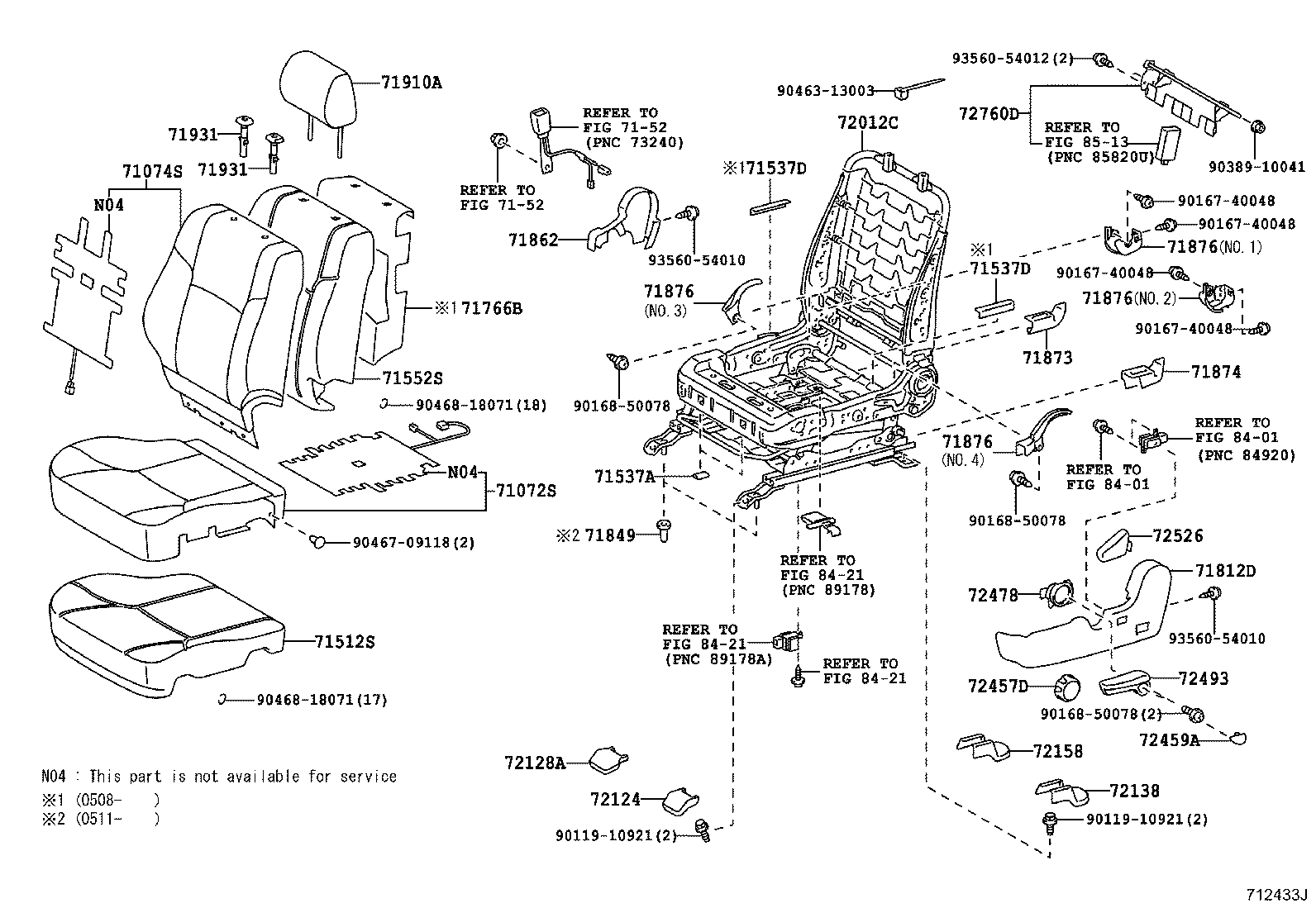

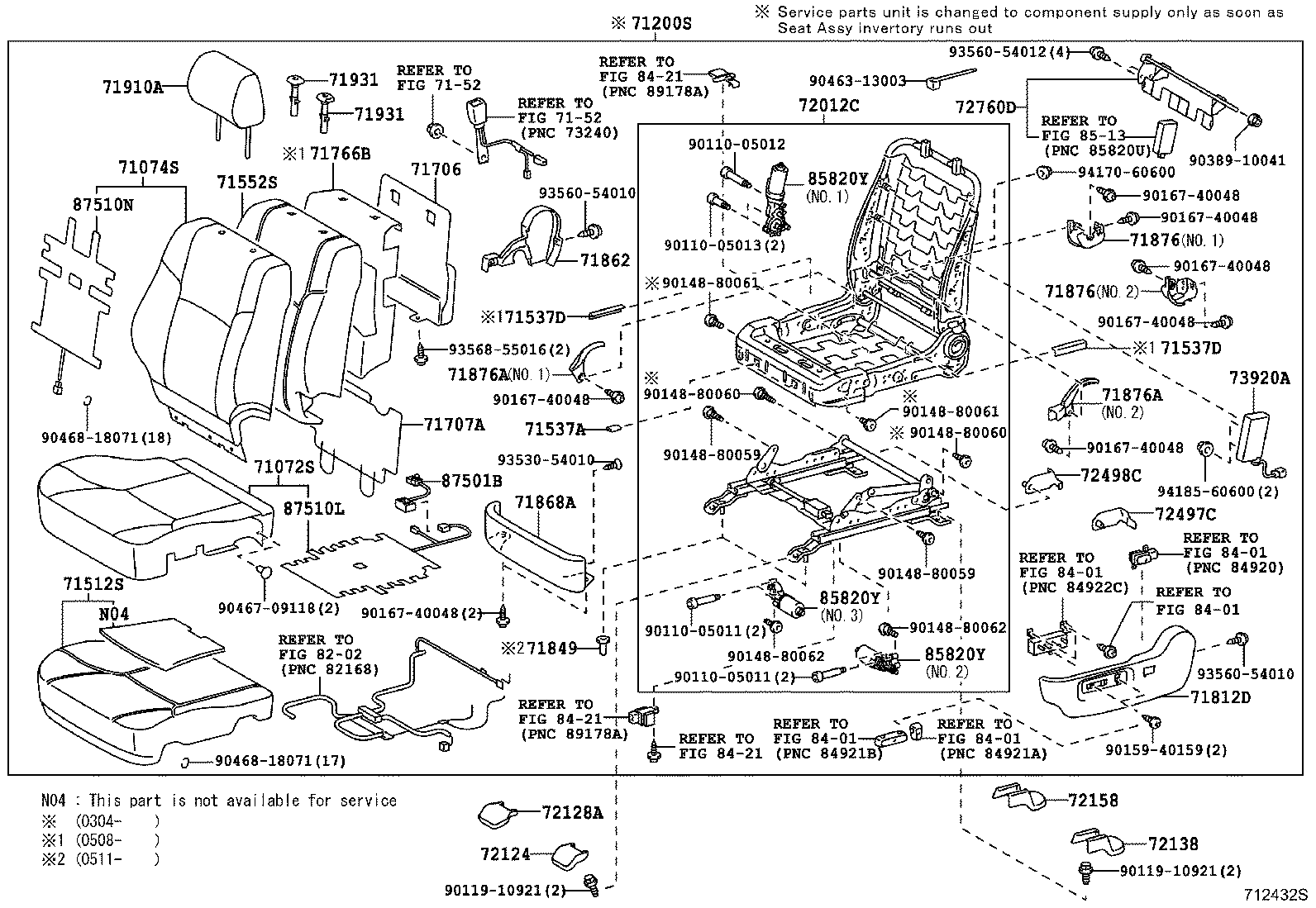

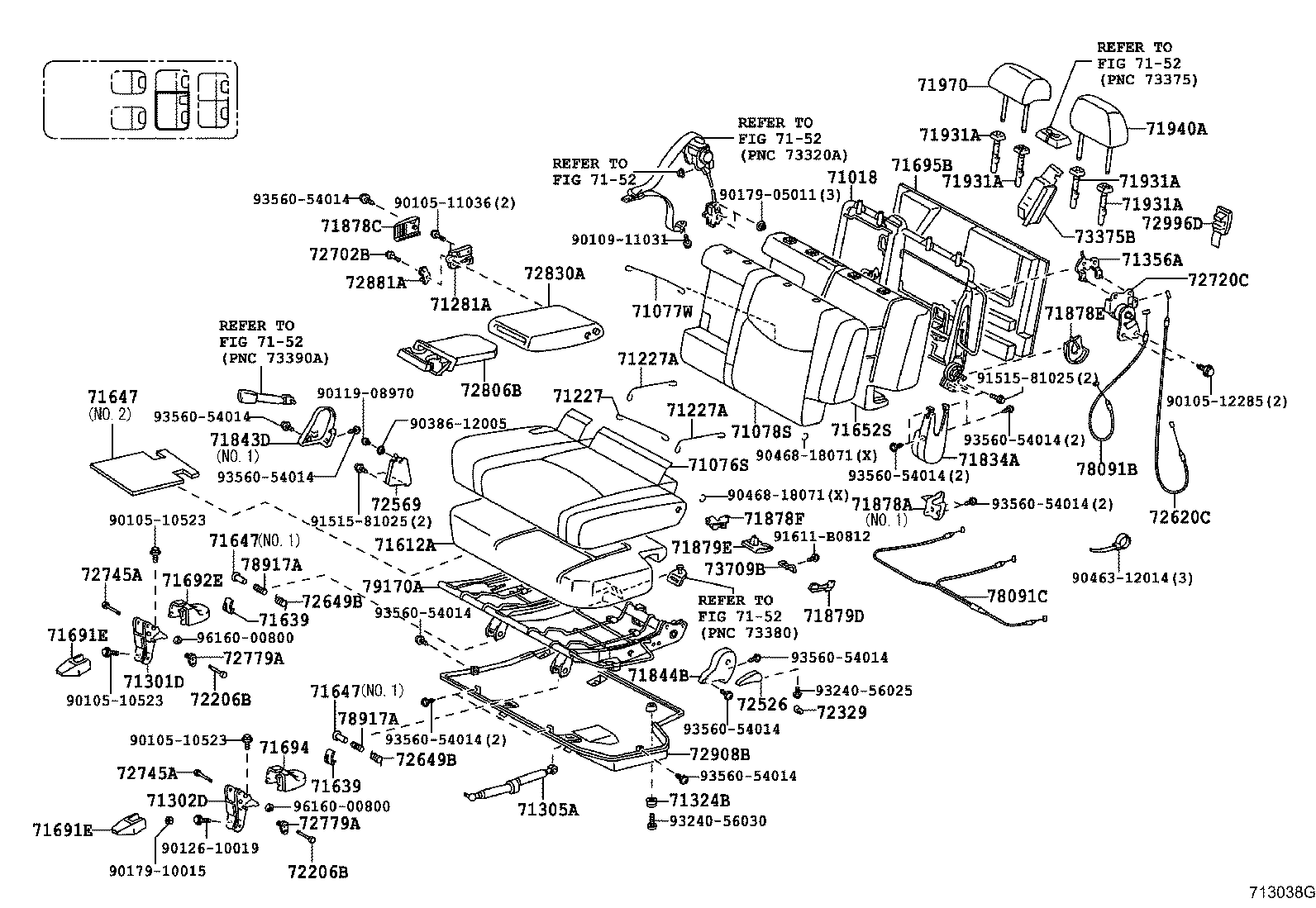

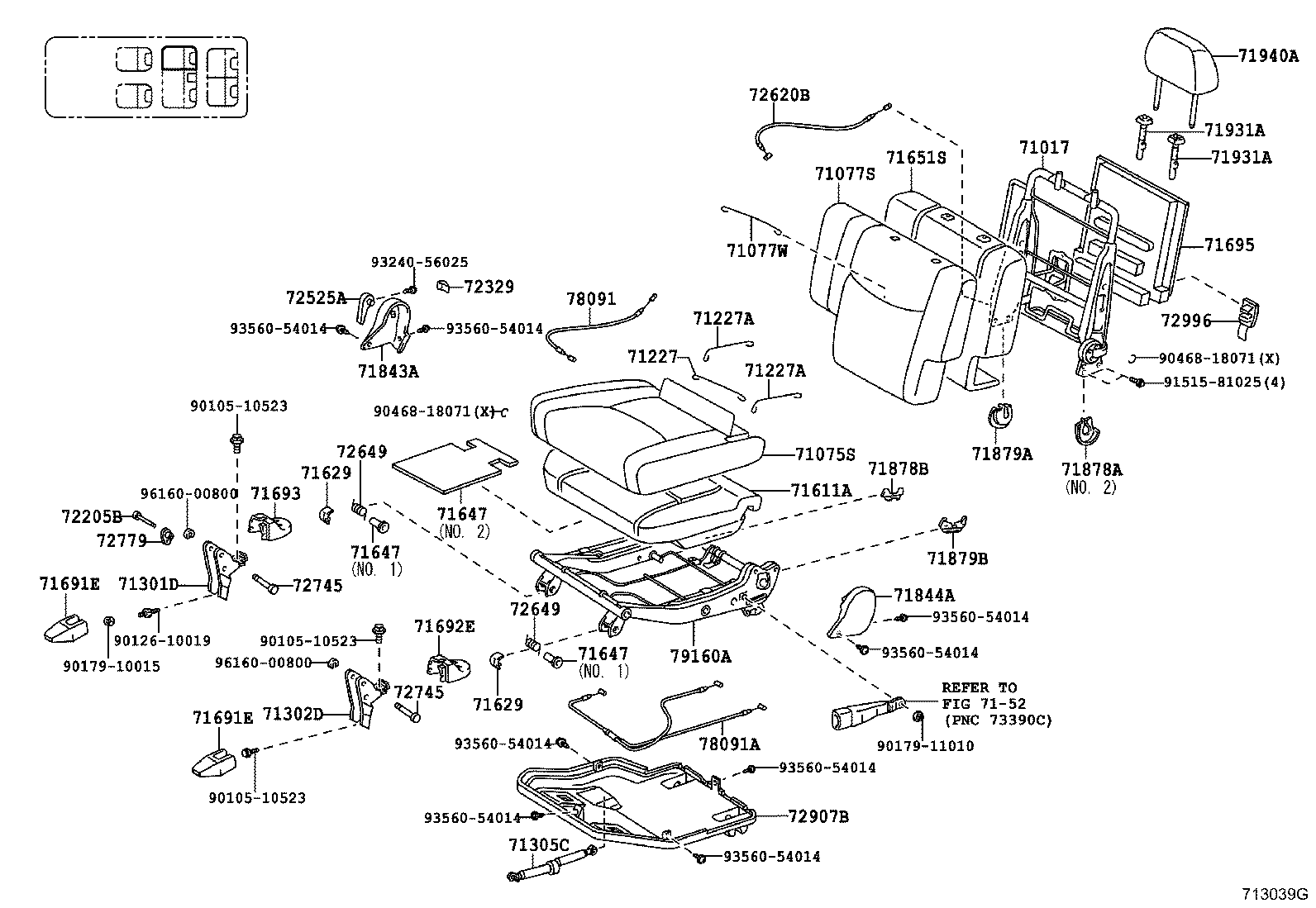

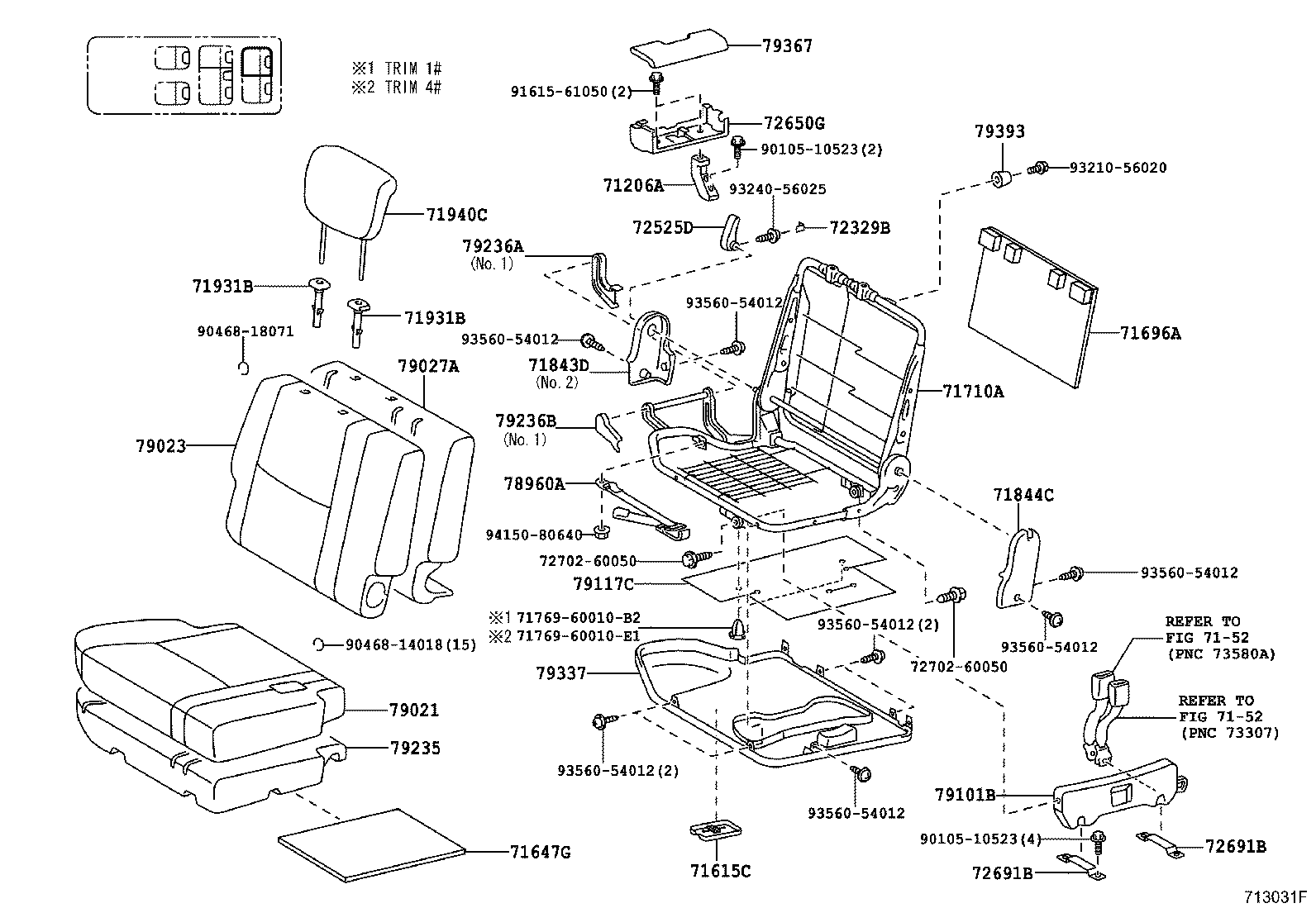

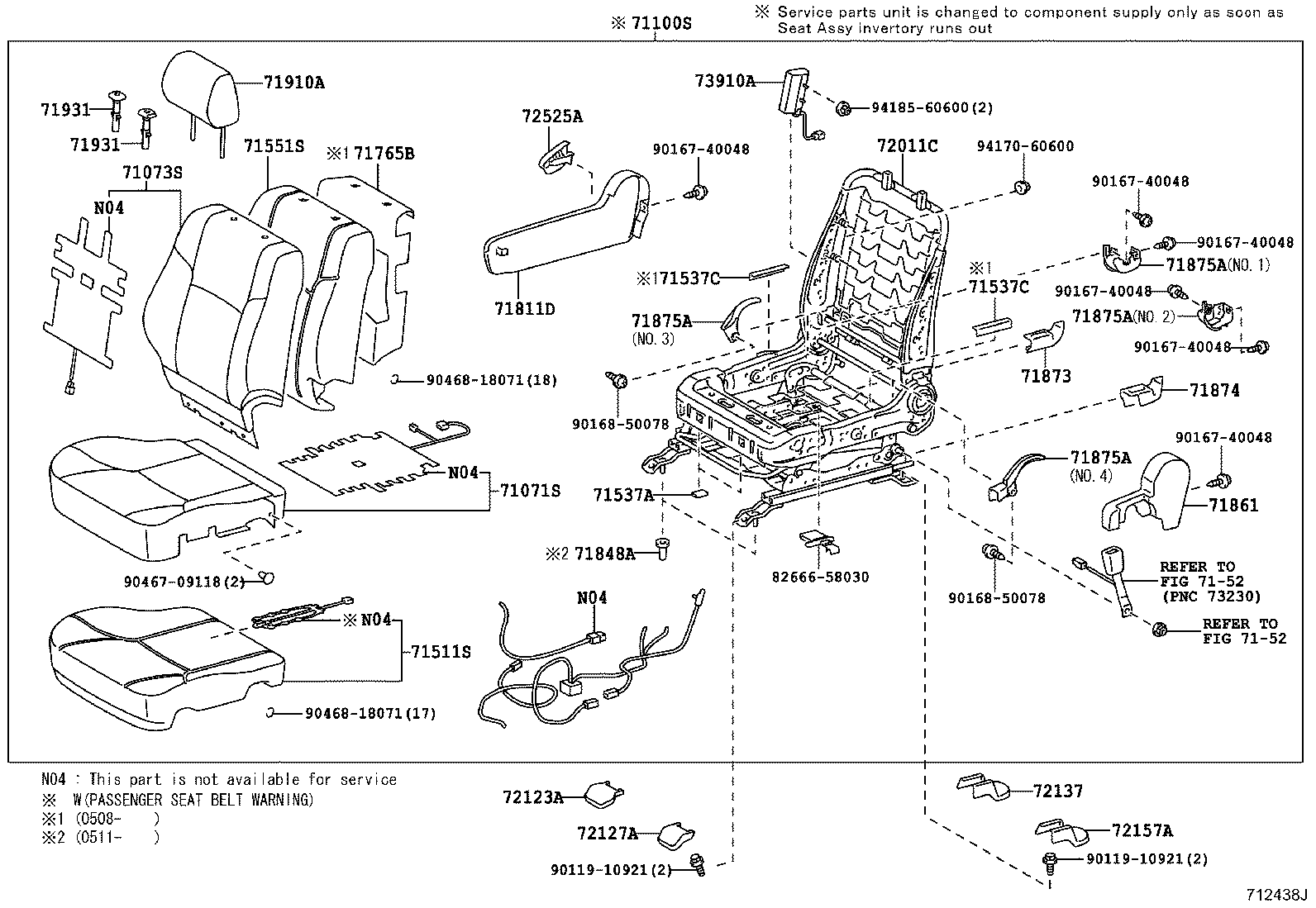

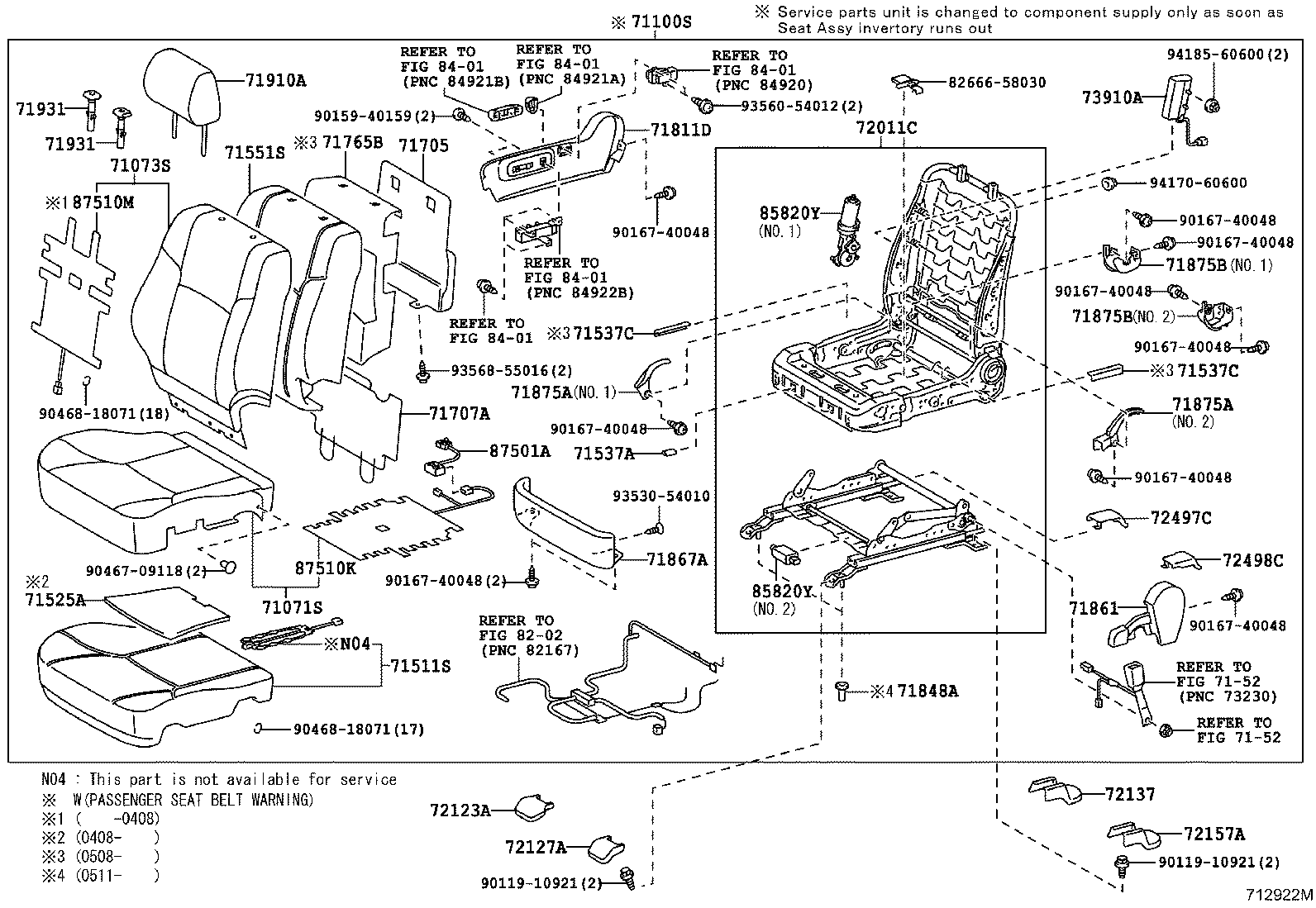

Figure 712921N 712921N 2002-08 → 2005-08 Figure 712921N 712921N 2005-08 → — Figure 712432S 712432S 2002-08 → 2005-08 Figure 712432S 712432S 2005-08 → — Figure 712433J 712433J 2002-08 → 2005-08 Figure 712433J 712433J 2005-08 → — Figure 712434L 712434L 2002-08 → 2005-08 Figure 712434L 712434L 2005-08 → — Figure 712923K 712923K 2002-08 → 2005-08 Figure 712923K 712923K 2005-08 → — Figure 712922M 712922M 2002-08 → 2005-08 Figure 712922M 712922M 2005-08 → — Figure 712437H 712437H 2002-08 → 2005-08 Figure 712437H 712437H 2005-08 → — Figure 712438J 712438J 2002-08 → 2005-08 Figure 712438J 712438J 2005-08 → — Figure 712439O 712439O 2002-08 → — Figure 713039G 713039G 2003-08 → — Figure 713038G 713038G 2003-08 → — Figure 713031F 713031F 2003-08 → — Figure 713030G 713030G 2003-08 → —

Part groups

PNCDescription
71015A Frame Sub-assy, Rear Seat Cushion, RH
71016A Frame Sub-assy, Rear Seat Cushion, LH
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075E Clip(FOR REAR SEAT)
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71075W Wire, Rear Seat Cushion Cover
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71077W Wire, Rear Seatback Cover
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71100S Seat Assy, Front RH
71200S Seat Assy, Front LH
71206A Bracket Sub-assy, Rear Seat Stopper, RH
71227 Wire, Rear Seat Cushion Cover Set
71227A Wire, Rear Seat Cushion Cover Set, NO.1
71281A Hinge, Rear Seat Center Armrest
71301B Hinge Sub-assy, Rear NO.1 Seat, RH
71301D Hinge Sub-assy, Rear Seat, RH
71302B Hinge Sub-assy, Rear NO.1 Seat, LH
71302D Hinge Sub-assy, Rear Seat, LH
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71305A Hinge Sub-assy, Rear Seatback, Center
71305C Stay Sub-assy, Rear Seat
71324B Cushion, Rear Seat
71356A Plate, Rear Seatback Hinge, Inner LH
71393A Band, Rear Seat Cushion, RH
71393B Band, Rear Seat Cushion, LH
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71525A Pad, Front Seat Cushion Cover, Center RH
71537A Protector, Front Seat Cushion
71537C Protector, Front Seat Cushion Edge, RH
71537D Protector, Front Seat Cushion Edge, LH
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71615C Cover, Rear Seat Lock Striker
71629 Cover, Rear Seat Cushion Hinge
71639 Cover, Rear Seat Cushion Hinge, LH
71647 Protector, Rear Seat Cushion Edge
71647G Protector, Rear Seat Cushion Edge
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71691E Cover, Rear Seat Cushion Hinge, NO.1
71692E Cover, Rear Seat Cushion Hinge, NO.2
71693 Cover, Rear Seat Cushion Hinge, Lower RH
71694 Cover, Rear Seat Cushion Hinge, Lower LH
71695 Protector, Rear Seatback
71695B Protector, Rear Seat, NO.1 LH
71696A Protector, Rear Seat, NO.2 LH
71705 Board Sub-assy, Front Seatback, RH
71706 Board Sub-assy, Front Seatback, LH
71707A Cover Sub-assy, Front Seatback Board
71710A Frame Assy, Rear Side Seat, RH
71720A Frame Assy, Rear Side Seat, LH
71765B Protector, Front Seatback, RH
71766B Protector, Front Seatback, LH
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71834A Cover, Rear Seat Reclining, NO.1 LH
71843A Cover, Rear Seat Reclining, NO.2 RH
71843D Cover, Rear Seat Reclining, NO.2 RH
71844A Cover, Rear Seat Reclining, NO.2 LH
71844B Cover, Reclining Adjuster, LH
71844C Cover, Rear Seat Reclining, NO.2 LH
71844D Cover, Rear Seat Reclining, LH (FOR LH SEAT)
71844E Cover, Rear Seat Reclining, RH (FOR LH SEAT)
71848A Cap, Seat Adjuster Cover, RH
71849 Cap, Seat Adjuster Cover, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71874 Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71878A Cover, Rear Seat Reclining, Inner RH
71878B Cover, Rear Seat Reclining, Inner RH
71878C Cover, Rear Seat Reclining, Inner RH
71878E Cover, Rear Seat Reclining, Inner RH
71878F Cover, Rear Seat Reclining, Inner RH
71879A Cover, Rear Seat Reclining, Inner LH
71879B Cover, Rear Seat Reclining, Inner LH
71879D Cover, Rear Seat Reclining, Inner LH
71879E Cover, Rear Seat Reclining, Inner LH
71880A Carpet Assy, Rear Seatback Board, RH
71890A Carpet Assy, Rear Seatback Board, LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71931B Support Assy, Rear NO.1 Seat Headrest
71940A Headrest Assy, Rear Seat
71940C Headrest Assy, Rear NO.1 Seat, RH
71960B Headrest Assy, Rear Seat, Center
71970 Headrest Assy, Rear Seat
72011C Adjuster Sub-assy, Front Seat, RH
72012C Adjuster Sub-assy, Front Seat, LH
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72137 Cover, Seat Track, Outer RH
72138 Cover, Seat Track, Outer LH
72157A Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72205B Pin Sub-assy, Seat Track Open Lever
72206B Pin Sub-assy, Seat Track Open Lever, LH
72329 Cover, Seat Adjuster Bolt
72329B Cover, Seat Adjuster Bolt, NO.1
72457D Knob, Vertical Seat Adjuster, LH
72459A Cap, Vertical Seat Adjuster Knob
72478 Bush, Vertical Adjuster
72493 Handle, Vertical Adjusting, NO.2
72497C Cover, Vertical Adjuster Bracket, Outer
72498C Cover, Vertical Adjuster Bracket, Inner
72525A Handle, Reclining Adjuster Release, RH
72525D Handle, Reclining Adjuster Release, NO.2 RH
72526 Handle, Reclining Adjuster Release, LH
72526C Handle, Reclining Adjuster Release, NO.2 LH
72569 Plate, Seatback Stopper
72601 Striker Sub-assy, Rear Seat Lock
72620B Cable Assy, Rear NO.1 Seat Lock
72620C Cable Assy, Rear NO.1 Seat Lock
72630C Lock Assy, Rear Seatback, RH
72640A Lock Assy, Rear Seatback, LH
72646 Grommet, Rear Seatback Stop Button
72649 Spring, Rear Seat Cushion Support
72649B Spring, Rear Seat Cushion Support
72650G Lock Assy, Rear NO.2 Seat, RH
72660H Lock Assy, Rear NO.2 Seat, LH
72661C Button, Rear Seatback Lock Release
72665 Cover, Rear Seatback Lock, RH
72666 Cover, Rear Seatback Lock, LH
72691B Striker, Rear Seat Cushion Lock
72702B Wire Sub-assy, Rear Seat Reclining Control
72720C Adjuster Assy, NO.1 Seat Reclining, LH
72745 Pin, Rear Seat Reclining Hinge
72745A Pin, Rear Seat Reclining Hinge
72760D Adjuster Assy, Lumbar Support, LH
72779 Guide, Rear Seat Hinge Pawl
72779A Guide, Rear Seat Hinge Pawl
72806B Holder Sub-assy, Rear Seat Center Armrest Cup
72830 Armrest Assy, Rear Seat, Center
72830A Armrest Assy, NO.2 LH Seat
72868 Cover, Center Armrest Hinge, RH
72881 Support, Rear Seat Center Armrest, RH
72881A Support, Rear Seat Center Armrest, LH
72907B Cover Sub-assy, Rear Seat Cushion Under, RH
72908B Cover Sub-assy, Rear Seat Cush Under, LH
72927 Cover, Rear Seat Cushion Under, RH
72928 Cover, Rear Seat Cushion Under, LH
72996 Cover, Rear Seatback, RH
72996A Cover, Rear Seatback
72996D Cover, Rear NO.2 Seatback, LH
73375B Cover, Rear Seat Shoulder Belt Hole, LH
73709B Bracket Sub-assy, Tether Anchor
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
78091 Cable Sub-assy, Fold Seat Lock Control
78091A Cable Sub-assy, Fold Seat Lock Control
78091B Cable Sub-assy, Fold Seat Lock Control
78091C Cable Sub-assy, Fold Seat Lock Control
78917A Cushion, Fold Seat Leg Lock
78960A Band Assy, NO.2 Fold Seat Stopper, NO.2
79021 Cover Sub-assy, NO.2 Seat Cushion, RH
79022 Cover Sub-assy, NO.2 Seat Cushion, LH
79023 Cover Sub-assy, NO.2 Seatback, RH
79024 Cover Sub-assy, NO.2 Seatback, LH
79025A Pad Sub-assy, NO.2 Seat Cushion, RH
79027A Pad Sub-assy, NO.2 Seatback, RH
79028A Pad Sub-assy, NO.2 Seatback, LH
79101B Frame Sub-assy, NO.1 Seat Cushion, RH
79102 Frame Sub-assy, NO.1 Seat Cushion, LH
79117C Cover, NO.1 Seat Cushion, LH
79160A Spring Assy, NO.1 Seat Cushion, RH
79170A Spring Assy, NO.1 Seat Cusuion, LH
79235 Pad, NO.2 Seat Cushion
79236A Cover, NO.2 Seat Leg
79236B Cover, NO.2 Seat Leg, LH
79337 Carpet, NO.2 Seat Cushion Under, RH
79347 Carpet, NO.2 Seat Cushion Under, LH
79367 Cover, NO.3 Seat Leg, NO.2
79393 Cushion, Rear NO.2 Seatback
85820Y Motor Assy, Power Seat
87501A Control Sub-assy, Seat Heater, RH
87501B Control Sub-assy, Seat Heater, LH
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
