Toyota 4Runner

2002-08 → 2009-08 · chassis GRN21#,UZN21# · catalogue 671470 · United States

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

12 part groups · 2 illustrations

Illustrations

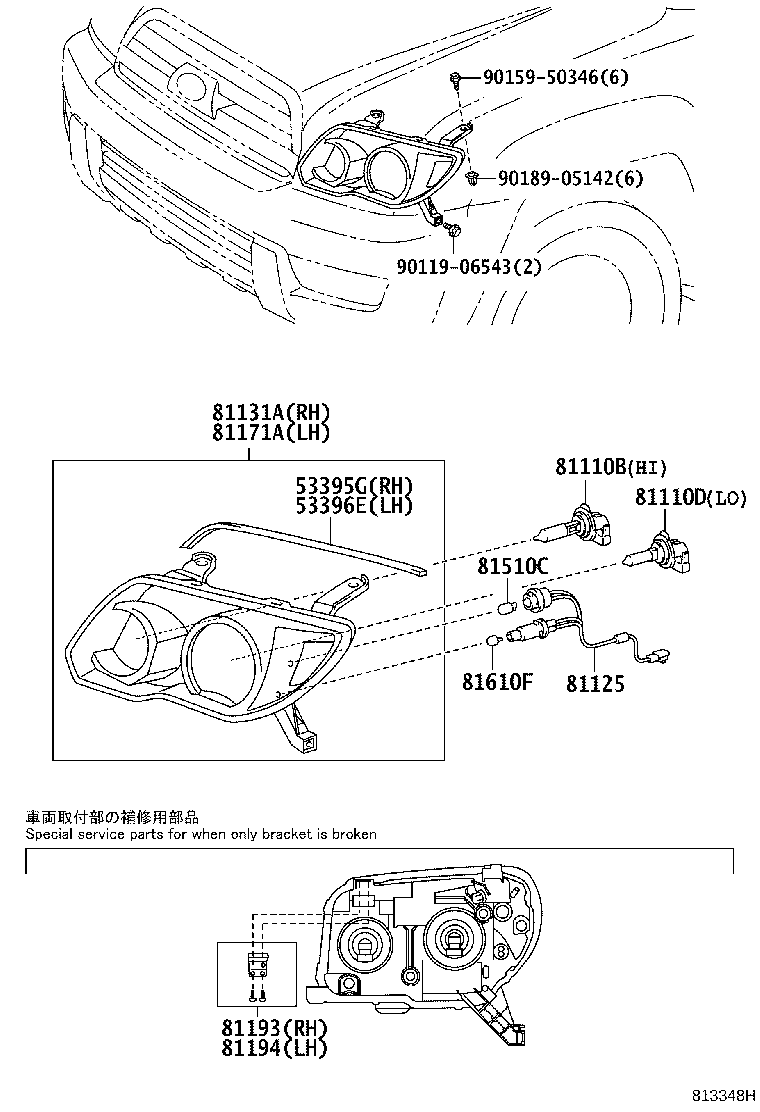

Figure 812268K 812268K 2002-08 → 2005-08 Figure 813348H 813348H 2005-08 → —

Part groups

PNCDescription
53395G Seal, Hood TO Front End Panel
53396E Seal, Hood TO Front End Panel, NO.2
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81125 Cord, Headlamp
81131A Unit, Headlamp, RH
81171A Unit, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81194 Retainer, Headlamp Protector, Upper LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
