Toyota 4Runner

2002-08 → 2009-08 · chassis GRN21#,UZN21# · catalogue 671470 · United States

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

9 part groups · 2 illustrations

Illustrations

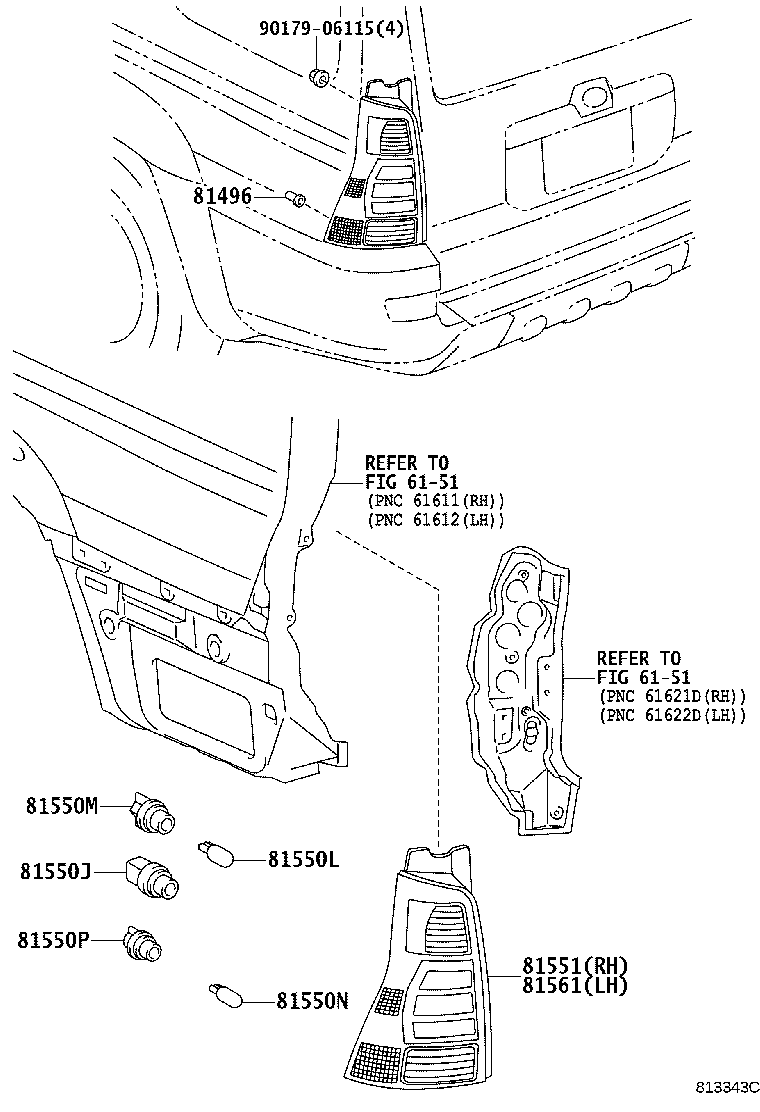

Figure 812220F 812220F 2002-08 → 2005-08 Figure 813343C 813343C 2005-08 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81550H Bulb, Tail & Stop Lamp
81550J Socket, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550M Socket, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81550P Socket, Back UP Lamp
81551 Lens, Rear Combination Lamp, RH
81561 Lens, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
