Toyota 4Runner

2002-08 → 2009-08 · chassis GRN21#,UZN21# · catalogue 671470 · United States

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

36 part groups · 10 illustrations

Illustrations

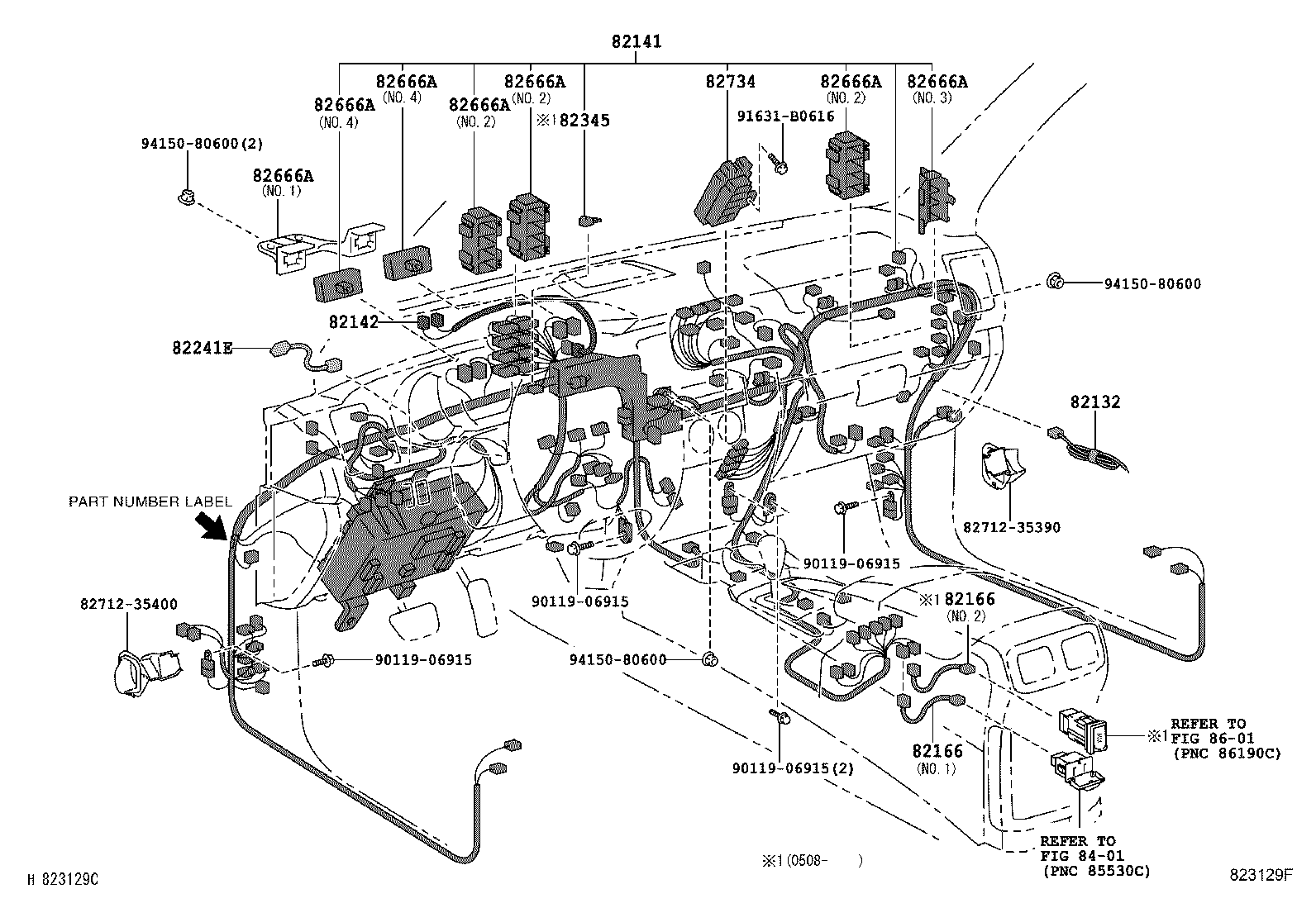

Figure 823127G 823127G 2002-08 → — Figure 823128F 823128F 2002-08 → — Figure 823275H 823275H 2002-08 → — Figure 823129F 823129F 2002-08 → — Figure 823130B 823130B 2002-08 → — Figure 823131H 823131H 2002-08 → — Figure 823955B 823955B 2002-08 → — Figure 823132G 823132G 2002-08 → — Figure 823276G 823276G 2002-08 → — Figure 823553E 823553E 2002-08 → —

Part groups

PNCDescription

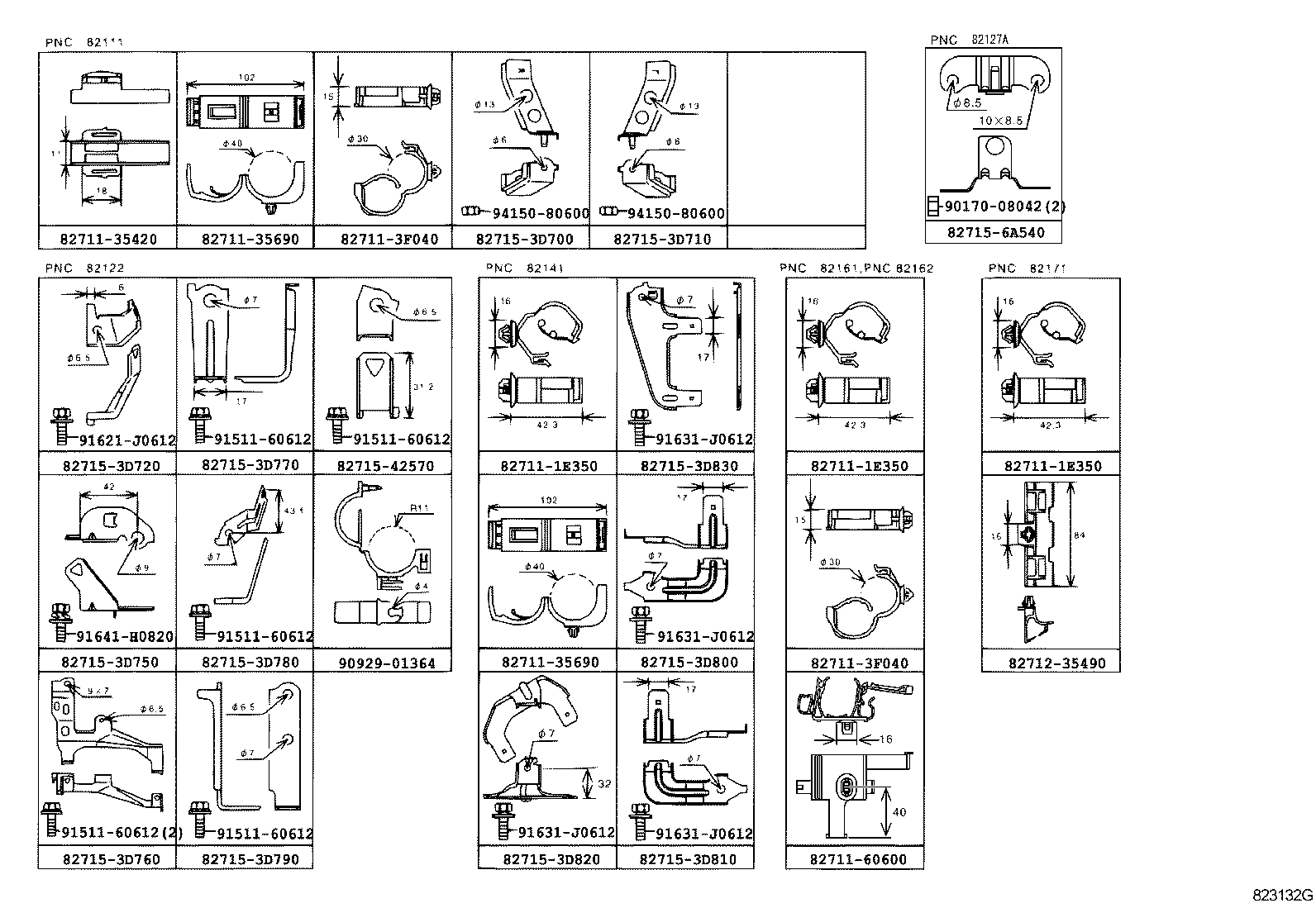

82111 Wire, Engine Room Main

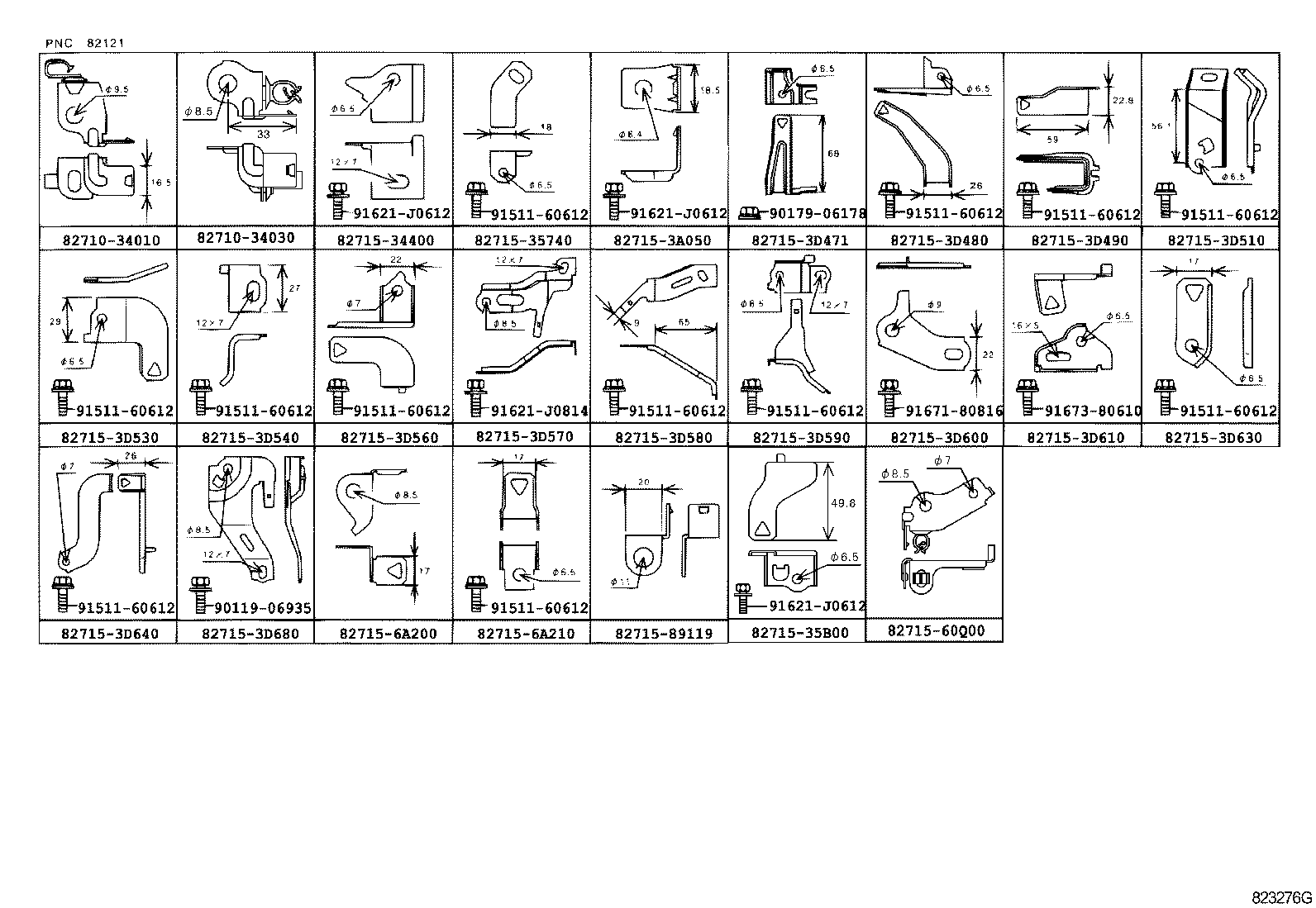

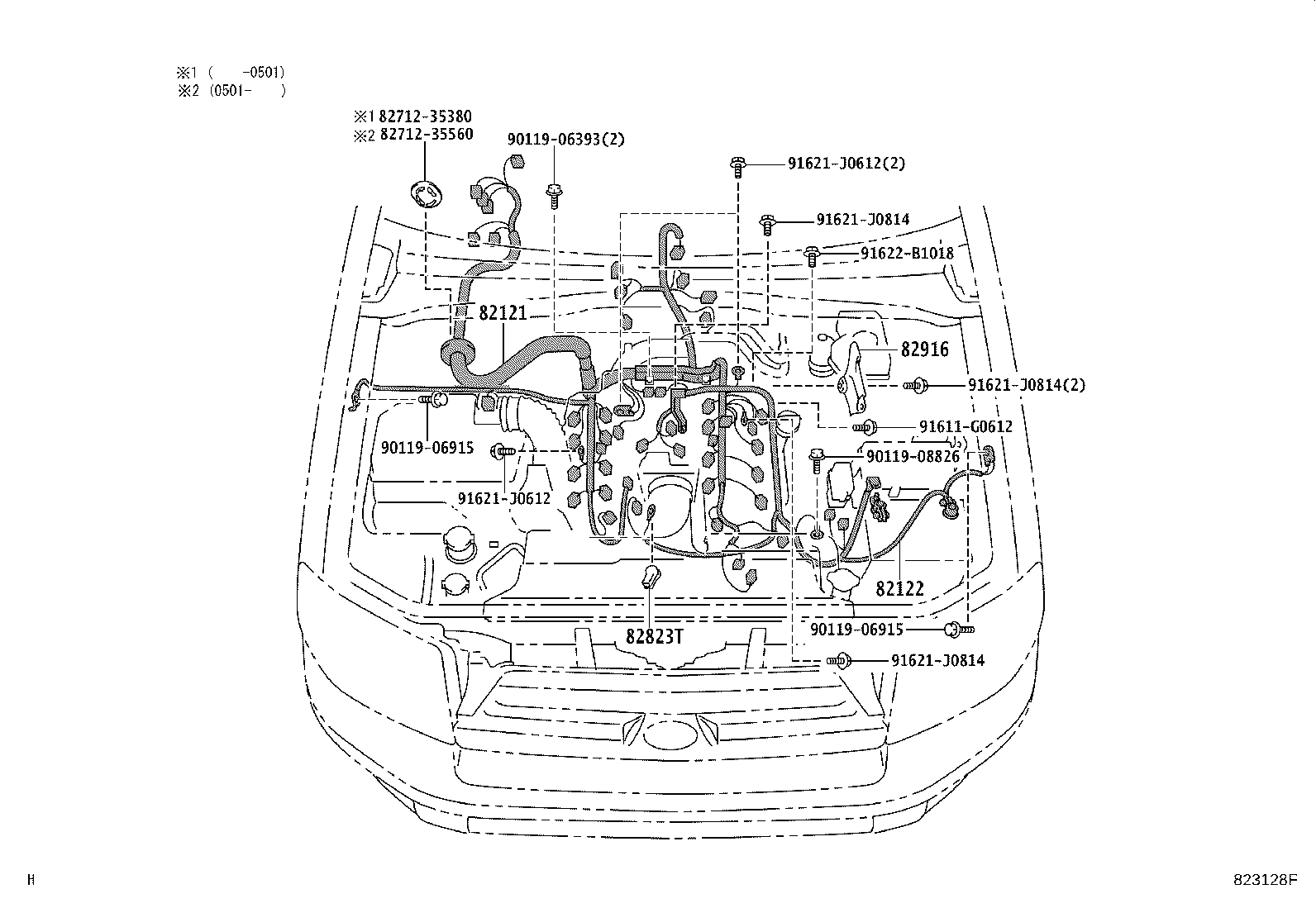

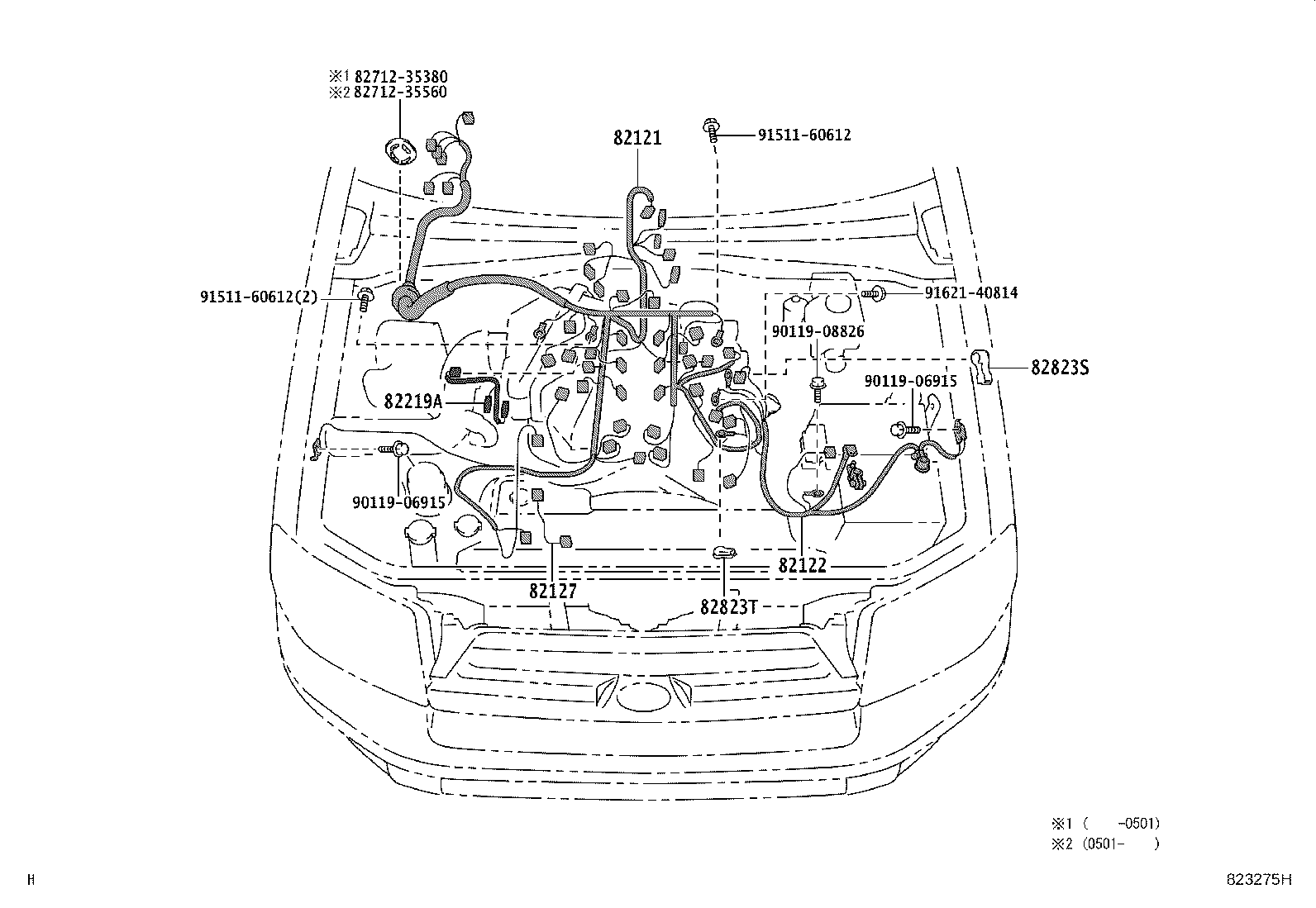

82121 Wire, Engine
82122 Wire, Engine, NO.2
82127 Wire, Differential
82127A Wire, Differential (TO WIRE FRAME)
82132 Wire, Cowl, NO.2
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2

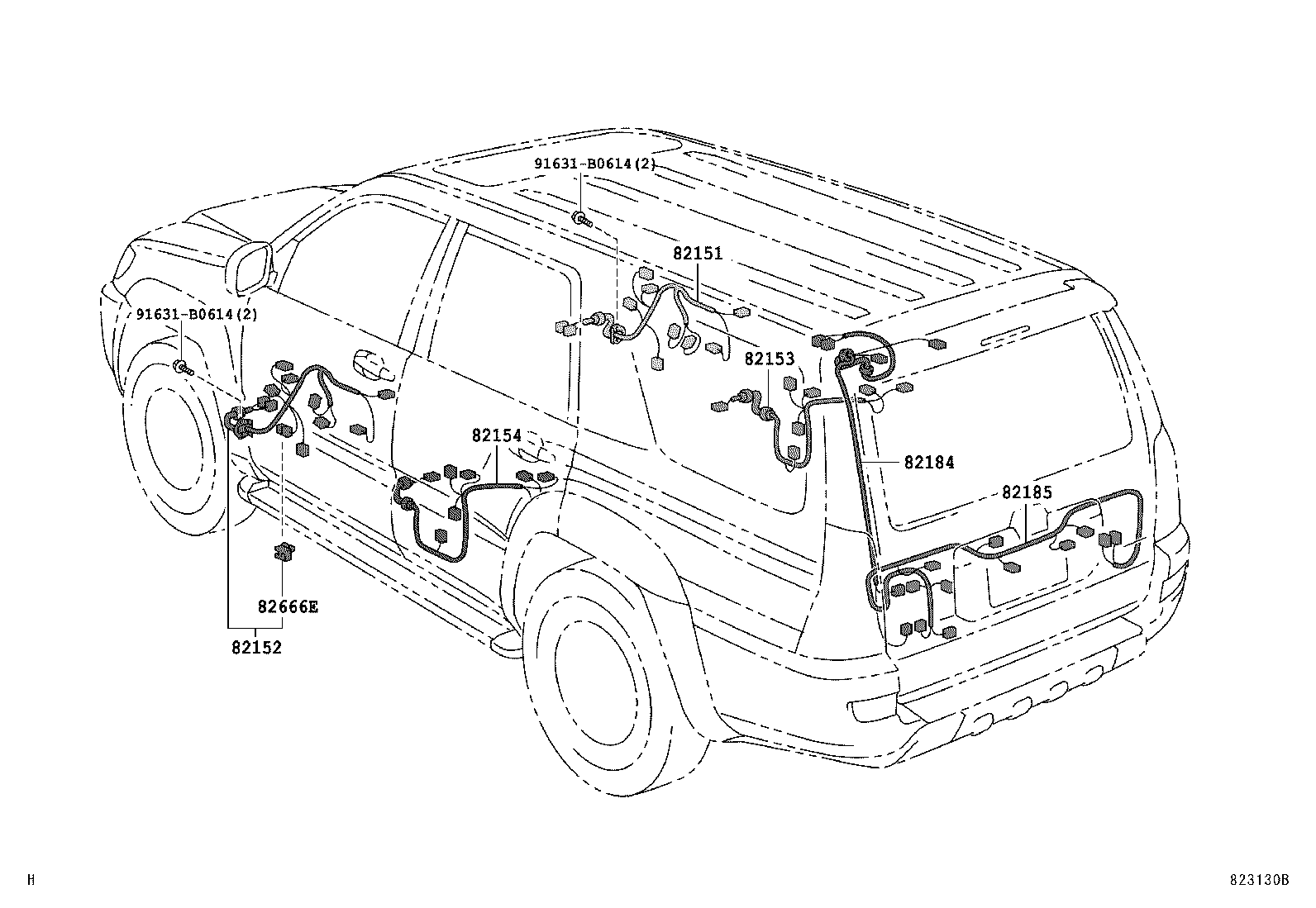

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

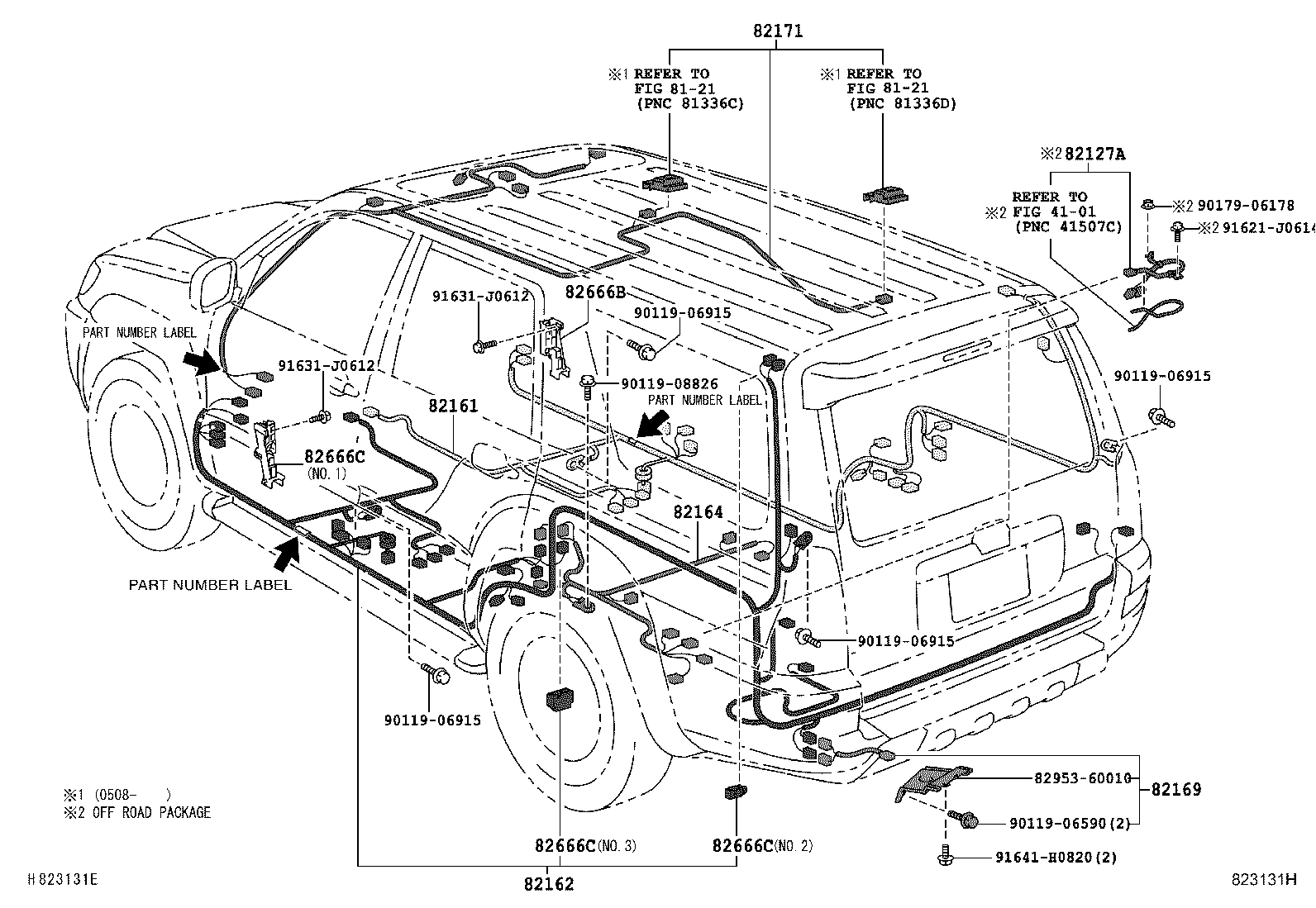

82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82166 Wire, Console Box

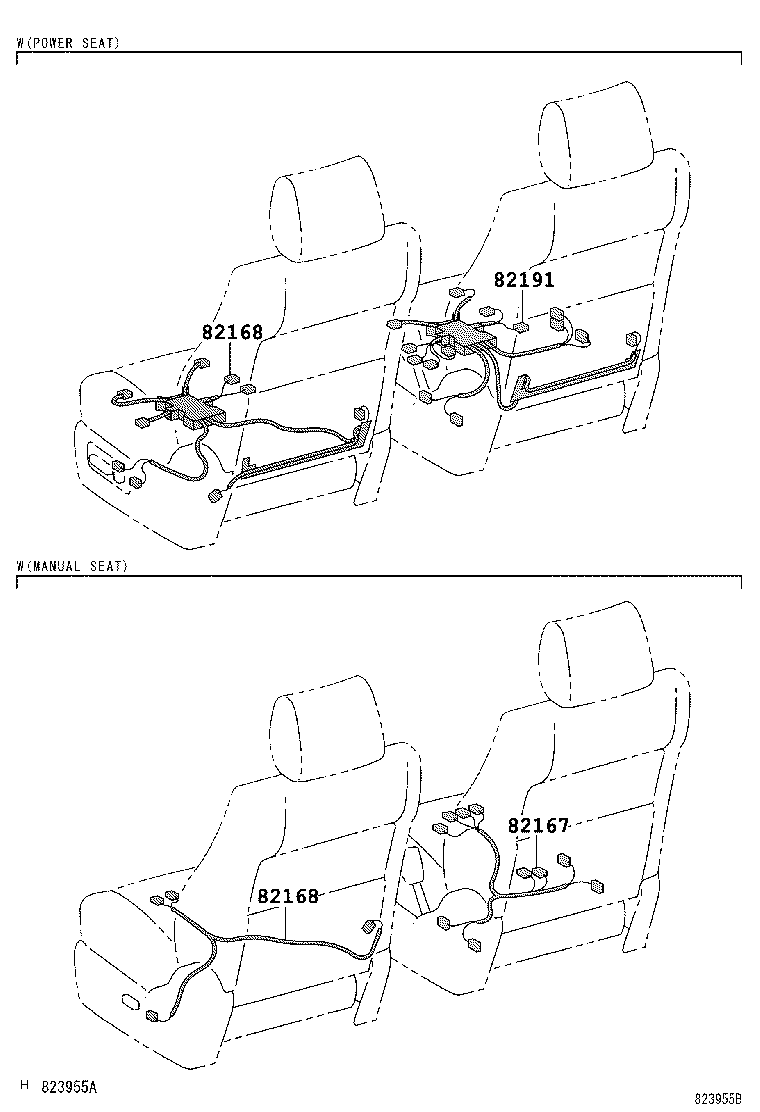

82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82191 Wire, Front Seat, RH
82219A Wire, Sensor
82241E Wire Relay
82345 Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666E Holder, Connector NO.6
82734 Block, Center Junction
82817 Protector, Wiring Harness, NO.1
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal

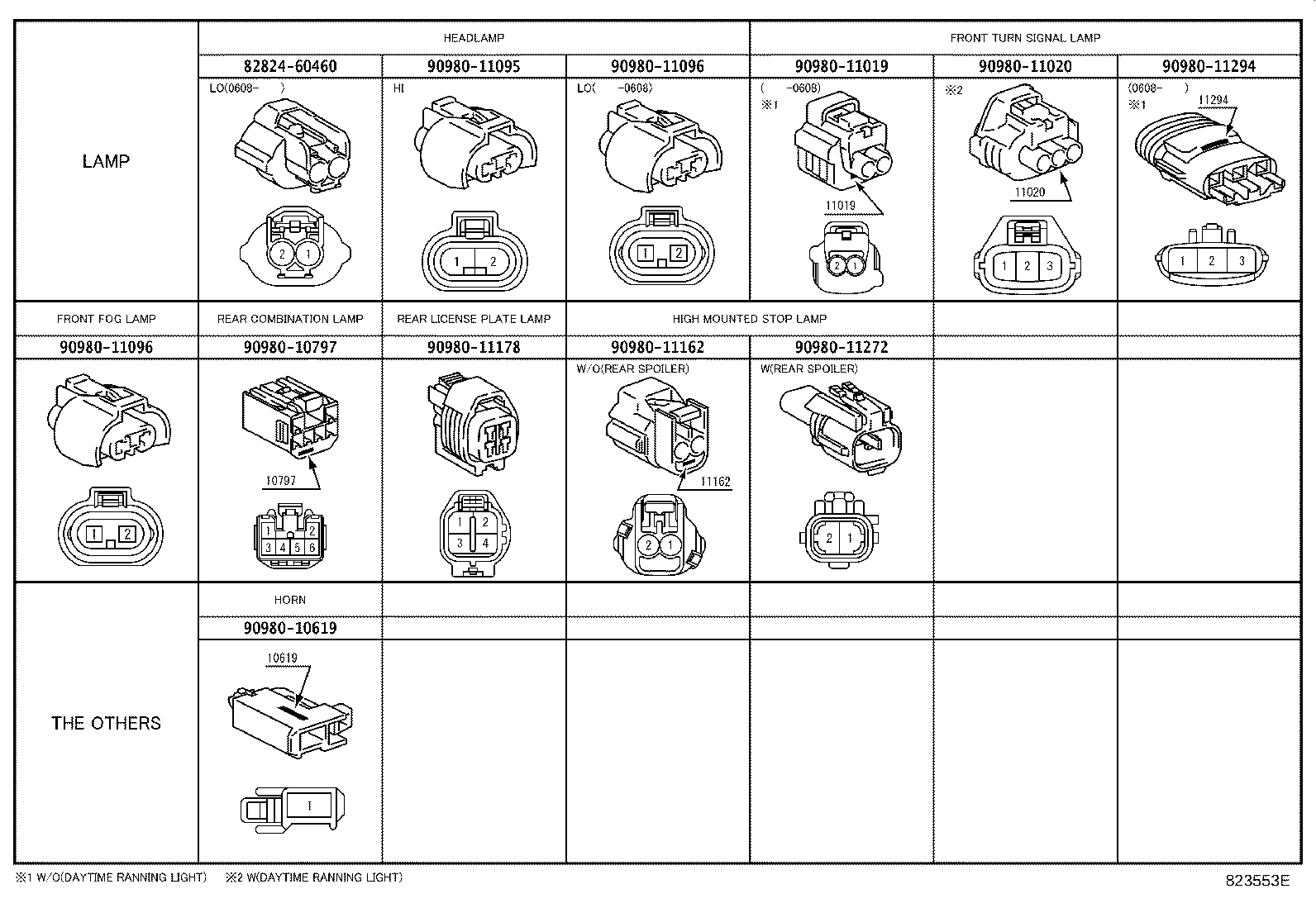

82824 Connector, Wiring Harness
82916 Insulator, Wiring Harness Heat, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
