Toyota 4Runner
2002-08 → 2009-08 · chassis GRN21#,UZN21# · catalogue 671470 · United States
Supported model
Data version 2010-01
Navigation & Front Monitor Display

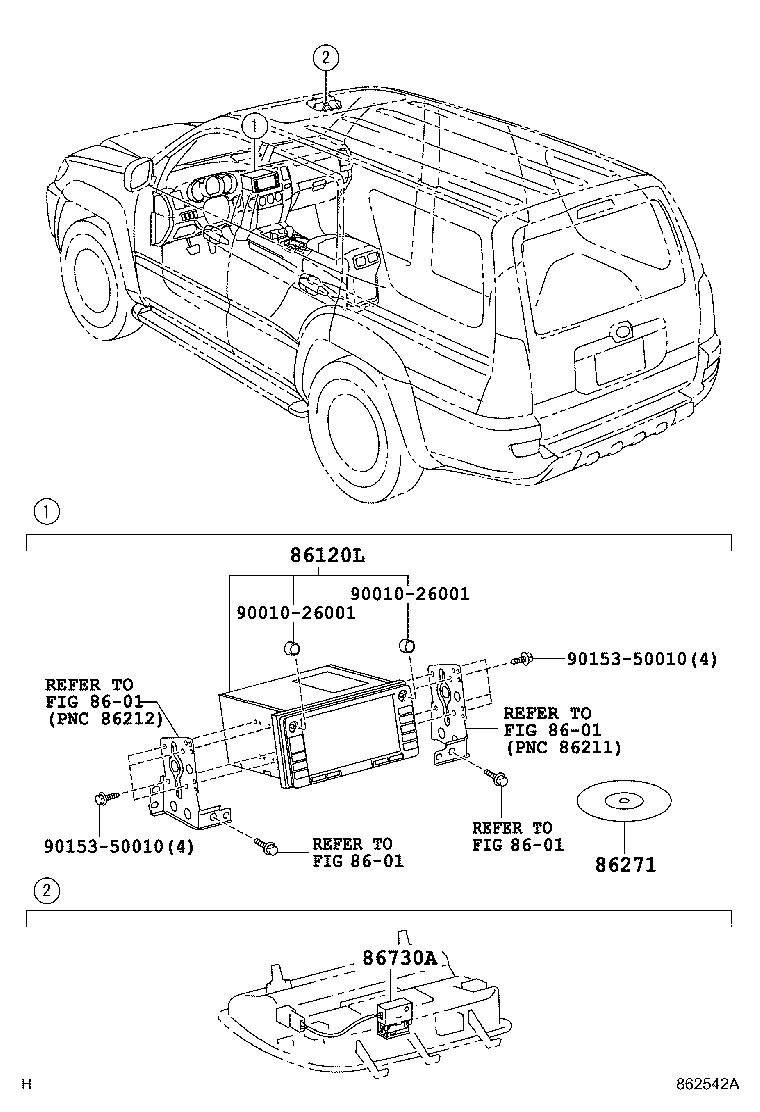

6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86117 | Bracket, Multi-display Controller, A |
| 86118 | Bracket, Multi-display Controler, B |
| 86120L | Receiver Assy, Navigation |
| 86271 | Disc, Disc Player |
| 86730A | Microphone Assy, Telephone |
| 86841 | Computer, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
