Toyota 4Runner

2002-08 → 2009-08 · chassis GRN21#,UZN21# · catalogue 671470 · United States

Supported model Data version 2010-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

4 part groups · 2 illustrations

Illustrations

Figure 875705C

875705C 2002-08 → —

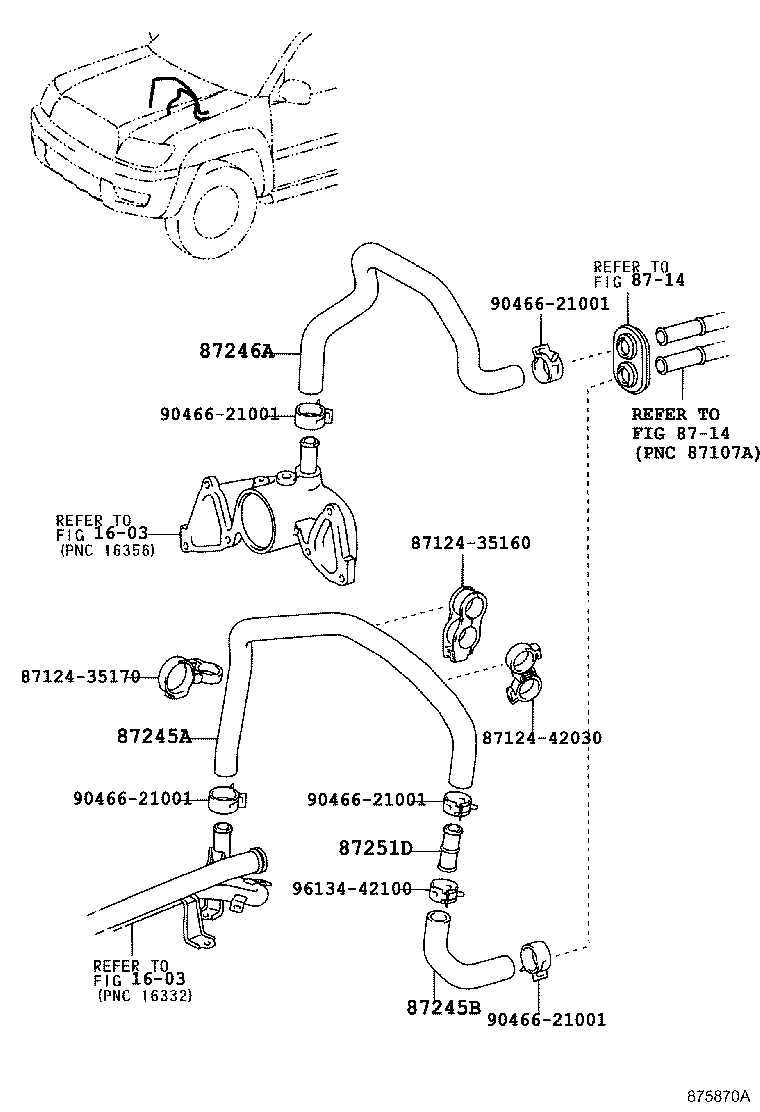

Figure 875870A

875870A 2002-11 → —

Part groups

PNC	Description
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87246A	Hose, Heater Water, Outlet A
87251D	Joint, Water, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
