Toyota 4Runner
2009-08 → present · chassis GRN28#,TRN28# · catalogue 671490 · United States
Supported model
Data version 2019-08

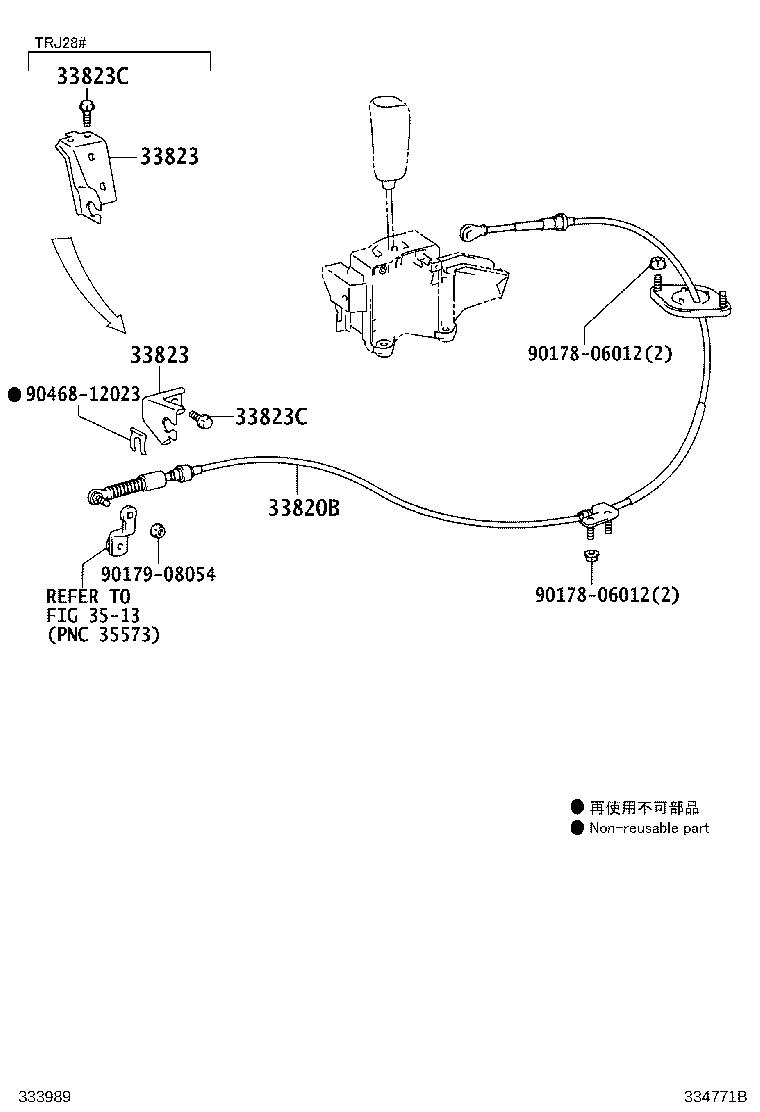

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33820B — Cable Assy, Transmission Control | ||||
| 33820-35030 |
Cable Assy, Transmission Control
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 33820-60020 |
Cable Assy, Transmission Control
2009-11 → 2011-08
ended
|
TRN28# | — | |
| 33820-35030 |
Cable Assy, Transmission Control
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 33820-35030 |
Cable Assy, Transmission Control
2019-08 → —
|
GRN28# | — | |
| 33823 — Bracket, Transmission Control Cable, NO.1 | ||||
| 33823-60010 |
Bracket, Transmission Control Cable, NO.1
2009-11 → 2011-08
ended
|
TRN28# | — | |
| 33823-60020 |
Bracket, Transmission Control Cable, NO.1
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 33823-60020 |
Bracket, Transmission Control Cable, NO.1
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 33823-60020 |
Bracket, Transmission Control Cable, NO.1
2019-08 → —
|
GRN28# | — | |
| 33823C — Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-B0816 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 91642-81016 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2009-11 → 2011-08
ended
|
TRN28# | — | |
| 91611-B0816 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 91611-B0816 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2019-08 → —
|
GRN28# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
