Toyota 4Runner
2009-08 → present · chassis GRN28#,TRN28# · catalogue 671490 · United States
Supported model
Data version 2019-08

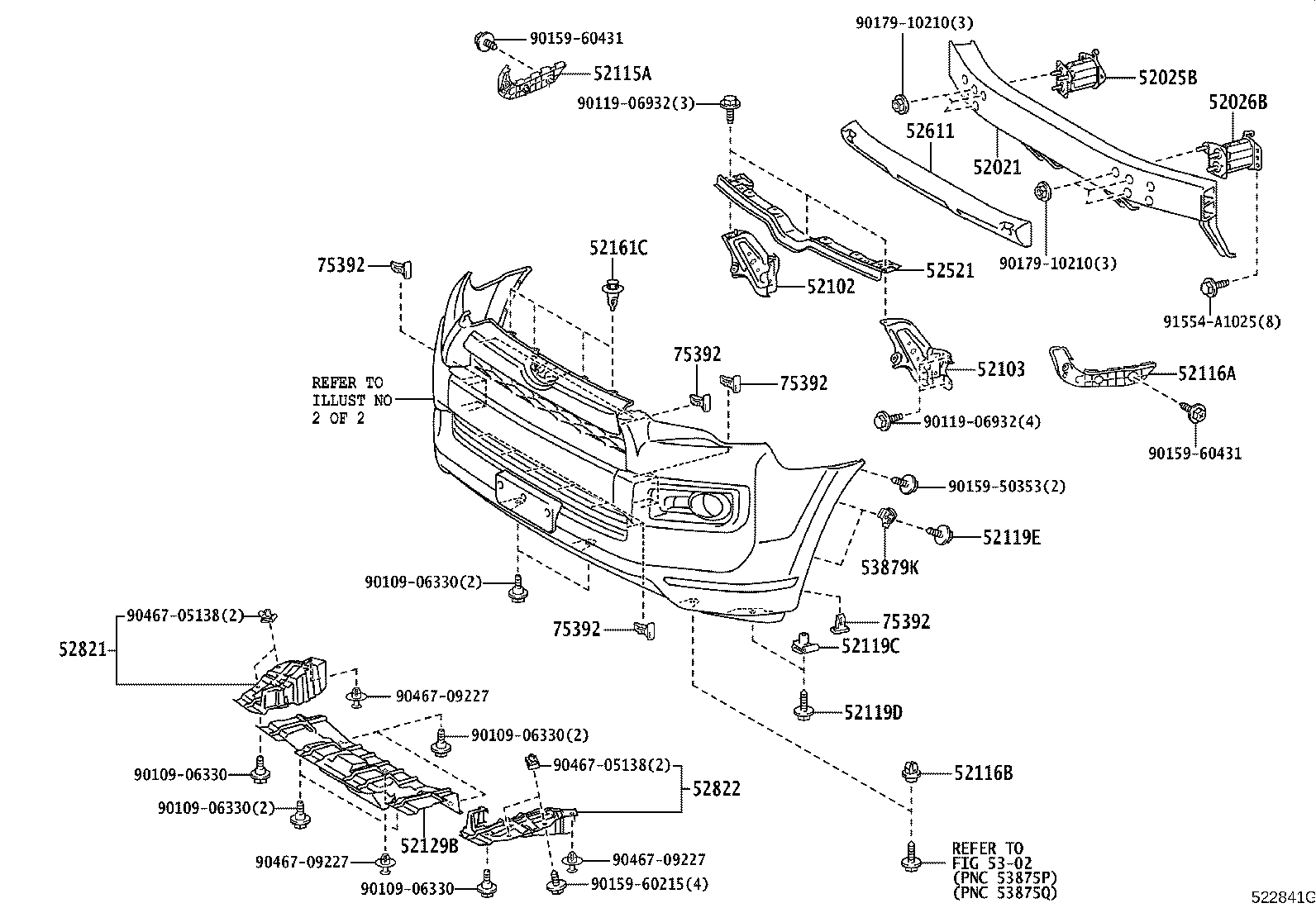

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52021 — Reinforcement Sub-assy, Front Bumper | ||||
| 52021-35100 |
Reinforcement Sub-assy, Front Bumper
2011-10 → 2013-08
ended
|
GRN28# | — | |
| 52021-35110 note |
Reinforcement Sub-assy, Front Bumper
2011-10 → 2013-08
ended
|
GRN28# | — | |
| 52021-35110 note |
Reinforcement Sub-assy, Front Bumper
2011-10 → 2013-08
ended
|
GRN28# | — | |
| 52021-35120 |
Reinforcement Sub-assy, Front Bumper
2009-08 → 2011-10
ended
|
GRN28#,TRN28# | — | |
| 52021-35130 note |
Reinforcement Sub-assy, Front Bumper
2009-08 → 2011-10
ended
|
GRN28# | — | |
| 52021-35130 note |
Reinforcement Sub-assy, Front Bumper
2009-08 → 2011-10
ended
|
GRN28#,TRN28# | — | |
| 52021-35140 |
Reinforcement Sub-assy, Front Bumper
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52021-35150 note |
Reinforcement Sub-assy, Front Bumper
2013-08 → 2015-08
ended
|
GRN28# | — | |
| 52021-35151 note |
Reinforcement Sub-assy, Front Bumper
2018-08 → 2019-08
ended
|
GRN28# | — | |
| 52021-35151 note |
Reinforcement Sub-assy, Front Bumper
2015-09 → 2019-08
ended
|
GRN28# | — | |
| 52021-35140 |
Reinforcement Sub-assy, Front Bumper
2019-08 → —
|
GRN28# | — | |
| 52021-35151 note |
Reinforcement Sub-assy, Front Bumper
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 52021-35151 note |
Reinforcement Sub-assy, Front Bumper
2019-08 → —
|
GRN28# | — | |
| 52021-35151 note |
Reinforcement Sub-assy, Front Bumper
2021-08 → —
|
GRN28# | — | |
| 52025B — Extension Sub-assy, Front Bumper, NO.2 RH | ||||
| 52025-60040 |
Extension Sub-assy, Front Bumper, NO.2 RH
2009-08 → 2011-08
ended
|
TRN28# | — | |
| 52025-60040 |
Extension Sub-assy, Front Bumper, NO.2 RH
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 52025-60050 |
Extension Sub-assy, Front Bumper, NO.2 RH
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52025-60050 |
Extension Sub-assy, Front Bumper, NO.2 RH
2019-08 → —
|
GRN28# | — | |
| 52026B — Extension Sub-assy, Front Bumper, NO.2 LH | ||||
| 52026-60040 |
Extension Sub-assy, Front Bumper, NO.2 LH
2009-08 → 2011-08
ended
|
TRN28# | — | |
| 52026-60040 |
Extension Sub-assy, Front Bumper, NO.2 LH
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 52026-60050 |
Extension Sub-assy, Front Bumper, NO.2 LH
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52026-60050 |
Extension Sub-assy, Front Bumper, NO.2 LH
2019-08 → —
|
GRN28# | — | |
| 52102 — Bracket Sub-assy, Front Bumper, RH | ||||
| 52102-35090 |
Bracket Sub-assy, Front Bumper, RH
2009-08 → 2011-08
ended
|
TRN28# | — | |
| 52102-35090 |
Bracket Sub-assy, Front Bumper, RH
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 52102-35100 |
Bracket Sub-assy, Front Bumper, RH
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52102-35100 |
Bracket Sub-assy, Front Bumper, RH
2019-08 → —
|
GRN28# | — | |
| 52103 — Bracket Sub-assy, Front Bumper, LH | ||||
| 52103-35100 |
Bracket Sub-assy, Front Bumper, LH
2009-08 → 2011-08
ended
|
TRN28# | — | |
| 52103-35100 |
Bracket Sub-assy, Front Bumper, LH
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 52103-35110 |
Bracket Sub-assy, Front Bumper, LH
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52103-35110 |
Bracket Sub-assy, Front Bumper, LH
2019-08 → —
|
GRN28# | — | |
| 52115A — Support, Front Bumper Side, RH | ||||
| 52115-35130 note |
Support, Front Bumper Side, RH
2009-08 → 2010-01
ended
|
GRN28# | — | |
| 52115-35130 note |
Support, Front Bumper Side, RH
2009-08 → 2010-01
ended
|
GRN28#,TRN280 | — | |
| 52115-35131 note |
Support, Front Bumper Side, RH
2010-01 → 2011-08
ended
|
TRN28# | — | |
| 52115-35131 note |
Support, Front Bumper Side, RH
2010-01 → 2013-08
ended
|
GRN28# | — | |
| 52115-35131 note |
Support, Front Bumper Side, RH
2010-01 → 2013-08
ended
|
GRN28# | — | |
| 52115-35140 |
Support, Front Bumper Side, RH
2009-08 → 2010-01
ended
|
GRN28#,TRN280 | — | |
| 52115-35141 |
Support, Front Bumper Side, RH
2010-01 → 2011-08
ended
|
TRN28# | — | |
| 52115-35141 |
Support, Front Bumper Side, RH
2010-01 → 2013-08
ended
|
GRN28# | — | |
| 52115-35150 |
Support, Front Bumper Side, RH
2013-08 → 2017-03
ended
|
GRN28# | — | |
| 52115-35151 |
Support, Front Bumper Side, RH
2017-04 → 2019-02
ended
|
GRN28# | — | |
| 52115-35152 |
Support, Front Bumper Side, RH
2019-03 → 2019-08
ended
|
GRN28# | — | |
| 52115-35152 |
Support, Front Bumper Side, RH
2019-08 → 2019-12
ended
|
GRN28# | — | |
| 52115-35153 |
Support, Front Bumper Side, RH
2020-01 → —
|
GRN28# | — | |
| 52116A — Support, Front Bumper Side, LH | ||||
| 52116-35120 note |
Support, Front Bumper Side, LH
2009-08 → 2010-01
ended
|
GRN28# | — | |
| 52116-35120 note |
Support, Front Bumper Side, LH
2009-08 → 2010-01
ended
|
GRN28#,TRN280 | — | |
| 52116-35121 note |
Support, Front Bumper Side, LH
2010-01 → 2011-08
ended
|
TRN28# | — | |
| 52116-35121 note |
Support, Front Bumper Side, LH
2010-01 → 2013-08
ended
|
GRN28# | — | |
| 52116-35121 note |
Support, Front Bumper Side, LH
2010-01 → 2013-08
ended
|
GRN28# | — | |
| 52116-35130 |
Support, Front Bumper Side, LH
2009-08 → 2010-01
ended
|
GRN28#,TRN280 | — | |
| 52116-35131 |
Support, Front Bumper Side, LH
2010-01 → 2011-08
ended
|
TRN28# | — | |
| 52116-35131 |
Support, Front Bumper Side, LH
2010-01 → 2013-08
ended
|
GRN28# | — | |
| 52116-35150 |
Support, Front Bumper Side, LH
2013-08 → 2017-03
ended
|
GRN28# | — | |
| 52116-35151 |
Support, Front Bumper Side, LH
2017-04 → 2019-02
ended
|
GRN28# | — | |
| 52116-35152 |
Support, Front Bumper Side, LH
2019-03 → 2019-08
ended
|
GRN28# | — | |
| 52116-35152 |
Support, Front Bumper Side, LH
2019-08 → 2019-12
ended
|
GRN28# | — | |
| 52116-35153 |
Support, Front Bumper Side, LH
2020-01 → —
|
GRN28# | — | |
| 52116B — Retainer, Front Bumper | ||||
| 52116-35140 |
Retainer, Front Bumper
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 52116-35140 note |
Retainer, Front Bumper
2009-11 → 2011-08
ended
|
TRN28# | — | |
| 52116-35140 note |
Retainer, Front Bumper
2009-11 → 2011-08
ended
|
TRN28# | — | |
| 52116-35140 |
Retainer, Front Bumper
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52116-35140 |
Retainer, Front Bumper
2019-08 → —
|
GRN28# | — | |
| 52119C — Clip, Front Bumper Cover | ||||
| 90467-05138 |
Clip, Front Bumper Cover
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 90467-05138 |
Clip, Front Bumper Cover
2019-08 → —
|
GRN28# | — | |
| 52119D — Screw, NO.1 | ||||
| 90159-60215 note |
Screw, NO.1
2009-11 → 2011-08
ended
|
TRN28# | — | |
| 90159-60215 |
Screw, NO.1
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 90159-60215 |
Screw, NO.1
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 90159-60215 |
Screw, NO.1
2019-08 → —
|
GRN28# | — | |
| 52119E — Screw, NO.2 | ||||
| 90159-60603 note |
Screw, NO.2
2009-11 → 2011-08
ended
|
TRN28# | — | |
| 90159-60603 note |
Screw, NO.2
2009-11 → 2011-08
ended
|
TRN28# | — | |
| 90159-60603 |
Screw, NO.2
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 90159-60603 |
Screw, NO.2
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 90159-60603 |
Screw, NO.2
2019-08 → —
|
GRN28# | — | |
| 52129B — Cover, Front Bumper, Lower | ||||
| 52101-35690 note |
Cover, Front Bumper, Lower
2009-08 → 2013-08
ended
|
GRN285 | — | |
| 52101-35690 note |
Cover, Front Bumper, Lower
2009-08 → 2013-08
ended
|
GRN285 | — | |
| 52101-35690 note |
Cover, Front Bumper, Lower
2009-08 → 2011-08
ended
|
TRN285 | — | |
| 52129-35010 |
Cover, Front Bumper, Lower
2009-08 → 2011-08
ended
|
TRN28# | — | |
| 52129-35010 |
Cover, Front Bumper, Lower
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 52101-35700 note |
Cover, Front Bumper, Lower
2013-08 → 2019-08
ended
|
GRN285 | — | |
| 52101-35700 note |
Cover, Front Bumper, Lower
2018-08 → 2019-08
ended
|
GRN285 | — | |
| 52129-35030 |
Cover, Front Bumper, Lower
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52129-35040 note |
Cover, Front Bumper, Lower
2013-08 → 2019-08
ended
|
GRN280 | — | |
| 52129-35040 note |
Cover, Front Bumper, Lower
2018-08 → 2019-08
ended
|
GRN280 | — | |
| 52101-35700 note |
Cover, Front Bumper, Lower
2019-08 → 2021-08
ended
|
GRN285 | — | |
| 52101-35700 note |
Cover, Front Bumper, Lower
2019-08 → —
|
GRN285 | — | |
| 52101-35700 note |
Cover, Front Bumper, Lower
2021-08 → —
|
GRN285 | — | |
| 52129-35030 |
Cover, Front Bumper, Lower
2019-08 → —
|
GRN28# | — | |
| 52129-35040 note |
Cover, Front Bumper, Lower
2019-08 → 2021-08
ended
|
GRN280 | — | |
| 52129-35040 note |
Cover, Front Bumper, Lower
2019-08 → —
|
GRN280 | — | |
| 52129-35040 note |
Cover, Front Bumper, Lower
2021-08 → —
|
GRN280 | — | |
| 52161C — Piece, Front Bumper | ||||
| 52161-16010 note |
Piece, Front Bumper
2009-11 → 2011-08
ended
|
TRN28# | — | |
| 52161-16010 note |
Piece, Front Bumper
2009-11 → 2011-08
ended
|
TRN28# | — | |
| 52161-16010 |
Piece, Front Bumper
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 52161-16010 note |
Piece, Front Bumper
2018-08 → 2019-08
ended
|
GRN28# | — | |
| 52161-16010 note |
Piece, Front Bumper
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52161-16010 |
Piece, Front Bumper
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52161-16010 note |
Piece, Front Bumper
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 52161-16010 note |
Piece, Front Bumper
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 52161-16010 |
Piece, Front Bumper
2019-08 → —
|
GRN28# | — | |
| 52161-16010 note |
Piece, Front Bumper
2021-08 → —
|
GRN28# | — | |
| 52161-16010 note |
Piece, Front Bumper
2021-08 → —
|
GRN28# | — | |
| 52161-16010 note |
Piece, Front Bumper
2021-08 → —
|
GRN28# | — | |
| 52521 — Retainer, Front Bumper, Upper Center | ||||
| 52521-35040 |
Retainer, Front Bumper, Upper Center
2009-08 → 2011-08
ended
|
TRN28# | — | |
| 52521-35040 |
Retainer, Front Bumper, Upper Center
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 52521-35060 |
Retainer, Front Bumper, Upper Center
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52521-35060 |
Retainer, Front Bumper, Upper Center
2019-08 → —
|
GRN28# | — | |
| 52611 — Absorber, Front Bumper Energy | ||||
| 52611-35030 |
Absorber, Front Bumper Energy
2009-08 → 2011-08
ended
|
TRN28# | — | |
| 52611-35030 |
Absorber, Front Bumper Energy
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 52611-35040 |
Absorber, Front Bumper Energy
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52611-35040 |
Absorber, Front Bumper Energy
2019-08 → —
|
GRN28# | — | |
| 52821 — Duct, Air Intake, RH | ||||
| 53286-35010 note |
Duct, Air Intake, RH
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 53286-35010 note |
Duct, Air Intake, RH
2009-08 → 2011-08
ended
|
TRN28# | — | |
| 53286-35010 note |
Duct, Air Intake, RH
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 53286-35030 note |
Duct, Air Intake, RH
2018-08 → 2019-08
ended
|
GRN28# | — | |
| 53286-35030 note |
Duct, Air Intake, RH
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 53286-35030 note |
Duct, Air Intake, RH
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 53286-35030 note |
Duct, Air Intake, RH
2019-08 → —
|
GRN28# | — | |
| 53286-35030 note |
Duct, Air Intake, RH
2021-08 → —
|
GRN28# | — | |
| 52822 — Duct, Air Intake, LH | ||||
| 53287-35020 note |
Duct, Air Intake, LH
2009-08 → 2011-08
ended
|
TRN28# | — | |
| 53287-35020 note |
Duct, Air Intake, LH
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 53287-35020 note |
Duct, Air Intake, LH
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 53287-35030 note |
Duct, Air Intake, LH
2018-08 → 2019-08
ended
|
GRN28# | — | |
| 53287-35030 note |
Duct, Air Intake, LH
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 53287-35030 note |
Duct, Air Intake, LH
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 53287-35030 note |
Duct, Air Intake, LH
2019-08 → —
|
GRN28# | — | |
| 53287-35030 note |
Duct, Air Intake, LH
2021-08 → —
|
GRN28# | — | |
| 53879K — Retainer, Front Fender Liner | ||||
| 53879-58010 note |
Retainer, Front Fender Liner
2009-11 → 2011-08
ended
|
TRN28# | — | |
| 53879-58010 note |
Retainer, Front Fender Liner
2009-11 → 2011-08
ended
|
TRN28# | — | |
| 53879-58010 |
Retainer, Front Fender Liner
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 53879-58010 |
Retainer, Front Fender Liner
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 53879-58010 |
Retainer, Front Fender Liner
2019-08 → —
|
GRN28# | — | |
| 75392 — Retainer, Outside Moulding | ||||
| 75392-35200 note |
Retainer, Outside Moulding
2009-11 → 2011-08
ended
|
TRN28# | — | |
| 75392-35200 note |
Retainer, Outside Moulding
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 75392-35200 note |
Retainer, Outside Moulding
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 75392-35200 |
Retainer, Outside Moulding
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 75392-35200 note |
Retainer, Outside Moulding
2009-08 → 2013-08
ended
|
GRN285 | — | |
| 75392-35200 note |
Retainer, Outside Moulding
2009-08 → 2011-08
ended
|
TRN28# | — | |
| 75392-35200 note |
Retainer, Outside Moulding
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2018-08 → 2019-08
ended
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 75392-35200 note |
Retainer, Outside Moulding
2019-08 → —
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2019-08 → 2019-11
ended
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2019-11 → 2021-08
ended
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2019-08 → —
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2021-08 → —
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2021-08 → —
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2021-08 → —
|
GRN28# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
