Exploded illustration 524185A 5351 — not listed in this catalogue 52535D — RETAINER, FRONT BUMPER SIDE (1 parts) 53912A — PANEL, FRONT VALANCE, LOWER (9 parts) 75392 — RETAINER, OUTSIDE MOULDING (18 parts) 75392 — RETAINER, OUTSIDE MOULDING (18 parts) 52129B — COVER, FRONT BUMPER, LOWER (17 parts) 53112E — GRILLE, RADIATOR, LOWER NO.1 (8 parts) 9010906330 — not listed in this catalogue 9018306019 — not listed in this catalogue 9046709227 — not listed in this catalogue 8103 — not listed in this catalogue 8103 — not listed in this catalogue 8102 — not listed in this catalogue 8102 — not listed in this catalogue 52119D — SCREW, NO.1 (4 parts) 52521A — CLIP(FOR FRONT BUMPER RETAINER) (2 parts) 81481E — COVER, FOG LAMP, RH (8 parts) 81482C — COVER, FOG LAMP, LH (8 parts) 9010906330 — not listed in this catalogue 52112D — EXTENSION, FRONT BUMPER, RH (2 parts) 52113D — EXTENSION, FRONT BUMPER, LH (2 parts) 75392 — RETAINER, OUTSIDE MOULDING (18 parts) 75392 — RETAINER, OUTSIDE MOULDING (18 parts) 8101 — not listed in this catalogue 8101 — not listed in this catalogue 52119A — COVER, FRONT BUMPER (40 parts) 5302 — not listed in this catalogue

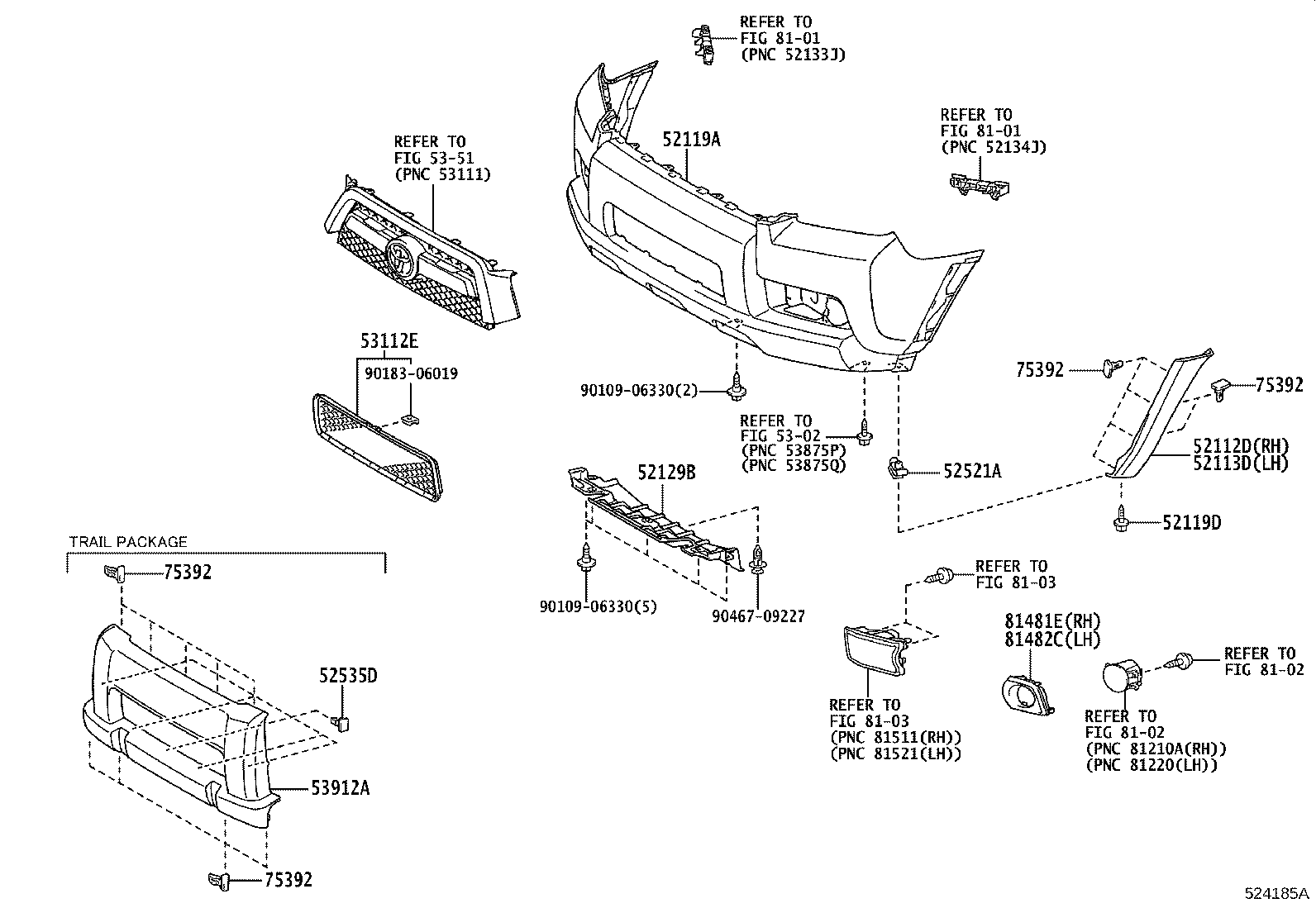

524185A · 15 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
119 parts on this figure
Part number Description Fitment Price
52112D — Extension, Front Bumper, RH
52112-35150 note Extension, Front Bumper, RH
2009-08 → 2013-08 ended
GRN28# —
52112-35150 note Extension, Front Bumper, RH
2009-11 → 2011-08 ended
TRN28# —
52113D — Extension, Front Bumper, LH
52113-35140 note Extension, Front Bumper, LH
2009-08 → 2013-08 ended
GRN28# —
52113-35140 note Extension, Front Bumper, LH
2009-11 → 2011-08 ended
TRN28# —
52119A — Cover, Front Bumper
52119-35905 note Cover, Front Bumper
2009-08 → 2010-01 ended
GRN28# —
52119-35905 note Cover, Front Bumper
2009-11 → 2010-01 ended
TRN280 —
52119-35906 note Cover, Front Bumper
2009-08 → 2010-01 ended
GRN28# —
52119-35906 note Cover, Front Bumper
2009-08 → 2010-01 ended
GRN28#,TRN280 —
52119-35907 note Cover, Front Bumper
2009-08 → 2010-01 ended
GRN285 —
52119-35908 note Cover, Front Bumper
2010-01 → 2011-08 ended
TRN28# —
52119-35908 note Cover, Front Bumper
2010-01 → 2013-08 ended
GRN28# —
52119-35909 note Cover, Front Bumper
2010-01 → 2011-08 ended
TRN28# —
52119-35909 note Cover, Front Bumper
2010-01 → 2013-08 ended
GRN28# —
52119-35909 note Cover, Front Bumper
2010-01 → 2013-08 ended
GRN28# —
52119-35910 note Cover, Front Bumper
2010-01 → 2013-08 ended
GRN285 —
52119-35912 note Cover, Front Bumper
2013-08 → 2019-08 ended
GRN28# —
52119-35913 note Cover, Front Bumper
2013-08 → 2019-08 ended
GRN28# —
52119-35913 note Cover, Front Bumper
2018-08 → 2019-08 ended
GRN28# —
52119-35914 note Cover, Front Bumper
2014-08 → 2019-08 ended
GRN285 —
52119-35914 note Cover, Front Bumper
2013-08 → 2019-08 ended
GRN285 —
52119-35914 note Cover, Front Bumper
2018-08 → 2019-08 ended
GRN280 —
52119-35912 note Cover, Front Bumper
2019-08 → 2020-01 ended
GRN28# —
52119-35913 note Cover, Front Bumper
2019-08 → 2020-01 ended
GRN28# —
52119-35913 note Cover, Front Bumper
2019-08 → 2020-01 ended
GRN28# —
52119-35914 note Cover, Front Bumper
2019-08 → 2020-01 ended
GRN285 —
52119-35914 note Cover, Front Bumper
2019-08 → 2020-01 ended
GRN285 —
52119-35914 note Cover, Front Bumper
2019-08 → 2020-01 ended
GRN285 —
52119-35915 note Cover, Front Bumper
2020-01 → 2020-05 ended
GRN28# —
52119-35916 note Cover, Front Bumper
2020-01 → 2020-05 ended
GRN28# —
52119-35916 note Cover, Front Bumper
2020-01 → 2020-05 ended
GRN28# —
52119-35917 note Cover, Front Bumper
2020-01 → 2020-05 ended
GRN285 —
52119-35917 note Cover, Front Bumper
2020-01 → 2020-05 ended
GRN285 —
52119-35917 note Cover, Front Bumper
2020-01 → 2020-05 ended
GRN285 —
52119-35918 note Cover, Front Bumper
2020-05 → —
GRN28# —
52119-35919 note Cover, Front Bumper
2020-05 → 2021-08 ended
GRN28# —
52119-35919 note Cover, Front Bumper
2021-08 → —
GRN28# —
52119-35919 note Cover, Front Bumper
2020-05 → 2021-08 ended
GRN28# —
52119-35920 note Cover, Front Bumper
2020-05 → 2021-08 ended
GRN285 —
52119-35920 note Cover, Front Bumper
2020-05 → 2021-08 ended
GRN285 —
52119-35920 note Cover, Front Bumper
2020-05 → —
GRN285 —
52119-35920 note Cover, Front Bumper
2021-08 → —
GRN285 —
52119-35920 note Cover, Front Bumper
2021-08 → —
GRN285 —
52119-35921 note Cover, Front Bumper
2021-08 → —
GRN28# —
52119-35921 note Cover, Front Bumper
2021-08 → —
GRN28# —
52119D — Screw, NO.1
90159-60215 note Screw, NO.1
2009-11 → 2011-08 ended
TRN28# —
90159-60215 Screw, NO.1
2009-08 → 2013-08 ended
GRN28# —
90159-60215 Screw, NO.1
2013-08 → 2019-08 ended
GRN28# —
90159-60215 Screw, NO.1
2019-08 → —
GRN28# —
52129B — Cover, Front Bumper, Lower
52101-35690 note Cover, Front Bumper, Lower
2009-08 → 2011-08 ended
TRN285 —
52101-35690 note Cover, Front Bumper, Lower
2009-08 → 2013-08 ended
GRN285 —
52101-35690 note Cover, Front Bumper, Lower
2009-08 → 2013-08 ended
GRN285 —
52129-35010 Cover, Front Bumper, Lower
2009-08 → 2011-08 ended
TRN28# —
52129-35010 Cover, Front Bumper, Lower
2009-08 → 2013-08 ended
GRN28# —
52101-35700 note Cover, Front Bumper, Lower
2013-08 → 2019-08 ended
GRN285 —
52101-35700 note Cover, Front Bumper, Lower
2018-08 → 2019-08 ended
GRN285 —
52129-35030 Cover, Front Bumper, Lower
2013-08 → 2019-08 ended
GRN28# —
52129-35040 note Cover, Front Bumper, Lower
2013-08 → 2019-08 ended
GRN280 —
52129-35040 note Cover, Front Bumper, Lower
2018-08 → 2019-08 ended
GRN280 —
52101-35700 note Cover, Front Bumper, Lower
2019-08 → —
GRN285 —
52101-35700 note Cover, Front Bumper, Lower
2021-08 → —
GRN285 —
52101-35700 note Cover, Front Bumper, Lower
2019-08 → 2021-08 ended
GRN285 —
52129-35030 Cover, Front Bumper, Lower
2019-08 → —
GRN28# —
52129-35040 note Cover, Front Bumper, Lower
2021-08 → —
GRN280 —
52129-35040 note Cover, Front Bumper, Lower
2019-08 → 2021-08 ended
GRN280 —
52129-35040 note Cover, Front Bumper, Lower
2019-08 → —
GRN280 —
52521A — Clip(FOR FRONT BUMPER RETAINER)
90467-05138 note Clip(FOR FRONT BUMPER RETAINER)
2009-11 → 2011-08 ended
TRN28# —
90467-05138 Clip(FOR FRONT BUMPER RETAINER)
2009-08 → 2013-08 ended
GRN28# —
52535D — Retainer, Front Bumper Side
52535-28020 note Retainer, Front Bumper Side
2009-08 → 2013-08 ended
GRN285 —
53112E — Grille, Radiator, Lower NO.1
53112-35050 note Grille, Radiator, Lower NO.1
2009-11 → 2011-08 ended
TRN28# —
53112-35050 note Grille, Radiator, Lower NO.1
2009-11 → 2011-08 ended
TRN28# —
53112-35050 note Grille, Radiator, Lower NO.1
2009-08 → 2013-08 ended
GRN28# —
53112-35060 note Grille, Radiator, Lower NO.1
2013-08 → 2019-08 ended
GRN28# —
53112-35090 note Grille, Radiator, Lower NO.1
2019-08 → —
GRN28# —
53112-35110 note Grille, Radiator, Lower NO.1
2021-08 → —
GRN285 —
53112-35110 note Grille, Radiator, Lower NO.1
2021-08 → —
GRN285 —
53112-35110 note Grille, Radiator, Lower NO.1
2021-08 → —
GRN28# —
53912A — Panel, Front Valance, Lower
53901-35210 note Panel, Front Valance, Lower
2009-08 → 2013-08 ended
GRN285 —
53901-35240 note Panel, Front Valance, Lower
2013-08 → 2019-08 ended
GRN285 —
53901-35250 note Panel, Front Valance, Lower
2018-08 → 2019-08 ended
GRN280 —
53901-35250 note Panel, Front Valance, Lower
2014-08 → 2019-08 ended
GRN285 —
53901-35240 note Panel, Front Valance, Lower
2019-08 → —
GRN285 —
53901-35240 note Panel, Front Valance, Lower
2021-08 → —
GRN285 —
53901-35250 note Panel, Front Valance, Lower
2019-08 → 2021-08 ended
GRN285 —
53901-35250 note Panel, Front Valance, Lower
2019-08 → 2021-08 ended
GRN285 —
53901-35250 note Panel, Front Valance, Lower
2021-08 → —
GRN285 —
75392 — Retainer, Outside Moulding
75392-35200 note Retainer, Outside Moulding
2009-08 → 2011-08 ended
TRN28# —
75392-35200 note Retainer, Outside Moulding
2009-11 → 2011-08 ended
TRN28# —
75392-35200 note Retainer, Outside Moulding
2009-08 → 2013-08 ended
GRN28# —
75392-35200 note Retainer, Outside Moulding
2009-08 → 2013-08 ended
GRN28# —
75392-35200 Retainer, Outside Moulding
2009-08 → 2013-08 ended
GRN28# —
75392-35200 note Retainer, Outside Moulding
2009-08 → 2013-08 ended
GRN285 —
75392-35200 note Retainer, Outside Moulding
2013-08 → 2019-08 ended
GRN28# —
75392-35220 note Retainer, Outside Moulding
2013-08 → 2019-08 ended
GRN28# —
75392-35220 note Retainer, Outside Moulding
2018-08 → 2019-08 ended
GRN28# —
75392-35220 note Retainer, Outside Moulding
2013-08 → 2019-08 ended
GRN28# —
75392-35200 note Retainer, Outside Moulding
2019-08 → —
GRN28# —
75392-35220 note Retainer, Outside Moulding
2019-08 → 2019-11 ended
GRN28# —
75392-35220 note Retainer, Outside Moulding
2019-08 → 2021-08 ended
GRN28# —
75392-35220 note Retainer, Outside Moulding
2019-11 → 2021-08 ended
GRN28# —
75392-35220 note Retainer, Outside Moulding
2019-08 → —
GRN28# —
75392-35220 note Retainer, Outside Moulding
2021-08 → —
GRN28# —
75392-35220 note Retainer, Outside Moulding
2021-08 → —
GRN28# —
75392-35220 note Retainer, Outside Moulding
2021-08 → —
GRN28# —
81481E — Cover, Fog Lamp, RH
52127-35070 note Cover, Fog Lamp, RH
2009-08 → 2013-08 ended
GRN28# —
52127-35070 note Cover, Fog Lamp, RH
2009-08 → 2013-08 ended
GRN28# —
52127-35070 note Cover, Fog Lamp, RH
2009-08 → 2011-08 ended
TRN28# —
52127-35080 Cover, Fog Lamp, RH
2009-08 → 2013-08 ended
GRN28# —
52127-35100 Cover, Fog Lamp, RH
2013-08 → 2019-08 ended
GRN28# —
52127-35100 Cover, Fog Lamp, RH
2019-08 → 2020-01 ended
GRN28# —
52127-35100 Cover, Fog Lamp, RH
2020-01 → 2020-08 ended
GRN28# —
52127-35160 Cover, Fog Lamp, RH
2020-08 → —
GRN28# —
81482C — Cover, Fog Lamp, LH
52128-35060 note Cover, Fog Lamp, LH
2009-08 → 2011-08 ended
TRN28# —
52128-35060 note Cover, Fog Lamp, LH
2009-08 → 2013-08 ended
GRN28# —
52128-35060 note Cover, Fog Lamp, LH
2009-08 → 2013-08 ended
GRN28# —
52128-35070 Cover, Fog Lamp, LH
2009-08 → 2013-08 ended
GRN28# —
52128-35080 Cover, Fog Lamp, LH
2013-08 → 2019-08 ended
GRN28# —
52128-35080 Cover, Fog Lamp, LH
2019-08 → 2020-01 ended
GRN28# —
52128-35080 Cover, Fog Lamp, LH
2020-01 → 2020-08 ended
GRN28# —
52128-35150 Cover, Fog Lamp, LH
2020-08 → —
GRN28# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
