Toyota 4Runner
2009-08 → present · chassis GRN28#,TRN28# · catalogue 671490 · United States
Supported model
Data version 2019-08

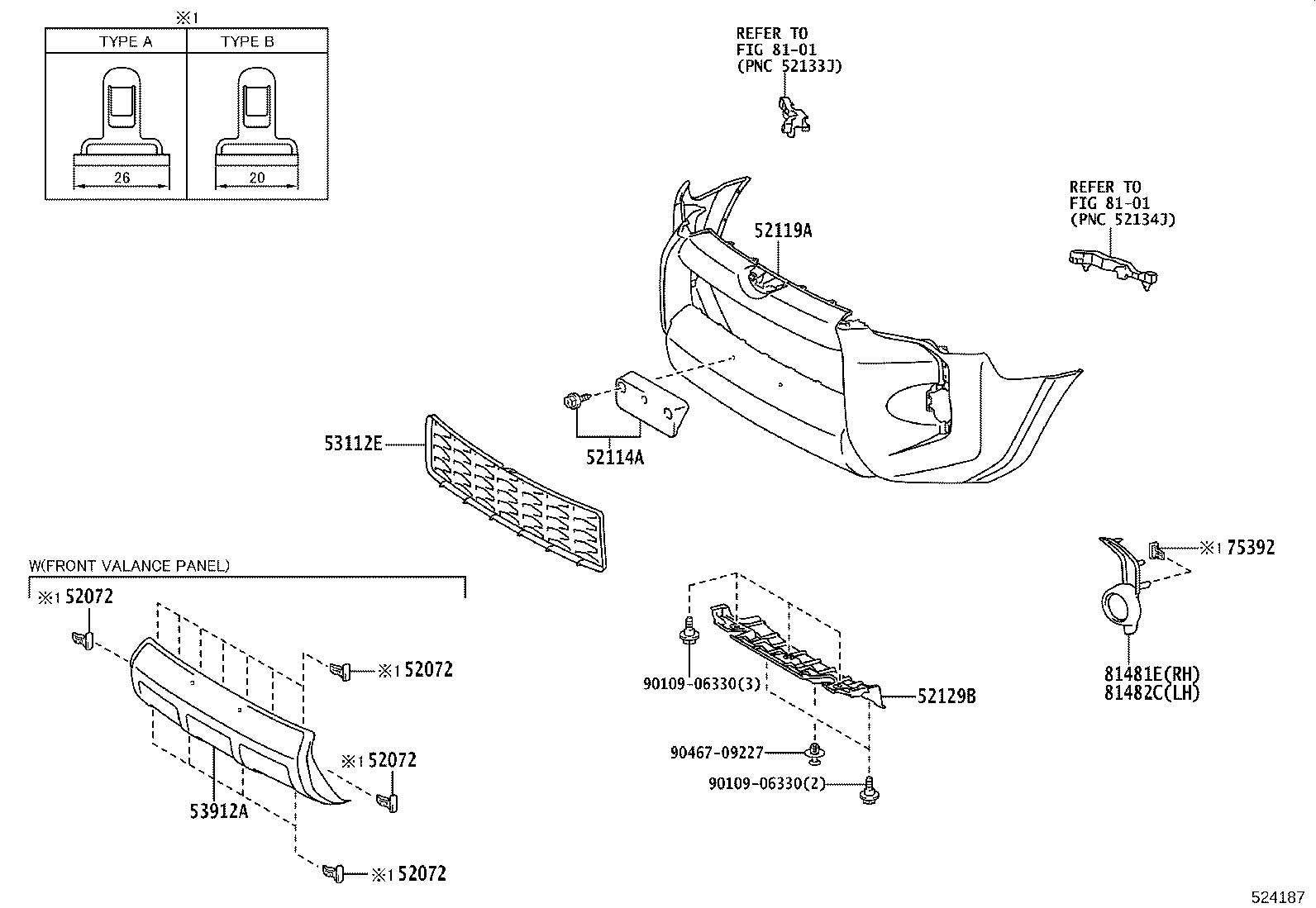

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52072 — Retainer Sub-assy, Front Bumper, Lower | ||||
| 75392-35200 note |
Retainer Sub-assy, Front Bumper, Lower
2014-08 → 2019-08
ended
|
GRN285 | — | |
| 75392-35200 note |
Retainer Sub-assy, Front Bumper, Lower
2018-08 → 2019-08
ended
|
GRN280 | — | |
| 75392-35200 note |
Retainer Sub-assy, Front Bumper, Lower
2013-08 → 2019-08
ended
|
GRN285 | — | |
| 75392-35220 note |
Retainer Sub-assy, Front Bumper, Lower
2013-08 → 2019-08
ended
|
GRN285 | — | |
| 75392-35220 note |
Retainer Sub-assy, Front Bumper, Lower
2014-08 → 2019-08
ended
|
GRN285 | — | |
| 75392-35220 note |
Retainer Sub-assy, Front Bumper, Lower
2018-08 → 2019-08
ended
|
GRN280 | — | |
| 52114A — Bracket, Front Bumper Extension Mounting | ||||
| 52114-35040 |
Bracket, Front Bumper Extension Mounting
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52114-35050 note |
Bracket, Front Bumper Extension Mounting
2018-08 → 2019-08
ended
|
GRN28# | — | |
| 52114-35050 note |
Bracket, Front Bumper Extension Mounting
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52114-35040 |
Bracket, Front Bumper Extension Mounting
2019-08 → —
|
GRN28# | — | |
| 52114-35050 note |
Bracket, Front Bumper Extension Mounting
2019-08 → 2019-11
ended
|
GRN28# | — | |
| 52114-35050 note |
Bracket, Front Bumper Extension Mounting
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 52114-35050 note |
Bracket, Front Bumper Extension Mounting
2021-08 → —
|
GRN28# | — | |
| 52114-35050 note |
Bracket, Front Bumper Extension Mounting
2021-08 → —
|
GRN28# | — | |
| 52114-35050 note |
Bracket, Front Bumper Extension Mounting
2021-08 → —
|
GRN28# | — | |
| 52119A — Cover, Front Bumper | ||||
| 52119-35905 note |
Cover, Front Bumper
2009-08 → 2010-01
ended
|
GRN28# | — | |
| 52119-35905 note |
Cover, Front Bumper
2009-11 → 2010-01
ended
|
TRN280 | — | |
| 52119-35906 note |
Cover, Front Bumper
2009-08 → 2010-01
ended
|
GRN28#,TRN280 | — | |
| 52119-35906 note |
Cover, Front Bumper
2009-08 → 2010-01
ended
|
GRN28# | — | |
| 52119-35907 note |
Cover, Front Bumper
2009-08 → 2010-01
ended
|
GRN285 | — | |
| 52119-35908 note |
Cover, Front Bumper
2010-01 → 2011-08
ended
|
TRN28# | — | |
| 52119-35908 note |
Cover, Front Bumper
2010-01 → 2013-08
ended
|
GRN28# | — | |
| 52119-35909 note |
Cover, Front Bumper
2010-01 → 2011-08
ended
|
TRN28# | — | |
| 52119-35909 note |
Cover, Front Bumper
2010-01 → 2013-08
ended
|
GRN28# | — | |
| 52119-35909 note |
Cover, Front Bumper
2010-01 → 2013-08
ended
|
GRN28# | — | |
| 52119-35910 note |
Cover, Front Bumper
2010-01 → 2013-08
ended
|
GRN285 | — | |
| 52119-35912 note |
Cover, Front Bumper
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52119-35913 note |
Cover, Front Bumper
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52119-35913 note |
Cover, Front Bumper
2018-08 → 2019-08
ended
|
GRN28# | — | |
| 52119-35914 note |
Cover, Front Bumper
2018-08 → 2019-08
ended
|
GRN280 | — | |
| 52119-35914 note |
Cover, Front Bumper
2014-08 → 2019-08
ended
|
GRN285 | — | |
| 52119-35914 note |
Cover, Front Bumper
2013-08 → 2019-08
ended
|
GRN285 | — | |
| 52119-35912 note |
Cover, Front Bumper
2019-08 → 2020-01
ended
|
GRN28# | — | |
| 52119-35913 note |
Cover, Front Bumper
2019-08 → 2020-01
ended
|
GRN28# | — | |
| 52119-35913 note |
Cover, Front Bumper
2019-08 → 2020-01
ended
|
GRN28# | — | |
| 52119-35914 note |
Cover, Front Bumper
2019-08 → 2020-01
ended
|
GRN285 | — | |
| 52119-35914 note |
Cover, Front Bumper
2019-08 → 2020-01
ended
|
GRN285 | — | |
| 52119-35914 note |
Cover, Front Bumper
2019-08 → 2020-01
ended
|
GRN285 | — | |
| 52119-35915 note |
Cover, Front Bumper
2020-01 → 2020-05
ended
|
GRN28# | — | |
| 52119-35916 note |
Cover, Front Bumper
2020-01 → 2020-05
ended
|
GRN28# | — | |
| 52119-35916 note |
Cover, Front Bumper
2020-01 → 2020-05
ended
|
GRN28# | — | |
| 52119-35917 note |
Cover, Front Bumper
2020-01 → 2020-05
ended
|
GRN285 | — | |
| 52119-35917 note |
Cover, Front Bumper
2020-01 → 2020-05
ended
|
GRN285 | — | |
| 52119-35917 note |
Cover, Front Bumper
2020-01 → 2020-05
ended
|
GRN285 | — | |
| 52119-35918 note |
Cover, Front Bumper
2020-05 → —
|
GRN28# | — | |
| 52119-35919 note |
Cover, Front Bumper
2020-05 → 2021-08
ended
|
GRN28# | — | |
| 52119-35919 note |
Cover, Front Bumper
2020-05 → 2021-08
ended
|
GRN28# | — | |
| 52119-35919 note |
Cover, Front Bumper
2021-08 → —
|
GRN28# | — | |
| 52119-35920 note |
Cover, Front Bumper
2020-05 → 2021-08
ended
|
GRN285 | — | |
| 52119-35920 note |
Cover, Front Bumper
2021-08 → —
|
GRN285 | — | |
| 52119-35920 note |
Cover, Front Bumper
2021-08 → —
|
GRN285 | — | |
| 52119-35920 note |
Cover, Front Bumper
2020-05 → —
|
GRN285 | — | |
| 52119-35920 note |
Cover, Front Bumper
2020-05 → 2021-08
ended
|
GRN285 | — | |
| 52119-35921 note |
Cover, Front Bumper
2021-08 → —
|
GRN28# | — | |
| 52119-35921 note |
Cover, Front Bumper
2021-08 → —
|
GRN28# | — | |
| 52129B — Cover, Front Bumper, Lower | ||||
| 52101-35690 note |
Cover, Front Bumper, Lower
2009-08 → 2011-08
ended
|
TRN285 | — | |
| 52101-35690 note |
Cover, Front Bumper, Lower
2009-08 → 2013-08
ended
|
GRN285 | — | |
| 52101-35690 note |
Cover, Front Bumper, Lower
2009-08 → 2013-08
ended
|
GRN285 | — | |
| 52129-35010 |
Cover, Front Bumper, Lower
2009-08 → 2011-08
ended
|
TRN28# | — | |
| 52129-35010 |
Cover, Front Bumper, Lower
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 52101-35700 note |
Cover, Front Bumper, Lower
2018-08 → 2019-08
ended
|
GRN285 | — | |
| 52101-35700 note |
Cover, Front Bumper, Lower
2013-08 → 2019-08
ended
|
GRN285 | — | |
| 52129-35030 |
Cover, Front Bumper, Lower
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52129-35040 note |
Cover, Front Bumper, Lower
2018-08 → 2019-08
ended
|
GRN280 | — | |
| 52129-35040 note |
Cover, Front Bumper, Lower
2013-08 → 2019-08
ended
|
GRN280 | — | |
| 52101-35700 note |
Cover, Front Bumper, Lower
2019-08 → 2021-08
ended
|
GRN285 | — | |
| 52101-35700 note |
Cover, Front Bumper, Lower
2019-08 → —
|
GRN285 | — | |
| 52101-35700 note |
Cover, Front Bumper, Lower
2021-08 → —
|
GRN285 | — | |
| 52129-35030 |
Cover, Front Bumper, Lower
2019-08 → —
|
GRN28# | — | |
| 52129-35040 note |
Cover, Front Bumper, Lower
2019-08 → 2021-08
ended
|
GRN280 | — | |
| 52129-35040 note |
Cover, Front Bumper, Lower
2019-08 → —
|
GRN280 | — | |
| 52129-35040 note |
Cover, Front Bumper, Lower
2021-08 → —
|
GRN280 | — | |
| 53112E — Grille, Radiator, Lower NO.1 | ||||
| 53112-35050 note |
Grille, Radiator, Lower NO.1
2009-11 → 2011-08
ended
|
TRN28# | — | |
| 53112-35050 note |
Grille, Radiator, Lower NO.1
2009-11 → 2011-08
ended
|
TRN28# | — | |
| 53112-35050 note |
Grille, Radiator, Lower NO.1
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 53112-35060 note |
Grille, Radiator, Lower NO.1
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 53112-35090 note |
Grille, Radiator, Lower NO.1
2019-08 → —
|
GRN28# | — | |
| 53112-35110 note |
Grille, Radiator, Lower NO.1
2021-08 → —
|
GRN285 | — | |
| 53112-35110 note |
Grille, Radiator, Lower NO.1
2021-08 → —
|
GRN28# | — | |
| 53112-35110 note |
Grille, Radiator, Lower NO.1
2021-08 → —
|
GRN285 | — | |
| 53912A — Panel, Front Valance, Lower | ||||
| 53901-35210 note |
Panel, Front Valance, Lower
2009-08 → 2013-08
ended
|
GRN285 | — | |
| 53901-35240 note |
Panel, Front Valance, Lower
2013-08 → 2019-08
ended
|
GRN285 | — | |
| 53901-35250 note |
Panel, Front Valance, Lower
2014-08 → 2019-08
ended
|
GRN285 | — | |
| 53901-35250 note |
Panel, Front Valance, Lower
2018-08 → 2019-08
ended
|
GRN280 | — | |
| 53901-35240 note |
Panel, Front Valance, Lower
2019-08 → —
|
GRN285 | — | |
| 53901-35240 note |
Panel, Front Valance, Lower
2021-08 → —
|
GRN285 | — | |
| 53901-35250 note |
Panel, Front Valance, Lower
2019-08 → 2021-08
ended
|
GRN285 | — | |
| 53901-35250 note |
Panel, Front Valance, Lower
2019-08 → 2021-08
ended
|
GRN285 | — | |
| 53901-35250 note |
Panel, Front Valance, Lower
2021-08 → —
|
GRN285 | — | |
| 75392 — Retainer, Outside Moulding | ||||
| 75392-35200 note |
Retainer, Outside Moulding
2009-08 → 2013-08
ended
|
GRN285 | — | |
| 75392-35200 |
Retainer, Outside Moulding
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 75392-35200 note |
Retainer, Outside Moulding
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 75392-35200 note |
Retainer, Outside Moulding
2009-11 → 2011-08
ended
|
TRN28# | — | |
| 75392-35200 note |
Retainer, Outside Moulding
2009-08 → 2011-08
ended
|
TRN28# | — | |
| 75392-35200 note |
Retainer, Outside Moulding
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 75392-35200 note |
Retainer, Outside Moulding
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2018-08 → 2019-08
ended
|
GRN28# | — | |
| 75392-35200 note |
Retainer, Outside Moulding
2019-08 → —
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2021-08 → —
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2021-08 → —
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2021-08 → —
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2019-08 → —
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2019-11 → 2021-08
ended
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2019-08 → 2019-11
ended
|
GRN28# | — | |
| 81481E — Cover, Fog Lamp, RH | ||||
| 52127-35070 note |
Cover, Fog Lamp, RH
2009-08 → 2011-08
ended
|
TRN28# | — | |
| 52127-35070 note |
Cover, Fog Lamp, RH
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 52127-35070 note |
Cover, Fog Lamp, RH
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 52127-35080 |
Cover, Fog Lamp, RH
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 52127-35100 |
Cover, Fog Lamp, RH
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52127-35100 |
Cover, Fog Lamp, RH
2019-08 → 2020-01
ended
|
GRN28# | — | |
| 52127-35100 |
Cover, Fog Lamp, RH
2020-01 → 2020-08
ended
|
GRN28# | — | |
| 52127-35160 |
Cover, Fog Lamp, RH
2020-08 → —
|
GRN28# | — | |
| 81482C — Cover, Fog Lamp, LH | ||||
| 52128-35060 note |
Cover, Fog Lamp, LH
2009-08 → 2011-08
ended
|
TRN28# | — | |
| 52128-35060 note |
Cover, Fog Lamp, LH
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 52128-35060 note |
Cover, Fog Lamp, LH
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 52128-35070 |
Cover, Fog Lamp, LH
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 52128-35080 |
Cover, Fog Lamp, LH
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52128-35080 |
Cover, Fog Lamp, LH
2019-08 → 2020-01
ended
|
GRN28# | — | |
| 52128-35080 |
Cover, Fog Lamp, LH
2020-01 → 2020-08
ended
|
GRN28# | — | |
| 52128-35150 |
Cover, Fog Lamp, LH
2020-08 → —
|
GRN28# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
