Toyota 4Runner
2009-08 → present · chassis GRN28#,TRN28# · catalogue 671490 · United States
Supported model
Data version 2019-08

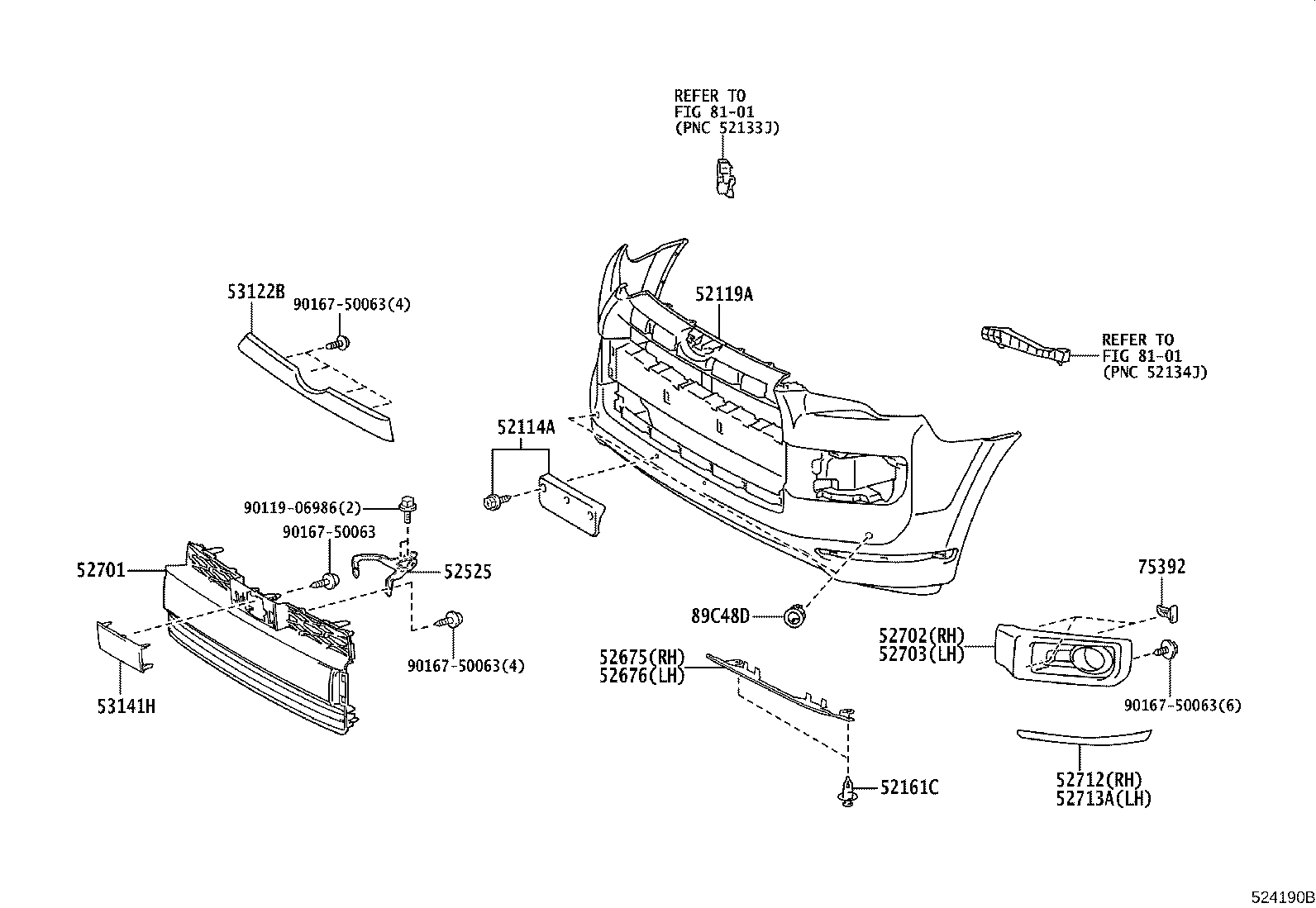

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52114A — Bracket, Front Bumper Extension Mounting | ||||
| 52114-35040 |
Bracket, Front Bumper Extension Mounting
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52114-35050 note |
Bracket, Front Bumper Extension Mounting
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52114-35050 note |
Bracket, Front Bumper Extension Mounting
2018-08 → 2019-08
ended
|
GRN28# | — | |
| 52114-35040 |
Bracket, Front Bumper Extension Mounting
2019-08 → —
|
GRN28# | — | |
| 52114-35050 note |
Bracket, Front Bumper Extension Mounting
2019-08 → 2019-11
ended
|
GRN28# | — | |
| 52114-35050 note |
Bracket, Front Bumper Extension Mounting
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 52114-35050 note |
Bracket, Front Bumper Extension Mounting
2021-08 → —
|
GRN28# | — | |
| 52114-35050 note |
Bracket, Front Bumper Extension Mounting
2021-08 → —
|
GRN28# | — | |
| 52114-35050 note |
Bracket, Front Bumper Extension Mounting
2021-08 → —
|
GRN28# | — | |
| 52119A — Cover, Front Bumper | ||||
| 52119-35905 note |
Cover, Front Bumper
2009-08 → 2010-01
ended
|
GRN28# | — | |
| 52119-35905 note |
Cover, Front Bumper
2009-11 → 2010-01
ended
|
TRN280 | — | |
| 52119-35906 note |
Cover, Front Bumper
2009-08 → 2010-01
ended
|
GRN28# | — | |
| 52119-35906 note |
Cover, Front Bumper
2009-08 → 2010-01
ended
|
GRN28#,TRN280 | — | |
| 52119-35907 note |
Cover, Front Bumper
2009-08 → 2010-01
ended
|
GRN285 | — | |
| 52119-35908 note |
Cover, Front Bumper
2010-01 → 2011-08
ended
|
TRN28# | — | |
| 52119-35908 note |
Cover, Front Bumper
2010-01 → 2013-08
ended
|
GRN28# | — | |
| 52119-35909 note |
Cover, Front Bumper
2010-01 → 2011-08
ended
|
TRN28# | — | |
| 52119-35909 note |
Cover, Front Bumper
2010-01 → 2013-08
ended
|
GRN28# | — | |
| 52119-35909 note |
Cover, Front Bumper
2010-01 → 2013-08
ended
|
GRN28# | — | |
| 52119-35910 note |
Cover, Front Bumper
2010-01 → 2013-08
ended
|
GRN285 | — | |
| 52119-35912 note |
Cover, Front Bumper
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52119-35913 note |
Cover, Front Bumper
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52119-35913 note |
Cover, Front Bumper
2018-08 → 2019-08
ended
|
GRN28# | — | |
| 52119-35914 note |
Cover, Front Bumper
2013-08 → 2019-08
ended
|
GRN285 | — | |
| 52119-35914 note |
Cover, Front Bumper
2018-08 → 2019-08
ended
|
GRN280 | — | |
| 52119-35914 note |
Cover, Front Bumper
2014-08 → 2019-08
ended
|
GRN285 | — | |
| 52119-35912 note |
Cover, Front Bumper
2019-08 → 2020-01
ended
|
GRN28# | — | |
| 52119-35913 note |
Cover, Front Bumper
2019-08 → 2020-01
ended
|
GRN28# | — | |
| 52119-35913 note |
Cover, Front Bumper
2019-08 → 2020-01
ended
|
GRN28# | — | |
| 52119-35914 note |
Cover, Front Bumper
2019-08 → 2020-01
ended
|
GRN285 | — | |
| 52119-35914 note |
Cover, Front Bumper
2019-08 → 2020-01
ended
|
GRN285 | — | |
| 52119-35914 note |
Cover, Front Bumper
2019-08 → 2020-01
ended
|
GRN285 | — | |
| 52119-35915 note |
Cover, Front Bumper
2020-01 → 2020-05
ended
|
GRN28# | — | |
| 52119-35916 note |
Cover, Front Bumper
2020-01 → 2020-05
ended
|
GRN28# | — | |
| 52119-35916 note |
Cover, Front Bumper
2020-01 → 2020-05
ended
|
GRN28# | — | |
| 52119-35917 note |
Cover, Front Bumper
2020-01 → 2020-05
ended
|
GRN285 | — | |
| 52119-35917 note |
Cover, Front Bumper
2020-01 → 2020-05
ended
|
GRN285 | — | |
| 52119-35917 note |
Cover, Front Bumper
2020-01 → 2020-05
ended
|
GRN285 | — | |
| 52119-35918 note |
Cover, Front Bumper
2020-05 → —
|
GRN28# | — | |
| 52119-35919 note |
Cover, Front Bumper
2020-05 → 2021-08
ended
|
GRN28# | — | |
| 52119-35919 note |
Cover, Front Bumper
2020-05 → 2021-08
ended
|
GRN28# | — | |
| 52119-35919 note |
Cover, Front Bumper
2021-08 → —
|
GRN28# | — | |
| 52119-35920 note |
Cover, Front Bumper
2020-05 → 2021-08
ended
|
GRN285 | — | |
| 52119-35920 note |
Cover, Front Bumper
2021-08 → —
|
GRN285 | — | |
| 52119-35920 note |
Cover, Front Bumper
2021-08 → —
|
GRN285 | — | |
| 52119-35920 note |
Cover, Front Bumper
2020-05 → —
|
GRN285 | — | |
| 52119-35920 note |
Cover, Front Bumper
2020-05 → 2021-08
ended
|
GRN285 | — | |
| 52119-35921 note |
Cover, Front Bumper
2021-08 → —
|
GRN28# | — | |
| 52119-35921 note |
Cover, Front Bumper
2021-08 → —
|
GRN28# | — | |
| 52161C — Piece, Front Bumper | ||||
| 52161-16010 note |
Piece, Front Bumper
2009-11 → 2011-08
ended
|
TRN28# | — | |
| 52161-16010 note |
Piece, Front Bumper
2009-11 → 2011-08
ended
|
TRN28# | — | |
| 52161-16010 |
Piece, Front Bumper
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 52161-16010 |
Piece, Front Bumper
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52161-16010 note |
Piece, Front Bumper
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52161-16010 note |
Piece, Front Bumper
2018-08 → 2019-08
ended
|
GRN28# | — | |
| 52161-16010 note |
Piece, Front Bumper
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 52161-16010 note |
Piece, Front Bumper
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 52161-16010 |
Piece, Front Bumper
2019-08 → —
|
GRN28# | — | |
| 52161-16010 note |
Piece, Front Bumper
2021-08 → —
|
GRN28# | — | |
| 52161-16010 note |
Piece, Front Bumper
2021-08 → —
|
GRN28# | — | |
| 52161-16010 note |
Piece, Front Bumper
2021-08 → —
|
GRN28# | — | |
| 52525 — Retainer, Front Bumper, Lower Center | ||||
| 52525-35010 |
Retainer, Front Bumper, Lower Center
2019-08 → —
|
GRN28# | — | |
| 52525-35020 note |
Retainer, Front Bumper, Lower Center
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 52525-35020 note |
Retainer, Front Bumper, Lower Center
2021-08 → —
|
GRN28# | — | |
| 52525-35020 note |
Retainer, Front Bumper, Lower Center
2021-08 → —
|
GRN28# | — | |
| 52525-35020 note |
Retainer, Front Bumper, Lower Center
2021-08 → —
|
GRN28# | — | |
| 52525-35020 note |
Retainer, Front Bumper, Lower Center
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 52525-35030 note |
Retainer, Front Bumper, Lower Center
2021-08 → —
|
GRN285 | — | |
| 52525-35030 note |
Retainer, Front Bumper, Lower Center
2021-08 → —
|
GRN285 | — | |
| 52525-35030 note |
Retainer, Front Bumper, Lower Center
2021-08 → —
|
GRN28# | — | |
| 52675 — Support, Front Bumper Lower Side, RH | ||||
| 52675-35010 note |
Support, Front Bumper Lower Side, RH
2018-08 → 2019-08
ended
|
GRN28# | — | |
| 52675-35010 note |
Support, Front Bumper Lower Side, RH
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52675-35010 note |
Support, Front Bumper Lower Side, RH
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 52675-35010 note |
Support, Front Bumper Lower Side, RH
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 52675-35010 note |
Support, Front Bumper Lower Side, RH
2021-08 → —
|
GRN28# | — | |
| 52675-35010 note |
Support, Front Bumper Lower Side, RH
2021-08 → —
|
GRN28# | — | |
| 52675-35010 note |
Support, Front Bumper Lower Side, RH
2021-08 → —
|
GRN28# | — | |
| 52676 — Support, Front Bumper Lower Side, LH | ||||
| 52676-35010 note |
Support, Front Bumper Lower Side, LH
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52676-35010 note |
Support, Front Bumper Lower Side, LH
2018-08 → 2019-08
ended
|
GRN28# | — | |
| 52676-35010 note |
Support, Front Bumper Lower Side, LH
2021-08 → —
|
GRN28# | — | |
| 52676-35010 note |
Support, Front Bumper Lower Side, LH
2021-08 → —
|
GRN28# | — | |
| 52676-35010 note |
Support, Front Bumper Lower Side, LH
2021-08 → —
|
GRN28# | — | |
| 52676-35010 note |
Support, Front Bumper Lower Side, LH
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 52676-35010 note |
Support, Front Bumper Lower Side, LH
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 52701 — Moulding Sub-assy, Front Bumper | ||||
| 52701-35010 note |
Moulding Sub-assy, Front Bumper
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52701-35020 note |
Moulding Sub-assy, Front Bumper
2018-08 → 2019-08
ended
|
GRN28# | — | |
| 52701-35030 note |
Moulding Sub-assy, Front Bumper
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 52701-35040 note |
Moulding Sub-assy, Front Bumper
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 52701-35060 note |
Moulding Sub-assy, Front Bumper
2021-08 → —
|
GRN28# | — | |
| 52701-35070-A0 note |
Moulding Sub-assy, Front Bumper
2021-08 → —
|
GRN28# | — | |
| 52701-35070-B0 note |
Moulding Sub-assy, Front Bumper
2021-08 → —
|
GRN28# | — | |
| 52701-35070-B1 note |
Moulding Sub-assy, Front Bumper
2021-08 → 2023-10
ended
|
GRN28# | — | |
| 52701-35070-B2 note |
Moulding Sub-assy, Front Bumper
2023-10 → —
|
GRN28# | — | |
| 52701-35070-C0 note |
Moulding Sub-assy, Front Bumper
2021-08 → —
|
GRN28# | — | |
| 52701-35070-D0 note |
Moulding Sub-assy, Front Bumper
2021-08 → —
|
GRN28# | — | |
| 52701-35070-E0 note |
Moulding Sub-assy, Front Bumper
2023-10 → —
|
GRN28# | — | |
| 52701-35070-F0 note |
Moulding Sub-assy, Front Bumper
2022-08 → 2023-10
ended
|
GRN28# | — | |
| 52701-35070-G0 note |
Moulding Sub-assy, Front Bumper
2021-08 → 2022-08
ended
|
GRN28# | — | |
| 52701-35070-G1 note |
Moulding Sub-assy, Front Bumper
2021-08 → 2023-10
ended
|
GRN28# | — | |
| 52701-35070-J0 note |
Moulding Sub-assy, Front Bumper
2021-08 → —
|
GRN28# | — | |
| 52701-35080-A0 note |
Moulding Sub-assy, Front Bumper
2021-08 → —
|
GRN28# | — | |
| 52701-35080-B0 note |
Moulding Sub-assy, Front Bumper
2021-08 → —
|
GRN28# | — | |
| 52701-35080-B1 note |
Moulding Sub-assy, Front Bumper
2021-08 → 2023-10
ended
|
GRN28# | — | |
| 52701-35080-B2 note |
Moulding Sub-assy, Front Bumper
2023-10 → —
|
GRN28# | — | |
| 52701-35080-C0 note |
Moulding Sub-assy, Front Bumper
2021-08 → —
|
GRN28# | — | |
| 52701-35080-D0 note |
Moulding Sub-assy, Front Bumper
2021-08 → —
|
GRN28# | — | |
| 52701-35080-E0 note |
Moulding Sub-assy, Front Bumper
2023-10 → —
|
GRN28# | — | |
| 52701-35080-F0 note |
Moulding Sub-assy, Front Bumper
2022-08 → 2023-10
ended
|
GRN28# | — | |
| 52701-35080-G0 note |
Moulding Sub-assy, Front Bumper
2021-08 → 2022-08
ended
|
GRN28# | — | |
| 52701-35080-G1 note |
Moulding Sub-assy, Front Bumper
2021-08 → 2023-10
ended
|
GRN28# | — | |
| 52701-35080-J0 note |
Moulding Sub-assy, Front Bumper
2021-08 → —
|
GRN28# | — | |
| 52702 — Moulding Sub-assy, Front Bumper Side, RH | ||||
| 52702-35010 note |
Moulding Sub-assy, Front Bumper Side, RH
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52702-35020 note |
Moulding Sub-assy, Front Bumper Side, RH
2018-08 → 2019-08
ended
|
GRN28# | — | |
| 52702-35010 note |
Moulding Sub-assy, Front Bumper Side, RH
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 52702-35010 note |
Moulding Sub-assy, Front Bumper Side, RH
2021-08 → —
|
GRN28# | — | |
| 52702-35020 note |
Moulding Sub-assy, Front Bumper Side, RH
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 52702-35030-A0 note |
Moulding Sub-assy, Front Bumper Side, RH
2021-08 → —
|
GRN28# | — | |
| 52702-35030-A0 note |
Moulding Sub-assy, Front Bumper Side, RH
2021-08 → —
|
GRN28# | — | |
| 52702-35030-B0 note |
Moulding Sub-assy, Front Bumper Side, RH
2021-08 → —
|
GRN28# | — | |
| 52702-35030-B0 note |
Moulding Sub-assy, Front Bumper Side, RH
2021-08 → —
|
GRN28# | — | |
| 52702-35030-B1 note |
Moulding Sub-assy, Front Bumper Side, RH
2021-08 → 2023-10
ended
|
GRN28# | — | |
| 52702-35030-B1 note |
Moulding Sub-assy, Front Bumper Side, RH
2021-08 → 2023-10
ended
|
GRN28# | — | |
| 52702-35030-B2 note |
Moulding Sub-assy, Front Bumper Side, RH
2023-10 → —
|
GRN28# | — | |
| 52702-35030-B2 note |
Moulding Sub-assy, Front Bumper Side, RH
2023-10 → —
|
GRN28# | — | |
| 52702-35030-C0 note |
Moulding Sub-assy, Front Bumper Side, RH
2021-08 → —
|
GRN28# | — | |
| 52702-35030-C0 note |
Moulding Sub-assy, Front Bumper Side, RH
2021-08 → —
|
GRN28# | — | |
| 52702-35030-D0 note |
Moulding Sub-assy, Front Bumper Side, RH
2021-08 → —
|
GRN28# | — | |
| 52702-35030-D0 note |
Moulding Sub-assy, Front Bumper Side, RH
2021-08 → —
|
GRN28# | — | |
| 52702-35030-E0 note |
Moulding Sub-assy, Front Bumper Side, RH
2023-10 → —
|
GRN28# | — | |
| 52702-35030-E0 note |
Moulding Sub-assy, Front Bumper Side, RH
2023-10 → —
|
GRN28# | — | |
| 52702-35030-F0 note |
Moulding Sub-assy, Front Bumper Side, RH
2022-08 → 2023-10
ended
|
GRN28# | — | |
| 52702-35030-F0 note |
Moulding Sub-assy, Front Bumper Side, RH
2022-08 → 2023-10
ended
|
GRN28# | — | |
| 52702-35030-G0 note |
Moulding Sub-assy, Front Bumper Side, RH
2021-08 → 2022-08
ended
|
GRN28# | — | |
| 52702-35030-G0 note |
Moulding Sub-assy, Front Bumper Side, RH
2021-08 → 2022-08
ended
|
GRN28# | — | |
| 52702-35030-G1 note |
Moulding Sub-assy, Front Bumper Side, RH
2021-08 → 2023-10
ended
|
GRN28# | — | |
| 52702-35030-G1 note |
Moulding Sub-assy, Front Bumper Side, RH
2021-08 → 2023-10
ended
|
GRN28# | — | |
| 52702-35030-J0 note |
Moulding Sub-assy, Front Bumper Side, RH
2021-08 → —
|
GRN28# | — | |
| 52702-35030-J0 note |
Moulding Sub-assy, Front Bumper Side, RH
2021-08 → —
|
GRN28# | — | |
| 52703 — Moulding Sub-assy, Front Bumper Side, LH | ||||
| 52703-35010 note |
Moulding Sub-assy, Front Bumper Side, LH
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52703-35020 note |
Moulding Sub-assy, Front Bumper Side, LH
2018-08 → 2019-08
ended
|
GRN28# | — | |
| 52703-35010 note |
Moulding Sub-assy, Front Bumper Side, LH
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 52703-35010 note |
Moulding Sub-assy, Front Bumper Side, LH
2021-08 → —
|
GRN28# | — | |
| 52703-35020 note |
Moulding Sub-assy, Front Bumper Side, LH
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 52703-35030-A0 note |
Moulding Sub-assy, Front Bumper Side, LH
2021-08 → —
|
GRN28# | — | |
| 52703-35030-A0 note |
Moulding Sub-assy, Front Bumper Side, LH
2021-08 → —
|
GRN28# | — | |
| 52703-35030-B0 note |
Moulding Sub-assy, Front Bumper Side, LH
2021-08 → —
|
GRN28# | — | |
| 52703-35030-B0 note |
Moulding Sub-assy, Front Bumper Side, LH
2021-08 → —
|
GRN28# | — | |
| 52703-35030-B1 note |
Moulding Sub-assy, Front Bumper Side, LH
2021-08 → 2023-10
ended
|
GRN28# | — | |
| 52703-35030-B1 note |
Moulding Sub-assy, Front Bumper Side, LH
2021-08 → 2023-10
ended
|
GRN28# | — | |
| 52703-35030-B2 note |
Moulding Sub-assy, Front Bumper Side, LH
2023-10 → —
|
GRN28# | — | |
| 52703-35030-B2 note |
Moulding Sub-assy, Front Bumper Side, LH
2023-10 → —
|
GRN28# | — | |
| 52703-35030-C0 note |
Moulding Sub-assy, Front Bumper Side, LH
2021-08 → —
|
GRN28# | — | |
| 52703-35030-C0 note |
Moulding Sub-assy, Front Bumper Side, LH
2021-08 → —
|
GRN28# | — | |
| 52703-35030-D0 note |
Moulding Sub-assy, Front Bumper Side, LH
2021-08 → —
|
GRN28# | — | |
| 52703-35030-D0 note |
Moulding Sub-assy, Front Bumper Side, LH
2021-08 → —
|
GRN28# | — | |
| 52703-35030-E0 note |
Moulding Sub-assy, Front Bumper Side, LH
2023-10 → —
|
GRN28# | — | |
| 52703-35030-E0 note |
Moulding Sub-assy, Front Bumper Side, LH
2023-10 → —
|
GRN28# | — | |
| 52703-35030-F0 note |
Moulding Sub-assy, Front Bumper Side, LH
2022-08 → 2023-10
ended
|
GRN28# | — | |
| 52703-35030-F0 note |
Moulding Sub-assy, Front Bumper Side, LH
2022-08 → 2023-10
ended
|
GRN28# | — | |
| 52703-35030-G0 note |
Moulding Sub-assy, Front Bumper Side, LH
2021-08 → 2022-08
ended
|
GRN28# | — | |
| 52703-35030-G0 note |
Moulding Sub-assy, Front Bumper Side, LH
2021-08 → 2022-08
ended
|
GRN28# | — | |
| 52703-35030-G1 note |
Moulding Sub-assy, Front Bumper Side, LH
2021-08 → 2023-10
ended
|
GRN28# | — | |
| 52703-35030-G1 note |
Moulding Sub-assy, Front Bumper Side, LH
2021-08 → 2023-10
ended
|
GRN28# | — | |
| 52703-35030-J0 note |
Moulding Sub-assy, Front Bumper Side, LH
2021-08 → —
|
GRN28# | — | |
| 52703-35030-J0 note |
Moulding Sub-assy, Front Bumper Side, LH
2021-08 → —
|
GRN28# | — | |
| 52712 — Moulding, Front Bumper Side, RH | ||||
| 52712-35010 note |
Moulding, Front Bumper Side, RH
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52712-35010 note |
Moulding, Front Bumper Side, RH
2018-08 → 2019-08
ended
|
GRN28# | — | |
| 52712-35010 note |
Moulding, Front Bumper Side, RH
2019-08 → 2019-11
ended
|
GRN28# | — | |
| 52712-35010 note |
Moulding, Front Bumper Side, RH
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 52712-35010 note |
Moulding, Front Bumper Side, RH
2021-08 → —
|
GRN28# | — | |
| 52712-35020-A0 note |
Moulding, Front Bumper Side, RH
2021-08 → —
|
GRN28# | — | |
| 52712-35020-A0 note |
Moulding, Front Bumper Side, RH
2021-08 → —
|
GRN28# | — | |
| 52712-35020-B0 note |
Moulding, Front Bumper Side, RH
2021-08 → —
|
GRN28# | — | |
| 52712-35020-B0 note |
Moulding, Front Bumper Side, RH
2021-08 → —
|
GRN28# | — | |
| 52712-35020-B1 note |
Moulding, Front Bumper Side, RH
2021-08 → 2023-10
ended
|
GRN28# | — | |
| 52712-35020-B1 note |
Moulding, Front Bumper Side, RH
2021-08 → 2023-10
ended
|
GRN28# | — | |
| 52712-35020-B2 note |
Moulding, Front Bumper Side, RH
2023-10 → —
|
GRN28# | — | |
| 52712-35020-B2 note |
Moulding, Front Bumper Side, RH
2023-10 → —
|
GRN28# | — | |
| 52712-35020-C0 note |
Moulding, Front Bumper Side, RH
2021-08 → —
|
GRN28# | — | |
| 52712-35020-C0 note |
Moulding, Front Bumper Side, RH
2021-08 → —
|
GRN28# | — | |
| 52712-35020-D0 note |
Moulding, Front Bumper Side, RH
2021-08 → —
|
GRN28# | — | |
| 52712-35020-D0 note |
Moulding, Front Bumper Side, RH
2021-08 → —
|
GRN28# | — | |
| 52712-35020-E0 note |
Moulding, Front Bumper Side, RH
2023-10 → —
|
GRN28# | — | |
| 52712-35020-E0 note |
Moulding, Front Bumper Side, RH
2023-10 → —
|
GRN28# | — | |
| 52712-35020-F0 note |
Moulding, Front Bumper Side, RH
2022-08 → 2023-10
ended
|
GRN28# | — | |
| 52712-35020-F0 note |
Moulding, Front Bumper Side, RH
2022-08 → 2023-10
ended
|
GRN28# | — | |
| 52712-35020-G0 note |
Moulding, Front Bumper Side, RH
2021-08 → 2022-08
ended
|
GRN28# | — | |
| 52712-35020-G0 note |
Moulding, Front Bumper Side, RH
2021-08 → 2022-08
ended
|
GRN28# | — | |
| 52712-35020-G1 note |
Moulding, Front Bumper Side, RH
2021-08 → 2023-10
ended
|
GRN28# | — | |
| 52712-35020-G1 note |
Moulding, Front Bumper Side, RH
2021-08 → 2023-10
ended
|
GRN28# | — | |
| 52712-35020-J0 note |
Moulding, Front Bumper Side, RH
2021-08 → —
|
GRN28# | — | |
| 52712-35020-J0 note |
Moulding, Front Bumper Side, RH
2021-08 → —
|
GRN28# | — | |
| 52713A — Moulding, Front Bumper Side, LH | ||||
| 52713-35010 note |
Moulding, Front Bumper Side, LH
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 52713-35010 note |
Moulding, Front Bumper Side, LH
2018-08 → 2019-08
ended
|
GRN28# | — | |
| 52713-35010 note |
Moulding, Front Bumper Side, LH
2019-08 → 2019-11
ended
|
GRN28# | — | |
| 52713-35010 note |
Moulding, Front Bumper Side, LH
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 52713-35010 note |
Moulding, Front Bumper Side, LH
2021-08 → —
|
GRN28# | — | |
| 52713-35020-A0 note |
Moulding, Front Bumper Side, LH
2021-08 → —
|
GRN28# | — | |
| 52713-35020-A0 note |
Moulding, Front Bumper Side, LH
2021-08 → —
|
GRN28# | — | |
| 52713-35020-B0 note |
Moulding, Front Bumper Side, LH
2021-08 → —
|
GRN28# | — | |
| 52713-35020-B0 note |
Moulding, Front Bumper Side, LH
2021-08 → —
|
GRN28# | — | |
| 52713-35020-B1 note |
Moulding, Front Bumper Side, LH
2021-08 → 2023-10
ended
|
GRN28# | — | |
| 52713-35020-B1 note |
Moulding, Front Bumper Side, LH
2021-08 → 2023-10
ended
|
GRN28# | — | |
| 52713-35020-B2 note |
Moulding, Front Bumper Side, LH
2023-10 → —
|
GRN28# | — | |
| 52713-35020-B2 note |
Moulding, Front Bumper Side, LH
2023-10 → —
|
GRN28# | — | |
| 52713-35020-C0 note |
Moulding, Front Bumper Side, LH
2021-08 → —
|
GRN28# | — | |
| 52713-35020-C0 note |
Moulding, Front Bumper Side, LH
2021-08 → —
|
GRN28# | — | |
| 52713-35020-D0 note |
Moulding, Front Bumper Side, LH
2021-08 → —
|
GRN28# | — | |
| 52713-35020-D0 note |
Moulding, Front Bumper Side, LH
2021-08 → —
|
GRN28# | — | |
| 52713-35020-E0 note |
Moulding, Front Bumper Side, LH
2023-10 → —
|
GRN28# | — | |
| 52713-35020-E0 note |
Moulding, Front Bumper Side, LH
2023-10 → —
|
GRN28# | — | |
| 52713-35020-F0 note |
Moulding, Front Bumper Side, LH
2022-08 → 2023-10
ended
|
GRN28# | — | |
| 52713-35020-F0 note |
Moulding, Front Bumper Side, LH
2022-08 → 2023-10
ended
|
GRN28# | — | |
| 52713-35020-G0 note |
Moulding, Front Bumper Side, LH
2021-08 → 2022-08
ended
|
GRN28# | — | |
| 52713-35020-G0 note |
Moulding, Front Bumper Side, LH
2021-08 → 2022-08
ended
|
GRN28# | — | |
| 52713-35020-G1 note |
Moulding, Front Bumper Side, LH
2021-08 → 2023-10
ended
|
GRN28# | — | |
| 52713-35020-G1 note |
Moulding, Front Bumper Side, LH
2021-08 → 2023-10
ended
|
GRN28# | — | |
| 52713-35020-J0 note |
Moulding, Front Bumper Side, LH
2021-08 → —
|
GRN28# | — | |
| 52713-35020-J0 note |
Moulding, Front Bumper Side, LH
2021-08 → —
|
GRN28# | — | |
| 53122B — Moulding, Radiator Grille, NO.2 | ||||
| 53122-35060 note |
Moulding, Radiator Grille, NO.2
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 53122-35080 note |
Moulding, Radiator Grille, NO.2
2018-08 → 2019-08
ended
|
GRN28# | — | |
| 53122-35060 note |
Moulding, Radiator Grille, NO.2
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 53122-35060 note |
Moulding, Radiator Grille, NO.2
2021-08 → —
|
GRN28# | — | |
| 53122-35080 note |
Moulding, Radiator Grille, NO.2
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 53122-35110-A0 note |
Moulding, Radiator Grille, NO.2
2021-08 → —
|
GRN28# | — | |
| 53122-35110-A0 note |
Moulding, Radiator Grille, NO.2
2021-08 → —
|
GRN28# | — | |
| 53122-35110-B0 note |
Moulding, Radiator Grille, NO.2
2021-08 → —
|
GRN28# | — | |
| 53122-35110-B0 note |
Moulding, Radiator Grille, NO.2
2021-08 → —
|
GRN28# | — | |
| 53122-35110-B1 note |
Moulding, Radiator Grille, NO.2
2021-08 → 2023-10
ended
|
GRN28# | — | |
| 53122-35110-B1 note |
Moulding, Radiator Grille, NO.2
2021-08 → 2023-10
ended
|
GRN28# | — | |
| 53122-35110-B2 note |
Moulding, Radiator Grille, NO.2
2023-10 → —
|
GRN28# | — | |
| 53122-35110-B2 note |
Moulding, Radiator Grille, NO.2
2023-10 → —
|
GRN28# | — | |
| 53122-35110-C0 note |
Moulding, Radiator Grille, NO.2
2021-08 → —
|
GRN28# | — | |
| 53122-35110-C0 note |
Moulding, Radiator Grille, NO.2
2021-08 → —
|
GRN28# | — | |
| 53122-35110-D0 note |
Moulding, Radiator Grille, NO.2
2021-08 → —
|
GRN28# | — | |
| 53122-35110-D0 note |
Moulding, Radiator Grille, NO.2
2021-08 → —
|
GRN28# | — | |
| 53122-35110-E0 note |
Moulding, Radiator Grille, NO.2
2023-10 → —
|
GRN28# | — | |
| 53122-35110-E0 note |
Moulding, Radiator Grille, NO.2
2023-10 → —
|
GRN28# | — | |
| 53122-35110-F0 note |
Moulding, Radiator Grille, NO.2
2022-08 → 2023-10
ended
|
GRN28# | — | |
| 53122-35110-F0 note |
Moulding, Radiator Grille, NO.2
2022-08 → 2023-10
ended
|
GRN28# | — | |
| 53122-35110-G0 note |
Moulding, Radiator Grille, NO.2
2021-08 → 2022-08
ended
|
GRN28# | — | |
| 53122-35110-G0 note |
Moulding, Radiator Grille, NO.2
2021-08 → 2022-08
ended
|
GRN28# | — | |
| 53122-35110-G1 note |
Moulding, Radiator Grille, NO.2
2021-08 → 2023-10
ended
|
GRN28# | — | |
| 53122-35110-G1 note |
Moulding, Radiator Grille, NO.2
2021-08 → 2023-10
ended
|
GRN28# | — | |
| 53122-35110-J0 note |
Moulding, Radiator Grille, NO.2
2021-08 → —
|
GRN28# | — | |
| 53122-35110-J0 note |
Moulding, Radiator Grille, NO.2
2021-08 → —
|
GRN28# | — | |
| 53141H — Garnish, Radiator Grille | ||||
| 53141-35050 |
Garnish, Radiator Grille
2020-08 → —
|
GRN28# | — | |
| 53141-35070 |
Garnish, Radiator Grille
2019-08 → 2020-08
ended
|
GRN28# | — | |
| 75392 — Retainer, Outside Moulding | ||||
| 75392-35200 note |
Retainer, Outside Moulding
2009-08 → 2011-08
ended
|
TRN28# | — | |
| 75392-35200 note |
Retainer, Outside Moulding
2009-11 → 2011-08
ended
|
TRN28# | — | |
| 75392-35200 note |
Retainer, Outside Moulding
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 75392-35200 note |
Retainer, Outside Moulding
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 75392-35200 |
Retainer, Outside Moulding
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 75392-35200 note |
Retainer, Outside Moulding
2009-08 → 2013-08
ended
|
GRN285 | — | |
| 75392-35200 note |
Retainer, Outside Moulding
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2018-08 → 2019-08
ended
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 75392-35200 note |
Retainer, Outside Moulding
2019-08 → —
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2019-08 → 2019-11
ended
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2019-11 → 2021-08
ended
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2019-08 → —
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2021-08 → —
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2021-08 → —
|
GRN28# | — | |
| 75392-35220 note |
Retainer, Outside Moulding
2021-08 → —
|
GRN28# | — | |
| 89C48D — Retainer, Ultrasonic Sensor, Front Corner | ||||
| 89348-64030-A0 note |
Retainer, Ultrasonic Sensor, Front Corner
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 89348-64030-A0 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-08 → 2019-08
ended
|
GRN28# | — | |
| 89348-64030-B1 note |
Retainer, Ultrasonic Sensor, Front Corner
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 89348-64030-B1 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-08 → 2019-08
ended
|
GRN28# | — | |
| 89348-64030-B2 note |
Retainer, Ultrasonic Sensor, Front Corner
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 89348-64030-B2 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-08 → 2019-08
ended
|
GRN28# | — | |
| 89348-64030-C3 note |
Retainer, Ultrasonic Sensor, Front Corner
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 89348-64030-C3 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-08 → 2019-08
ended
|
GRN28# | — | |
| 89348-64030-D0 note |
Retainer, Ultrasonic Sensor, Front Corner
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 89348-64030-D0 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-08 → 2019-08
ended
|
GRN28# | — | |
| 89348-64030-J0 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-08 → 2019-08
ended
|
GRN28# | — | |
| 89348-64030-J0 note |
Retainer, Ultrasonic Sensor, Front Corner
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 89348-64030-A0 note |
Retainer, Ultrasonic Sensor, Front Corner
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 89348-64030-A0 note |
Retainer, Ultrasonic Sensor, Front Corner
2019-08 → 2023-10
ended
|
GRN28# | — | |
| 89348-64030-A3 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
GRN28# | — | |
| 89348-64030-B1 note |
Retainer, Ultrasonic Sensor, Front Corner
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 89348-64030-B1 note |
Retainer, Ultrasonic Sensor, Front Corner
2019-08 → 2023-10
ended
|
GRN28# | — | |
| 89348-64030-B2 note |
Retainer, Ultrasonic Sensor, Front Corner
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 89348-64030-B2 note |
Retainer, Ultrasonic Sensor, Front Corner
2019-08 → —
|
GRN28# | — | |
| 89348-64030-B8 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
GRN28# | — | |
| 89348-64030-C3 note |
Retainer, Ultrasonic Sensor, Front Corner
2019-08 → —
|
GRN28# | — | |
| 89348-64030-C3 note |
Retainer, Ultrasonic Sensor, Front Corner
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 89348-64030-D0 note |
Retainer, Ultrasonic Sensor, Front Corner
2019-08 → —
|
GRN28# | — | |
| 89348-64030-D0 note |
Retainer, Ultrasonic Sensor, Front Corner
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 89348-64030-G0 note |
Retainer, Ultrasonic Sensor, Front Corner
2021-08 → 2022-08
ended
|
GRN28# | — | |
| 89348-64030-J0 note |
Retainer, Ultrasonic Sensor, Front Corner
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 89348-64030-J0 note |
Retainer, Ultrasonic Sensor, Front Corner
2019-08 → —
|
GRN28# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
